Design Guide - Stainless Steel Installation

CUSTOMIZATION BASICS:

Framed Or Overlay Panels, Custom
Handles and Accessory Kits
Professional Style Stainless Steel Refrigerators
Stainless steel wrapped refrigerators with beveled edges
and professional style handles. These models are shipped
ready for installation.
Stainless Steel Wrapped Refrigerators
Stainless steel wrapped refrigerators with beveled edges
and tubular stainless steel handles that coordinate with
other Monogram appliances. These models are shipped
ready for installation.

Side Panels

Side panels must be used whenever the sides of the
refrigerator will be exposed.

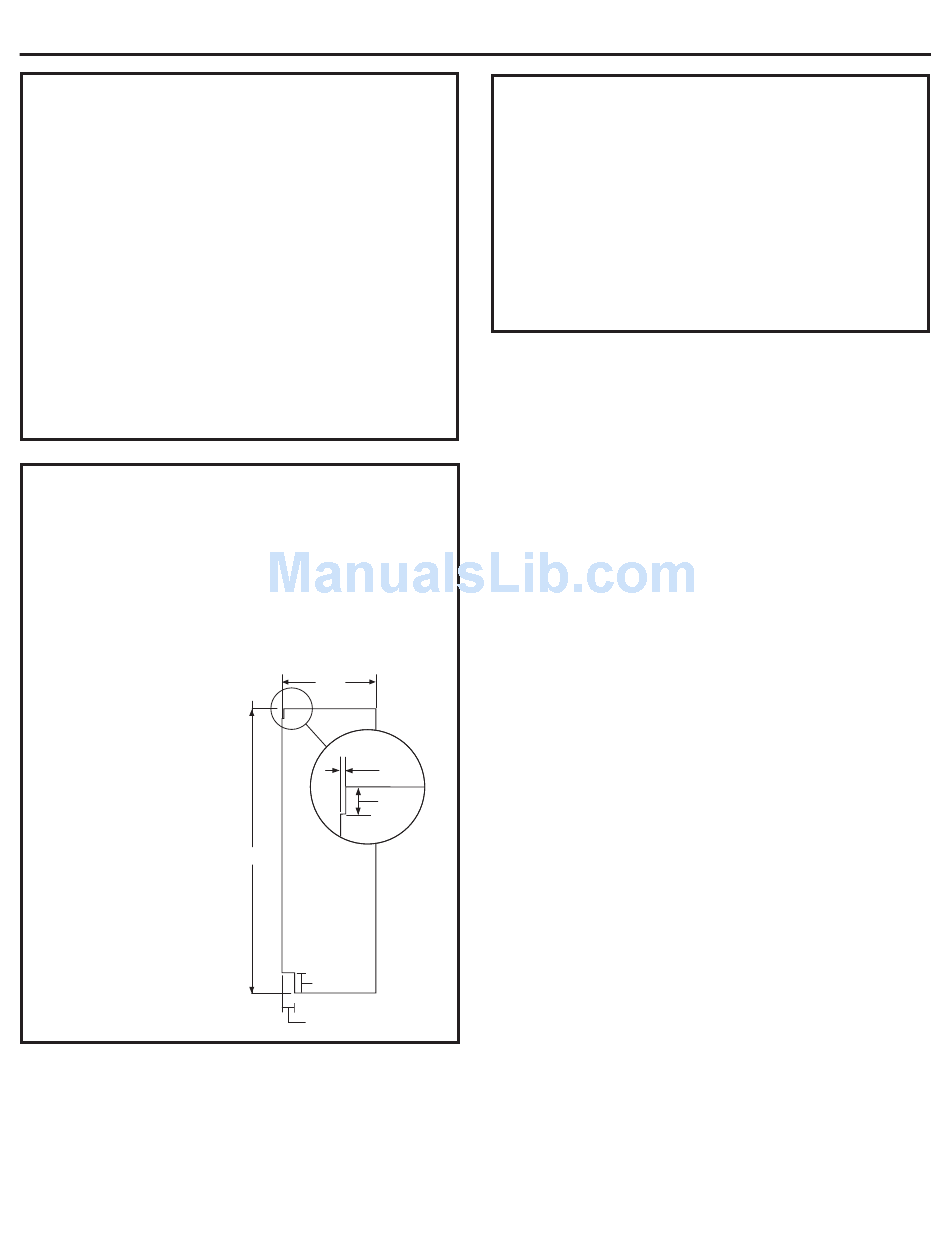

SIDE PANELS
Side panels must be used whenever the sides of the
refrigerator will be exposed. The 1/4
slip into the side case trim. Secure the panels to the
refrigerator with stick-on hook and loop fastener strips.
Order the side panels from the cabinet manufacturer.
• Cut a notch in the top front corner as shown to allow
clearance for corner keys in the front side trim.
* Depending on
installation height.
side panels will
"
24"
3/16"
1-7/8"
*84"
*3" to 4"
2-9/16"

REFRIGERATOR LOCATION

• Do not install the refrigerator where the temperature
will go below 60°F (16°C). It will not run often enough
to maintain proper temperatures.
• Do not install the refrigerator where temperatures will
go above 100°F (37°C). It will not perform properly.
• Do not install the refrigerator in a location exposed to
water (rain, etc.) or direct sunlight.
• Install it on a floor strong enough to support it fully
loaded.
