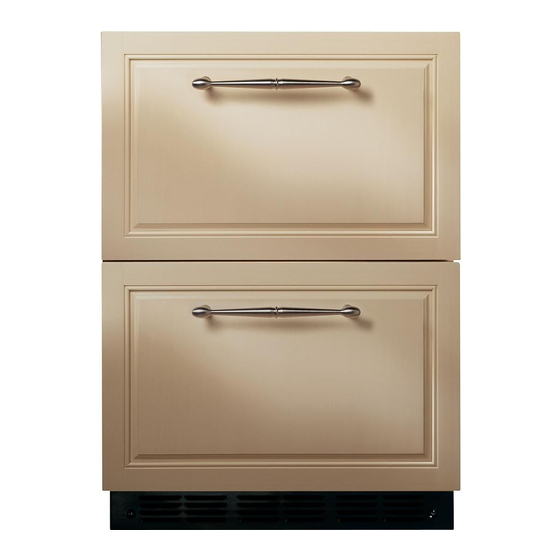

Double-drawer built-in refrigerator
Hide thumbs
Also See for ZIDI240:
- Owner's manual (21 pages) ,
- Installation instructions manual (12 pages) ,
- Design manual with installation instructions (8 pages)
Table of Contents
Advertisement
Quick Links
Download this manual
See also:
Owner's Manual
Advertisement
Table of Contents
Related Manuals for Monogram ZIDI240
Summary of Contents for Monogram ZIDI240
- Page 1 Installation Instructions If you have questions, call 800.626.2000 or visit our website at: www.monogram.com Double-Drawer Built-In Refrigerator ZIDI240 ZIDS240 Design Guide With Installation Instructions...
-
Page 2: Safety Information
Skill Level – Installation requires basic mechanical qualifié. skills. Proper installation is the responsibility of the For Monogram local service in your area, call installer. Product failure due to improper installation 1.800.444.1845 is not covered under the GE Appliance Warranty. -
Page 3: Table Of Contents
. To preserve and ™ • Backer panels protect the fine finish we also strongly advise that • Screws you apply stainless steel cleaner monthly. TOOLS REQUIRED • Adjustable wrench • Carpenter’s glue (ZIDI240 model only) • Screwdriver (ZIDI240 model only) -
Page 4: Design Guide (For Zids240)
Design Guide FOR MODEL ZIDS240 WITH STAINLESS STEEL DRAWERS AND HANDLES THE INSTALLATION SPACE PRODUCT CLEARANCES IMPORTANT: Double-Drawer Refrigerators are When installed Countertop in a corner: designed to be built-in only. They cannot be used free-standing. Double-Drawer Locate Outlet 8-1/2" 10-1/2"... -
Page 5: Design Guide (For Zidi240)
Design Guide FOR MODEL ZIDI240 WITH CUSTOM DRAWER PANELS AND HANDLES THE INSTALLATION SPACE PRODUCT CLEARANCES IMPORTANT: Double-Drawer Refrigerators are When installed Countertop designed to be built-in only. They cannot be used in a corner: free-standing. Double-Drawer Locate Outlet 8-1/2"... -
Page 6: Installation Instructions
STEP 2 INSTALL CUSTOM 3/4″ DRAWER PANELS AND HANDLES (ZIDI240 model only) 3/4″ Overlay Panel Dimensions Model ZIDI240 requires field- installed overlay drawer panels. • Custom handles of your choice, supplied by your Overlay Panel • The overlay panels must be cabinet maker, must be installed onto the overlay secured to 1/4″... -
Page 7: Step 3 Level
HANDLES (CONT.) the leveling legs. • Measure floor to countertop height inside the (ZIDI240 model only) opening. Adjust leveling legs until the product is approximately 1/8″ less than countertop height. • Reinstall the side trims using the trim screws removed earlier. -
Page 8: Step 4 Connect Power
NOTE: While performing installations described in this book, safety glasses or goggles should be worn. For Monogram ® local service in your area, call 1.800.444.1845. NOTE: Product improvement is a continuing endeavor at General Electric.
