Design Guide - Standard Installation

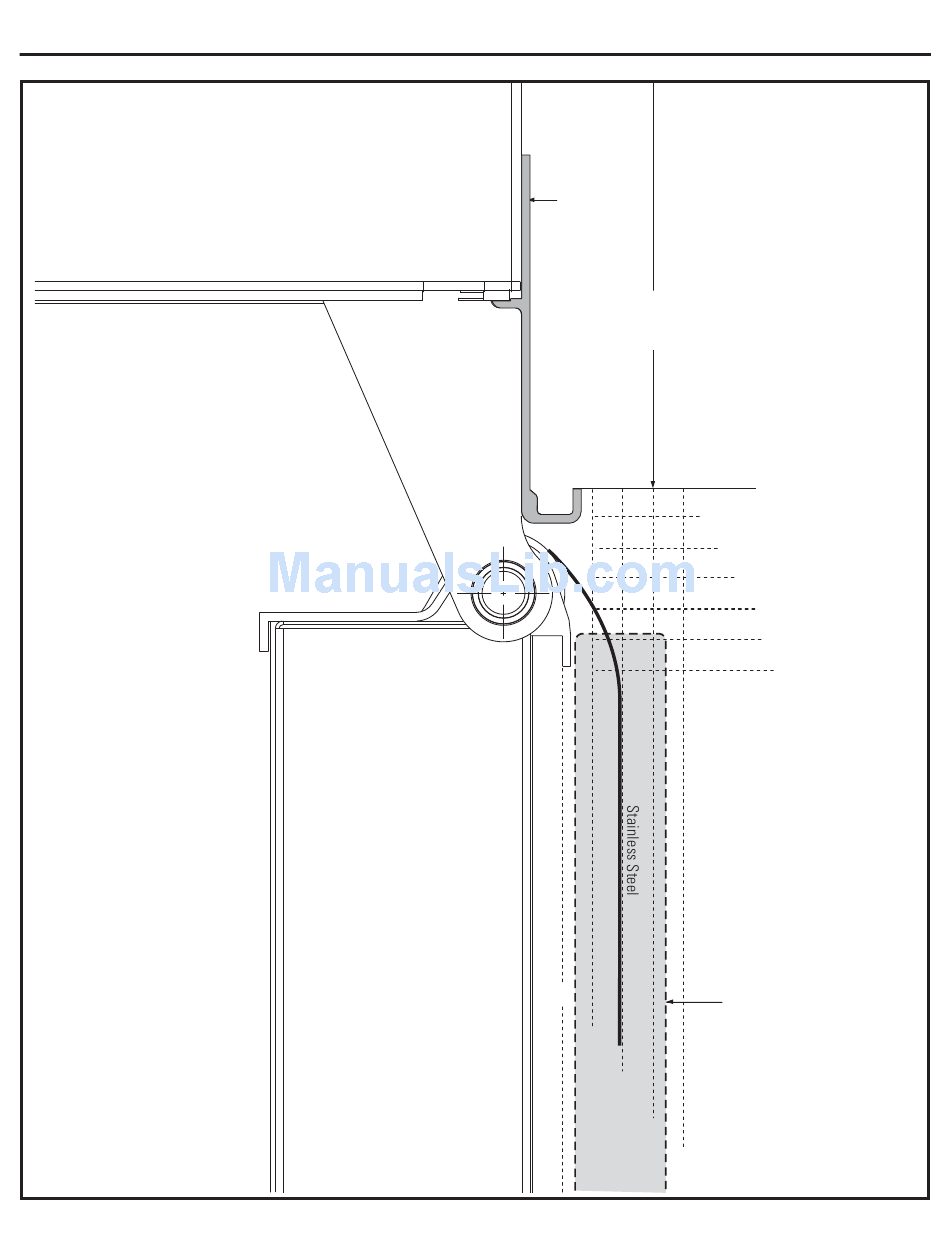

Top View
90° DOOR SWING
Scale 1:1
Refrigerator
Door
Case Trim
23-7/8"
From Rear of
Refrigerator
1/4"
1/2"
3/4"
11
Frameless Cabinets:
The case trim overlaps
cabinets at the top and
sides. Therefore, frameless
cabinets may require
filler strips to prevent
interference with cabinet
door swing. The opening
must allow for filler strips.
1/4"
1/2"
3/4"
1"
1-1/4"
1-1/2"
3/4" Overlay
Panel
(Nominal Size)
1"
1-1/4"
