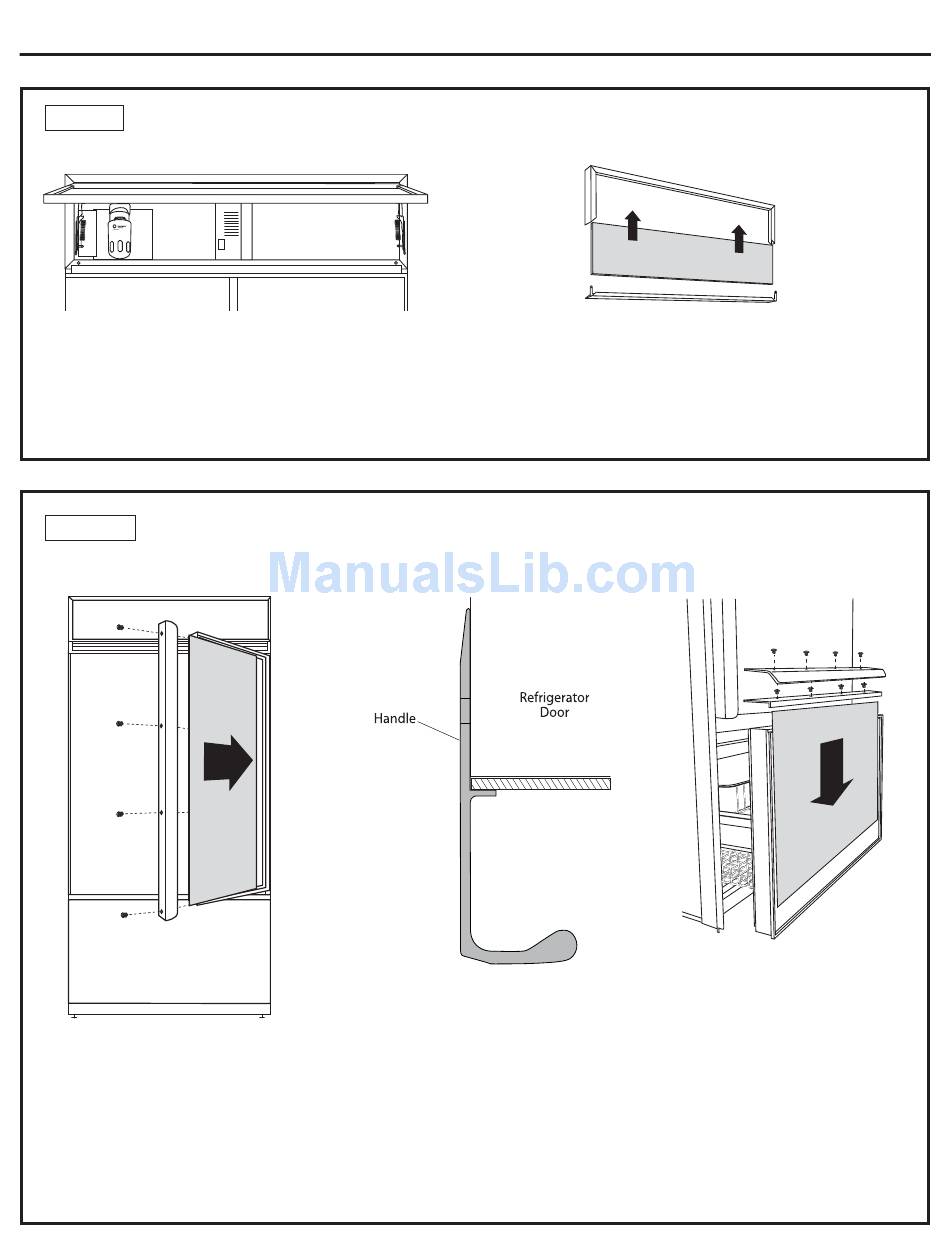

STEP 9 INSTALL GRILLE PANEL

• Raise the access panel to the stop position.
• Loosen the screws on the side trim behind the frame.
Remove the bottom trim.
• Slide the panel over the metal baker panel and into the
trim.
• If necessary, tap with a wood block until the panel slips
under the top trim piece.

STEP 10 INSTALL 1/4" FRAMED PANELS

Install door and drawer panels:
• Open door to 90°. Remove the 4 Phillips head screws
from the door handle.
• Remove handle. Retain all screws.
• Slide framed panel into the door trim.
• Reassemble the bottom trim. Tighten the screws.
• Adjust the hinge spring to accommodate the panel
weight, if necessary.
IF YOU ARE INSTALLING OVERLAY PANELS,
GO TO STEP 10A.
Standard supplied handle shown
• Secure the handle to the door using the screws removed
earlier.
• Follow the same procedures to install the second door
panel.
• For freezer drawer, once panel is installed, use rear 4
screws holes to install the top freezer door trim and align
the handle to the remaining screw holes.
