Design Guide - Standard Installation
Refrigerator

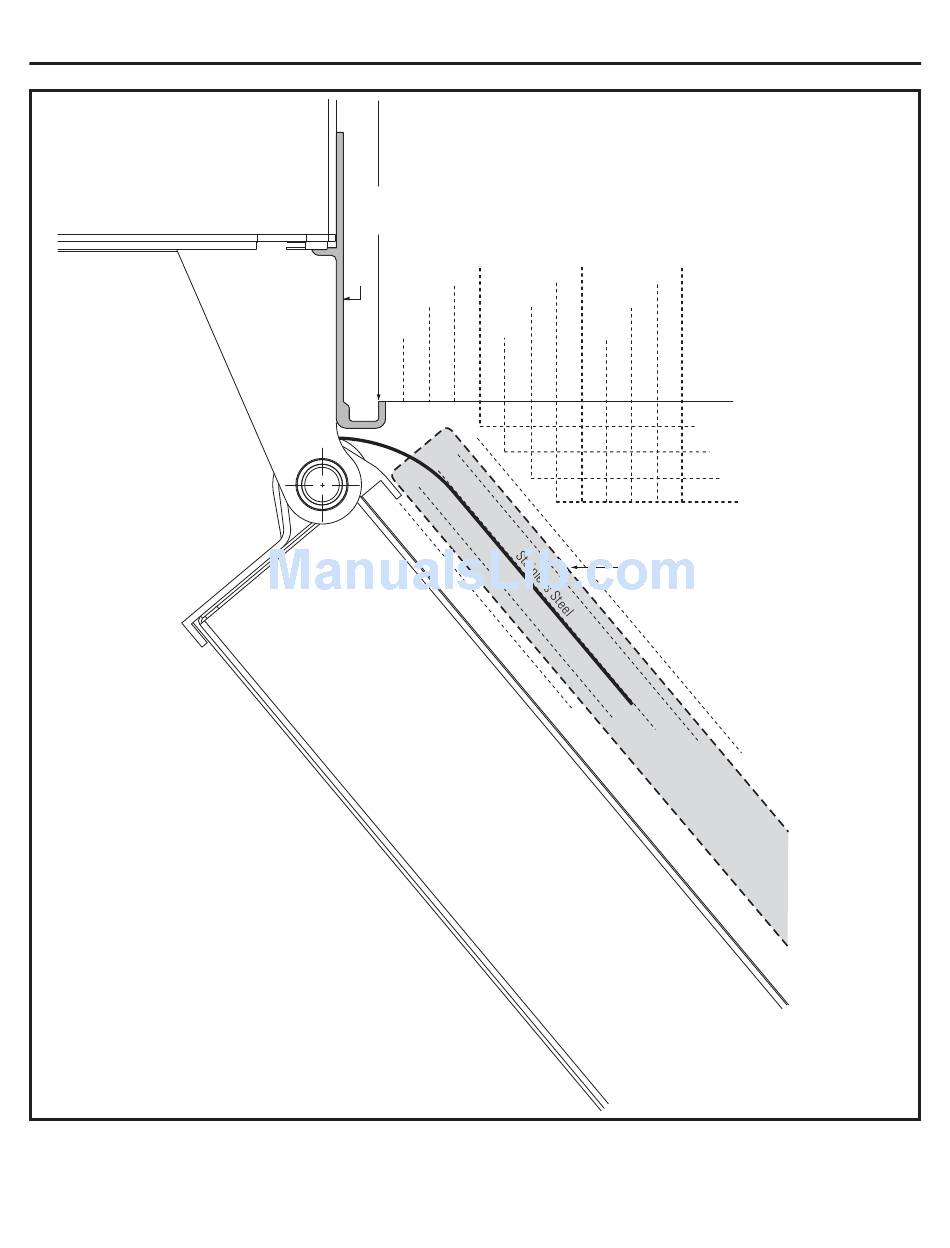

Top View
130° DOOR SWING
Scale 1:1
23-7/8" From
Rear of
Refrigerator
1"
Case
3/4"
Trim
1-1/2"
1/2"
1/4" 1-1/4"
Door
10
Frameless Cabinets: The case trim
overlaps cabinets at the top and sides.
Therefore, frameless cabinets
may require filler strips to prevent
interference with cabinet door swing.
The opening must allow for filler strips.
2" 3"
1-3/4" 2-3/4"
2-1/2"
2-1/4"
1/4"
1/2"
3/4" Overlay
Panel
(Nominal Size)
1/4"
1/2"
3/4"
1"
3/4"
1"
1-1/4"
