3/4" Overlay Panel Dimensions - Monogram ZIP360NH Installation Instructions Manual

Design Guide - Standard Installation

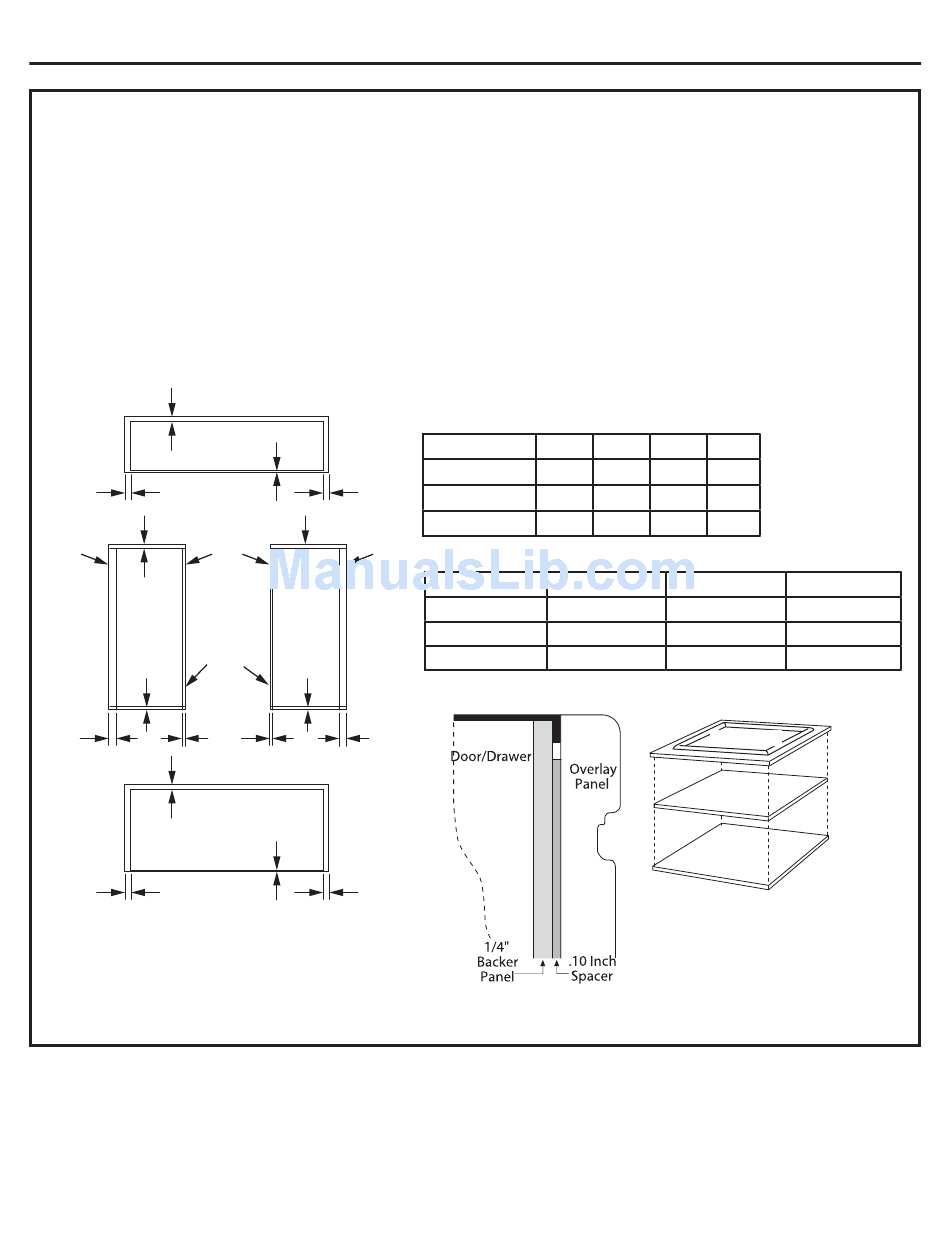

3/4" OVERLAY PANEL DIMENSIONS

For a more custom appearance, overlay panels may be installed
on trimmed models. The overlay panel must be secured to a
1/4 thick backer panel which slides into the trim. A spacer
"
panel 0.10 thick must be placed between the overlay and
"
backer panel.
Assemble the panels with glue and screws.
• Center the spacer panel on the backer panel, left to right and
top to bottom. Secure the panels with glue.
• Refer to the following chart for locating the backer panel to
the overlay panel. Secure the overlay panel to the backer
panel with glue and screws. Screws must be countersunk into
the backer panel.
Grille Back
C
A
Handle
Hinge
Side
Side
C
Fresh
Backer with
Food
Overlay Panel
Back
Assembly
D
B
A
Freezer Back
C
A
.25" + .10" + .75" = 1.10" Total Panel Thickness
NOTE: Left-to-right offset is not always equal to
top-to-bottom offset.
B
D
Hinge
Side
C
Fresh
Food
Back
D
B A
B
D
Panel Locations
A
Door Panels 1/8"
Drawer Panel 1/8"
Grille Panel 1/8"
Panel Dimensions
Fresh Food
1/4" Backer Panel 46-1/16" x 16-1/2"
.10" Spacer Panel 44-11/16" x 15"
3/4" Overlay Panel 46-5/16" x 16-5/8"
8
B C D
0 1/8" 1/8"
1/8" 1/16" 1/16"
1/8" 1/16" 1/16"
Freezer
33-7/8" x 21-7/8"
32-1/2" x 20-1/2"
34-1/8" x 22"
Overlay Panel
Spacer Panel
Backer Panel
IMPORTANT NOTE: Maximum
total weight for the assembled
panels:
• Fresh food door panels – 30 lbs.
• Freezer drawer panel – 28 lbs.
• Grille Panel – 11 lbs.
Grille
33-7/8" x 8-7/8"
32-1/2" x 7-5/8"
34-1/8" x 9"
