Owner's Manual
Multimedia Projector
Model EK-600U/ EK-601W

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EK-600U and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eiki EK-600U

Summary of Contents for Eiki EK-600U

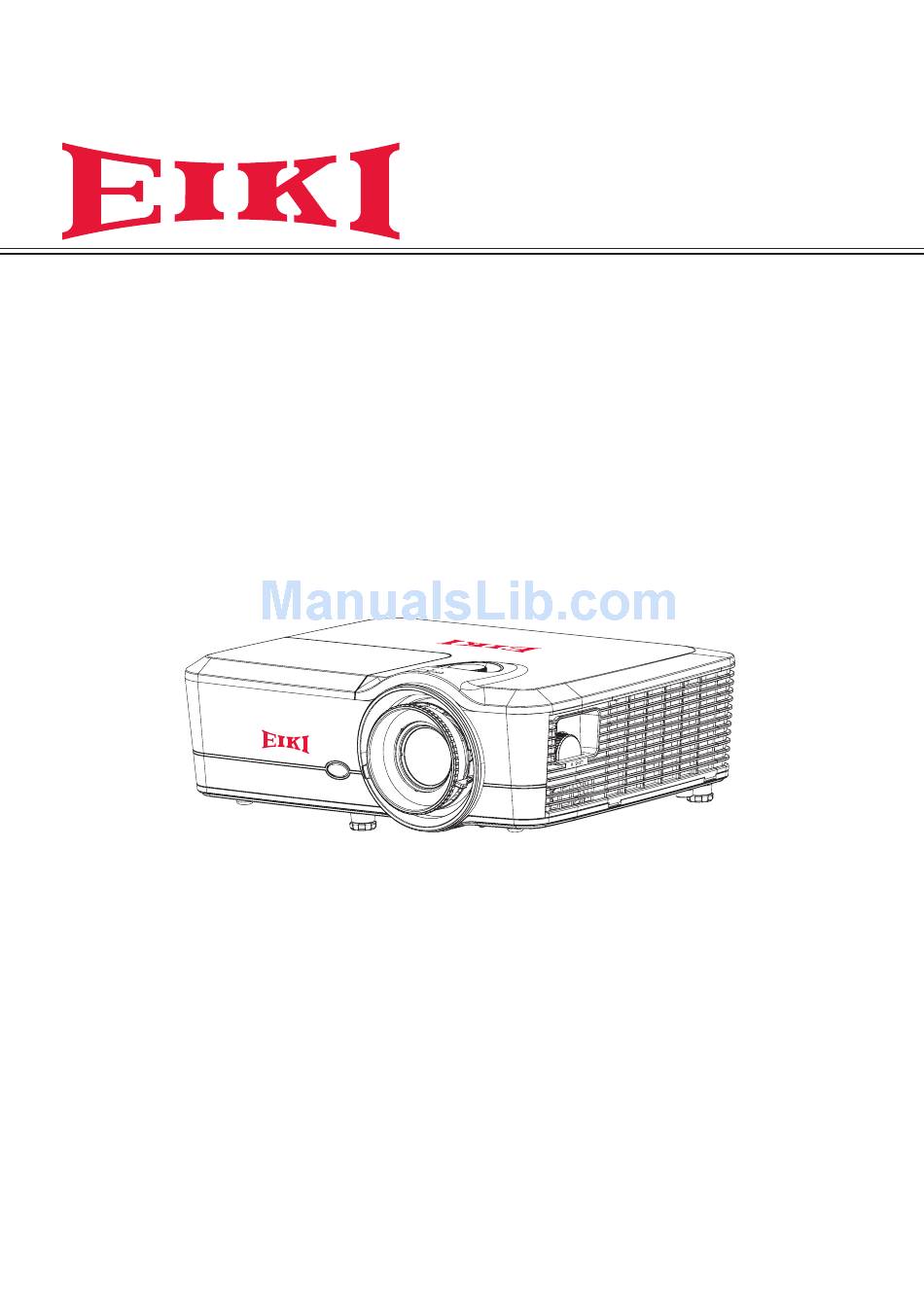

  • Page 1 Owner’s Manual Multimedia Projector Model EK-600U/ EK-601W...

  • Page 2: Features And Design

    The Security function helps you to ensure conform to almost all computer output signals security of the projector. quickly. Up to WUXGA (EK-600U) or WXGA (EK- 601W) resolution can be accepted. LAN Network Function This projector is loaded with the Wired LAN Useful Functions for Presentations network function.
  • Page 3 DLP Projector — Owner’s Manual Copyright This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author. ©...

  • Page 4: Important Safety Information

    Preface Important Safety Information Important: It is strongly recommended that you read this section carefully before using the projector. These safety and usage instructions will ensure that you enjoy many years of safe use of the projector. Keep this manual for future reference. Symbols Used Warning symbols are used on the unit and in this manual to alert you of hazardous situations.

  • Page 5: Safety Instructions

    DLP Projector — Owner’s Manual Safety Instructions • Please read this manual completely before installing and operating the projector. • The projector provides many convenient features and functions. Proper operation may enable you to fully utilize the features and keep it in good condition. Otherwise, it will not only shorten the service life of the unit, but also may cause malfunction, a fire, or other accidents.

  • Page 6: Safety Precautions

    Preface Safety Precautions Caution: • The projector must be grounded. • Do not expose the projector to raindrops or high humidity to avoid a fire or electric shock. • This projector produces intense light from the projection lens. Avoid staring directly into the lens, otherwise eye damage could be caused. Be especially careful that children do not stare directly into the beam.
  • Page 7 DLP Projector — Owner’s Manual Safety Guide • All the safety and operating instructions should be read before the product is operated. • Read all of the instructions given here and retain them for later use. Unplug this projector from AC power supply before cleaning.

  • Page 8: Air Circulation

    Preface ¾ When the projector exhibits a distinct change in performance - this indicates a need for service. • When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or injury to persons.
  • Page 9 DLP Projector — Owner’s Manual Air Intake Vent Exhaust Vent Moving the projector When moving the projector, take care of the lens and retract the adjustable foot to prevent damage to the lens and cabinet. Installing the projector properly • Please set the projector on nearly-level. •...
  • Page 10 Preface M4 x 3 10mm Caution in moving or transporting the projector • Do not drop or bump the projector, otherwise damages or malfunctions may result. • When carrying the projector, use a suitable carrying case. • Do not transport the projector by courier or any other transport service in an unsuitable transport case.

  • Page 11: Safety Certifications

    If such changes or modifications should be made, you could be required to stop operation of the equipment. Model Number : EK-600U/EK-601W Trade Name : EIKI Responsible party : EIKI International, Inc. Address : 30251 Esperanza Rancho Santa Margarita CA 92688-2132 Telephone No. : 800-242-3454 (949-457-0200) Canada This class B digital apparatus complies with Canadian ICES-003:2016 Issue 6, Class B.
  • Page 12 Preface The Wires in this mains lead are coloured in accordance with the following code: • Green-and-yellow ..Earth • Blue ......Neutral • Brown ......Live As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug proceed as follows: •...

  • Page 13: Table Of Contents

    DLP Projector — Owner’s Manual Contents GETTInG STARTED ........................ 1 ........................1 acking hecklist ......................2 iews of rojector arts Front-right View .............................2 Left View ..............................3 Rear View ..............................4 Built-in Keypad ............................5 Bottom View ............................6 ......................7 emote ontrol arts ...................
  • Page 14 Preface Advanced Menu ...........................38 HDBaseT Control Menu ........................38 Communications Menu ........................39 .......................... 40 Ptions Remote Settings Menu ........................41 Advanced Menu ...........................42 Lamp Settings Menu ..........................43 Optional Filter Settings Menu ......................44 ................ 45 ontrol rojector sing rowser Wired LAN Terminal functionalities ......................45 Supported External Devices ........................45 LAN_RJ45 ............................45 RS232 by Telnet Function ........................50...

  • Page 15: Getting Started

    BATTERIES) Safety Information Multimedia Projector Model EK-600U/ EK-601W SAFETY INFORMATION Contact your dealer immediately if any items are missing, appear damaged, or if the unit does not work. It is recommend that you keep the original packing material should you ever need to return the equipment for warranty service.

  • Page 16: Iews Of P Rojector P Arts

    DLP Projector — Owner’s Manual Views of Projector Parts Front-right View abeL escrIptIon ee page Lens Cap Provides protection for projector lens. Front IR Sensor Receives signals from the IR remote. Keep the signal path to the sensor unobstructed for uninterrupted communication with the projector.

  • Page 17: Left View

    DLP Projector — Owner’s Manual Left View abeL escrIptIon ee page Cooling Air Vents Keep these vents unobstructed to prevent the projector from overheating. (Exhaust) Important: Ventilation openings on the projector allow for good air circulation, which keeps the projector lamp cool.

  • Page 18: Rear View

    DLP Projector — Owner’s Manual Rear View abeL escrIptIon ee page RJ45 Connect a LAN cable from Ethernet. USB-B Mini Connect the USB cable to a computer for service purpose. (Control PC mouse by projector remote). HDMI Connect the HDMI cable to a HDMI device. DisplayPort Connect the displayport cable to a display.

  • Page 19: Built-In Keypad

    DLP Projector — Owner’s Manual Built-in Keypad abeL escrIptIon ee page Enter • Select a highlighted menu item. • Change or accept a value. Keystone Adjust the image distortion caused by tilting the projector. 15-16 Correction Re-Sync Automatically synchronize the projector to the input source. Power Turn the projector on or off.

  • Page 20: Bottom View

    DLP Projector — Owner’s Manual Bottom View 129.47mm 100.00mm 100.00mm abeL escrIptIon ee page Adjustable Feet Raise or lower the feet to level the projector. Ceiling support Contact your dealer for information on mounting the projector on viii-ix holes a ceiling. Note: • When installing, ensure that you use only UL Listed ceiling mounts.

  • Page 21: Remote Control Parts

    DLP Projector — Owner’s Manual Remote Control parts Test Mouse Pattern Switch Mode AV Mute ENTER Info. Source Re-Sync Volume V Keystone Menu Format Zoom Remote VGA1 S-Video HDMI1 HDMI2 VGA2 Video YPbPr DisplayPort Important: 1. Avoid using the projector with bright fluorescent lighting turned on. Certain high-frequency fluorescent lights can disrupt remote control operation. 2. Be sure nothing obstructs the path between the remote control and the projector. If the path between the remote control and the projector is obstructed, you can bounce the signal off certain reflective surfaces such as projector screens.
  • Page 22 DLP Projector — Owner’s Manual abeL escrIptIon ee page Power on Turn projector ON. Pattern Display a test pattern. Function button Programmable function button. (F1) (Assignable) Mode/Mouse left • Display mode menu on/off. click • Use as mouse left click when mouse is switched on. Arrow Keys •...

  • Page 23: Remote Control Operating Range

    DLP Projector — Owner’s Manual abeL escrIptIon ee page DVI/6 • Select the DVI input source. • Use as numeric keypad number “6”. 3D/0 • Select the 3D input source. • Use as numeric keypad number “0”. DisplayPort/9 • Select the Display port input source. 66-67 •...

  • Page 24: Inserting The Remote Control Batteries

    DLP Projector — Owner’s Manual Inserting the Remote Control batteries Remove the battery compartment cover as shown in the illustration. Insert the batteries with correct polarity (+/-) as shown inside the battery compartment. Replace the cover. Caution: • Only use AAA batteries (Alkaline batteries are recommended). • Dispose of used batteries according to local ordinance regulations.

  • Page 25: Setup And Operation

    DLP Projector — Owner’s Manual etup and peratiOn Starting and Shutting down the projector Turn the Projector On Connect the power cord to the projector. Then connect the other end to a wall outlet. The Power button on the built in keypad is illuminated. Remove the lens cap.

  • Page 26: Turn The Projector Off

    DLP Projector — Owner’s Manual Turn the Projector Off Press “ ” on the built-in keypad or press “ ” on the remote control to turn off the projector. A warning message will appear on the displayed image. Power Off? Press Power key again Press “...

  • Page 27: Adjusting The Projector Level

    DLP Projector — Owner’s Manual Adjusting the projector level Take note of the following when setting up the projector: • The projector table or stand should be level and sturdy. • Position the projector so that it is perpendicular to the screen. •...

  • Page 28: Adjusting The Zoom, Focus, And Keystone

    DLP Projector — Owner’s Manual Adjusting the Zoom, Focus, and Keystone Use the Zoom lever to resize the projected image and screen size Use the Focus lever to sharpen the projected image Use the V Keystone button to adjust the keystone Volume V Keystone vertically and make a squarer image...

  • Page 29: Projection Size

    DLP Projector — Owner’s Manual projection Size Projection Size v.s Throw Distance EK-600U IagonaL creen rojectIon Istance ffset Length Inch Inch feet feet 16:10 sIze of IDth eIght IDth eIght WIDe teLe WIDe teLe screen 0.65 0.40 25.4 15.9 4.59 8.07...
  • Page 30 DLP Projector — Owner’s Manual Note: • Vertical Lens Shift values are always calculated from the Center of Projection Lens. Therefore the distance 5.2 cm (2.05 inch) from the Base to the Center of Projection Lens needs to be added to each Vertical Lens Shift value.

  • Page 31: On-Screen Display (Osd) Menu Settings

    DLP Projector — Owner’s Manual (OSd) M creen iSplay ettinGS OSD Menu Controls The projector has an OSD that lets you make image adjustments and change various settings. Navigating the OSD You can use the remote control cursor buttons or the projector keypad to navigate and make changes to the OSD.

  • Page 32: Setting The Osd Language

    DLP Projector — Owner’s Manual Setting the OSD language Set the OSD language to your preference before continuing. Press the Menu button. PICTURE Presentation Display Mode Brightness Contrast Sharpness Color Tint Advanced Use the arrow keys (pq) to select SETUp and press the Enter button to enter the SETUp menu. SETUP Language English...

  • Page 33: Osd Menu Overview

    DLP Projector — Owner’s Manual OSD Menu Overview Use the following illustration to quickly find a setting or determine the range for a setting. ettIngs efauLt Presentation Bright Movie Presentation sRGB (Each mode can Display Mode adjust and save Blackboard in each mode).
  • Page 34 DLP Projector — Owner’s Manual ettIngs efauLt Red Gain -50 ~ 50 Green Gain -50 ~ 50 Blue Gain -50 ~ 50 By source set Red Offset -50 ~ 50 Color Settings Green Offset -50 ~ 50 Blue Offset -50 ~ 50 Reset Yes / No Exit...
  • Page 35 DLP Projector — Owner’s Manual ettIngs efauLt Auto Image Phase 0 ~ 31 Signal (VGA Frequency -10 ~ 10 input) Horz Position -10 ~ 10 Vert Position -10 ~ 10 Advanced Exit PICTURE White Level 0 ~ 31 Black Level -5 ~ 5 Signal (Video input)
  • Page 36 DLP Projector — Owner’s Manual ettIngs efauLt DLP-Link 3D Mode VESA 3D 3D→2D Auto OUTPUT 3D Display Side by Side 3D Enable Auto Top and Bottom Frame Sequential 3D Invert Exit English Deutsch Français Italiano Español Português Svenska Nederlands Norsk/Dansk Polski Русский...
  • Page 37 DLP Projector — Owner’s Manual ettIngs efauLt Top-Left Top-Right Menu Location Center Center Bottom-Left Bottom-Right Pin Protect Month Security Timer Hour Change PIN 1234 Exit Projector ID 00 ~ 99 Internal Speaker Audio Settings Mute Audio 0 ~ 10 Volume 0 ~ 10 Default Default:...
  • Page 38 DLP Projector — Owner’s Manual ettIngs efauLt Connect / Network Status Disconnect Read-Only xx : xx : xx : xx : MAC Address xx : xx DHCP On / Off IP Address 192.168.0.100 192.168.0.100 Subnet Mask 255.255.255.0 255.255.255.0 Default Gateway 192.168.0.254 192.168.0.254 192.168.0.1 192.168.0.1...
  • Page 39 DLP Projector — Owner’s Manual ettIngs efauLt Keypad Lock Display Mode Lock None Test Pattern Grid None White Pattern Black Background Blue Blue Color Green White Light Yellow Light Green Wall Color Light Blue Pink Gray HDMI2 VGA2 S-Video User1 Test Pattern OPTIONS Test Pattern...
  • Page 40 DLP Projector — Owner’s Manual ettIngs efauLt Direct Power On Auto Power Off 0-180 (one step: (min) 5 mins) 0-990 (one step: Sleep Timer 10 mins ) (min) Advanced Repeat Quick Resume (EK601W only) Normal Standby Power Eco. Mode Eco. Exit Lamp Hours Read only...

  • Page 41: Picture Menu

    DLP Projector — Owner’s Manual picture Menu Press the Menu button to open the OSD menu. Press the arrow keys (pq) to select pICTURE and press the Enter button to enter the pICTURE menu. Press the arrow keys (pq) to select the menu option and press the Enter button to enter its submenu.

  • Page 42: Advanced Menu

    DLP Projector — Owner’s Manual Advanced Menu Press the Menu button to open the OSD menu. Press the arrow keys (pq) to select pICTURE and press the Enter button to enter the pICTURE menu. Press the arrow keys (pq) to select Advanced and press the Enter button to enter the Advanced menu.

  • Page 43: Color Matching Menu

    DLP Projector — Owner’s Manual Color Matching Menu Press the Menu button to open the OSD menu. Press the arrow keys (pq) to select pICTURE and press the Enter button to enter the pICTURE menu. Press the arrow keys (pq) to select Advanced and press the Enter button to enter the Advanced menu.

  • Page 44: Signal Menu (Vga Input)

    DLP Projector — Owner’s Manual Green Measured Data Target Data blue • Manual Adjustment Adjust color slide bars and judge image color by eye or meter. A user-defined color “adjustment” can be applied. Use this submenu if you do not have specific color coordinates in mind and will judge color performance by eye or meter.

  • Page 45: Signal Menu (Video Input)

    DLP Projector — Owner’s Manual escrIptIon Auto Image Force the projector to reacquire and lock to the input signal. This is useful when signal quality is marginal. Phase Analog signals only. Adjust pixel phase when the image still shows shimmer or noise after pixel tracking is optimized.

  • Page 46: Output Menu

    DLP Projector — Owner’s Manual Output Menu Press the Menu button to open the OSD menu. Press the arrow keys (pq) to select OUTpUT and press the Enter button to enter the OUTpUT menu. Press the arrow keys (pq) to select the menu option and press the Enter button to enter its submenu.

  • Page 47: Image Warping Menu

    DLP Projector — Owner’s Manual Image Warping Menu Press the Menu button to open the OSD menu. Press the arrow keys (pq) to select OUTpUT and press the Enter button to enter the OUTpUT menu. Press the arrow keys (pq) to select Image Warping and press the Enter button to enter the Image Warping menu.

  • Page 48: 3D Display Menu

    DLP Projector — Owner’s Manual 3D Display Menu Press the Menu button to open the OSD menu. Press the arrow keys (pq) to select OUTpUT and press the Enter button to enter the OUTpUT menu. Press the arrow keys (pq) to select 3D Display and press the Enter button to enter the 3D Display menu.

  • Page 49: Setup Menu

    DLP Projector — Owner’s Manual Setup Menu Press the Menu button to open the OSD menu. Press the arrow keys (pq) to select SETUp and press the Enter button to enter the SETUp menu. Press the arrow keys (pq) to select the menu option and press the Enter button to enter its submenu.

  • Page 50: Pin Menu

    DLP Projector — Owner’s Manual Pin Menu Press the Menu button to open the OSD menu. Press the arrow keys (pq) to select SETUp and press the Enter button to enter the SETUp menu. Press the arrow keys (pq) to select pin and press the Enter button to enter the pin menu.

  • Page 51: Audio Settings Menu

    DLP Projector — Owner’s Manual Audio Settings Menu Press the Menu button to open the OSD menu. Press the arrow keys (pq) to select SETUp and press the Enter button to enter the SETUp menu. Press the arrow keys (pq) to select Audio Settings and press the Enter button to enter the Audio Settings menu.

  • Page 52: Advanced Menu

    DLP Projector — Owner’s Manual Advanced Menu Press the Menu button to open the OSD menu. Press the arrow keys (pq) to select SETUp and press the Enter button to enter the SETUp menu. Press the arrow keys (pq) to select Advanced and press the Enter button to enter the Advanced menu.

  • Page 53: Communications Menu

    DLP Projector — Owner’s Manual escrIptIon Ethernet Enable or disable the Ethernet feature. RS232 Enable or disable the RS232 feature. HDBaseT Mode Set the HDBaseT mode setting: • Auto: The projector will automatically switch to the HDBaseT mode when it detects a signal from the HDBaseT port. •...

  • Page 54: Ptions M Enu

    DLP Projector — Owner’s Manual Options Menu Press the Menu button to open the OSD menu. Press the arrow keys (pq) to select OpTIOnS and press the Enter button to enter the OpTIOnS menu. Press the arrow keys (pq) to select the menu option and press the Enter button to enter its submenu.

  • Page 55: Remote Settings Menu

    DLP Projector — Owner’s Manual escrIptIon 12V Trigger • On: Choose “On” to enable the trigger. • Off: Choose “Off” to disable the trigger. Reserved IR_IN & detect Beep • Off: No beep sound is audible when a key is pressed or in an error event.

  • Page 56: Advanced Menu

    DLP Projector — Owner’s Manual escrIptIon User 2 The default value is “Zoom”. • Press u into the next menu and then use t or u to select “HDMI2”, “DP”, “VGA2”, “S-Video”, “Test Pattern”, “Zoom”, or “Info.”, “HDBaseT“ item. User 2 Zoom IR Function •...

  • Page 57: Lamp Settings Menu

    DLP Projector — Owner’s Manual escrIptIon Sleep Timer (min) This item allows the projector to automatically power off after it has been on for a specified amount of time. Quick Resume • On: If the projector is accidentally turned off, this feature allows the projector to be instantly powered on again, if selected within a period of 100 seconds.

  • Page 58: Optional Filter Settings Menu

    DLP Projector — Owner’s Manual Optional Filter Settings Menu Press the Menu button to open the OSD menu. Press the arrow keys (pq) to select OpTIOnS and press the Enter button to enter the OpTIOnS menu. Press the arrow keys (pq) to select Optional Filter Settings and press the Enter button to enter the Optional Filter Settings menu.

  • Page 59: Control Your Projector Using Web Browser

    DLP Projector — Owner’s Manual Control your projector Using Web browser Ethernet projector Wired LAN Terminal functionalities Remote control and monitoring of a projector from a PC (or Laptop) via wired LAN is also possible. Compatibility with Crestron control boxes enables not only collective projector management on a network but also management from a control panel on a PC (or Laptop) browser screen.
  • Page 60 DLP Projector — Owner’s Manual On the PC (Laptop), select Start → Control panel → network and Internet. Right-click on local Area Connection, and select properties. In the properties window, select the networking tab, and select Internet protocol (TCp/Ip). — —...
  • Page 61 DLP Projector — Owner’s Manual Click properties. Click Use the following Ip address and fill in the IP address and Subnet mask, then click OK. — —...
  • Page 62 DLP Projector — Owner’s Manual Press the Menu button on the projector. Select SETUp → Communications → lAn. After getting into lAn, input the following: • DHCP: Off • IP Address: 192.168.0.100 • Subnet Mask: 255.255.255.0 • Default Gateway: 0.0.0.0 Press the Enter / ►...
  • Page 63 DLP Projector — Owner’s Manual ategory nput ength IP Address Crestron Control IP ID Port Projector Name Projector Location Assigned To DHCP (Enabled) (N/A) IP Address Network Configuration Subnet Mask Default Gateway DNS Server Enabled (N/A) User Password New Password Confirm Enabled (N/A)

  • Page 64: Rs232 By Telnet Function

    DLP Projector — Owner’s Manual RS232 by Telnet Function Besides projector connected to RS232 interface with “Hyper-Terminal” communication by dedicated RS232 command control, there is alternative RS232 command control way, so called “RS232 by TELNET” for LAN/RJ45 interface. Quick Start-Guide for “RS232 by TElnET” Check and get the IP-Address on OSD of the projector.
  • Page 65 DLP Projector — Owner’s Manual how to have TElnET enabled in Windows VISTA / 7 By default installation for Windows VISTA, “TELNET” function is not included. But end-user can have it by way of “Turn Windows features On or Off” to be enabled. Open “Control Panel”...
  • Page 66 DLP Projector — Owner’s Manual Select “Turn Windows features on or off” to open. Have “Telnet Client” option checked, then click OK. Specsheet for “RS232 by TElnET”: Telnet: TCP Telnet port: 3023 (for more detail, kindly please get contact with the service agent or team) Telnet utility: Windows “TELNET.exe”...

  • Page 67: Maintenance And Security

    DLP Projector — Owner’s Manual aintenance and ecurity Replacing the projection lamp The projection lamp should be replaced when it burns out. It should only be replaced with a certified replacement part, which you can order from your local dealer. Lamp parts number : SP.74W01GC01 Important: • The projection lamp used in this product contains a small amount of mercury.
  • Page 68 DLP Projector — Owner’s Manual Remove the lamp door. Lift up the lamp handle. Press on the both sides then lift up and remove the lamp cord. Remove the screws on the lamp module. Lift up the lamp handle and remove the lamp module slowly and carefully.

  • Page 69: Resetting The Lamp

    DLP Projector — Owner’s Manual Resetting the Lamp After replacing the lamp, you should reset the lamp hour counter to zero. Perform the following to reset the lamp hour counter: Press the Menu button. PICTURE Presentation Display Mode Brightness Contrast Sharpness Color Tint...

  • Page 70: Replacing The Filter (Filter Is Optional.)

    DLP Projector — Owner’s Manual Use the arrow keys (pq) to select lamp hours Reset and press the Enter button to enter its submenu. Use the arrow keys (pq) to select “Yes” and press the Enter button to reset the lamp used hours counter to zero.

  • Page 71: Cleaning The Projector

    DLP Projector — Owner’s Manual Slightly move the dust filter cover to the left and to the right direction to release it from the latches on the case. And then remove. Install the new filter by reversing the previous steps. Note: Dust filters are only required/supplied in the selected regions with excessive dust.

  • Page 72: Cleaning The Case

    DLP Projector — Owner’s Manual Cleaning the Case Refer to the following to clean the projector case. Wipe off dust with a clean dampened cloth. Moisten the cloth with warm water and mild detergent (such as used to wash dishes), and then wipe the case.

  • Page 73: Troubleshooting

    DLP Projector — Owner’s Manual rOubleShOOtinG Common problems and Solutions These guidelines provide tips to deal with problems you may encounter while using the projector. If the problem remains unsolved, contact your dealer for assistance. Often after time spent troubleshooting, the problem is traced to something as simple as a loose connection.

  • Page 74: Led Error Messages

    DLP Projector — Owner’s Manual lED Error Messages The LED status indicators are located on the top of the projector. Each LED is defined below. • power lED LeD s tatus rojector tate Steady Light Standby state (power cord connected). Flashing Power is on (warming) or power is off (cooling).

  • Page 75: Image Problems

    DLP Projector — Owner’s Manual Image problems Problem: No image appears on the screen Verify the settings on your notebook or desktop PC. Turn off all equipment and power on again in the correct order. Problem: The image is blurred Use the Focus lever to adjust the focus on the projector.

  • Page 76: Remote Control Problems

    DLP Projector — Owner’s Manual Replace the lamp module. Put the old lamp back in the projector and have the projector serviced. Problem: The lamp goes off Power surges can cause the lamp to turn off. Re-plug power cord. Press “ ”...

  • Page 77: Hdmi Q & A

    DLP Projector — Owner’s Manual hDMI Q & A Q. What is the difference between a “Standard” HDMI cable and a “High-Speed” HDMI cable? Recently, HDMI Licensing, LLC announced that cables would be tested as Standard or High- Speed cables. •...

  • Page 78: Specifications

    DLP Projector — Owner’s Manual pecificatiOnS Specifications escrIptIon Display type 0.67” DMD WUXGA/0.65” DMD WXGA Resolution 1920X1200(WUXGA)/ 1280X800(WXGA) Zoom/focus Manual focus, automatic zoom Zoom ratio 1.8x Keystone correction Vertical and Horizontal: +/- 30 degrees Projection methods Front, Rear, Fron-Ceiling, Rear-Ceiling VGA, SVGA, XGA, SXGA, Quad VGA, SXGA+, UXGA, WUXGA(RB), Data compatibility WSVGA, WXGA, WXGA+, WSXGA, WUXGA, PowerBook G4, i Mac...

  • Page 79: Compatible Resolution

    DLP Projector — Owner’s Manual Note: For questions regarding product specifications, please contact your local distributor. Compatible Resolution requency tems esoLutIon V: [h h: [Kh 31.47 37.86 640x480 37.5 43.27 35.2 37.88 48.08 SVGA 800x600 46.88 53.67 48.36 56.48 1024x768 60.02 68.67 63.8 67.5 1152x864 77.1 1) VGA Analog – PC Signal 63.98 SXGA 77.9...
  • Page 80 DLP Projector — Owner’s Manual requency tems esoLutIon V: [h h: [Kh WSVGA 1024x600 37.3 47.78 60.29 1280x768 68.63 WXGA 1280x720 44.8 49.6 (2) VGA Analog – Extended Wide timing 1280x800 47.71 1366x768 WXGA+ 1440x900 55.9 65.3 WSXGA 1680x1050 1920x1080-RB 66.6 WUXGA 67.5...
  • Page 81 DLP Projector — Owner’s Manual requency tems esoLutIon V: [h h: [Kh 63.98 77.9 SXGA 1280x1024 79.98 91.15 Quad VGA 1280x960 65.32 SXGA+ 1400x1050 UXGA 1600x1200 (1) HDMI & Displayport – PC Signal 74.038 WUXGA(RB) 1920x1200 31.5 640x480 66.6(67) 37.88 800x600 PowerBook G4 48.36...

  • Page 82: Projector Dimensions

    DLP Projector — Owner’s Manual projector Dimensions 422.72mm — —...
  • Page 83 U.S.A. Canada EIKI International, Inc. EIKI CANADA - Eiki International, Inc. 30251 Esperanza P.O. Box 156, 310 First St. - Unit 2, Rancho Santa Margarita Midland, ON, L4R 4K8, Canada CA 92688-2132 Tel: +1 800-563-3454 U.S.A. +1 705-527-4084 Tel: +1 800-242-3454 +1 949-457-0200 E-Mail: canada@eiki.com...
