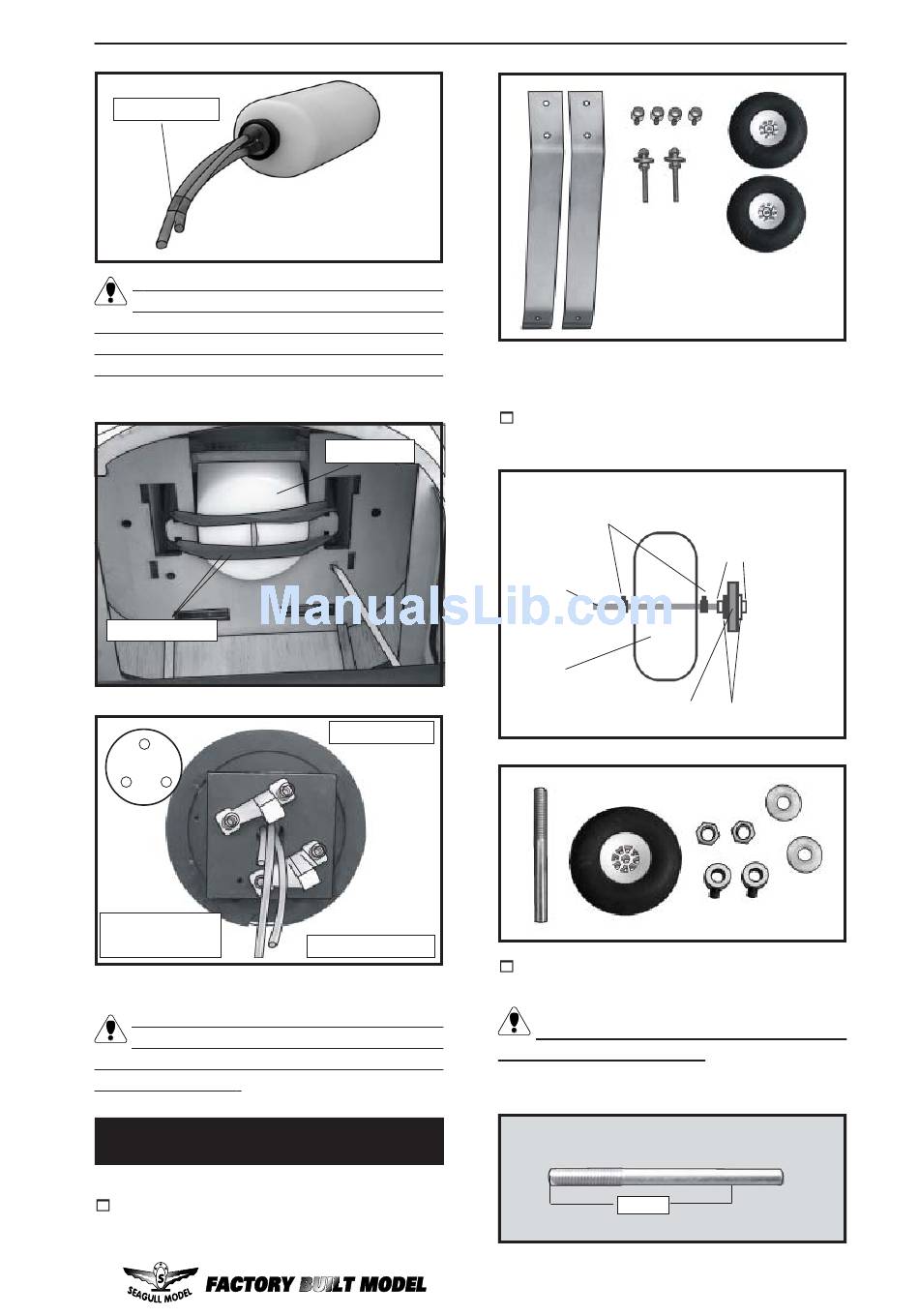

Wheel Installation - Seagull Models Yak 54 Assembly Manual

Plastic tape.
You should mark which tube is the vent
and which is the fuel pickup when you
attach fuel tubing to the tubes in the stopper.
Once the tank is installed inside the fuselage,
it may be difficult to determine which is which.
Rubber band.
1
1
3
2
2:Fuel pick-up
tube.
Blow through one of the lines to ensure
the fuel lines have not become kinked in-
side the fuel tank compartment. Air should
flow through easily.

WHEEL INSTALLATION.

1) Assemble and mounting the wheel pants
as shown in the following pictures.
www.seagullmodels.com
Fuel tank.
1: Vent tube.
3:Fuel fill tube.
2) Follow diagram below for wheel
installation:
Wheel Collar.
Axle.
Wheel.
Landing Gear.
3) You have to trim each axle using a tool
cutting and cut-off wheel.
Caution when cutting the axles and
wear protective goggles.
46mm
Nut.
(2) Washer.
