Tail Landing Gear; Rudder Pushrod; Elevator Pushrod - THE WORLD MODELS At-6 Texan EP Instruction Manual

7

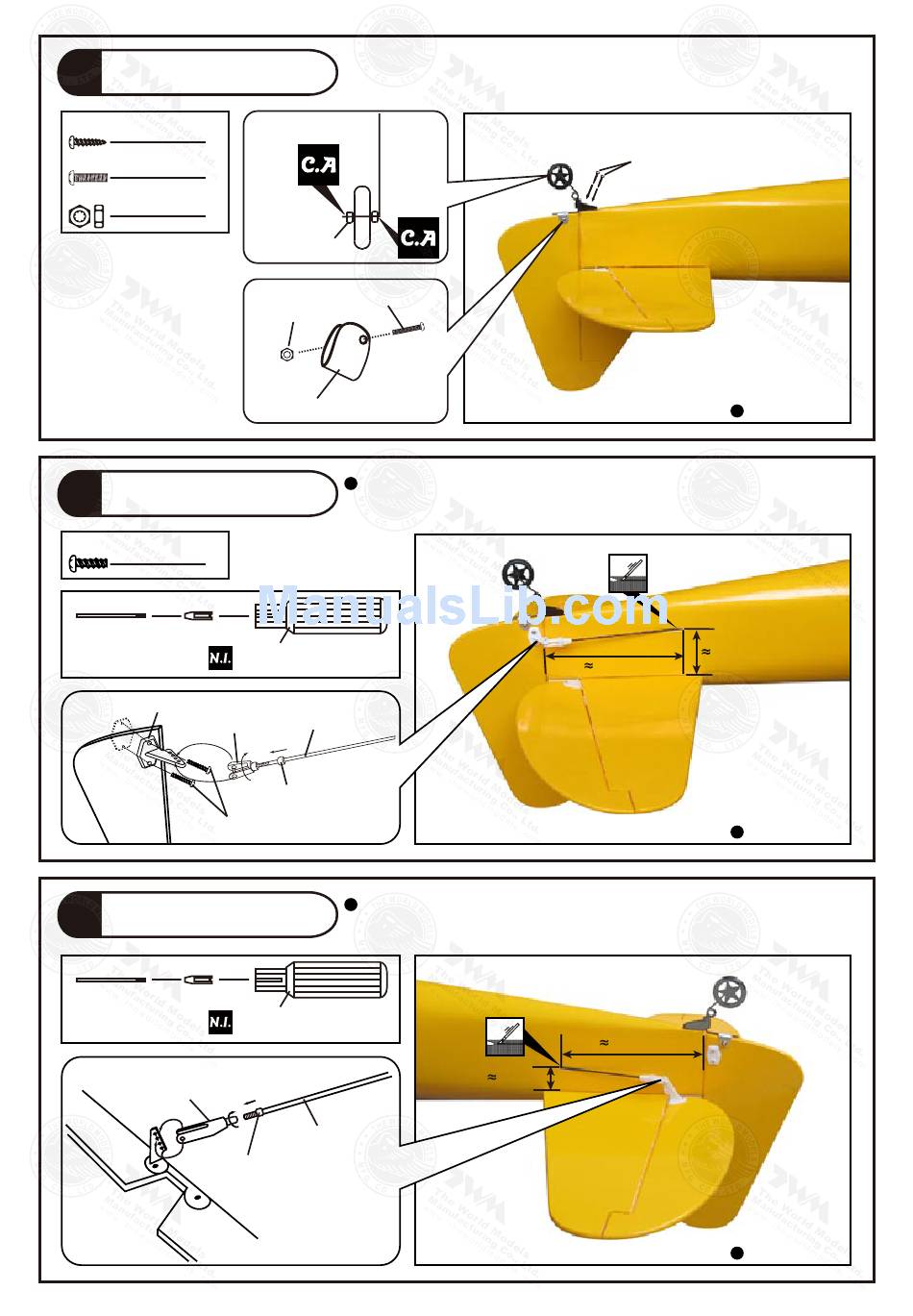

Tail Landing Gear

PA2x8mm Screw
2
PM2x8mm Screw
1
M2 Nut
1
8

Rudder Pushrod

PB2x8mm Screw
2
Horn
PB2x8mm
9

Elevator Pushrod

Clevis
d2xD4x4mm
E269XMPO24481007
Plastic Collar
PM2x8mm
M2 Nut
Aluminum Plate 0.3mm
Ø1mm pilot holes for World Models horn are pre-drilled.
Please look for pin-hole marks at under side of control surfaces.
TWM PL8210010
CLEVIS WRENCH
Pushrod
Ø1.4x414mm
Clevis
Fuel Tube
d2xD4x4mm
Ø1mm pilot holes for World Models horn are pre-drilled.
Please look for pin-hole marks at under side of control surfaces.
TWM PL8210010
CLEVIS WRENCH
Pushrod
Ø1.4x398mm
Fuel Tube
100mm
100mm
20mm
P.6
PA2x8mm
Bottom View
38mm
Bottom View
Bottom View
