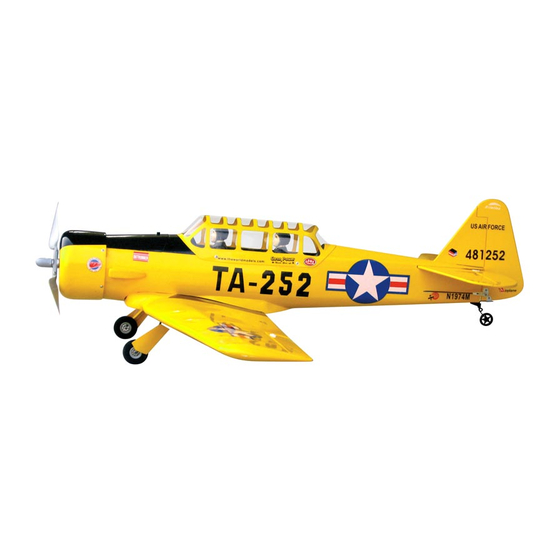

At-6 texan EP
Requires : 5-channel radio w/ 5 micro servos,
Wing Span
Wing Area
Flying Weight
Fuselage Length
Warning ! This model is not a toy.
It is designed for maximum performance. Please seek advice if one is not familiar with this kind
of electric powered precision model. Operating this model without prior preparation may cause
injuries. Remember, safety is the most important thing. Always keep this instruction manual at
hand for quick reference.
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
E269XMPO24481007
Outrunner Motor KM0283010
w/ Propeller Adaptor HW2340100,
20A brushless ESC, 3 cells 11.1V
2100 mAh Li - Po battery & charger.
S p ecifica tio n s
* Specifications are subject to change without notice.*
INSTRUCTION MANUAL
44 in / 1120 mm
295 sq in / 19 sq dm
31 oz / 870 g
31.5 in / 800 mm
ALMOST-READY-TO-FLY (ARF) SERIES
FACTORY PRE-FABRICATED
MADE IN CHINA
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for THE WORLD MODELS At-6 Texan EP
Summary of Contents for THE WORLD MODELS At-6 Texan EP
- Page 1 INSTRUCTION MANUAL At-6 texan EP Requires : 5-channel radio w/ 5 micro servos, Outrunner Motor KM0283010 w/ Propeller Adaptor HW2340100, 20A brushless ESC, 3 cells 11.1V 2100 mAh Li - Po battery & charger. S p ecifica tio n s...
-
Page 2: Before You Begin
At-6 texan EP INDEX BEFORE YOU BEGIN PARTS LIST ASSEMBLY P.3-P.10 SAFETY PRECAUTIONS P.10 BEFORE YOU BEGIN Read through the manual before you begin, so you will have an overall idea of what to do. Check all parts. If you find any defective or missing parts contact your local dealer. Please DRY FIT and check for defects for all parts that will require CA or Epoxy for final assembly. - Page 3 Parts List 1. MAIN WING -- 1 pc. 10. SOCKET HEAD SCREW M2.5x8mm -- 4 pcs WASHER d3xD7mm -- 8 pcs 2. RETRACTABLE LANDING GEAR -- 1 pair SCREW PM3x6mm -- 4 pcs MAIN WHEEL Ø40mm -- 2 pcs FOLDING PROPELLER SET (10x6) -- 1 set RETRACTABLE LANDING GEAR COVER -- 2 sets COWLING -- 1 pc.
-
Page 4: Retractable Landing Gear
Main Wing Apply instant type CA glue to both sides of each hinge. Aileron Servo Lead Bottom View Aileron Servo Lead Completed Retractable Landing Gear Bottom View E269XMPO24481007... -
Page 5: Retract Servo
Retract Servo Please refer to attached sheet for linkage connector installation. Linkage connector To R-Side To L-Side Wheels Down Position 16mm Travel 16mm Travel Wheels Up Position Ø1mm pilot holes for World Models horn are pre-drilled. Aileron Servo Please look for pin-hole marks at under side of control surfaces. PB2x16mm Screw PA1.7x8mm Fuel Tube... -
Page 6: Stabilizer & Elevator
Stabilizer & Elevator PB2x8mm Screw Apply instant type CA glue to both sides of each hinge. A=A' Balsa 4x11.9x24mm PB2x8mm Ø1mm pilot holes for World Models horn are pre-drilled. Please look for pin-hole marks at under side of control surfaces. Temporary install the main (Stabilizer) wing, adjust leveling of the... -
Page 7: Tail Landing Gear
Tail Landing Gear PA2x8mm Screw PM2x8mm Screw PA2x8mm M2 Nut Plastic Collar PM2x8mm M2 Nut Aluminum Plate 0.3mm Bottom View Ø1mm pilot holes for World Models horn are pre-drilled. Rudder Pushrod Please look for pin-hole marks at under side of control surfaces. PB2x8mm Screw TWM PL8210010 38mm... - Page 8 Outrunner Motor / Cowling M2.5x8mm KP0011310 Socket Head Screw PWA2x8mm Screw PM2x12mm Screw Solder Solder PM3x6mm Screw Optional Parts d3xD7mm Washer d3xD7mm Washer M2.5x8mm Make sure rotating motor casing is not Outrunner Motor 28/ 30 in contact with KM0283010 wirings or anything. PM3x6mm d3xD7mm Washer...
-
Page 9: Radio Equipment
Radio Equipment Front Fuel Tube Rudder Servo Sponge d2xD4x4mm Rudder Pushrod Elevator Pushrod Straper Battery Tie Elevator Servo Bottom View 20A Brushless ESC Sponge Receiver Front Battery Completed Main Wing PM2.5x20mm Front Nylon Bolt d2.6xD9mm Nylon Washer 2.5mm Plastic Plate PM2.5x20mm d2.6xD9mm 1x23x74mm... - Page 10 Canopy PWA2x8mm Screw Pilot Canopy 1.5mm PWA2x8mm Carb Intake Wing Setting Adjust the wing and fuselage configuration as shown in the diagrams. A=A' B=B' C=C' E269XMPO24481007...
-
Page 11: Control Throws
# First time flyer should never fly by himself / herself. Assistance from experienced flyer is absolutely necessary. # Pre-flight adjustment must be done before flying, it is very dangerous to fly a badly pre-adjusted aircraft. At-6 texan EP is specially designed to be powered by KM0283010 Outrunner Motor. - Page 12 Ｐａｔｔｅｒｎ Ｄｕｃｔｅｄ Ｆａｎ Ｆｕｎｆｌｙ Ｗａｒｂｉｒｄｓ Ｓｃａｌｅ Ｅｌｅｃｔｒｉｃ Ｓｐｏｒｔｓ Ｇｌｉｄｅｒ Ｂｏａｔ Ｔｒａｉｎｅｒ Ａｃｃｅｓｓｏｒｉｅｓ Ｃｏｖｅｒｉｎｇ （Ｌｉｇｈｔｅｘ ／ Ｔｏｕｇｈｌｏｎ） The World Models Manufacturing Co., Ltd. www.theworldmodels.com E269XMPO24481007...
