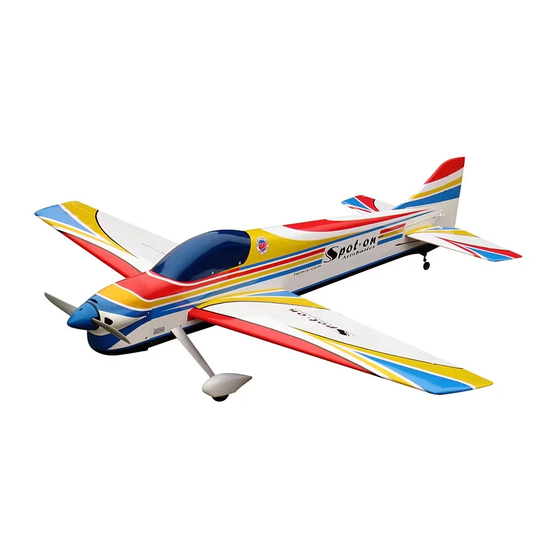

0.52-0.72 cu.in. displacement 4-stroke
Requires : 4-channel radio w / 5 standard servos
Wing Span
Wing Area
Flying Weight
Fuselage Length
Warning !This model is not a toy.
It is designed for maximum performance. Please seek advice if one is not familiar with this kind
of engine powered precision model. Operating this model without prior preparation may cause
injuries. Remember, safety is the most important thing. Always keep this instruction manual at
hand for quick reference.
The World Models
Manufacturing Co
.
w w w t h e w o r l d m o d e l s c o m
A249LPO27471203
All manuals and user guides at all-guides.com
Specifications
* Sp e cifica tio n s a re su b je ct to ch a n g e with o u t n o tice .*
LTD
.,
.
.
INSTRUCTION MANUAL
53.5 in / 1
36
0 mm
53 sq in / 34
8
.7
5. lb / 2
3
40
0 g
57
in / 1
450
mm
ALMOST-READY-TO-FLY (ARF) SERIES
(A249L)
sq dm
FACTORY PRE-FABRICATED
MADE IN CHINA
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for THE WORLD MODELS Spot on 50
Summary of Contents for THE WORLD MODELS Spot on 50
- Page 1 Operating this model without prior preparation may cause injuries. Remember, safety is the most important thing. Always keep this instruction manual at hand for quick reference. FACTORY PRE-FABRICATED The World Models ALMOST-READY-TO-FLY (ARF) SERIES Manufacturing Co MADE IN CHINA...
- Page 2 All manuals and user guides at all-guides.com INDEX BEFORE YOU BEGIN PARTS LIST ASSEMBLY P.3-P.11 SAFETY PRECAUTIONS P.11 BEFORE YOU BEGIN Read through the manual before you begin, so you will have an overall idea of what to do. Check all parts. If you find any defective or missing parts contact your local dealer. Please DRY FIT and check for defects for all parts that will require CA or Epoxy for final assembly.
- Page 3 All manuals and user guides at all-guides.com Parts List 1. MAIN WING -- 1 pair 10. ENGINE MOUNT PL5111050 -- 1 set SOCKET HEAD SCREW M4x25mm -- 4 pcs 2. SCREW PB2x22mm -- 4 pcs WASHER d4.5xD9mm -- 4 pcs PUSHROD Ø1.8x80mm w/ Threads (For Aileron) -- 2 pcs CLEVIS PL4112103 -- 2 pcs 11.
- Page 4 All manuals and user guides at all-guides.com Main Wing Apply instant type CA glue to both sides of each hinge. Aileron Servo Lead Bottom View Aileron Servo Pushrod Ø1.8x80mm PB2x22mm PB2x22mm Screw PWA2x8mm Screw Fuel Tube D6x5mm Clevis Ø1mm pilot holes for World Models tri-horn are pre-drilled.
- Page 5 All manuals and user guides at all-guides.com Main Wing P le a s e a p p ly g lu e to a ll s u rfa c e s o f w in g tu b e . Wing Tube Ø16x285mm Make sure to glue securely.
- Page 6 All manuals and user guides at all-guides.com Vertical Fin & Rudder C =C ' Apply instant type CA glue to both sides of each hinge. Co m p leted Tail Landing Gear WHEEL Ø25mm PA3x12mm PA3x12mm Screw 2.1mm Collar 2.1mm Collar 3mm set screw 1.5mm...
- Page 7 All manuals and user guides at all-guides.com Elevator Pushrod Ø1mm pilot holes for World Models Tri-horn are pre-drilled. Please look for pin-hole marks at under side of control surfaces. PB2 x14mm Screw PB2x14mm Pushrod Ø1.4x730mm Fuel Tube Ø6 x5mm Clevis Horn TWM PL8210010 Bottom View...
- Page 8 All manuals and user guides at all-guides.com Inverted Mount Engine Mount Socket Head Screw M4x25mm Washer M4x25mm d4.5xD9mm Engine Mount PL5111050 d4.5xD9mm Washer Blind nuts are off-centered to keep the spinner at the fuselage axis. Fuel Tank Cable Tie 1.5x5x400mm Double-sided Tape 40x100mm Bottom View...
- Page 9 All manuals and user guides at all-guides.com Engine Socket Head Screw M3.5x30mm Installed Engine Position (Inverted Mount) M3.5 115mm 4.5 in. d3.5xD8mm Washer M3 .5 N ut d3 .5 x D 8 m m Wa s he r M3 .5x30mm Washer d3.5xD8mm Throttle Pushrod...
- Page 10 All manuals and user guides at all-guides.com Main Wing HM4 x35mm Screw d4.2xD14.5mm Washer HM4 x35mm Washer d4.2xD14.5mm B o tto m View C an o p y First insert the grommet into the canopy then apply screw. Screw PWA2.3 X 8mm Double-sided Tape 900mm Silicon Grommet d1.5xD6.5mm...
- Page 11 All manuals and user guides at all-guides.com Wing Setting Adjust the wing and fuselage configuration as shown in the diagrams. A = A ' B = B ' C = C ' A249LPO27471203 P.10...
- Page 12 All manuals and user guides at all-guides.com Adjust the control throws as shown in the diagram. Control Throws T hese throws are good for general flying. You can adjust according to your personal preference. Rudder 45mm 45mm Elevator 18mm 18mm Aileron 10mm 10mm...
- Page 13 All manuals and user guides at all-guides.com LINKAGE CONNECTOR HW7111050 & HW7111060 Drill 2mm hole at servo horn. Insert linkage connector into servo horn. Make sure shoulder of screw is cleared from servo horn. Add washer to reduce play if necessary. Shoulder Tighten up the round nut against the shoulder.
- Page 14 All manuals and user guides at all-guides.com Usage of the transparent 3D template This transparent 3D template is used for position guidance of the actual cutting of the pre-painted cowling. Simply cut the transparent 3D template to fit your engine and exhaust pipe, then slide onto the actual cowling and use as template to mark the openings required for final cutting.
- Page 15 All manuals and user guides at all-guides.com Optional Parts Fuel Filler 180mm Extension Code No. Size Package Code No. Size Package PL8110030 KW0011800 180mm 1 set 15 x 22 x 49mm 1 x 1 pc 180mm Y-Cord Code No. Size Package KW0021800 180mm 1 pc...
- Page 16 All manuals and user guides at all-guides.com The World Models Manufacturing Co., Ltd. www.theworldmodels.com A249LPO27471203...
