Stabilizer & Elevator - THE WORLD MODELS At-6 Texan EP Instruction Manual

5

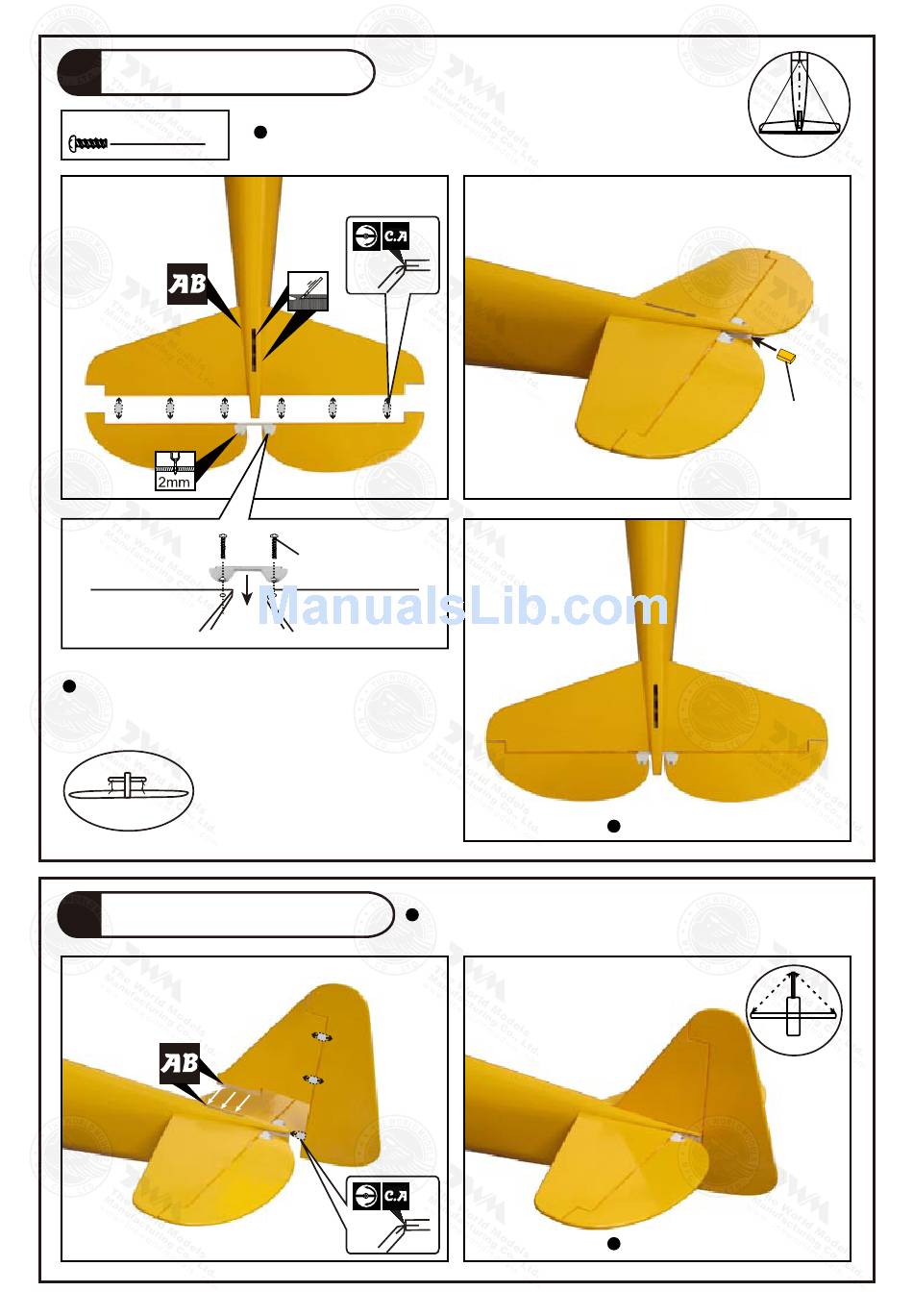

Stabilizer & Elevator
PB2x8mm Screw
2
Ø1mm pilot holes for World Models horn are
pre-drilled. Please look for pin-hole marks at
under side of control surfaces.
Temporary install the main
(Stabilizer)
wing, adjust leveling of the
B B'
stabilizer to make it as parallel
(Main Wing)
to the main wing as possible.
B=B'
6
Vertical Fin & Rudder
E269XMPO24481007
Apply instant type CA glue to both sides of each hinge.
PB2x8mm
Apply instant type CA glue to both sides of each hinge.
P.5
A
A=A'
Balsa
4x11.9x24mm
Completed
C
C=C'
Completed
A'
C'
