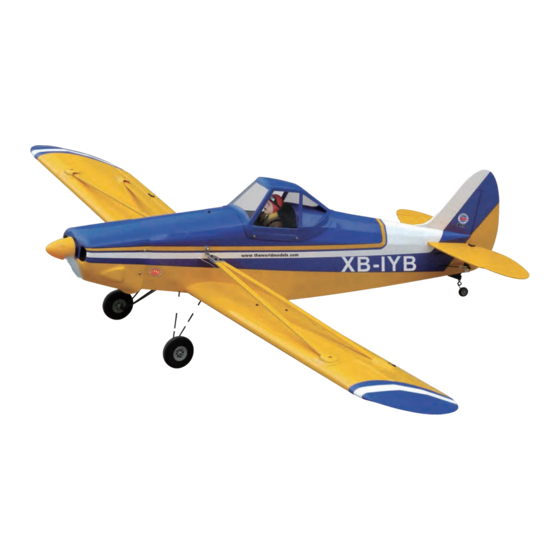

1/6 PIPER PA-25 PAWNEE
"Glow Power" requires: 6-channel radio w/4 mini servos, 3 standard servos,
"Electric Power" requires: 6-channel radio w/6 mini servos,
Wing Span
Wing Area
Flying Weight
Fuselage Length
Warning! This model is not a toy.
It is designed for maximum performance. Please seek advice if one is not familiar with this kind
of engine powered precision model. Operating this model without prior preparation may cause
injuries. Remember, safety is the most important thing. Always keep this instruction manual at
hand for quick reference.
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
A335PO31111509
2-stroke 0.40-0.46 engine,
Outrunner Motor KM37490750 w/Radial Mount
Adaptor HW2340300, 40A Brushless ESC, 4 cells
14.8V 3200mAh Lipo battery and charger
Specifications
*Specifications are subject to change without notice.*
72 in / 1830 mm
736 sq in / 47.5 sq dm
6.6 Ib / 3000 g
48 in / 1220 mm
ALMOST-READY-TO-FLY(ARF)SERIES
INSTRUCTION MANUAL
( A335 )
FACTORY PRE-FABRICATED
MADE IN CHINA
Advertisement
Table of Contents
Related Manuals for THE WORLD MODELS 1/6 PIPER PA-25 PAWNEE
Summary of Contents for THE WORLD MODELS 1/6 PIPER PA-25 PAWNEE
- Page 1 INSTRUCTION MANUAL 1/6 PIPER PA-25 PAWNEE ( A335 ) "Glow Power" requires: 6-channel radio w/4 mini servos, 3 standard servos, 2-stroke 0.40-0.46 engine, "Electric Power" requires: 6-channel radio w/6 mini servos, Outrunner Motor KM37490750 w/Radial Mount Adaptor HW2340300, 40A Brushless ESC, 4 cells 14.8V 3200mAh Lipo battery and charger...
-
Page 2: Before You Begin
1/6 PIPER PA-25 PAWNEE INDEX BEFORE YOU BEGIN PARTS LIST ASSEMBLY P.3-P.14 SAFETY PRECAUTIONS P.14 BEFORE YOU BEGIN Read through the manual before you begin, so you will have an overall idea of what to do. Check all parts. If you find any defective or missing parts contact your local dealer. Please DRY FIT and check for defects for all parts that will require CA or Epoxy for final assembly. -
Page 3: Parts List
Parts List 1. DECALS: A335 DEC -- set 10.PUSHROD Ø1.8x105mm w/ Threads (For Flap) -- 2 pcs MAIN WING -- 1 pair PUSHROD Ø1.8x115mm w/ Threads (For Aileron) -- 2 pcs FUSELAGE -- 1 pc. TRI-HORN PL4111221 -- 4 sets VERTICAL FIN &... - Page 4 Decals Cut out decal sheet, peel off backing sheet and apply on fuselage, rudder and wings. Decal Main wings Bottom View Fuselage Left View Right View Rudder Right View Left View A335PO31111509...
-
Page 5: Stabilizer & Elevator
Stabilizer & Elevator Apply instant type CA glue to both sides of each hinge. (Stabi l i zer) (Mai n Wi ng) B=B' Temporary install the main wing, adjust leveling of the stabilizer to make it as parallel to the main wing as possible Vertical Fin &... -
Page 6: Elevator Pushrod
Elevator Pushrod PB2x12mm Screw PB2x12mm Fuel Tube D6x5mm Tri-horn M3 x 14mm Pushrod Ø1.8x703mm Clevis Ø1mm pilot holes for World Models horn are pre-drilled. Please look for pin-hole marks at under side of control surfaces. Tail Landing Gear PA3x12mm Screw PM2x12mm Screw 2.1mm... - Page 7 This step is for electric powered. Please follow step 8B if your model is engine powered. Electric PWA2.6x12mm Screw M3x8mm d3xD7mm PA3x12mm Screw M3x12mm d1.5xD6.5mm Silicon Grommet Screw Propeller Adaptor HW2340300 Motor KP0011310 M2.5x11mm Solder Solder Brushless ESC EZ Connector Battery Tie Battery Double - sided Tape...
- Page 8 If 1/6 Piper PA-25 Pawnee is engine powered. Please follow this step. Engine Engine Mount PL5111030 PWA2.6x12mm Screw d3xD7mm PA3x12mm Screw M3x20mm d1.5xD6.5mm Silicon Grommet Screw Illustration is for inverted mounting. You can mount M3 Nut the engine upright or...
-
Page 9: Aileron Servo
Aileron Servo PWA2x8mm n Screw Servo Mounting Panel (R) Servo Mounting Panel (L) PWA2x8mm 1.5mm 1.5mm Bottom View Apply instant type CA glue to both sides of each hinge. Aileron Pushrod Pushrod (For Aileron) Ø1.8x115mm PB2x20mm Screw Pushrod (For Flap) Ø1.8x105mm PB2x16mm Screw... - Page 10 Main Wing PA3x22mm Screw d3.2xD12mm Washer PA3x22mm d3.2xD12mm Insert carbon wing tubes into right wing, apply the PA Screws. PA3x22mm d3.2xD12mm Insert the right wing tubes through the Fuselage, and then install the left wing. Press the wings against the fuselage then apply PA screws to the left wing. A335PO31111509...
-
Page 11: Wing Struts
Wing Struts M3x15mm Socket Head Screw M3x15mm M3x12mm M3x12mm Socket Head Screw d3xD7mm Washer d3xD7mm Washer d3xD7mm Washer Nylon Insert Lock Nut d3xD7mm Washer M3 Nut M3 Nylon Insert Lock Nut M3x15mm M3x12mm d3xD7mm Washer Wing Strut Cover Wing Strut Cover M3 Nut M3x12mm d3xD7mm Washer... - Page 12 This step is for electric powered. Please follow step 13B if your model is engine powered. Radio 180mm Y-Cord Aileron Servo (L) Elevator Servo Aileron Servo (R) Rudder Servo Flap Servo (L) Flap Servo (R) 180mm Y-Cord Receiver J1(Pushrod Ø1.8x73mm) Plug in the Aileron Servos wire to channel 1 Plug in the Elevator Servo wire to channel 2 Plug in the ESC Throttle wire to channel 3...
-
Page 13: Battery Cover
Battery Cover Canopy & Pilot PWA2.3x8mm Screw Pilot d1.5xD6.5mm Silicon Grommet Canopy PWA2.3x8mm Fuselage Silicon Grommets A335PO31111509 P.12... -
Page 14: Control Throws
Wing Setting A=A` B=B` C=C` Control Throws Adjust the control throws as shown in the diagram. These throws are good for general flying. You can adjust according to your personal preference. Elevator 12mm 12mm Rudder 20mm 20mm Flaps (near fuselage ) 20mm Ailerons ( away from fuselage ) A335PO31111509... - Page 15 # First time flyer should never fly by himself / herself. Assistance from experienced flyer is absolutely necessary. # Pre-flight adjustment must be done before flying, it is very dangerous to fly a badly pre-adjusted aircraft. 1/6 PIPER PA-25 PAWNEE KM37490750 Outrunner Motor is specially designed to be powered by 2-stroke 0.40-0.46 engine, using a more powerful engine does not mean better performance.
- Page 16 LINKAGE CONNECTOR HW7111050 & HW7111060 Drill 2mm hole at servo horn. Insert linkage connector into servo horn. Make sure shoulder of screw is cleared from servo horn. Add washer to reduce play if necessary. Shoulder Tighten up the round nut against the shoulder.
- Page 17 Usage of the transparent 3D template This transparent 3D template is used for position guidance of the actual cutting of the pre-painted cowling. Simply cut the transparent 3D template to fit your engine and exhaust pipe, then slide onto the actual cowling and use as template to mark the openings required for final cutting.
- Page 18 Pl8210010 Large Clevis Small Clevis Radial Mount Adaptor Set Outrunner Motor 37 / 49 -750kv Electronic Speed Control 15A KM37490750 Code No. Size KC2015A01 37 x 19 x 7mm 1 pc -Kv (rpm / V): 750 -Current : 15A continuous -Operating Power: 590 W -Weight : 22g (with wires) -Operating Voltage: 8.5 - 18V...
-
Page 19: Optional Parts
Optional Parts ACCESSORIES) Clevis Wrench 180mm Extension Code No. Size Package Code No. Size Package PL8210010 1 set KW0011800 180mm 1 set Small Clevis Large Clevis Special tool for clevis installation. Suitable for standard and small (EP) clevis. 180mm Y-Cord Code No. - Page 20 A335PO31111509...
