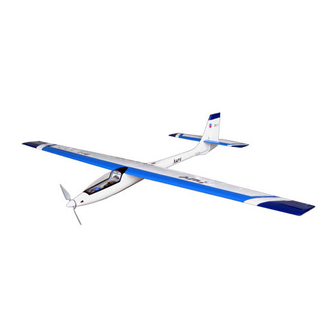

Aure EP
Requires : 4 - channel radio w/ 2 micro servos
(2.5 kg cm torque) for ailerons & 2 standard servos,
Outrunner Motor KM0283010
w/ Propeller Adaptor HW2340100,
20A brushless ESC, 3 cells 11.1V
2100 mAh Li - Po battery & charger.
Wing Span
Wing Area
Flying Weight
Fuselage Length
Warning ! This model is not a toy.
It is designed for maximum performance. Please seek advice if one is not familiar with this kind
of electric powered precision model. Operating this model without prior preparation may cause
injuries. Remember, safety is the most important thing. Always keep this instruction manual at
hand for quick reference.
E104SXMPO26391105
* Specifications are subject to change without notice.*
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
Specifications
79 in / 2010 mm
576 sq in / 37.2 sq dm
48 oz / 1350 g
48 in / 1220 mm
INSTRUCTION MANUAL
FACTORY PRE-FABRICATED
ALMOST-READY-TO-FLY(ARF)SERIES
MADE IN CHINA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Aure EP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for THE WORLD MODELS Aure EP

Summary of Contents for THE WORLD MODELS Aure EP

  • Page 1 INSTRUCTION MANUAL Aure EP Requires : 4 - channel radio w/ 2 micro servos (2.5 kg cm torque) for ailerons & 2 standard servos, Outrunner Motor KM0283010 w/ Propeller Adaptor HW2340100, 20A brushless ESC, 3 cells 11.1V 2100 mAh Li - Po battery & charger.

  • Page 2: Parts List

    Aure EP INDEX BEFORE YOU BEGIN PARTS LIST ASSEMBLY P.3-P.8 SAFETY PRECAUTIONS BEFORE YOU BEGIN Read through the manual before you begin, so you will have an overall idea of what to do. Check all parts. If you find any defective or missing parts contact your local dealer. Please DRY FIT and check for defects for all parts that will require CA or Epoxy for final assembly.
  • Page 3 Parts List 1. MAIN WING -- 1 pair 8. SCREW PM3x6mm -- 4 pcs WASHER d3xD7mm -- 4 pcs 2. BALSA 3x52x64mm (For Aileron Servos) -- 1 pair SPINNER Ø36mm -- 1 set BALSA 7x8x13mm (For Aileron Servos) -- 4 pcs FOLDING PROPELLER SET (PL6314020) -- 1 set SCREW PWA2x8mm -- 8 pcs SCREW PB2x10mm -- 4 pcs...

  • Page 4: Aileron Servo

    Aileron Apply instant type CA glue to both sides of each hinge. Aileron Servo Lead Bottom View PWA2x8mm Fuel Tube Straper Aileron Servo d2.5xD6x5mm Ø1mm pilot holes for PWA2x8mm Screw World Models tri-horn are pre-drilled.Please Pushrod PB2x10mm Screw Ø1.8x55mm look for pin-hole marks at under side of control surfaces.

  • Page 5: Rudder Pushrod

    Apply instant type CA glue to both sides of each Rudder C’ hinge. C=C’ Com pleted Ø1mm pilot holes for World Models tri-horn Rudder Pushrod are pre-drilled.Please look for pin-hole marks at under side of control surfaces. PB2x30mm Screw PB2x30mm Pushrod 1.8x840mm Clevis...
  • Page 6 Temporary install the main wing, adjust leveling of Stabilizer & Elevator the stabilizer to make it as parallel to the main wing as possible. Nylon Washer d3.1xD11x0.7mm Stabilizer Tube (A) Stabilizer Tube (B) Ø3x144mm Ø3x127mm Bottom View Bottom View Set Screw Bottom View Bottom View Completed...

  • Page 7: Radio Equipment

    Radio Equipment Front Brushless ESC Front Linkage Connector Clevis Battery Tie Fuel Tube Double Sided Tape Elevator Servo d2.5xD6x5mm 180mm Battery Battery Sponge Rudder Pushrod Sponge Elevator Pushrod Receiver Rudder Servo Main Wing HM3x16mm Socket Head Screw d3xD12mm Washer Washer HM3x16mm d3xD12mm Socket Head Screw...
  • Page 8 Wing Setting Adjust the wing and fuselage configuration as shown in the diagrams. E104SXMPO26391105...

  • Page 9: Control Throws

    # P re - f l i g h t a d j u s tme n t m u s t be d on e be f o r e f lyin g, it is ve r y d a n g e ro u s t o f l y a b a d l y p re - a d j u st e d a i rc ra ft. Aure EP is s pe c i al ly de s ig ne d t o be p ower e d b y K M 0 2 8 3 0 1 0 O ut r un n e r M o t or.
  • Page 10 LINKAGE CONNECTOR HW7111050 & HW7111060 Drill 2mm hole at servo horn. Insert linkage connector into servo horn. Make sure shoulder of screw is cleared from servo horn. Add washer to reduce play if necessary. Shoulder Tighten up the round nut against the shoulder.

  • Page 11: Optional Parts

    Optional Parts ACCESSORIES) 3 - Pin EZ Connector 2 - Pin EZ Connector Code No. Size Package Code No. Size Package KP0011310 40A Max. Current 1 set KP0011210 40A Max. Current 1 set -ideal for electric models -ideal for electric models Propeller Adaptor Wrench Propeller Adaptor Code No.
  • Page 12 The World Models Manufacturing Co., Ltd. www.theworldmodels.com E104SXMPO26391105...
