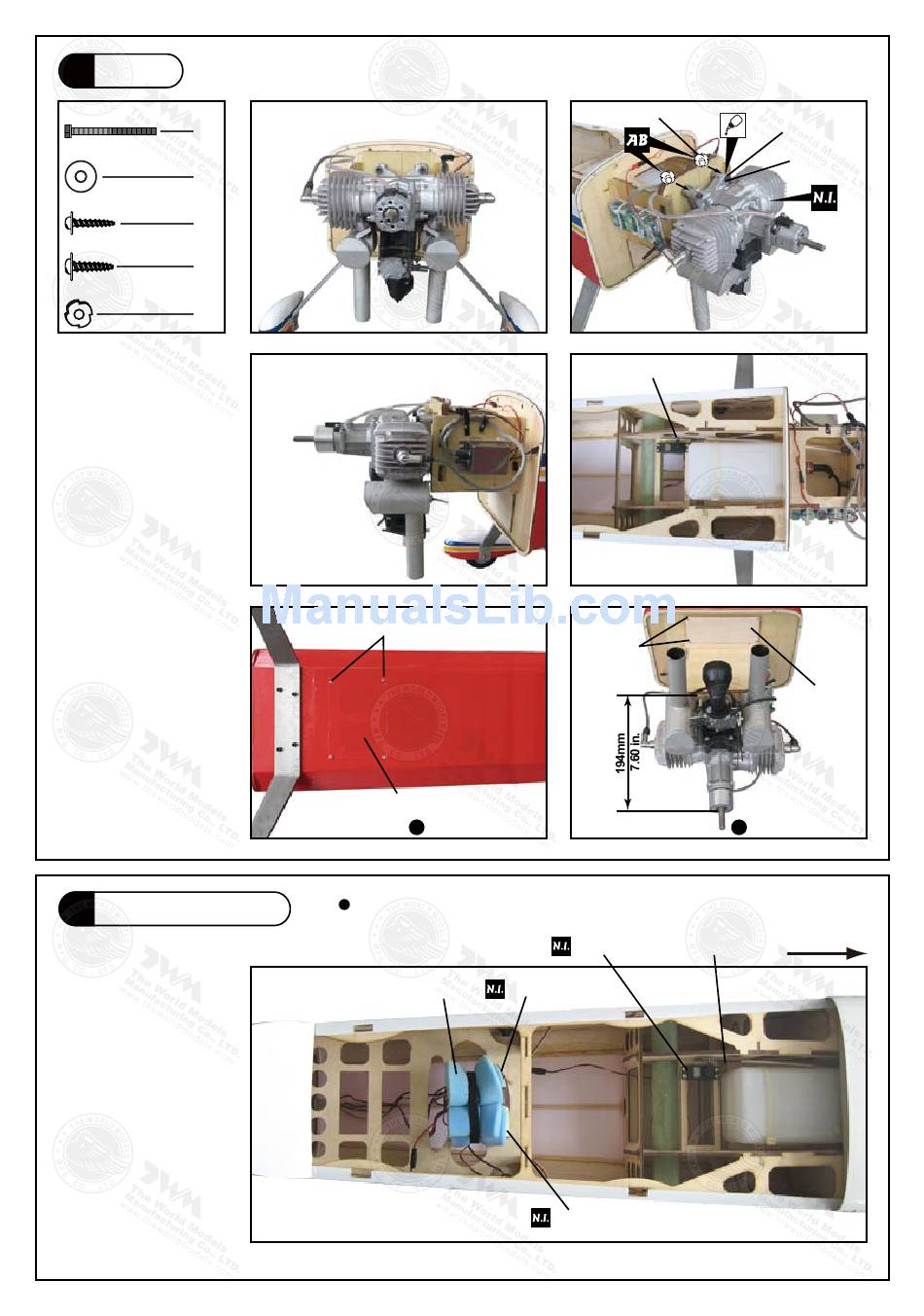

10
Engine
M6x50mm Socket Head Screw
4
d6xD15mm Washer
4
PWA2x12mm Screw
4
PWA2.6x12mm Screw
4
M6 Blind Nut
4
11
Radio Equipment
PWA2.6x12mm
Plywood 3x106x156mm
Bottom View
Install and arrange the equipment as shown in the diagram.
Receiver
Sponge
P.8
M6 Blind Nut
Linkage Connector Ø2.1mm
PWA2x12mm
Throttle Pushrod
Throttle Servo
Ø1.2x450mm
Battery
M6x50mm
Socket Head Screw
d6xD15mm
Washer
Plywood
2x106x155mm
Bottom View
Front
