12
Main Wing
PM3x35mm Socket
1
PA3x35mm Screw
1
d3xD7mm Washer
2

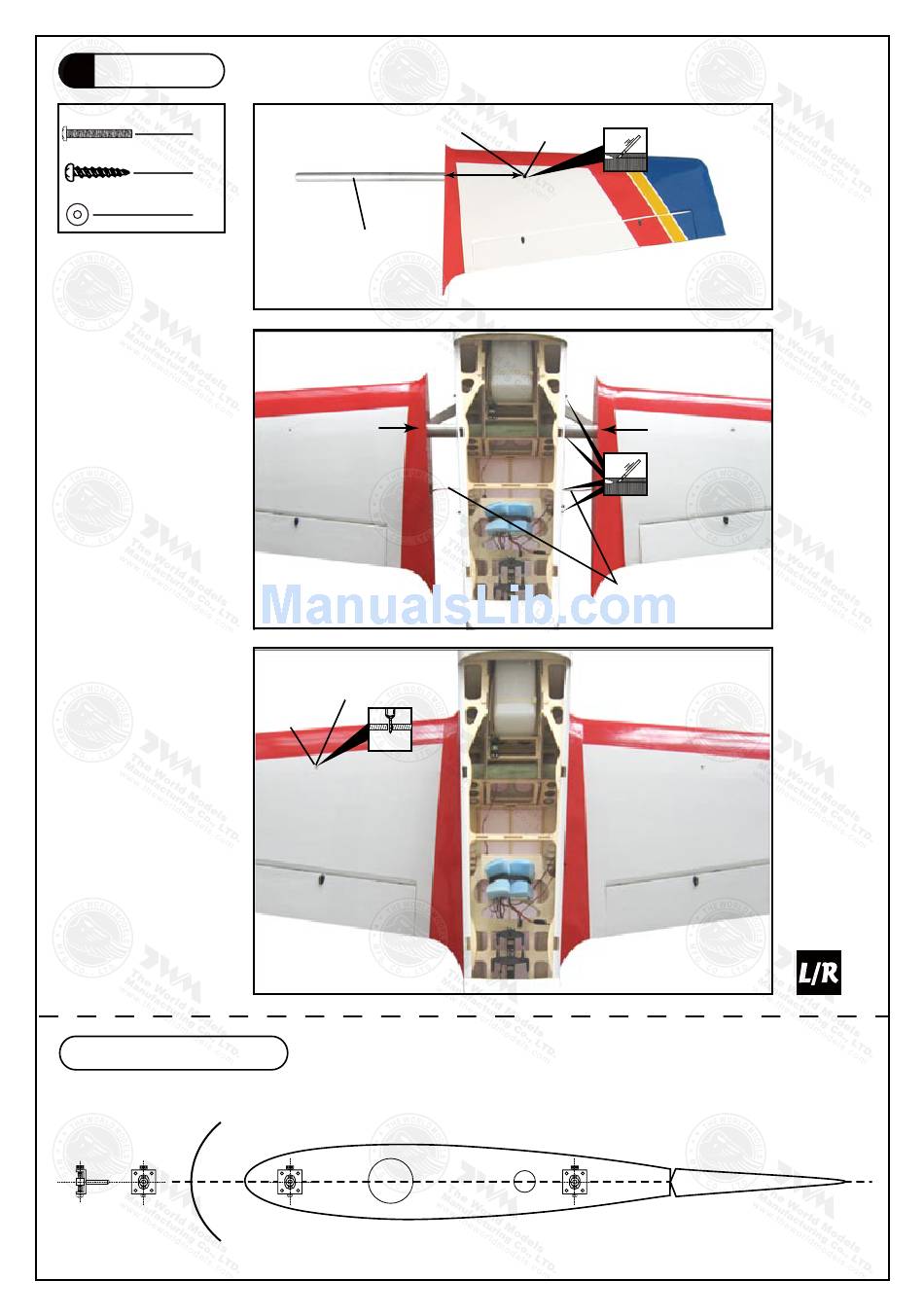

Step 2. Install the right wing to the
fuselage by inserting the wing tube
(now attached to the right wing)
through the fuselage, then install
the left wing.
Step 3. Make sure the wings are
resting against the fuselage tightly.
Locate the pre-drilled 2.5mm hole
at top of left wing, and drill along
with 2.5mm drill bit until it passes
through the wing tube. Apply the
PA3x35mm self-tapping screw.
Note : It is recommended that the
wing tube stays with the left wing.
Removal of the wings could be
achieved by removing the right wing
machine screw, the right wing then
the left wing with wing tube. If
removal of wing tube from left wing
is also required, it is recommended
that instead of applying self-tapping
screw in step 3, you pre-tap with M3
thread cutter and apply M3 machine
screw.
Main Wing Setting
Step 1. Insert the aluminum wing tube with the pre-drilled hole end into the right wing. Align the lines marked
at the wing root and wing tube, then apply the PM3x35mm machine screw through the pre-drilled hole on top
of the wing. (please confirm the alignment of the hole by putting a 2.5mm diameter rod through the pre-drilled
wing hole before applying the screw) The hole on the wing tube is pre-threaded, do not over tighten the PM3
screw, the set up is for future removal of the wing.
1
d3xD7mm Washer
Wing Tube
D38x1064mm
2
3
PA3x35mm
d3xD7mm
Washer
2.5mm
Top
Bottom
PM3x35mm
~ ~
384mm
Lead To Aileron Servo
P.9
