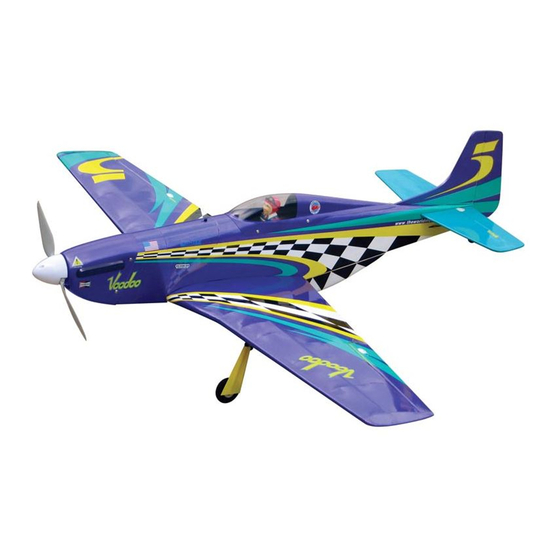

VOODOO MUSTANG EP
Requires : 5-channel radio w/ 5 micro servos,
Wing Span
Wing Area
Flying Weight
Fuselage Length
Warning ! This model is not a toy.
It is designed for maximum performance. Please seek advice if one is not familiar with this kind
of electric powered precision model. Operating this model without prior preparation may cause
injuries. Remember, safety is the most important thing. Always keep this instruction manual at
hand for quick reference.
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
E230RXMPO26791108
Outrunner Motor KM0283010
w/ Propeller Adaptor HW2340100,
20A brushless ESC, 3 cells 11.1V
2100 mAh Li - Po battery & charger.
S p ecifica tio n s
* Specifications are subject to change without notice.*
INSTRUCTION MANUAL
39.5 in / 1000 mm
282 sq in / 18.2 sq dm
28 oz / 790 g
34.5 in / 880 mm
ALMOST-READY-TO-FLY(ARF)SERIES
FACTORY PRE-FABRICATED
MADE IN CHINA
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for THE WORLD MODELS VOODOO MUSTANG EP
Summary of Contents for THE WORLD MODELS VOODOO MUSTANG EP
- Page 1 INSTRUCTION MANUAL VOODOO MUSTANG EP Requires : 5-channel radio w/ 5 micro servos, Outrunner Motor KM0283010 w/ Propeller Adaptor HW2340100, 20A brushless ESC, 3 cells 11.1V 2100 mAh Li - Po battery & charger. S p ecifica tio n s Wing Span 39.5 in / 1000 mm...
-
Page 2: Before You Begin
VOODOO MUSTANG EP INDEX BEFORE YOU BEGIN PARTS LIST ASSEMBLY P.3-P.10 SAFETY PRECAUTIONS P.10 BEFORE YOU BEGIN Read through the manual before you begin, so you will have an overall idea of what to do. Check all parts. If you find any defective or missing parts contact your local dealer. Please DRY FIT and check for defects for all parts that will require CA or Epoxy for final assembly. - Page 3 Parts List 1. MAIN WING -- 1 pc. 8. PUSHROD Ø1.4x372mm w/ Threads (For Elevator) -- 1 pc. 2. RETRACTABLE LANDING GEAR -- 1 pair FUEL TUBE d2xD4x4mm -- 1 pc. RETRACTABLE LANDING GEAR COVER -- 1 pair CLEVIS PL4112105 -- 1 pc. PVC PLATE 0.5mm -- 2 pcs 9.
-
Page 4: Retractable Landing Gear
Main Wing Apply instant type CA glue to both sides of each hinge. Aileron Servo Lead Bottom View Aileron Servo Lead Retractable Landing Gear Bottom View Please refer to attached sheet for linkage connector installation. Retract Servo Linkage connector To R-Side To L-Side Wheels Down Position 16mm... -
Page 5: Aileron Servo
Aileron Servo PA1.7x8mm Fuel Tube Straper d2xD4x4mm PB2x16mm Screw PA1.7x8mm Screw Ø1mm pilot holes for World Models tri-horn are pre-drilled. Please look for pin-hole marks at under side of control surfaces. PA1.7x8mm TWM PL8210010 Bottom View CLEVIS WRENCH Please choose either 02L & 02R or 03L & 03R or 04L & 04R that suits your servo. Stabilizer &... -
Page 6: Rudder Pushrod
Vertical Fin, Rudder & Tail Landing Gear PA2x8mm Screw Apply instant type CA glue to both sides of each hinge. PM2x8mm Screw d1xD5x2mm Plastic Collar M2 Nut Wheel Ø23mm Plastic PA2x8mm Collar Steering Bracket PM2x8mm C=C' Bottom View Completed Ø1mm pilot holes for World Models horn are pre-drilled. Rudder Pushrod Please look for pin-hole marks at under side of control surfaces. -
Page 7: Elevator Pushrod
Elevator Pushrod Pushrod Ø1.4x372mm Fuel Tube d2xD4x4mm 115mm 30mm Clevis TWM PL8210010 Bottom View CLEVIS WRENCH Outrunner Motor / Cowling PWA2x8mm Screw Don't over-tighten the Optional Parts PM3 screws, too much stress on the screws could split the firewall. PM2x12mm Screw Outrunner Motor 28/ 30 KM0283010 M3x6mm... -
Page 8: Radio Equipment
Radio equipment Install and arrange the servo as shown in the diagram. Fuel Tube Battery Tie Front Sponge10x50x150mm d2xD4x4mm 200mm Elevator Pushrod Battery Receiver Straper Rudder Pushrod Rudder Servo 20A Brushless ESC Bottom View E230RXMPO26791108... -
Page 9: Air Scoop
Main Wing Front M2.5x20mm NYLON BOLT d2.6xD9mm NYLON Washer d2.6xD9mm M2.5x20mm Nylon Washer Nylon Bolt Bottom View Air Scoop PWA2.3x8mm PWA2.3x8mm Screw Front PWA 2.3x8mm Completed Canopy PWA2x8mm Screw Pilot PWA2x8mm PWA2x8mm E230RXMPO26791108... - Page 10 Wing Setting Adjust the wing and fuselage configuration as shown in the diagrams. A’ B’ ’ ’ A=A’ B=B’ C=C’ D=D’ E230RXMPO26791108...
-
Page 11: Control Throws
# First time flyer should never fly by himself / herself. Assistance from experienced flyer is absolutely necessary. # Pre-flight adjustment must be done before flying, it is very dangerous to fly a badly pre-adjusted aircraft. VOODOO MUSTANG EP is specially designed to be powered by KM0283010 Outrunner Motor. - Page 12 LINKAGE CONNECTOR HW7111050 & HW7111060 Drill 2mm hole at servo horn. Insert linkage connector into servo horn. Make sure shoulder of screw is cleared from servo horn. Add washer to reduce play if necessary. Shoulder Tighten up the round nut against the shoulder.
- Page 13 Product Registration Form (US Customers) We would like to share with you any relevant information regarding your model, including product news and free upgrade parts when applicable. Please fill in the following and send to AirBorne Models, 4749-K, Bennett Drive, Livermore, CA 94551 USA. 1.
- Page 14 Pl8210010 Large Clevis • Small Clevis • E230RXMPO26791108...
- Page 15 E230RXMPO26791108...
- Page 16 E230RXMPO26791108...
