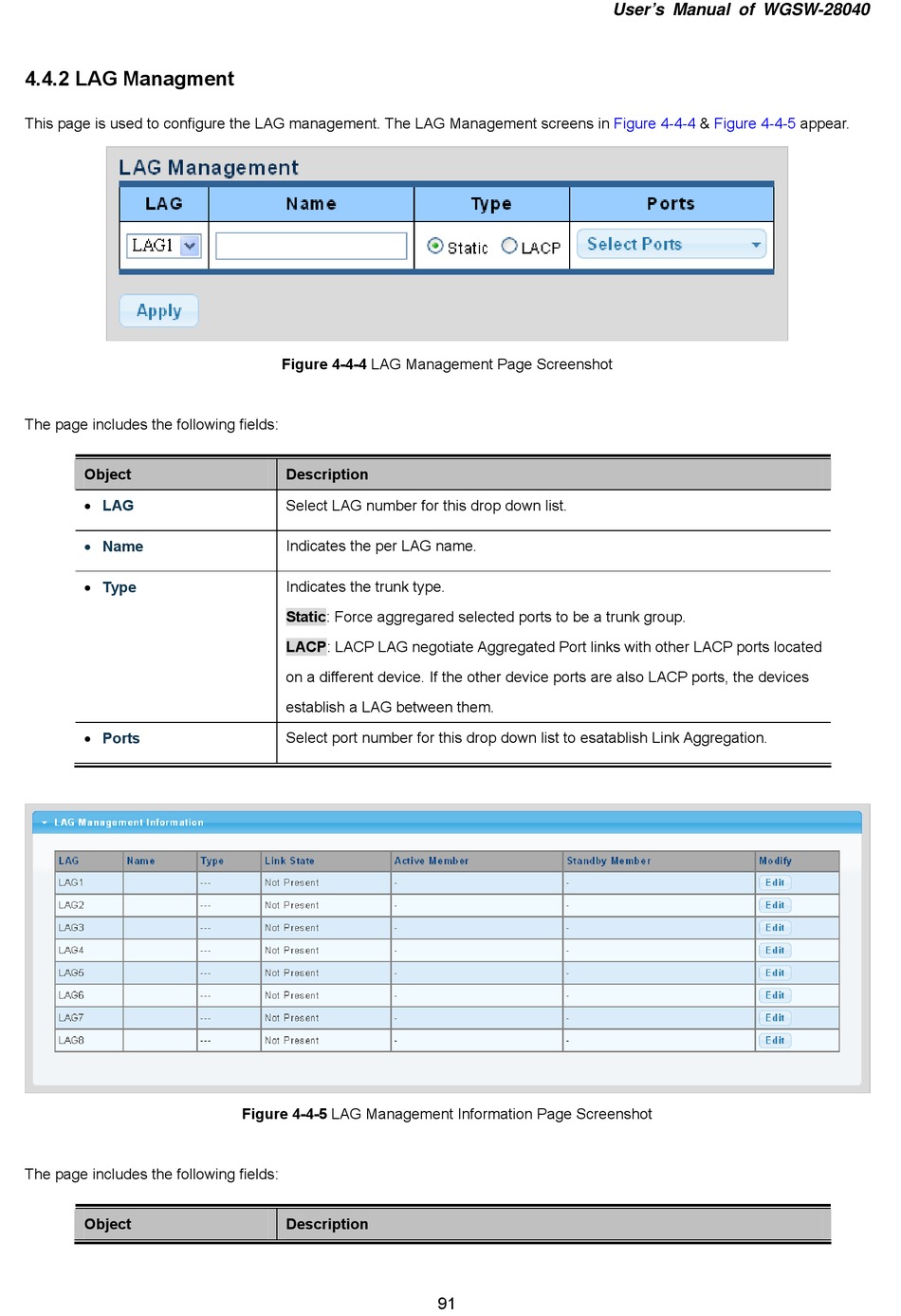

4.4.2 LAG Managment
This page is used to configure the LAG management. The LAG Management screens in
The page includes the following fields:
Object
LAG
Name
Type
Ports
The page includes the following fields:
Object
Figure 4-4-4 LAG Management Page Screenshot
Description
Select LAG number for this drop down list.
Indicates the per LAG name.
Indicates the trunk type.
Static: Force aggregared selected ports to be a trunk group.
LACP: LACP LAG negotiate Aggregated Port links with other LACP ports located
on a different device. If the other device ports are also LACP ports, the devices
establish a LAG between them.
Select port number for this drop down list to esatablish Link Aggregation.
Figure 4-4-5 LAG Management Information Page Screenshot
Description
91
User's Manual of WGSW-28040
Figure 4-4-4
&
Figure 4-4-5
appear.
