Figure 4-4 Removing The Fiber Cover; Figure 4-5 Installing The Sfp Optical Module - Raisecom MSG1200 User Manual

Raisecom
MSG1200 (A) User Manual

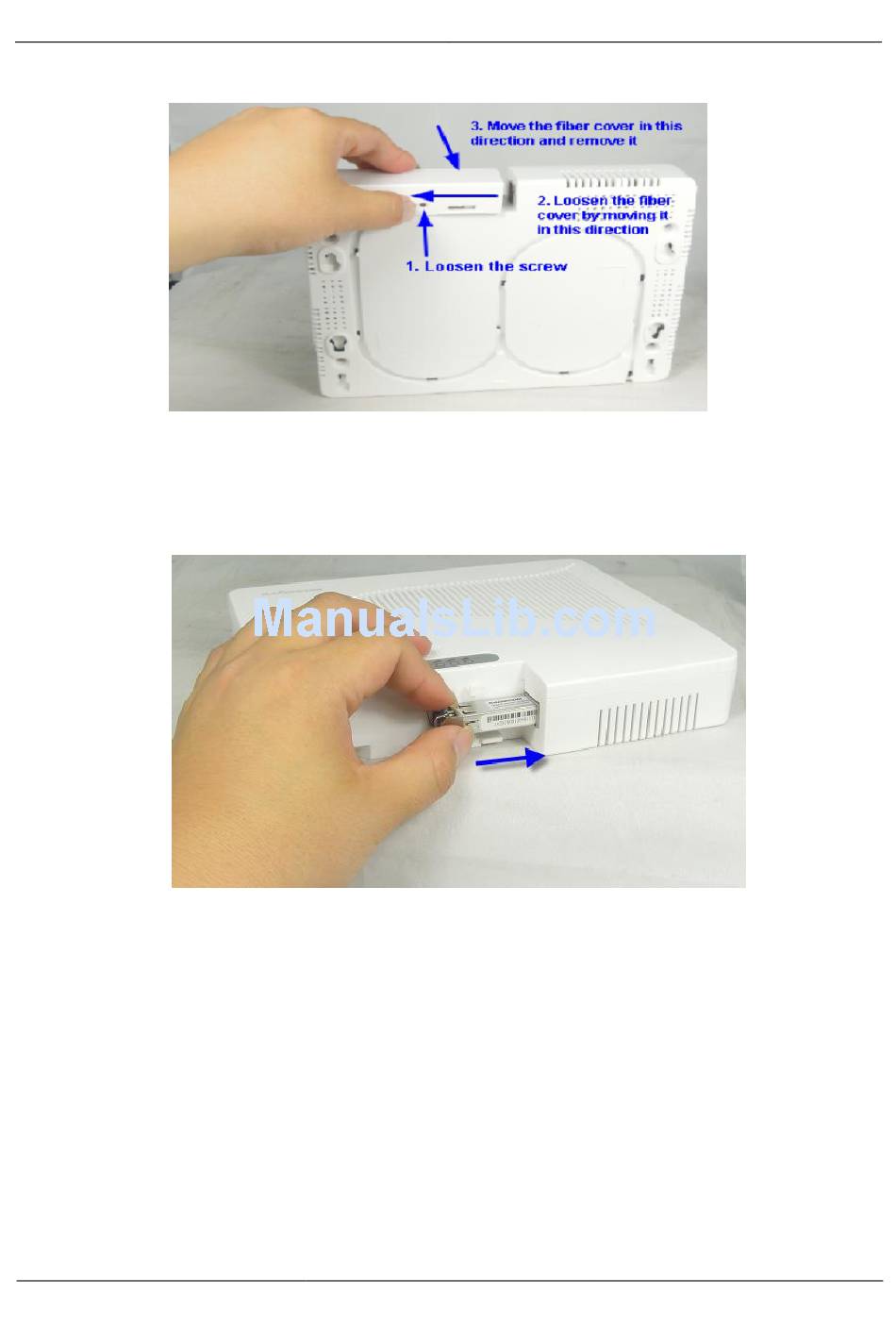

Figure 4-4 Removing the fiber cover

Step 2 Remove the dust-proof cover of the optical module and insert the optical module into the SFP
interface, as shown in Figure 4-5. This step is not available for the MSG1200-EPON and
MSG1200-UPON.

Figure 4-5 Installing the SFP optical module

Step 3 Insert the connector to the optical interface after cleaning it with anhydrous alcohol, as shown
in Figure 4-6.
