Product structure

This chapter describes the hardware structure of the MSG1200, including the following
sections:







2.1 Appearance

The MSG1200 uses a plastic shell and is of fan-free for heat dissipation. It adopts a power
adaptor to address needs of voltage and current of modules. In addition, it is embedded with a
3G/WLAN antenna.
Figure 2-1 shows the appearance of the MSG1200.

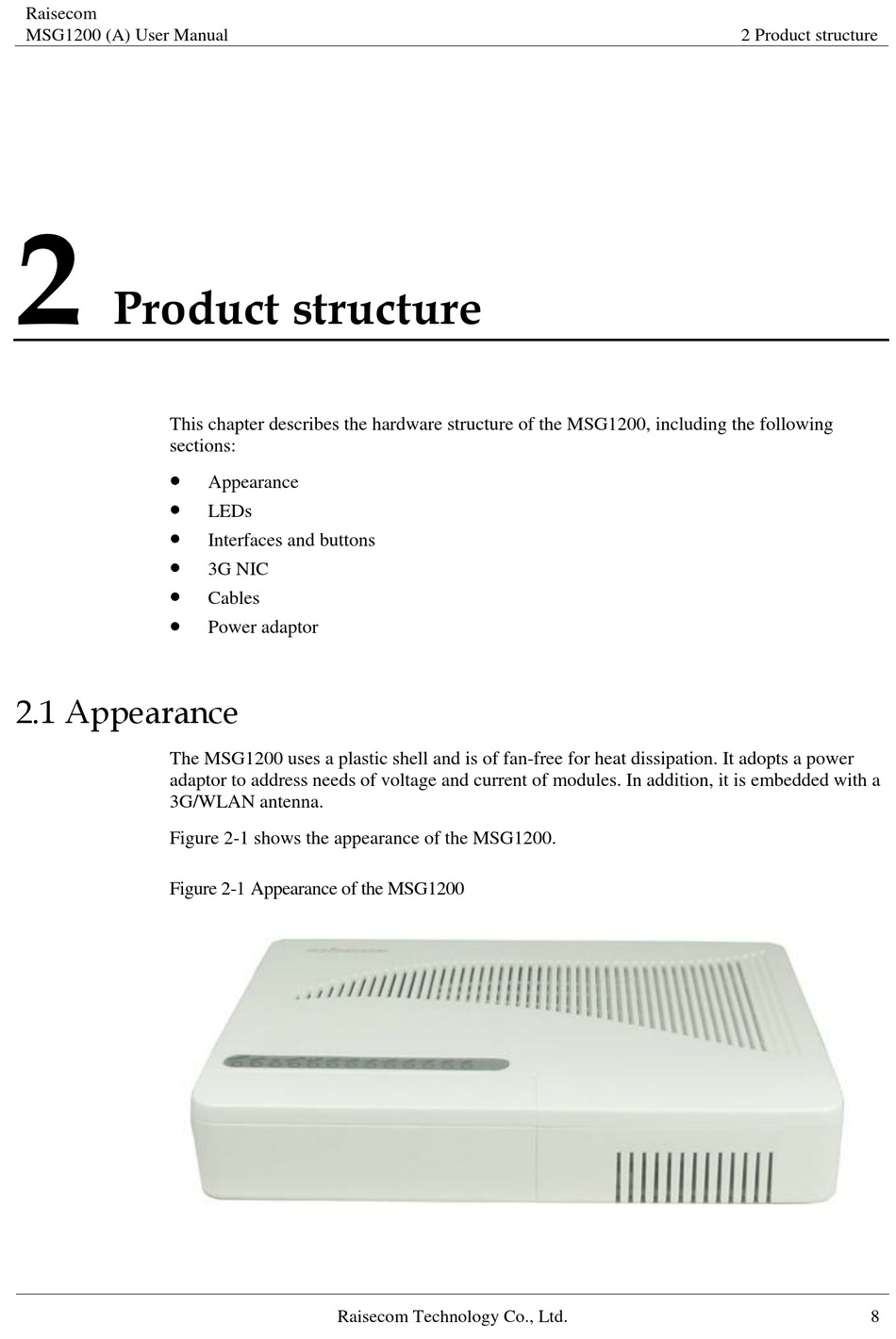

Figure 2-1 Appearance of the MSG1200

Appearance
LEDs
Interfaces and buttons
3G NIC
Cables
Power adaptor
