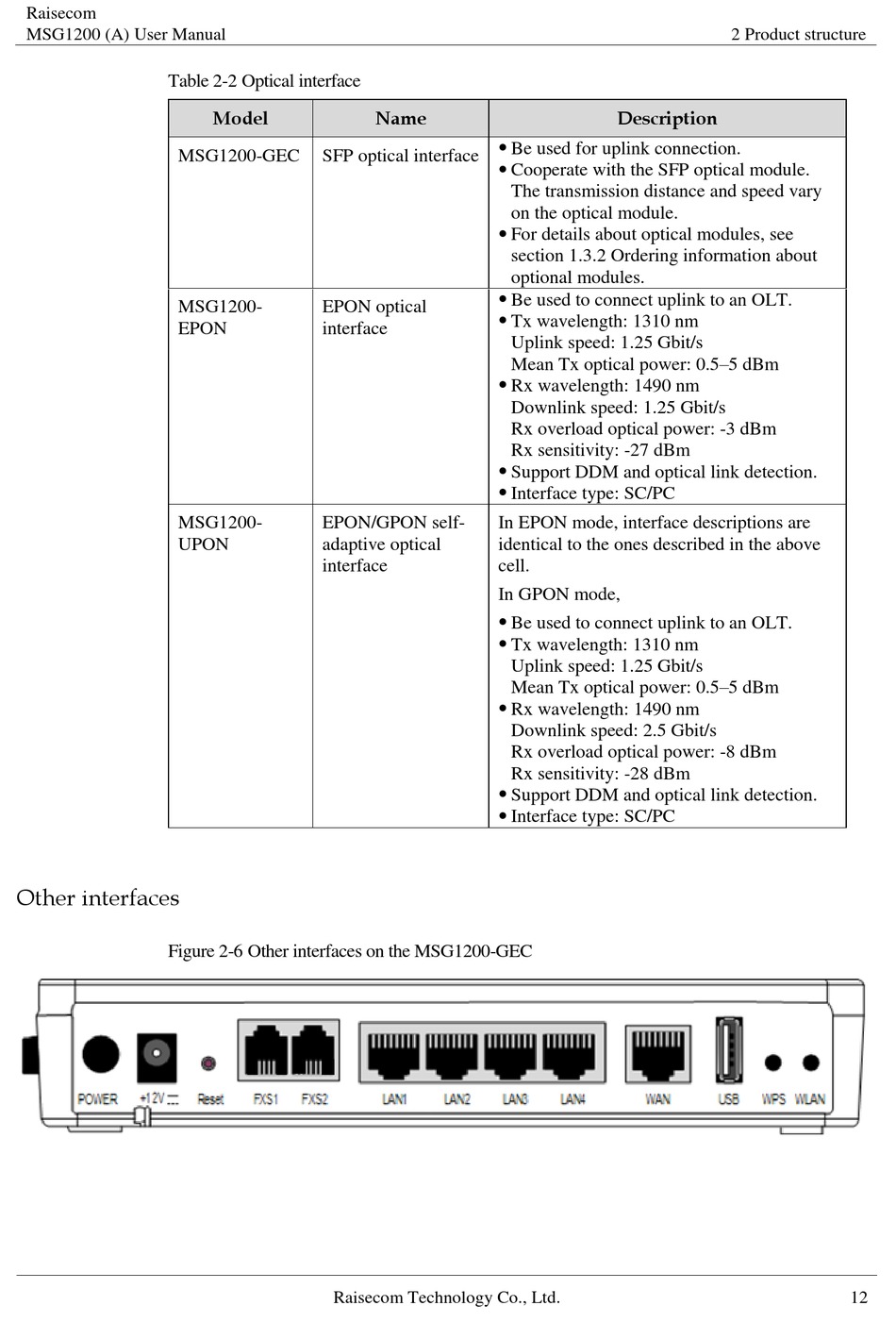

Table 2-2 Optical interface

MSG1200-GEC
MSG1200-
EPON
MSG1200-
UPON
Other interfaces

Figure 2-6 Other interfaces on the MSG1200-GEC

Model Name
SFP optical interface
EPON optical
interface
EPON/GPON self-
adaptive optical
interface
Raisecom Technology Co., Ltd.
Description
 Be used for uplink connection.
 Cooperate with the SFP optical module.
The transmission distance and speed vary
on the optical module.
 For details about optical modules, see
section 1.3.2 Ordering information about
optional modules.

Be used to connect uplink to an OLT.
 Tx wavelength: 1310 nm
Uplink speed: 1.25 Gbit/s
Mean Tx optical power: 0.5–5 dBm
 Rx wavelength: 1490 nm
Downlink speed: 1.25 Gbit/s
Rx overload optical power: -3 dBm
Rx sensitivity: -27 dBm
 Support DDM and optical link detection.
 Interface type: SC/PC
In EPON mode, interface descriptions are
identical to the ones described in the above
cell.
In GPON mode,
 Be used to connect uplink to an OLT.
 Tx wavelength: 1310 nm
Uplink speed: 1.25 Gbit/s
Mean Tx optical power: 0.5–5 dBm
 Rx wavelength: 1490 nm
Downlink speed: 2.5 Gbit/s
Rx overload optical power: -8 dBm
Rx sensitivity: -28 dBm

Support DDM and optical link detection.

Interface type: SC/PC
