Raisecom
MSG1200 (A) User Manual

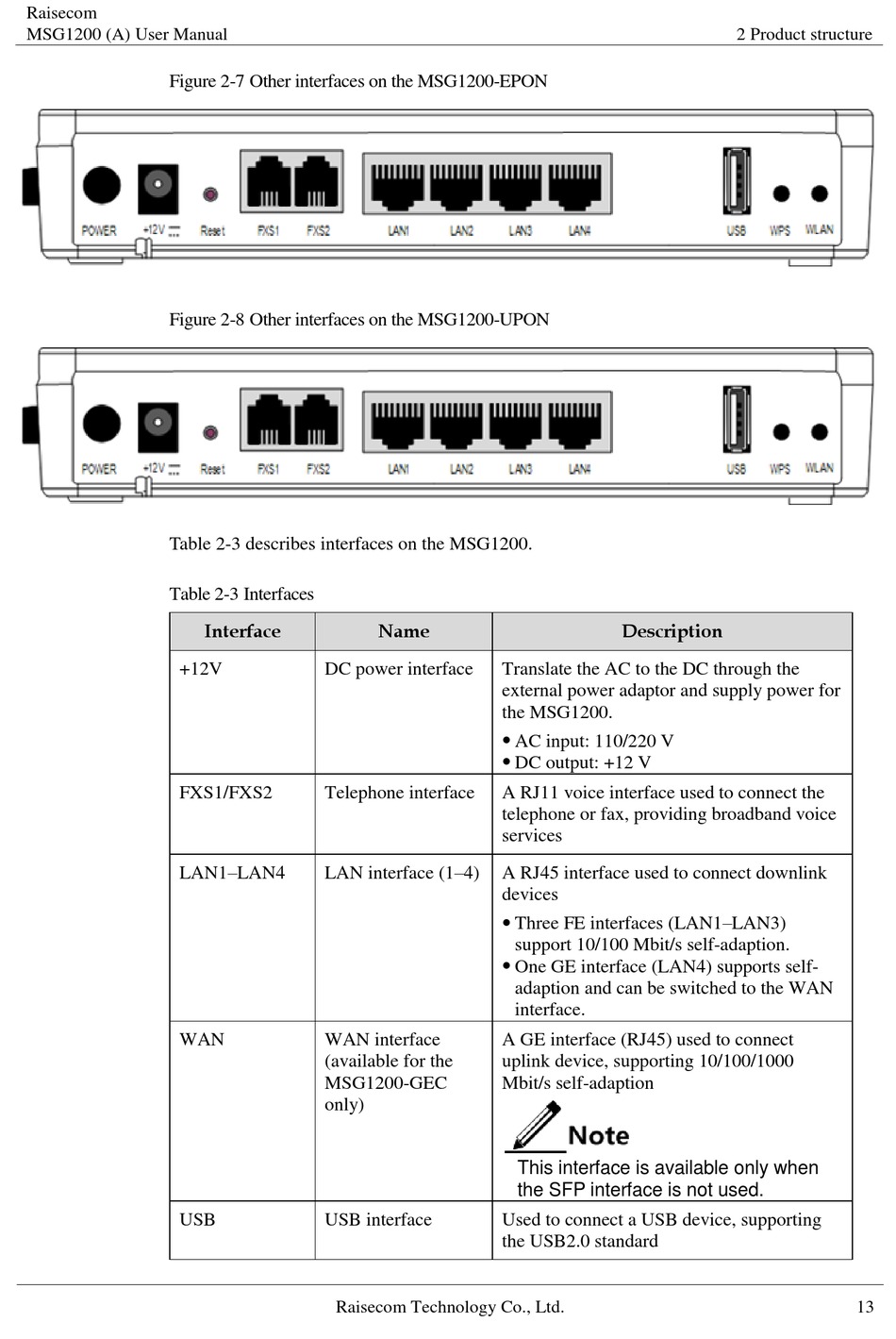

Figure 2-7 Other interfaces on the MSG1200-EPON

Figure 2-8 Other interfaces on the MSG1200-UPON

Table 2-3 describes interfaces on the MSG1200.

Table 2-3 Interfaces

+12V
FXS1/FXS2
LAN1–LAN4
WAN
USB
Interface
DC power interface
Telephone interface
LAN interface (1–4)
WAN interface
(available for the
MSG1200-GEC
only)
USB interface
Raisecom Technology Co., Ltd.
Name
Translate the AC to the DC through the
external power adaptor and supply power for
the MSG1200.
 AC input: 110/220 V

DC output: +12 V
A RJ11 voice interface used to connect the
telephone or fax, providing broadband voice
services
A RJ45 interface used to connect downlink
devices

Three FE interfaces (LAN1–LAN3)
support 10/100 Mbit/s self-adaption.

One GE interface (LAN4) supports self-
adaption and can be switched to the WAN
interface.
A GE interface (RJ45) used to connect
uplink device, supporting 10/100/1000
Mbit/s self-adaption
This interface is available only when
the SFP interface is not used.
Used to connect a USB device, supporting
the USB2.0 standard
2 Product structure
Description
13
