4.2 Installing hardware

4.2.1 Installation environment

The MSG1200 is installed in an indoor room. The AC power should meet the following
requirements:



4.2.2 Installation procedure

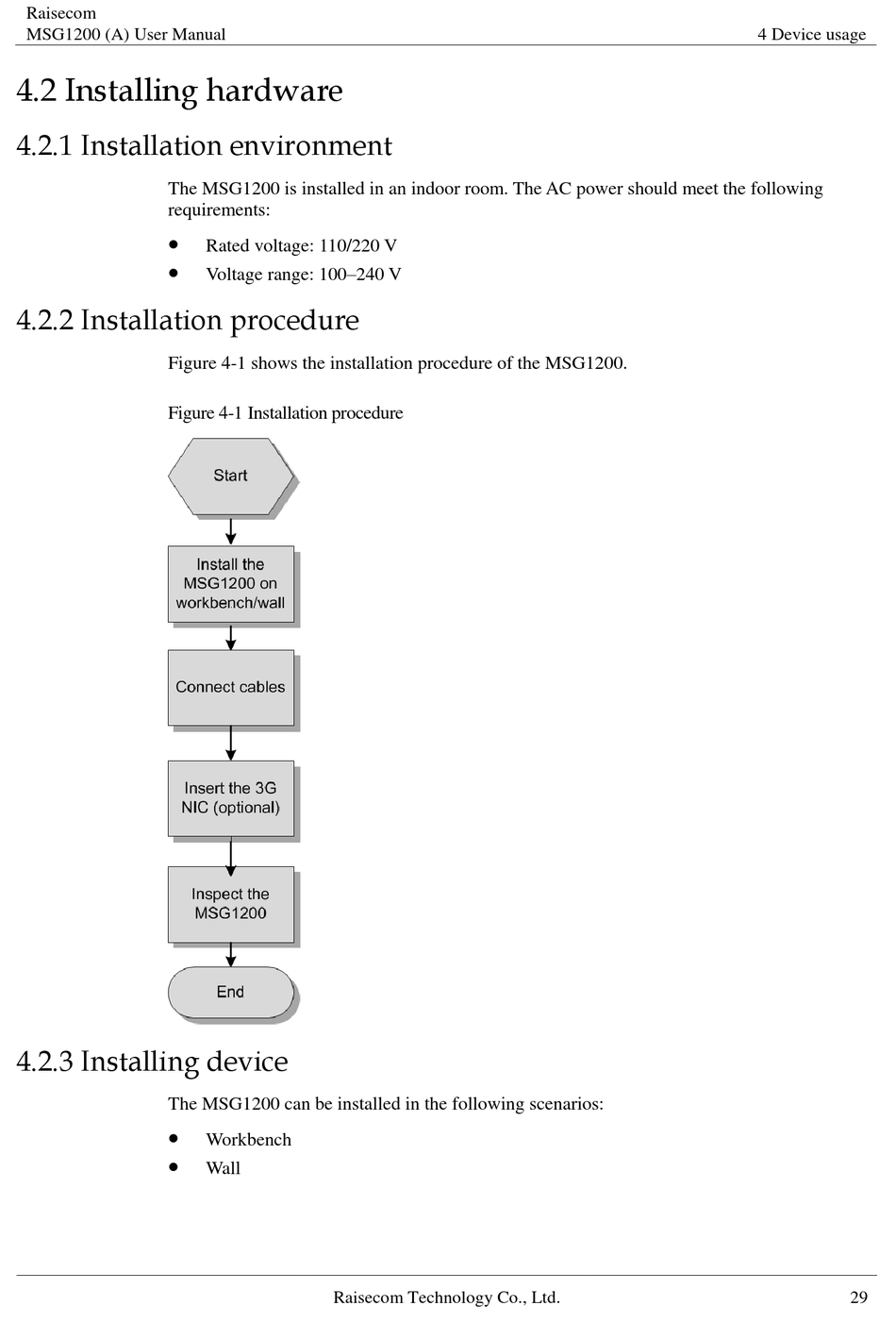

Figure 4-1 shows the installation procedure of the MSG1200.

Figure 4-1 Installation procedure

4.2.3 Installing device

The MSG1200 can be installed in the following scenarios:


Rated voltage: 110/220 V
Voltage range: 100–240 V
Workbench
Wall
