Summary of Contents for Raisecom ISCOM2008
- Page 1 ISCOM2008 Hardware Installation User Manual...
- Page 2 Raisecom Technology Co., Ltd shall not be held liable for errors contained herein or direct, indirect, special, incidental or consequential damages in connection with the furnishing, performance, or use of this material.
- Page 3 +86-10-82883305 Fax: +86-10-82883056 World Wide Web You can access the most current Raisecom product information on the World Wide Web at the following URL: http://www.raisecom.com Feedback Comments and questions about how the ISCOM2008 device works are welcomed. Please review the...
-
Page 4: Table Of Contents
CONTENTS General Safety Instructions ------------------------------------------------------------------------------ 1 Chapter 1 Overview ------------------------------------------------------------------------------------- 3 1.1 Overview of this manual -----------------------------------------------------------------------------------------------------3 1.2 Terms explanation-------------------------------------------------------------------------------------------------------------3 Chapter 2 Specification and Dimension ---------------------------------------------------------- 4 2.1 Device hardware description -----------------------------------------------------------------------------------------------4 2.2 Device dimension -------------------------------------------------------------------------------------------------------------4 2.3 Device operating environment ---------------------------------------------------------------------------------------------4 Chapter 3 Device Appearance ----------------------------------------------------------------------- 5 3.1 Device front panel description----------------------------------------------------------------------------------------------5... - Page 5 Preface About This Manual This manual is for users of ISCOM2008 series switches with hardware version higher than VER B.00. Who Should Read This Manual This manual is a reference for device installation and maintenance staff. Relevant Manuals 《ISCOM2008 Series Switches Commands Notebook》...
-
Page 6: General Safety Instructions
User Manual General Safety Instructions The following instructions serve as a general guide for the safe installation and operation of telecommunications products. Additional instructions, if applicable, are included inside the manual. Safety Symbols This symbol may appear on the equipment or in the text. It indicates potential safety hazards regarding product operation or maintenance to operator or service personnel. - Page 7 User Manual be present inside certain products even when the power switch (if installed) is in the OFF position or a fuse is blown. For DC-powered products, although the voltages levels are usually not hazardous, energy hazards may still exist.
-
Page 8: Chapter 1 Overview
Chapter 1 Overview 1.1 Overview of this manual This manual mainly discusses the installation of ISCOM2008 switch. It describes the features of the switch, introduces its components and the functions these components accomplish. This manual focuses on the hardware installation and employment of ISCOM2008 switch. For the configuration and operations of the switch based on software, please refer to the corresponding software configuration guide. -
Page 9: Chapter 2 Specification And Dimension
Chapter 2 Specification and Dimension 2.1 Device hardware description ISCOM2008 Ethernet Switch is a layer-2 Ethernet switch designed for network users’ access to the carriers’ network. ISCOM2008 has 1 CONSOLE interface and 8 100BASE-TX Ethernet electrical interfaces. The power consumption of the system is less than 10W. -
Page 10: Chapter 3 Device Appearance

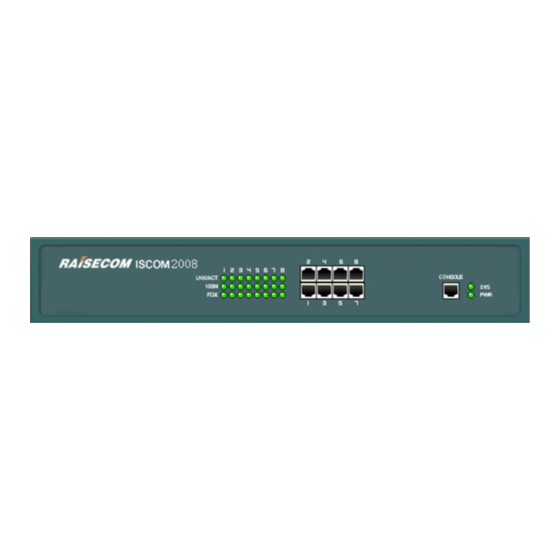

8 10/100M Ethernet electrical interfaces, 1 CONSOLE interface and dozens of status indicators are placed on the front panel of ISCOM2008 switch (see the figure below). In the figure shown above: ① The logo and model of the switch are RAISECOM and ISCOM2008 respectively. ② 2 device status indicators: SYS and PWR. Indicator... -
Page 11: Device Rear Panel Description
⑤ The CONSOLE interface. 3.2 Device rear panel description ISCOM2008 only provides a socket for 220V AC power supply on its rear panel (see the figure below). In the figure shown above: ① The place where the socket for 220V AC power supply locates. -
Page 12: Chapter 4 Installation And Application
4.2 Device installation 4.2.1 Environment requirement There are heat exhaust outlets on both sides of ISCOM2008 switch. Please leave space on both sides of the switch to keep air flow unblocked. Please make sure the outlets are not blocked. 4.2.2 Install the device on to a rack 4.2.3 Grounding... - Page 13 Number Number Ground 3) CONSOLE interface connecting pattern and parameter setup The connecting of ISCOM2008 CONSOLE interface and PC serial port is shown in the figure below. 4、5 PC Serial Pot ISCOM2008 CONSOLE The values of the connecting parameters of the terminal simulation program on the PC are as...
-
Page 14: Connect To Ethernet
MDI interface by straight through cable or to an opposite MDIX interface by crossover cable. 4.3.3 Connect to the power supply ISCOM2008 adopts 220V AC power supply. Please connect the socket on the rear panel of the switch with 220V AC power supply using the provided power supply cable. 4.4 Cable making For the pin numbering of RJ-45 connector and jack, please refer to the “CONSOLE interface signal... -
Page 15: Electrify The Switch
User Manual Side 1 Side 1 Side 2 3 5 7 1 = White/Orange 1 = White/Orange 2 = Orange 2 = Orange 3 = White/Green 3 = White/Green 4 = Blue 4 = Blue 5 = White/Blue 5 = White/Blue... -
Page 16: Chapter 5 Notes
User Manual Chapter 5 Notes The installation, maintenance, plugging in and pulling out of components of ISCOM2008 switch can only be conducted by qualified technical support staff. Please place the device in a temperature-controllable and humidity-controllable room and please be cautious of the conductivity of the materials around the device. - Page 17 Address: 2 Floor, South Building of Rainbow Plaza, No.11 Shangdi Information Road, Haidian District, Beijing Postcode: 100085 Tel: +86-10-82883305 Fax: +86-10-82883056 Email: export@raisecom.com http://www.raisecom.com...
