Table 2-9 Technical specifications of the Ethernet cable

Color
Model
Connector
Number of cores
Length

2.5.3 Telephone cable

The MSG1200 has 2 RJ11 voice interfaces, which are connected to the telephone/fax through
the telephone cable. In general, the telephone cable has 2/4 cores. Figure 2-17 shows a
telephone cable with 4 cores.

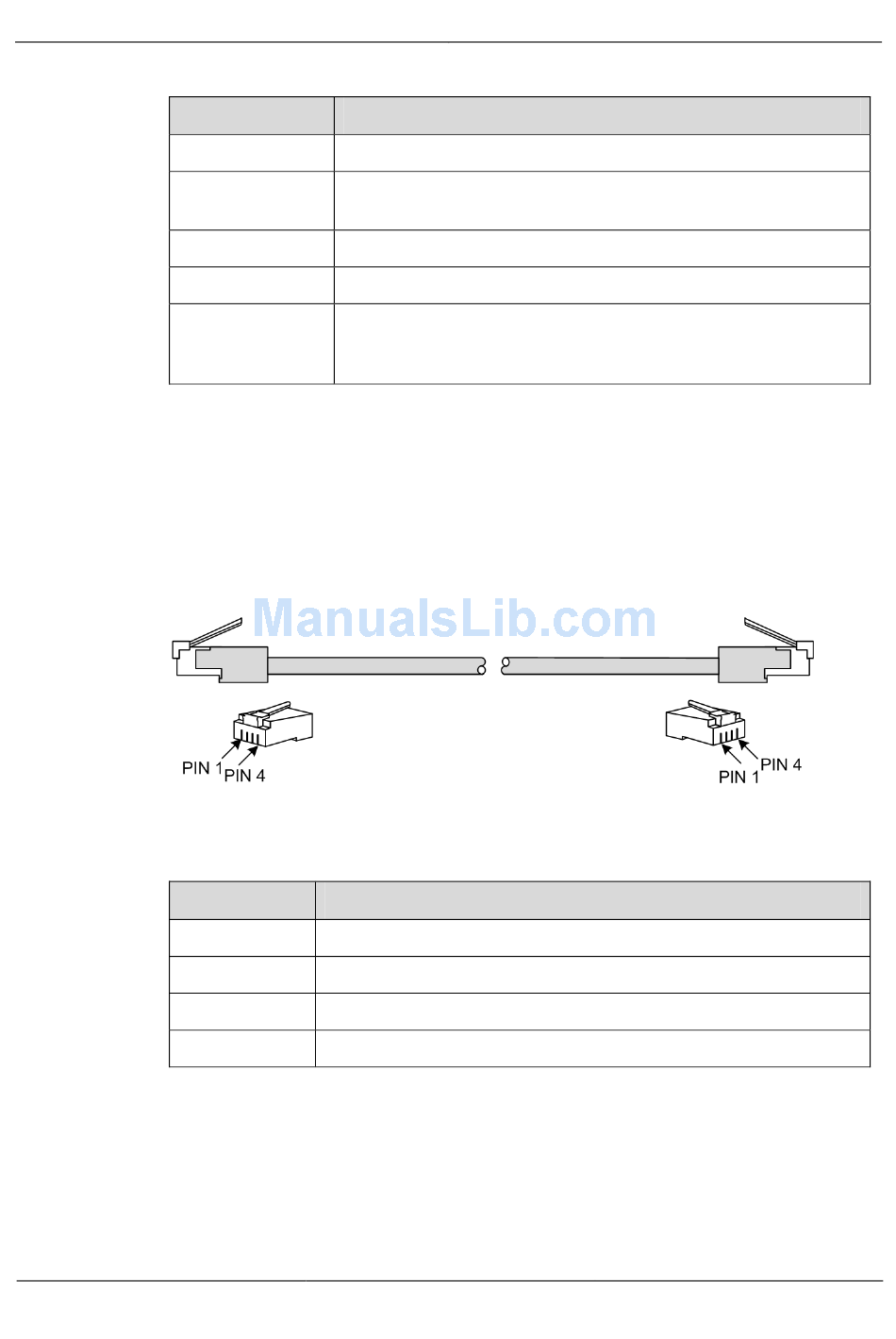

Figure 2-17 Telephone cable

Table 2-10 describes signals of the telephone cable.

Table 2-10 Signals of telephone cable

PIN1
PIN2
PIN3
PIN4

2.6 Power adaptor

The MSG1200 power adaptor outputs the power through one way. It translates the AC power
into the DC power to supply power for the MSG1200.
Item
Dark grey
Cat 5 or batter Unshielded Twisted Pair (UTP) cable (UTP-5/UTP-
5e) or Shielded Ttwisted Pair (STP) cable
RJ45 connector
8 cores
The letter D indicates the length, which is customized. For example,
if the customer requires 2-meter cables, they are named CBL-ETH-
RJ45/RJ45-2m.
PIN
–
Ringing
Tip
–
