Raisecom
MSG1200 (A) User Manual

2.3.2 Buttons

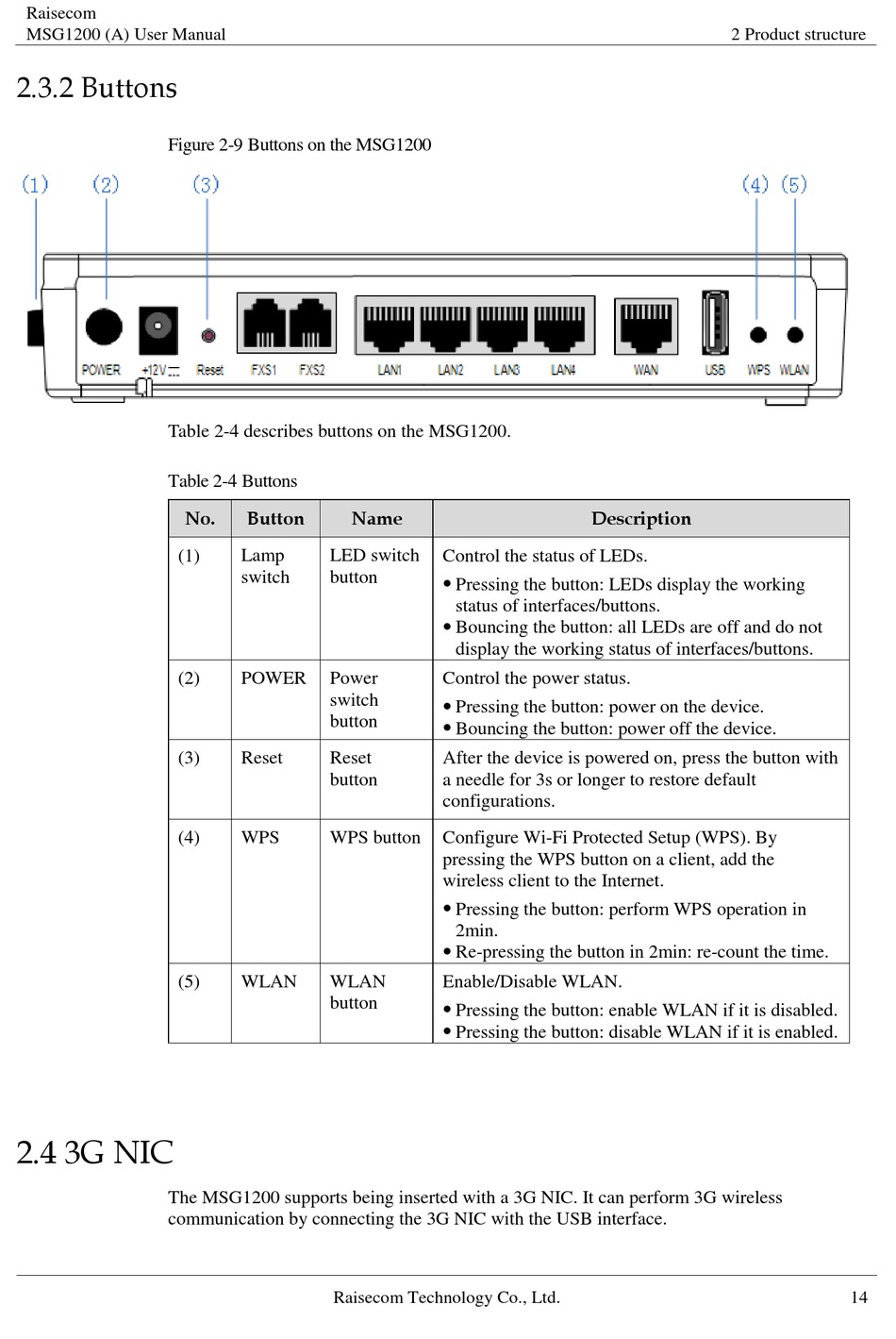

Figure 2-9 Buttons on the MSG1200

Table 2-4 describes buttons on the MSG1200.

Table 2-4 Buttons

No.
(1)
(2)
(3)
(4)
(5)
2.4 3G NIC
The MSG1200 supports being inserted with a 3G NIC. It can perform 3G wireless
communication by connecting the 3G NIC with the USB interface.
Button Name
Lamp LED switch
switch button
Power
POWER
switch
button
Reset
Reset
button
WPS WPS button
WLAN WLAN
button
Raisecom Technology Co., Ltd.
Description
Control the status of LEDs.
 Pressing the button: LEDs display the working
status of interfaces/buttons.
 Bouncing the button: all LEDs are off and do not
display the working status of interfaces/buttons.
Control the power status.
 Pressing the button: power on the device.
 Bouncing the button: power off the device.
After the device is powered on, press the button with
a needle for 3s or longer to restore default
configurations.
Configure Wi-Fi Protected Setup (WPS). By
pressing the WPS button on a client, add the
wireless client to the Internet.

Pressing the button: perform WPS operation in
2min.

Re-pressing the button in 2min: re-count the time.
Enable/Disable WLAN.

Pressing the button: enable WLAN if it is disabled.

Pressing the button: disable WLAN if it is enabled.
2 Product structure
14
