The MSG1200 supports mainstream 3G NICs. 3G standards supported by the MSG1200 are
shown as below:



The 3G NIC is not delivered with the MSG1200. Order it as required.

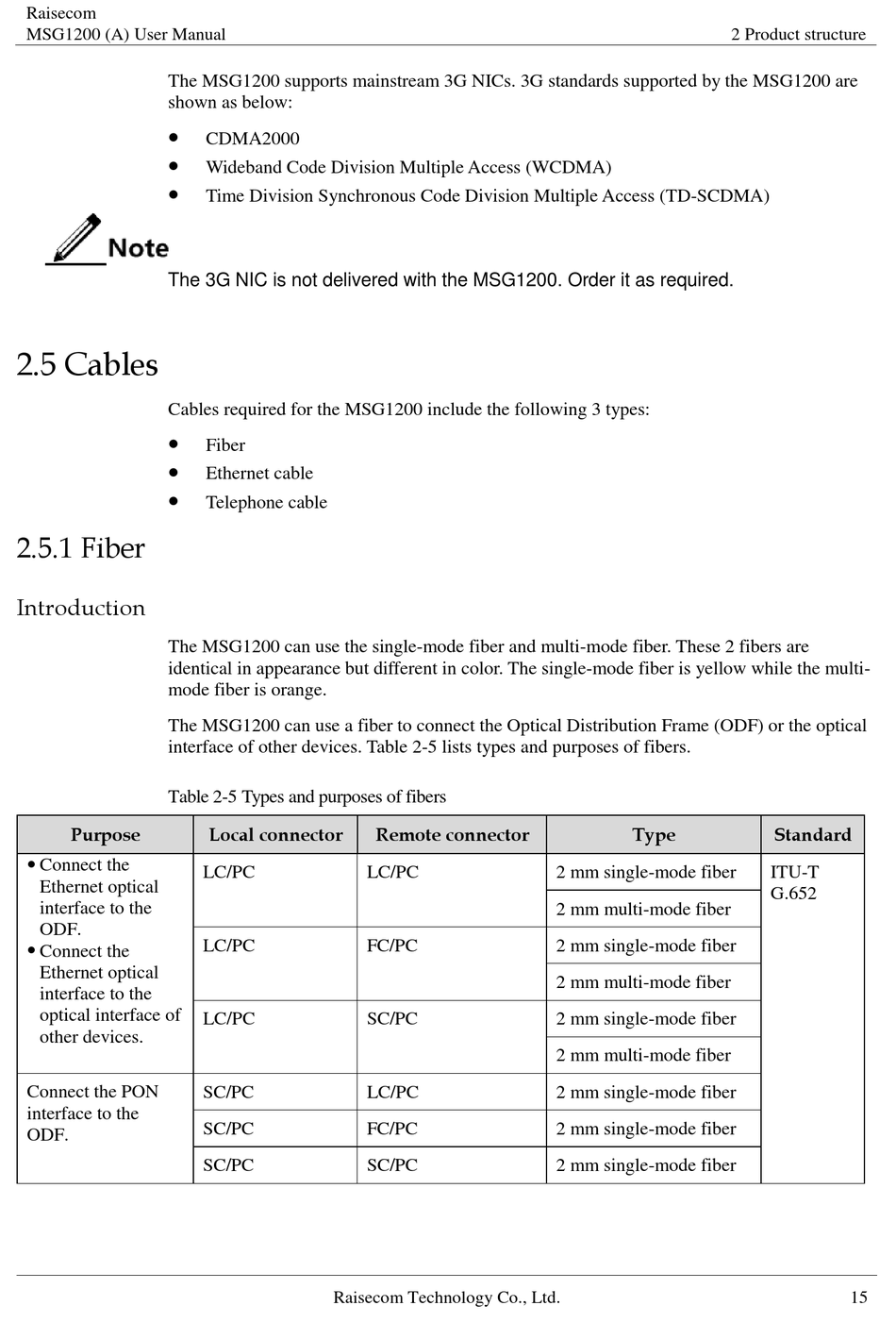

2.5 Cables

Cables required for the MSG1200 include the following 3 types:




2.5.1 Fiber

Introduction
The MSG1200 can use the single-mode fiber and multi-mode fiber. These 2 fibers are
identical in appearance but different in color. The single-mode fiber is yellow while the multi-
mode fiber is orange.
The MSG1200 can use a fiber to connect the Optical Distribution Frame (ODF) or the optical
interface of other devices. Table 2-5 lists types and purposes of fibers.

Table 2-5 Types and purposes of fibers

Purpose

Connect the
Ethernet optical
interface to the
ODF.
 Connect the
Ethernet optical
interface to the
optical interface of
other devices.
Connect the PON
interface to the
ODF.
CDMA2000
Wideband Code Division Multiple Access (WCDMA)
Time Division Synchronous Code Division Multiple Access (TD-SCDMA)
Fiber
Ethernet cable
Telephone cable
Local connector
LC/PC LC/PC
LC/PC FC/PC
LC/PC SC/PC
SC/PC LC/PC
SC/PC FC/PC
SC/PC SC/PC
Raisecom Technology Co., Ltd.
Remote connector Type
2 mm single-mode fiber
2 mm multi-mode fiber
2 mm single-mode fiber
2 mm multi-mode fiber
2 mm single-mode fiber
2 mm multi-mode fiber
2 mm single-mode fiber
2 mm single-mode fiber
2 mm single-mode fiber
2 Product structure
Standard
ITU-T
G.652
15
