PANEL DESCRIPTION

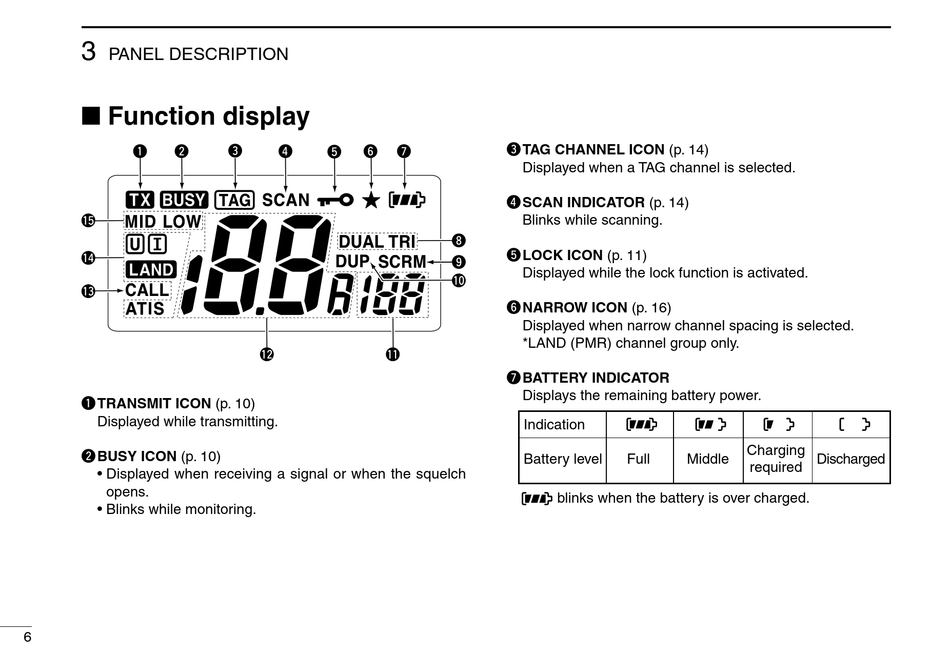

■ Function display

q w
!5
!4
!3
q TRANSMIT ICON (p. 10)
Displayed while transmitting.
w BUSY ICON (p. 10)
• Displayed when receiving a signal or when the squelch
opens.
• Blinks while monitoring.
6
e r t y u
!2 !1
e TAG CHANNEL ICON (p. 14)
Displayed when a TAG channel is selected.
r SCAN INDICATOR (p. 14)
Blinks while scanning.
i
t LOCK ICON (p. 11)
o
Displayed while the lock function is activated.
!0
y NARROW ICON (p. 16)
Displayed when narrow channel spacing is selected.
*LAND (PMR) channel group only.
u BATTERY INDICATOR
Displays the remaining battery power.
Indication
Battery level Full
blinks when the battery is over charged.
Charging
Middle Discharged
required
