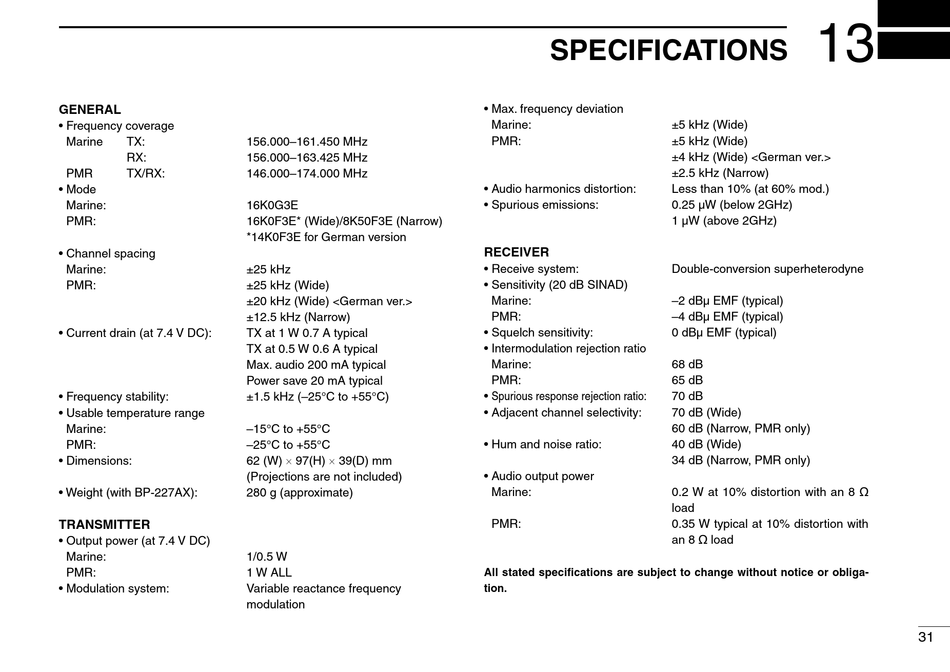

Specifications - Icom IC-M87 Instruction Manual

GENERAL
• Frequency coverage
Marine TX:
RX:
PMR TX/RX:
• Mode
Marine:
PMR:
• Channel spacing
Marine:
PMR:
• Current drain (at 7.4 V DC):
• Frequency stability:
• Usable temperature range
Marine:
PMR:
• Dimensions:
• Weight (with BP-227AX):
TRANSMITTER
• Output power (at 7.4 V DC)
Marine:
PMR:
• Modulation system:
156.000–161.450 MHz
156.000–163.425 MHz
146.000–174.000 MHz
16K0G3E
16K0F3E* (Wide)/8K50F3E (Narrow)
*14K0F3E for German version
±25 kHz
±25 kHz (Wide)
±20 kHz (Wide) <German ver.>
±12.5 kHz (Narrow)
TX at 1 W 0.7 A typical
TX at 0.5 W 0.6 A typical
Max. audio 200 mA typical
Power save 20 mA typical
±1.5 kHz (–25°C to +55°C)
–15°C to +55°C
–25°C to +55°C
62 (W) × 97(H) × 39(D) mm
(Projections are not included)
280 g (approximate)
1/0.5 W
1 W ALL
Variable reactance frequency
modulation

SPECIFICATIONS

• Max. frequency deviation
Marine:
PMR:
• Audio harmonics distortion:
• Spurious emissions:
RECEIVER
• Receive system:
• Sensitivity (20 dB SINAD)
Marine:
PMR:
• Squelch sensitivity:
• Intermodulation rejection ratio
Marine:
PMR:
• Spurious response rejection ratio:
• Adjacent channel selectivity:
• Hum and noise ratio:
• Audio output power
Marine:
PMR:
All stated specifications are subject to change without notice or obliga-
tion.
13
±5 kHz (Wide)
±5 kHz (Wide)
±4 kHz (Wide) <German ver.>
±2.5 kHz (Narrow)
Less than 10% (at 60% mod.)
0.25 µW (below 2GHz)
1 µW (above 2GHz)
Double-conversion superheterodyne
–2 dBµ EMF (typical)
–4 dBµ EMF (typical)
0 dBµ EMF (typical)
68 dB
65 dB
70 dB
70 dB (Wide)
60 dB (Narrow, PMR only)
40 dB (Wide)
34 dB (Narrow, PMR only)
0.2 W at 10% distortion with an 8 ø
load
0.35 W typical at 10% distortion with
an 8 ø load
31
