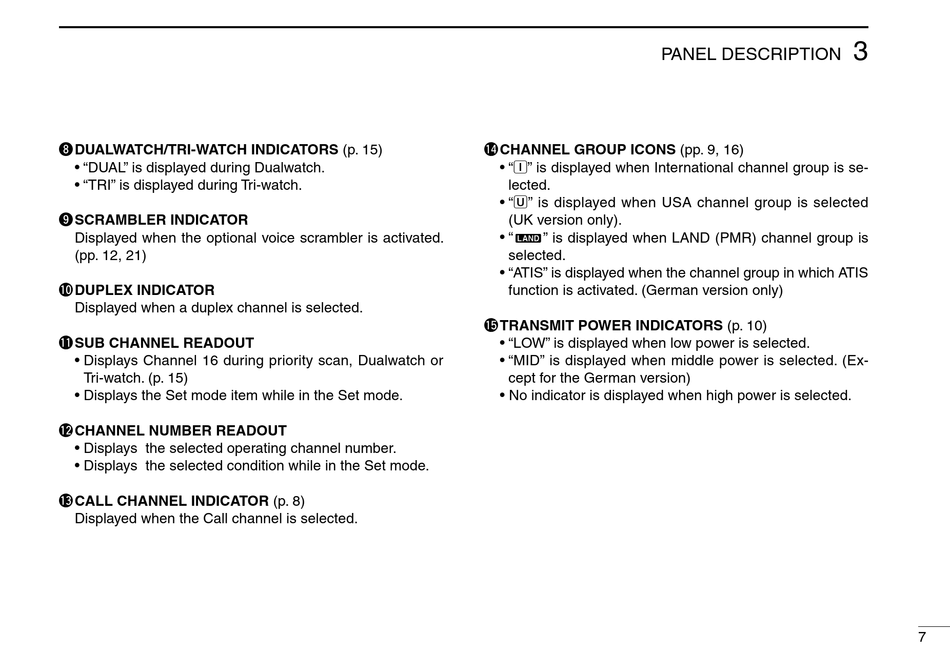

i DUALWATCH/TRI-WATCH INDICATORS (p. 15)
• "DUAL" is displayed during Dualwatch.
• "TRI" is displayed during Tri-watch.
o SCRAMBLER INDICATOR
Displayed when the optional voice scrambler is activated.
(pp. 12, 21)
!0 DUPLEX INDICATOR
Displayed when a duplex channel is selected.
!1 SUB CHANNEL READOUT
• Displays Channel 16 during priority scan, Dualwatch or
Tri-watch. (p. 15)
• Displays the Set mode item while in the Set mode.
!2 CHANNEL NUMBER READOUT
• Displays the selected operating channel number.
• Displays the selected condition while in the Set mode.
!3 CALL CHANNEL INDICATOR (p. 8)
Displayed when the Call channel is selected.

PANEL DESCRIPTION

!4 CHANNEL GROUP ICONS (pp. 9, 16)
• "I" is displayed when International channel group is se-
lected.
• "U" is displayed when USA channel group is selected
(UK version only).
• " " is displayed when LAND (PMR) channel group is
selected.
• "ATIS" is displayed when the channel group in which ATIS
function is activated. (German version only)
!5 TRANSMIT POWER INDICATORS (p. 10)
• "LOW" is displayed when low power is selected.
• "MID" is displayed when middle power is selected. (Ex-
cept for the German version)
• No indicator is displayed when high power is selected.
