X-RAY.

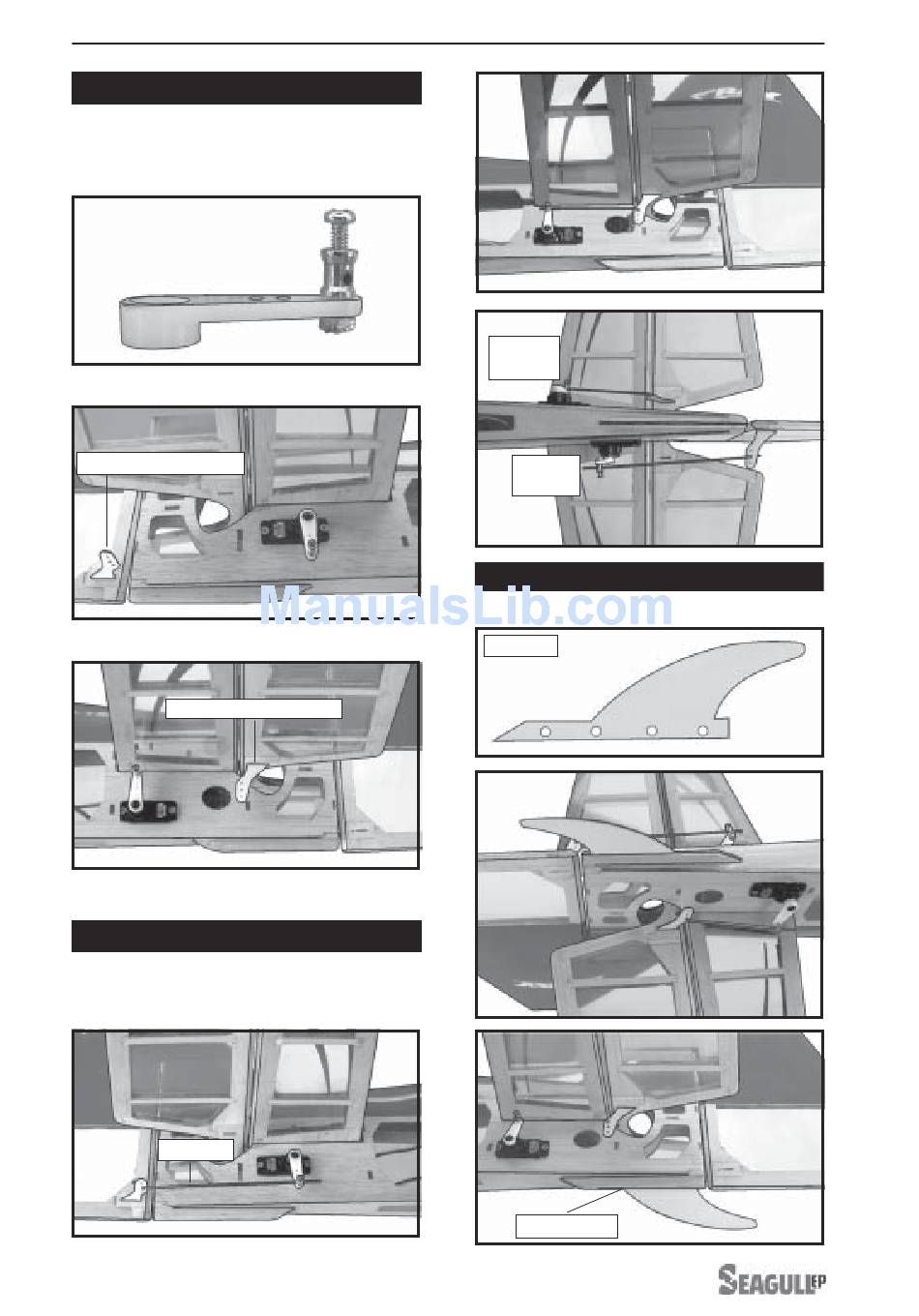

SERVO ARM INSTALLATION.
Attach the micro control connector to the
servo arms. Be sure to use the lock tie but it
could free rotation.
Rudder control horn.
Elevator control horn.
PUSHROD INSTALLATION.
Repeat the procedure as same as aileron
pushrod installation.
Pushrod.
12
Instruction Manual.
Elevator
servo.
Rudder
servo.
MOUNTING THE TAIL SKID.
See pictures below.
Tail skid.
Expoy glue.
