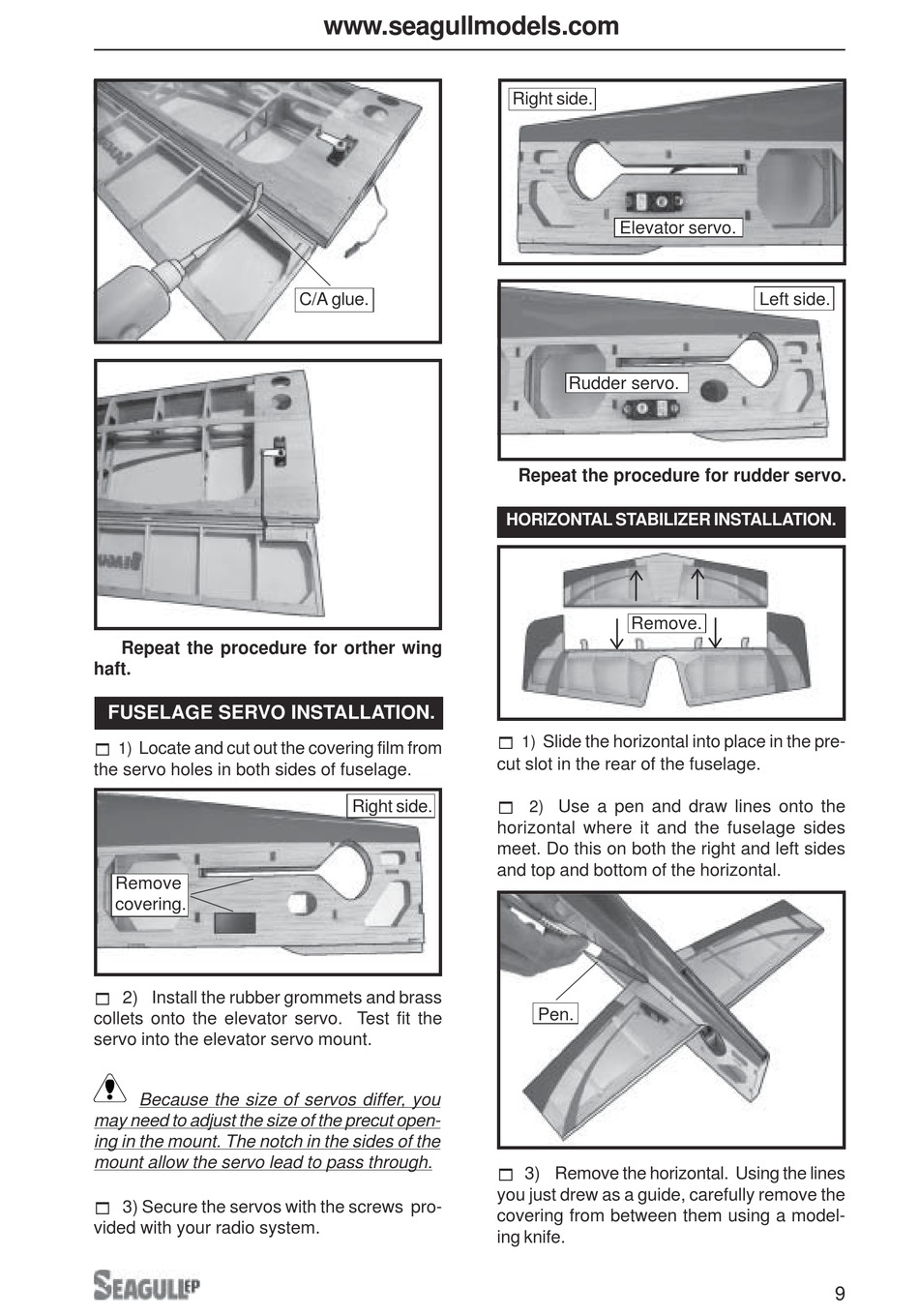

Horizontal Stabilizer Installation; Fuselage Servo Installation - Seagull Models X-RAY Assembly Manual

Repeat the procedure for orther wing
haft.

FUSELAGE SERVO INSTALLATION.

!
Locate and cut out the covering film from
1)
the servo holes in both sides of fuselage.
Remove
covering.
! 2) Install the rubber grommets and brass
collets onto the elevator servo. Test fit the
servo into the elevator servo mount.
Because the size of servos differ, you
may need to adjust the size of the precut open-
ing in the mount. The notch in the sides of the
mount allow the servo lead to pass through.
! 3) Secure the servos with the screws pro-
vided with your radio system.
www.seagullmodels.com
C/A glue.
Right side.
Right side.
Elevator servo.
Rudder servo.
Repeat the procedure for rudder servo.

HORIZONTAL STABILIZER INSTALLATION.

Remove.
!
Slide the horizontal into place in the pre-
1)
cut slot in the rear of the fuselage.
!
Use a pen and draw lines onto the
2)
horizontal where it and the fuselage sides
meet. Do this on both the right and left sides
and top and bottom of the horizontal.
Pen.
! 3) Remove the horizontal. Using the lines
you just drew as a guide, carefully remove the
covering from between them using a model-
ing knife.
Left side.
9
