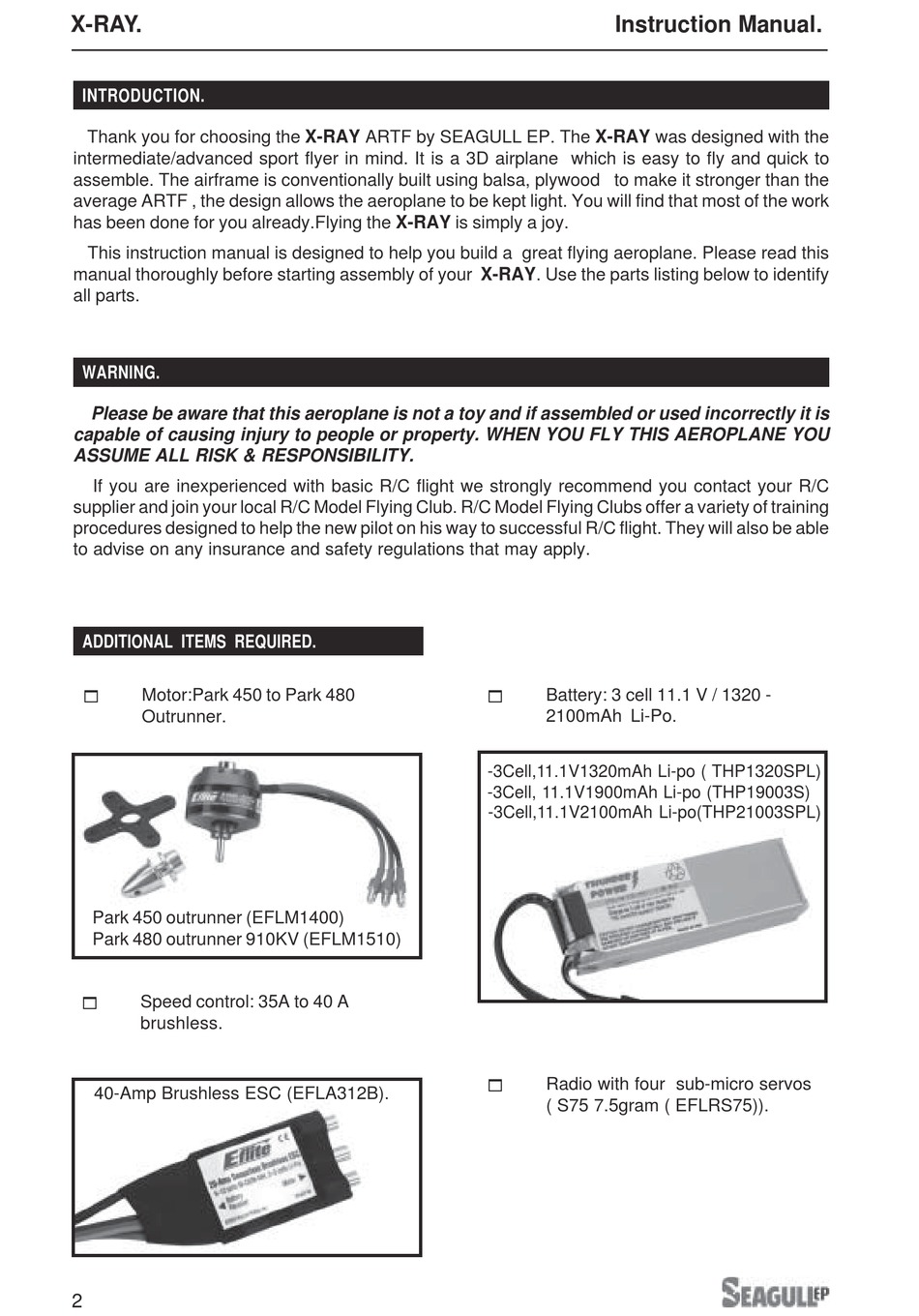

Seagull Models X-RAY Assembly Manual page 2

X-RAY.
INTRODUCTION.
Thank you for choosing the X-RAY ARTF by SEAGULL EP. The X-RAY was designed with the
intermediate/advanced sport flyer in mind. It is a 3D airplane which is easy to fly and quick to
assemble. The airframe is conventionally built using balsa, plywood to make it stronger than the
average ARTF , the design allows the aeroplane to be kept light. You will find that most of the work
has been done for you already.Flying the X-RAY is simply a joy.
This instruction manual is designed to help you build a great flying aeroplane. Please read this
manual thoroughly before starting assembly of your X-RAY. Use the parts listing below to identify
all parts.
WARNING.
Please be aware that this aeroplane is not a toy and if assembled or used incorrectly it is
capable of causing injury to people or property. WHEN YOU FLY THIS AEROPLANE YOU
ASSUME ALL RISK & RESPONSIBILITY.
If you are inexperienced with basic R/C flight we strongly recommend you contact your R/C
supplier and join your local R/C Model Flying Club. R/C Model Flying Clubs offer a variety of training
procedures designed to help the new pilot on his way to successful R/C flight. They will also be able
to advise on any insurance and safety regulations that may apply.
ADDITIONAL ITEMS REQUIRED.
!
Motor:Park 450 to Park 480
Outrunner.
Park 450 outrunner (EFLM1400)
Park 480 outrunner 910KV (EFLM1510)
!
Speed control: 35A to 40 A
brushless.
40-Amp Brushless ESC (EFLA312B).
2
Instruction Manual.
!
Battery: 3 cell 11.1 V / 1320 -
2100mAh Li-Po.
-3Cell,11.1V1320mAh Li-po ( THP1320SPL)
-3Cell, 11.1V1900mAh Li-po (THP19003S)
-3Cell,11.1V2100mAh Li-po(THP21003SPL)
!
Radio with four sub-micro servos
( S75 7.5gram ( EFLRS75)).
