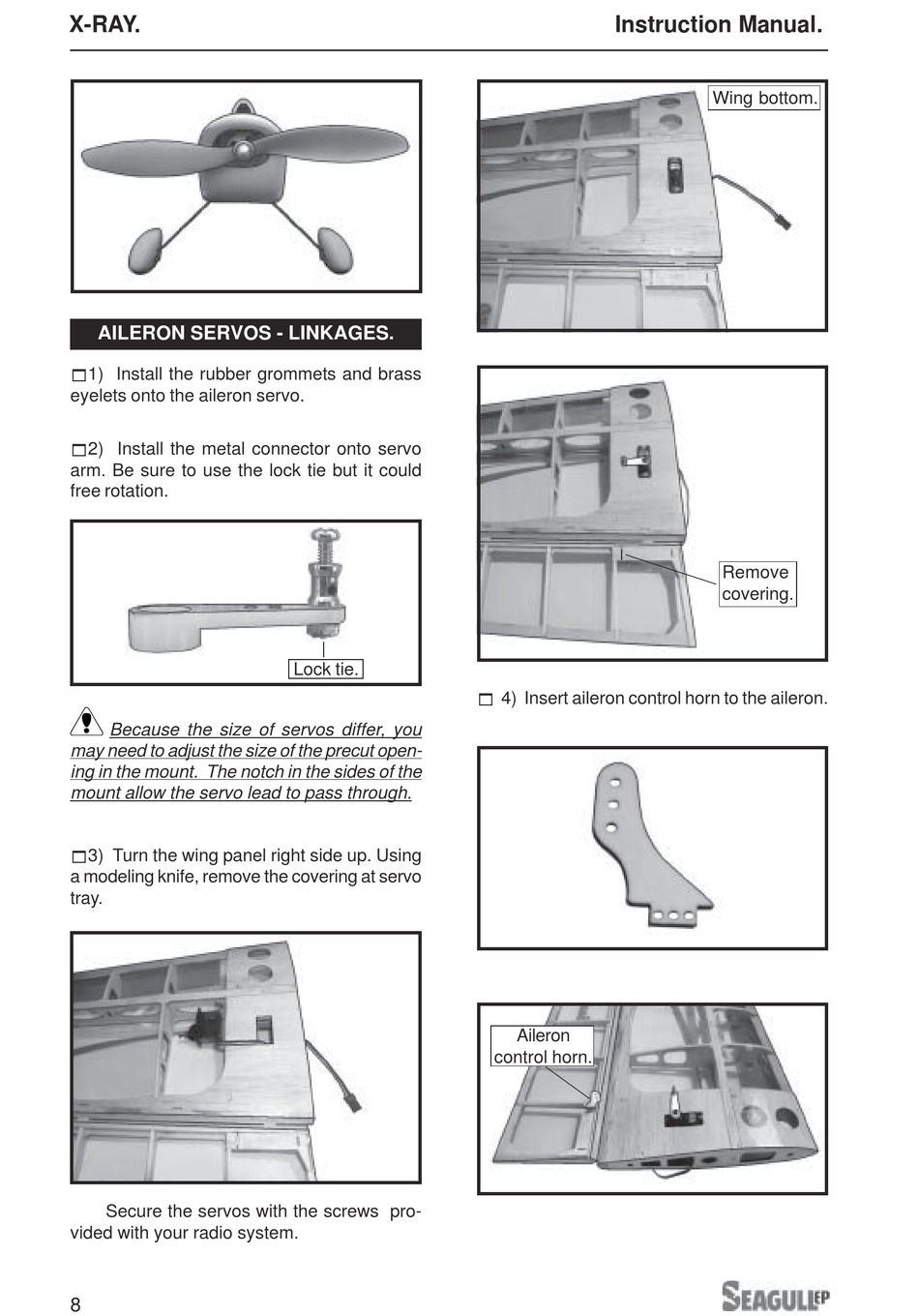

Seagull Models X-RAY Assembly Manual page 8

X-RAY.
AILERON SERVOS - LINKAGES.
!1) Install the rubber grommets and brass
eyelets onto the aileron servo.
!2) Install the metal connector onto servo
arm. Be sure to use the lock tie but it could
free rotation.
Because the size of servos differ, you
may need to adjust the size of the precut open-
ing in the mount. The notch in the sides of the
mount allow the servo lead to pass through.
!3) Turn the wing panel right side up. Using
a modeling knife, remove the covering at servo
tray.
Secure the servos with the screws pro-
vided with your radio system.
8
Lock tie.
Instruction Manual.
! 4) Insert aileron control horn to the aileron.
Aileron
control horn.
Wing bottom.
Remove
covering.
