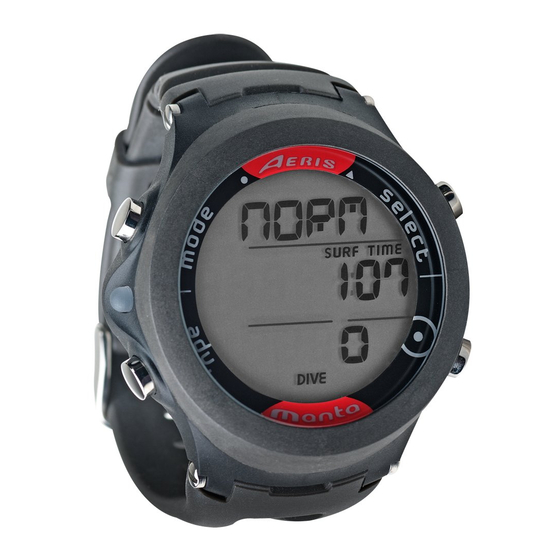

Manta
WATCH / DIVE COMPUTER
OPERATING MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Manta and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aeris Manta

Summary of Contents for Aeris Manta

  • Page 1 Manta WATCH / DIVE COMPUTER OPERATING MANUAL...

  • Page 2: Full Lcd

    Components: a. Mode (M) Button b. Select (S) Button c. Light (L) Button d. Advance (A) Button e. LED Warning Light f. Bar Graph g. Icon - Ascend h. Icon - Surface Interval O2 Time Remaining No Deco Time Remaining Total Ascent Time FO2 Set Point i.
  • Page 3 CONTENTS...
  • Page 4 CONTENTS (continued)
  • Page 5 CONTENTS (continued)
  • Page 6 CONTENTS (continued) ay special attention to items marked with this Warning symbol.
  • Page 7 User Setable Display (U.S. Patent no. 5,845,235) is owned by Suunto Oy ( inland). DECOMPRESSION MODEL The programs within the Manta simulate the absorption of nitrogen into the body by using a mathematical model. This model is merely a way to apply a limited set of data to a large range of experiences.
  • Page 8 (S) and lower/left (A) buttons for 2 to 3 seconds until the display comes full ON displaying the AIN TI E screen, then release them. OTE: Once the Manta is brought out of the Deep Sleep mode, it can only be placed back in it by the factory.
  • Page 9 WAR I G: Prior to diving with the Manta, you must also read and understand the AERIS Dive Computer Safety and Reference Manual, Doc. o. 12-7203, which provides Important Warnings and Safety Recommendations as well as general product information. NTRODUCT ON...
  • Page 10 It is extremely important that you read this Operating anual in sequence and understand it completely before attempting to use the anta as a dive computer. It is equally important that you read the AERIS Dive Computer Safety and Refer- ence anual (Doc. No. 12-7203) provided with your anta. It contains informa- tion that you must become familiar with prior to diving with your anta.
  • Page 11 WAR I G: When Wet Activation is set OFF, the Manta must be in Dive Surface Mode ( ORM< GAUG, or FREE prior to the first dive of a new series. Commencing a dive while in Watch modes will not activate Dive Mode unless Wet Activation is set O .
  • Page 12 Once a dive is made in GAUG Operating ode, the anta is locked into that ode for 24 hours after the dive. ACI (AERIS COMPUTER I TERFACE) Interface with a PC is accomplished by connecting the anta to a PC USB Port using the ACI USB Interface Cable. The same Cable is used for Upload and Download.
  • Page 13 The Data Download program is used to retrieve Data that was sampled during dives and stored in the anta's memory. The anta checks for an External Access request once every second while in the Watch ain Time. Checks are not made if the unit is wet. For a connection to be made, the Interface Cable is clipped onto the anta's Data Port and plugged into a PC USB Port.
  • Page 14 FREE Dive ode has its own set of Alarms which emit 3 short beeps either 1 or 3 times which cannot be acknowledged or set Off. A red LED Warning Light, located on the left side of the housing, is synchronized with the Audible Alarm.
  • Page 15 A single short beep (which cannot be disabled) is emitted for the following -  Upon completion of a Hot Swap battery change.  Change from Delayed to Full Violation 5 minutes after the dive. 3 short beeps (which cannot be disabled) are emitted for the following - ...
  • Page 16 OTE: Extensive use of the Backlight reduces estimated Battery life. Also, the Backlight does not operate during a Low Battery Condi- tion or when the Manta is connected to a PC. POWER SUPPLY The anta utilizes one 3 volt CR2430 Lithium Battery. When...
  • Page 17 WAR I G: Prior to diving with the Manta, you must also read and understand the AERIS Dive Computer Safety and Reference Manual, Doc. o. 12-7203, which provides Important Warnings and Safety Recommendations as well as general product information. WATCH...
  • Page 18 LOCAL DEFAULT TIME Watch Main Time (Fig. 5) is the current Time at your home location and is normally selected as the Local Default Time. The normal Watch screen sequence accessed with momentary presses (less than 2 seconds each) of the button is - ain Time >...
  • Page 19 While viewing any of the Watch ode displays, pressing and holding the button for 2 seconds or if no button is pressed for 2 minutes, operation will revert to the Watch Time screen selected to be the Local Default Watch Time ( ain or Alter- nate).
  • Page 20 SET MAI TIME This ode allows the Date and Time of Day to be set which will also serve as the basis for ALTERNATE TI E values. There are 3 Time Set screens - Set Hour Format, Set Time of Day, and Set Date.
  • Page 21  Pressing the A button momentarily (< 2 seconds) will save the Hour Format Set Point and access the SET TI E screen with the HOUR Set Point flashing (Fig. 9).  HINT - Pressing the A button repeatedly (< 2 seconds each time) will step through the Time/Date Settings, bypassing those that don't require setting.
  • Page 22 Displayed on the SET DATE screen will be the graphic YEAR, onth and Day (or Day and onth if set for metric) with the YEAR Set Point flashing (Fig. 11).  Depressing and holding the S button while the YEAR Set Point is flashing will scroll through the Set Points in 1 year increments at a rate of 4 per second from 2006 to 2049 (with leap year corrections).
  • Page 23  Pressing and releasing the A button momentarily (< 2 seconds) will save the Set Point and/or advance to the ain Time/Date can also be set using the PC AIN TI E screen. Settings Upload program which is on the ACI program CD.
  • Page 24  Depressing the S button for 2 seconds will interchange ALTERNATE TI E with AIN TI E making ALTERNATE TI E the Local Default Time screen.  Pressing the L button will activate the Backlight.  Depressing both the A and S buttons simultaneously for 2 seconds will access the SET ALTERNATE TI E ode with the Set Point flashing.
  • Page 25 If no button is pressed during a period of 2 minutes, the unit will revert to the AIN TI E screen. WATCH COU TDOW TIMER (HR:MI ) Pressing the button momentarily 2 times (< 2 seconds each) while the Local Default Time screen is displayed will access the Countdown TI ER screen, displaying the remaining Count- down Time (hr:min) if running, or OFF flashing (Fig.
  • Page 26  Depressing both the A and S buttons simultaneously for 2 seconds will access the SET WATCH COUNT DOWN TI ER screen indicated by the graphics TI R and SEt, symbol TI E, and HOUR Set Point flashing (Fig. 17). >...
  • Page 27 CHRO OGRAPH (Stop Watch/Lap Timer)  Pressing and releasing the button momentarily 3 times (< 2 seconds each) while the AIN TI E screen is displayed will access the CHRONOGRAPH displaying the elapsed time if previously started or 0:00:00.00 (hr:min:sec.1/100th sec), flashing (Fig. 19). ...
  • Page 28  Pressing and releasing the button momentarily (< 2 seconds) will advance to DAILY ALAR .  Depressing and holding the button for 2 seconds will revert to the Local Default Watch Time screen. While the Chronograph is running, it will remain on the screen until a button operation is performed.
  • Page 29 > Upon being toggled to ON, the Alarm will be set to sound every day at the Time indicated.  Depressing both the A and S buttons simultaneously for 2 seconds will access the SET DAILY ALAR screen allowing a new Time to be set. ...
  • Page 30  Depressing and holding the S button while the INUTE Set Point is flashing will scroll through the Set Points in 1 minute increments at a rate of 4 per second from :00 to :59.  Pressing and releasing the A button momentarily (< 2 seconds) will save the INUTE Set Point and/or advance to the DAILY ALAR screen indicated by the graphic ON (or OFF) flashing.
  • Page 31 WAR I G: Prior to diving with the Manta, you must also read and understand the AERIS Dive Computer Safety and Reference Manual, Doc. o. 12-7203, which provides Important Warnings and Safety Recommendations as well as general product information. D VE COMPUTER...
  • Page 32 BAR GRAPH The anta features one shared Bar Graph that represents either nitrogen loading, or when accessed, oxygen accumula- tion. By default, the Bar Graph (Fig. 23a), referred to as the Nitrogen Bar Graph (NIBG), represents your relative no decompression or decompression status. As your Depth and Elapsed Dive Time increase, segments will add to the NIBG, and as you ascend to shallower depths, the segments of the NIBG will begin to recede, indicating that...
  • Page 33 Displays associated with oxygen and the O2 Bar Graph will be displayed if FO2 has been set at a value other than 'Air' (e.g., a numerical value) and the Alternate screen that displays oxygen related data is accessed. When the oxygen data screen is accessed during a NOR dive, the Bar Graph will show the maximum of either per dive accumulated oxygen or 24 hour period accumulated oxygen.
  • Page 34 While you cannot provide a guarantee against the occurrence of decompression sickness, you may choose your own personal zone of caution based upon age, physique, excessive weight, etc., to reduce the statistical risk. Within the available NOR ode parameters that can be set (described later) are a NIBG Alarm and a Conservative Factor which if set ON reduces No Decompression times allowed.

  • Page 35: Temperature Display

    The colon that separates hours and minutes (minutes and seconds) blinks once per second when the display is indicating real time (e.g., Surface Interval, Elapsed Dive Time), and is solid (non-blinking) when times are calculated projections (e.g., Time to Fly, Plan). The Primary Time display is located in the middle row of the display (Fig.
  • Page 36 OTE: Each display represents unique pieces of information. It is imperative that you understand the formats, ranges, and values of the information represented to avoid any possible misunderstanding that could result in error. You must also understand the icons, symbols, and alpha/ numeric messages presented.
  • Page 37 WAR I G: Prior to diving with the Manta, you must also read and understand the AERIS Dive Computer Safety and Reference Manual, Doc. o. 12-7203, which provides Important Warnings and Safety Recommendations as well as general product information. D VE COMPUTER...
  • Page 38 DIVE COMPUTER (DC) OPERATI G MODES The anta features 3 selectable DC Operating odes -  NOR - for Normal Air or Nitrox dives  GAUG - for dives with no Nitrogen/Oxygen calculations (Once a dive is made in GAUG ode, dive computer operation is locked into Gauge ode for 24 hours after the dive.
  • Page 39  The Operating ode selected (NOR , GAUG, or FREE) will remain on display for 2 hours until a dive is made or Watch ode is selected. If a dive has been conducted within the past 24 hours, the SURF AIN screen for that Operating ode (NOR , GAUG, or FREE) will be displayed.
  • Page 40 When the 10 minute Surface Time has elapsed, the Local Default Watch TI E screen ( ain or Alternate Time) will replace the Surface ode display. The SURF AIN screen can then be accessed by pressing the button for 2 seconds. ORM SURF MAI , information provided includes (Fig.
  • Page 41 ORM SURF MAI - Button Operations:  Pressing the L button will activate the Backlight.  Repeat press/release of the A button (< 2 seconds each time) will step through the Surface Sequence - SURF AIN > PLAN > FLY > SAT > LOG > HISTORY ...
  • Page 42 ORM SURF ALTER ATE , information includes (Fig. 34): > Bar Graph with the graphic O2BG, representing Oxygen accumulation. > FO2 Set Point with FO2 icon. > Nx icon.  The display will revert to the NOR SURF AIN screen after 5 seconds unless the A button is pressed.
  • Page 43 ORM A D GAUG SURFACE SET MODES ORM/GAUG Set Mode Sequence: SURF AIN > SET F > SET A > SET U > Serial Number. Access and step through of the sequence is gained by re- peated simultaneous 2 second presses of the A and S buttons. SET A (Alarms) and SET U (Utilities) Set Points can also be set/ changed using the PC Settings Upload program.
  • Page 44 Setting FO2 for ORM itrox Dives: For each value of FO2, the aximum Operating Depth ( OD) that can be achieved for the PO2 Alarm Set Point limit previously set will be displayed. When the FO2 50% DEFAULT is set ON and FO2 is set for a numerical value, 10 minutes on the surface after that dive, FO2 will be displayed as 50 and further dives will be calculated based on 50% O2 for oxygen calculations and 21% O2 for Nitrogen calculations (79% Nitrogen) unless FO2 is set before the dive.
  • Page 45 aximum Operating Depths affected by the PO2 limit set will not be displayed when FO2 is set for AIR. Internally, the anta keeps track of the oxygen loading so that if FO2 is subsequently set for a numerical value, the oxygen accumulation for previous AIR dives will be accounted for in the next Nitrox dive (during that dive period and series of repetitive dives).
  • Page 46  Depressing and holding the S button while the Set Point is flashing will scroll through the Set Points from AIR to 21 through 50% in 1% increments, at a rate of 8 per second.  The scroll will stop when the button is released, or momentarily at 32% (even if the button is held depressed).
  • Page 47 SET A GROUP ( ORM/GAUG ALARMS) Set A Sequence: SET A > Audible > Depth > EDT > NIBG > DTR > PO2 The SET A Group can also be set/changed using the PC Settings Upload program. > SET A Settings remain at the values set until changed. >...
  • Page 48  Pressing and releasing the S button (< 2 seconds) will toggle between ON and OFF.  Pressing and releasing the A button momentarily (< 2 seconds) will save the setting and/or advance to the SET DEPTH ALAR screen with the Set Point flashing. ...
  • Page 49  Pressing and releasing the A button momentarily (< 2 seconds) will save the setting and/or advance to the SET EDT ALAR screen with the Set Point flashing.  Pressing and releasing the A button momentarily and repeatedly (< 2 seconds each time) will step through the other SET A screens.
  • Page 50  Pressing and releasing the A button momentarily and repeatedly (< 2 seconds) will step through the other SET A screens.  Depressing the A and S buttons simultaneously for 2 seconds will save the setting and revert back to the SET A screen.
  • Page 51  Depressing the A and S buttons simultaneously for 2 seconds will save the setting and revert back to the SET A screen.  Depressing and holding the button for 2 seconds or if Whichever Time no button is pressed for a period of 2 minutes operation (NDC or O2) will revert to the NOR or GAUG SURF AIN screen.
  • Page 52  Depressing and holding the button for 2 seconds or if no button is pressed for a period of 2 minutes operation Setting the PO2 will revert to the NOR or GAUG SURF AIN screen. Alarm to activate before reaching the ax allowed limit of 1.60 ATA is highly SET ORM PO2 ALARM, information includes (Fig.
  • Page 53 SET U GROUP (UTILITIES) Set U Sequence: SET U > Wet Activation > Units > Safety Stop > Conservative Factor > Backlight Duration > Sampling Rate. The SET U Group can also be set/changed using the PC Settings Upload program. The settings for Wet Activation, Units, Conservative Factor, and Backlight Duration also apply to FREE ode.
  • Page 54 SET WET ACTIVATIO , information includes (Fig. 48): > Graphic WET > Set Point graphic ON (or OFF) flashing.  Pressing and releasing the S button will toggle between ON and OFF.  Pressing and releasing the A button momentarily (< 2 seconds) will save the setting and/or advance to the SET UNITS screen with the Set Point flashing.
  • Page 55  Pressing and releasing the A button momentarily (< 2 seconds) will save the setting and/or advance to the SET SAFETY STOP screen with the Time Set Point flashing.  Pressing and releasing the A button momentarily and repeatedly (< 2 seconds each time) will step through the other SET U screens.
  • Page 56  Pressing and releasing the A button momentarily (< 2 seconds) will save the Safety Stop settings and/or advance to the SET CONS screen with the Set Point flashing.  Pressing the A button momentarily and repeatedly (< 2 seconds) will step through the other SET U screens.
  • Page 57  Depressing and holding the button for 2 seconds or if no button is pressed for a period of 2 minutes operation will revert to the NOR or GAUG SURF AIN screen. OTE: When the Conservative Factor is set O , o Deco Limit times are reduced to values equivalent to those that would be available at the next higher 3000 foot (915 meter) Altitude.
  • Page 58 SET ORM/GAUG SAMPLI G RATE, information includes (Fig. 52): > Graphics SA P and SEC > Set Point (seconds), flashing, with TI E icon.  Pressing and releasing the S button momentarily (< 2 seconds) will step through the Set Points of 2, 15, 30, 60 (seconds).
  • Page 59 AIN screen. OTE: The Serial umber and Firmware Revision will be requested in the event that you contact AERIS regarding the Manta. Enter them in the Records section provided in the back of this Manual. ORM PLA MODE AERIS strongly recommends that you review the PDPS (Pre Dive...
  • Page 60  While the PLAN LEAD-IN screen is displayed, pressing and releasing the S button momentarily and repeatedly (< 2 seconds each time) will increase the Planned Depth in increments of 10 FT (3 ), displaying the information one Depth screen at a time. Information provided includes Depths and allowable No Decompression Dive Times.
  • Page 61 PLA MODE LEAD-I , information includes (Fig. 54): > Graphic PLAN > FO2 Set Point with FO2 icon > PO2 Alarm Set Point (x.xx ATA) with Nx and PO2 icons, when numerical values are displayed.  Press and release the S button momentarily (< 2 seconds) to access the first screen (30 FT/9 ) of the PDPS.
  • Page 62 FLY MODE Time to Fly is a counter that begins counting down 10 minutes after surfacing from a dive from 23:50 to 0:00 (hr:min). Ten minutes after surfacing from a NOR , GAUG, or FREE dive, operation reverts to the Watch ode Time screen with the Time to Fly Countdown running in the background.
  • Page 63  Pressing and releasing the A button momentarily (< 2 seconds) will advance to SAT ODE.  Depressing and holding the button for 2 seconds will revert to the NOR (or GAUG) SURF AIN screen.  If no button is pressed during a 2 minute period, operation will revert to the NOR (or GAUG) SURF AIN screen.
  • Page 64  Depressing and releasing the A button momentarily and repeatedly 3 times (< 2 seconds each time) while viewing the NOR SURF AIN screen will access SAT ODE. NOR SURF > PLAN > FLY > SAT DESAT TIME, information includes (Fig. 57): >...
  • Page 65 After exceeding 24 dives, the most recent Dive completed will be added to the LOG and the oldest deleted. Dives will be numbered 1 to 24 starting at #1 each time a new series of dives begins. After it shuts Off 24 hours after a dive, the first dive of the next new series will be #1.
  • Page 66 LOG PREVIEW, information includes (Fig. 58): > Graphic o with the dive number (1 to 24) for that series. > Log icon. > Time of Day the dive began (hr:min) with TI E icon, and graphic A (= Am) or P (= Pm) if set for 12 Hour Format. This will be the Local Default Time selected, either ain or Alternate (with lazy 8 symbol if Alternate).
  • Page 67 LOG DATA 1, information includes (Fig. 59): > NIBG with the maximum accumulation segment flashing, others fixed up to end-of-dive accumulation. All segments flashing if a Violation occurred. > Graphic NO-D, DECO, GAUG, or VIOL indicating the type of dive when completed. >...
  • Page 68  Depressing and holding the button for 2 seconds or if no button is pressed during a 2 minute period operation will revert to the NOR (or GAUG) SURF AIN screen.  Pressing the L button will activate the Backlight. LOG DATA 3, information includes (Fig.
  • Page 69 ORM/GAUG HISTORY MODE HISTORY ode displays accumulative information for up to 9999 Dives, 9999 Dive Hours, and the aximum Depth achieved. HISTORY information is retained indefinitely. Battery removal will not affect the HISTORY data stored for viewing.  10 minutes after a Non Violation NOR Dive, pressing and releasing the A button momentarily and repeatedly 5 times (<...
  • Page 70  Pressing and releasing the A button momentarily (< 2 seconds) will advance to the NOR (or GAUG) SURF AIN screen.  Depressing and holding the button for 2 seconds or if no button is pressed during a 2 minute period operation will revert to the NOR (or GAUG) SURF AIN screen.
  • Page 71 WAR I G: Prior to diving with the Manta, you must also read and understand the AERIS Dive Computer Safety and Reference Manual, Doc. o. 12-7203, which provides Important Warnings and Safety Recommendations as well as general product information. OVERV EW OF D VE MODE...
  • Page 72 OVERVIEW OF DISPLAYED SYMBOLS AND ICONS SYMBOLS MEANING Maximum Depth (or PO2) T (or M) Depth Units ( eet or Meters) SUR TIME Surface Interval Time, NORM/GAUG (hr:min) or REE (hr:min:sec) TIME O2 O2 Dive Time Remaining (hr:min) TIME NDC No Decompression Dive Time Remaining (hr:min) TIME TAT Total Ascent Time Deco Stops plus vertical ascent Times (hr:min)
  • Page 73 DIVE TIME REMAI I G (DTR) One of the most important pieces of information on AERIS dive computers is the Dive Time Remaining numeric display. The anta constantly monitors No Decompression status and Oxygen Accumula- tion. The Dive Time Remaining display will indicate the No Deco Time or O2 Time, whichever Time is the least amount available.
  • Page 74 The algorithm used is based upon Haldane’s theory using maximum allowable nitrogen levels developed by errill Spencer. Repetitive diving control is based upon experiments designed and conducted by Dr. Ray Rogers and Dr. ichael Powell in 1987. Diving Science and Technology (DSAT), a corporate affiliate of PADI , commissioned these experiments.
  • Page 75 VARIABLE ASCE T RATE Alerts associated with Ascent Rate are based upon 2 sets of speeds which change at a reference depth of 60 FT (18 ). WAR I G: At depths greater than 60 FT (18 M), Ascent Rates should not exceed 60 FPM (18 MPM).
  • Page 76 ELAPSED DIVE TIME The maximum duration that Elapsed Dive Time will be displayed is 9 hours and 59 minutes (9:59). In the event that the anta is at depth for a greater time, it will cease operation as a Dive Computer and revert to operation as a Watch, displaying the ain Time screen.
  • Page 77 WAR I G: Prior to diving with the Manta, you must also read and understand the AERIS Dive Computer Safety and Reference Manual, Doc. o. 12-7203, which provides Important Warnings and Safety Recommendations as well as general product information. NORM TYPE D VE MODES...
  • Page 78 WET ACTIVATIO CO TACTS The Wet Contact Dive ode Activation feature is active any time WET ACTIVATION is set ON. The anta is configured with contacts that will automatically activate Dive ode when the space between the contacts is bridged by a conductive material (immersed in water) and it senses a Depth of 5 FT (1.5 ) for 5 seconds.
  • Page 79 ORM O DECOMPRESSIO DIVE MODE When the Wet Activation feature is set ON, the anta will enter the NOR No Decompression Dive ode any time a descent is made to 5 FT (1.5 ) for 5 seconds. When the Wet Activation feature is set OFF, the anta will not enter Dive ode upon descent unless it is operating in one of the NOR Dive Computer modes (menus) at that time.
  • Page 80 ORM O DECO DIVE ALT DISPLAY, information pro- vided includes (Fig. 71) - > Bar Graph representing O2 Accumulated with graphic O2BG, if FO2 is set for Nitrox. > ax Depth with AX and FT (or ) icons. > FO2 Set Point with FO2 icon, if FO2 is set for Nitrox. >...
  • Page 81 ORM DIVE O DECO SAFETY STOP Upon ascending to 5 FT (1.5 ) below the Safety Stop Depth set on any No Decompression dive in which Depth exceeded 30 FT (9 ), a short beep will be emitted and a Safety Stop at the Depth set will appear on the display with a countdown timer that begins at the Safety Stop Time set.
  • Page 82 O DECO SAFETY STOP ALT 1 DISPLAY, information in- cludes (Fig. 74) > NIBG representing Nitrogen loading. > Graphics SAFE, STOP, and xxF or xx (value of the Stop Depth set) scrolling at the top. > Current Depth with FT (or ) icon. >...

  • Page 83: Managing Decompression Stops

    DECOMPRESSIO DIVE MODE The anta is designed to help you by providing a representa- tion of how close you are to entering Decompression. Decompression Dive ode activates when the theoretical No Decompression time and depth limits are exceeded. Upon Entry into DECO ode, the Audible Alarm will sound, the red LED Warning Light will flash, and the graphic message DECO >...
  • Page 84 The amount of decompression Credit Time that you receive is dependent on Depth, with slightly less Credit given the deeper you are below the Stop Depth indicated. You should stay slightly deeper than the Required Stop Depth indicated until the next shallower Stop Depth appears. Then, you can slowly ascend to, but not shallower than that indicated Stop Depth.
  • Page 85 DECO STOP ALT 1 DISPLAY , information provided includes (Fig. 79) - > NIBG, all 5 segments indicating DECO. > Graphic message DECO > STOP > xxF (or xx ), scrolling, indicating the Stop Depth required. > Current Depth with FT (or ) icon. >...
  • Page 86 SECO DARY DISPLAY, information includes (Fig. 81) - > Day of the Week graphic ( ON, TUE, etc.) > Time of Day (hr:min). This will be the Watch Time selected ( AIN or ALTERNATE). > Temperature with degrees icon and graphic F (or C). ...
  • Page 87 No off gassing Credit will be given while above a Required Stop Depth, and for each minute above it 1 minutes of Penalty Time will be added to Required Stop Time and TAT (Total Ascent Time). The added Penalty (decompression) Time will have to be worked off first, before obtaining off gassing credit will be given.
  • Page 88 DELAYED VIOLATIO #2 (Fig. 84) The anta cannot calculate Decompression times for Stop Depths much greater than 60 FT (18 ) and offers no indica- tion of how much time spent underwater would result in the need for a greater Stop Depth. If the Decompression obligation requires a Deco Stop Depth between 60 FT (18 ) and 70 FT (21 ), the NIBG will flash and the graphic message DECO >...
  • Page 89 Upon ascending above 330 FT (100 ), the Current Depth display will be restored, however ax Depth will only display 3 dashes for the remainder of that dive. Also, the Log for that dive will display 3 dashes as the ax Depth achieved. IMMEDIATE VIOLATIO A D VIOLA GAUGE MODE If a Decompression Ceiling Stop Depth much greater than 60 FT (18 ) is required, an Immediate Violation ode will be...
  • Page 90 The anta will also enter an Immediate Violation ode (Violation Gauge ode) 5 minutes after surfacing from a dive in which a Delayed Violation occurred. Violation Gauge Mode on the Surface does not allow access to the SET F, PLAN, FLY, and SAT features/screens. The countdown timer that appears when you try to access Time to Fly does not represent Time to Fly.

  • Page 91: High Po2

    HIGH PO2 When partial pressure of oxygen (PO2) becomes equal to, or greater than, 0.20 ATA less than the PO2 Alarm Set Point (a SET A Group setting); the Audible Alarm will sound, the red LED warning light will flash, and the message HIGH > PO2 will scroll until the Alarm is acknowledged/silenced.
  • Page 92 HIGH OXYGE ACCUMULATIO The O2 Bar Graph displays either oxygen accumulated during that nitrox dive, or during the repetitive nitrox dives you conduct during that 24 hour period, whichever of the two is greater at that time. The O2 Bar Graph allows you to monitor how close you are coming to the limits of oxygen exposure.
  • Page 93 SUMMARY OF ORM/GAUG WAR I G A D ALARM MESSAGES ESSAGE EANING DECO > STOP > xxF ( ) Entry into Decompression ode. DOWN > TO > xxF ( ) Above a Required Decompression Stop Depth. DECO > STOP > 60F (18 ) Deco Stop greater than 60 FT (18 ) required.
  • Page 94 (This page intentionally left blank.)
  • Page 95 WAR I G: Prior to diving with the Manta, you must also read and understand the AERIS Dive Computer Safety and Reference Manual, Doc. o. 12-7203, which provides Important Warnings and Safety Recommendations as well as general product information. NORM POST D VE MODES...
  • Page 96 POST DIVE SURFACE MODE When you ascend to 2 FT (0.6 ), the anta will enter Surface ode and begin counting your Surface Interval. TRA SITIO PERIOD If you descend during the first 10 minutes after surfacing (referred to as the Transition Period), time underwater will be considered a continuation of that dive.
  • Page 97 To view that dive's Log during the Transition Period -  Press/release the A button (< 2 seconds) to access the Preview screen (Fig. 91).  Press/release the S button (< 2 seconds) to view the Log Data 1 screen. ...
  • Page 98 To activate the Backlight -  Press the L button at any time. To access NOR PLAN ode (refer to page 59) -  Press/release the A button. The Planning Sequence now displays adjusted No Decompression Limits based on residual nitrogen and accumulated oxygen calculated to be remaining from the previous dives.
  • Page 99 UPLOADI G SETTI GS A D DOW LOADI G DATA The anta is configured with a Data Port located on the back of the left side that enables it to be connected to a PC through a USB port using a special Interface Cable.
  • Page 100  20 B of available hard drive storage  ouse  CD Rom drive  Printer For software updates, refer to the AERIS web site. www.diveaeris.com For support, call ACI (AERIS Computer Interface) Support toll free at - (866) 732-7877, 8 Am to 5 Pm Pacific time.
  • Page 101 WAR I G: Prior to diving with the Manta, you must also read and understand the AERIS Dive Computer Safety and Reference Manual, Doc. o. 12-7203, which provides Important Warnings and Safety Recommendations as well as general product information. GAUGE OPERAT NG...
  • Page 102 GAUGE MODE When Gauge ode (GAUG) is selected as the Dive Computer Operating ode, the anta will operate as a Digital Depth Gauge/Timer without performing nitrogen and oxygen calculations.  To access GAUG Operating ode while Watch AIN TI E is displayed, press the button 2 times (2 seconds each time);...

  • Page 103: Dive Mode

    DIVE ode. OTE: Once a dive is made in GAUG Mode, you must wait 24 hours after surfacing before the Manta resets and will operate as an Air or itrox dive computer in ORM Mode or FREE Dive Mode. GAUG DIVE MAI DISPLAY (Default), information pro- vided includes (Fig.
  • Page 104 GAUG DIVE ALT DISPLAY , information provided includes (Fig. 95) - > Graphic GAUG. > ax Depth with AX and FT (or ) icons. > Elapsed Dive Time (hr:min) with DIVE and TI E icons.  Press/release the A button to access the Secondary display.
  • Page 105 WAR I G: Prior to diving with the Manta, you must also read and understand the AERIS Dive Computer Safety and Reference Manual, Doc. o. 12-7203, which provides Important Warnings and Safety Recommendations as well as general product information. FREE D VE OPERAT NG MODE...
  • Page 106 FREE DIVE MODE When FREE (Free Dive ode) is selected as the Operating ode, the anta will operate as a Digital Depth Gauge with select features. Nitrogen calculations are based upon a default FO2 of AIR and the amount remaining during 24 hours is carried over between FREE and NOR Operating odes.
  • Page 107  Press the L button to activate the Backlight. FREE ode uses the  Depress the A button for 2 seconds to access the FREE NOR /GAUG SURF ALT Display from which you can access the settings for - Secondary Display . >>...
  • Page 108 The display will revert to the FREE SURF AIN screen after 5 seconds if the A button is not pressed. SECO DARY DISPLAY, information includes (Fig. 90) - > Day of the Week graphic ( ON, TUE, etc.) > Time of Day (hr:min). This will be the Watch Time selected ( AIN or ALTERNATE).
  • Page 109  Press/release the S button momentarily (< 2 seconds) to toggle between ON and OFF. The Set Point for > If a Time has been set, a toggle from OFF to ON will Start the Watch CDT does not affect the CD Timer indicated by the colon flashing.
  • Page 110 OTE: During a dive, the CDT can be turned OFF (stopped) and O (started), but not Set. SET FREE CDT STATUS DISPLAY (SURFACE O LY), information provided includes (Fig. 101) - > Graphic TI R, solid. > Timer setting (min:sec) with the TI E icon, colon solid, INUTE Set Point flashing.
  • Page 111  Pressing the A button momentarily (< 2 sec), or depressing the button for 2 seconds, or if no button is pressed The Set Point for during a period of 2 minutes, the display will revert to the the NORM/ GAUG EDT FREE SURF AIN screen.
  • Page 112  Pressing/releasing the S button momentarily (< 2 seconds) will toggle the Set Point between OFF and ON.  Pressing/releasing the A button momentarily (< 2 sec) will accept the setting and access the SET FREE DEPTH ALAR 1 screen. ...
  • Page 113 SET FREE DEPTH ALARM 1 (FDA1) DISPLAY, information provided includes (Fig. 104) - The Set Point for the NORM/ > Graphic FDA1. GAUG Depth > Depth Alarm value, flashing if ON is displayed, with AX Alarm does not and FT (or ) icons. affect the REE >...
  • Page 114  Depressing the button for 2 seconds, or if no button is pressed during a period of 2 minutes, the display will The range of available DA 2 revert the FREE SURF AIN screen. Set Points begins at the next T/M SET FREE DEPTH ALARM 2 (FDA2) DISPLAY, information value greater provided includes (Fig.
  • Page 115  Pressing and holding the S button will scroll through the Set Points at a rate of 4 Set Points per second until The range of available DA 3 released. Set Points begins  Pressing the A button momentarily (< 2 sec) will accept the at the next T/M Depth Setting and advance to SET FDA 3.
  • Page 116  Pressing/releasing the S button momentarily and repeatedly (< 2 seconds each time) will step through the Set Points from 50 to 330 FT (12 to 100 ) in increments of 10 FT (1 ) at a rate of 1 Set Point per press of the button.
  • Page 117 FREE DIVE CDT STATUS DISPLAY, information provided in- cludes - > Graphic TI R > Remaining Countdown time (hr:min:sec) with the TI E icon; and colon flashing if ON and a CD is in progress, 0:00 with the colon flashing if ON and no time is remaining.
  • Page 118 FREE CDT (Count Down Timer) Alert When the FREE CDT decreases to 0:00 (min:sec), 3 short beeps will sound 3 times and the message TI R will appear on the display 3 times momentarily (Fig. 110), then revert to the message FREE.
  • Page 119 FREE NIBG (Nitrogen Bar Graph) Alarm While diving in FREE DIVE ode, nitrogen accumulation from the FREE Dives and any previous NOR SCUBA Dives conducted within 24 hours is displayed as the NIBG. When Nitrogen Loading increases to the Caution level indi- cated by 4 segments displayed as the NIBG, the UP Arrow appears solid, 3 short beeps will sound 3 times, the red LED will flash, and the message UP >...
  • Page 120 Upon surfacing, the UP Arrow will be removed, however, the Full NIBG will continue to flash for 24 hours and dive computer operation will revert to FREE Permanent Violation ode (Fig. 115) until a full 24 hours elapse with no diving. Access to Watch ode will be allowed, but access to NOR or GAUG will be blocked.
  • Page 121 WAR I G: Prior to diving with the Manta, you must also read and understand the AERIS Dive Computer Safety and Reference Manual, Doc. o. 12-7203, which provides Important Warnings and Safety Recommendations as well as general product information. REFERENCE...
  • Page 122 I SPECTIO S A D SERVICE Your anta should be inspected annually by an Authorized AERIS Dealer who will perform a factory prescribed function check and inspection for damage or wear. To keep the 2 year limited warranty in effect, this inspection must be completed one year after purchase (+/- 30 days).

  • Page 123: To Obtain Service

    Warranty Registration Card.  Send freight prepaid and insured using a traceable method to AERIS.  If shipping to AERIS, obtain an RA (Return Authorization) number by contacting AERIS at 510/346-0010 or send an e-mail to service@diveaeris.com.

  • Page 124: Battery Removal

    If there is any sign of moisture in the anta, DO NOT attempt to use it for diving (NOR , GAUG, or FREE) until it receives proper service by the AERIS factory. Hot Swap If the new Battery can be inserted within 8 seconds after the old one is removed (referred to as a Hot Swap), settings and Ni-O2 calculations for repetitive dives will be retained.
  • Page 125  Inspect the Buttons, Lens, and Housing to ensure they are not cracked or damaged. WAR I G: If damage or corrosion is found, return your Manta to an Authorized AERIS Dealer, and DO OT attempt to use it until it has received factory prescribed service.

  • Page 126: Battery Installation

     If corrosion is found, return the anta to an Authorized AERIS Dealer, and DO NOT attempt to use it until it has received factory service.  If moisture is found, it is best to have the unit inspected and cleaned by an Authorized AERIS Dealer.
  • Page 127  Verify all Set Points prior to diving.  If any portions of the display are missing or appear dim, or if a Low Battery Condition is indicated, return your anta to an Authorized AERIS Dealer for a complete evaluation before attempting to use it.
  • Page 128 ALTITUDE SE SI G A D ADJUSTME T Prior to the first dive of a series of repetitive dives, ALTITUDE (i.e., Ambient Pressure) is measured upon activation of Dive Surface ode and every 15 minutes until a dive is made or operation reverts to ain Time after 2 hours. >...
  • Page 129 When the Conservative Factor feature is set ON, allowable dive times are calculated based upon the next higher 3,000 foot (915 meter) Altitude. All adjustments for Altitudes greater than 11,000 feet (3,355 meters) are then made to allowable dive times for 14,000 feet (4,270 meters). If the Conservative Factor is set ON while at Sea Level, calculations are based upon an Altitude of 3,001 feet.
  • Page 130 METRIC N DEC MPRESSI N LIMITS (H URS:MINUTES) AT ALTITUDE Altitude 0` 916` 1221` 1526` 1831` 2136` 2441` 2746` 3051` 3356` 3661` 3966` (meters) to 915` 1220` 1525` 1830` 2135` 2440` 2745` 3050` 3355` 3660` 3965` 4270` Depth (meters) 4:43 3:37 3:24 3:10 2:58 2:48 2:39 2:31 2:24 2:18 2:12 2:07 2:24 1:52 1:44 1:37 1:30 1:25 1:21 1:17 1:13 1:10 1:07 1:04 1:25 1:06 1:03 1:00 0:57 0:55 0:52 0:49 0:46 0:43 0:41 0:39 0:59 0:45 0:42 0:40 0:38 0:36 0:34 0:32 0:31 0:30 0:29 0:28...
  • Page 131 SPECIFICATIONS...
  • Page 132 SPECIFICATIONS (CONTINUED)
  • Page 133 SPECIFICATIONS (CONTINUED)
  • Page 134 SPECIFICATIONS (CONTINUED)
  • Page 135 SPECIFICATIONS (CONTINUED)
  • Page 136 Diving trainer. It is imperative that the physiological affects be understood and the diver is physically prepared.  If your Manta stops working for any reason while operating as a Dive Computer, it is important that you have anticipated this possibility and are prepared for it. This is an important...
  • Page 137 ERROR (RESET DURI G A DIVE) If for any reason, the anta shuts Off then turns On again for any reason during any Dive, the message ERR (Error) will be displayed with the Up Arrow and current Depth (Fig. 124). If this occurs, it is highly recommended that you terminate the dive and begin a safe ascent to the surface.
  • Page 138 INSPECTION / SERVICE RECORD Serial Number: _________________________________ irmware Revision: _________________________________ Date of Purchase: ____________ Purchased from : __________________________ Below to be filled in by an Authorized AERIS Dealer: Date Service Performed Dealer / Technician...
  • Page 139 OTES...
  • Page 140 AERIS 2002 Davis Street San Leandro, CA 94577 Tel: 510/346-0010 Fax: 510/346-0015 Web site: http://www.diveaeris.com E-mail: info2@diveaeris.com Doc. No. 12-7213-r02 (11/2/07) © 2002 Design, 2006...
