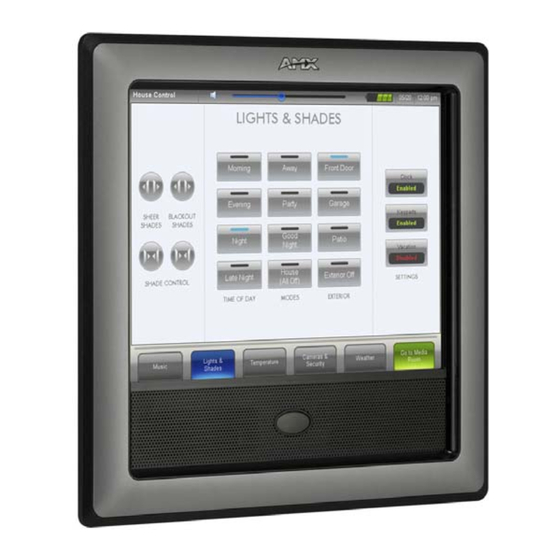

Page 1 Operation/Reference Guide NXD/T-1200V ® 12" Modero Video Wall/Flush Mount Touch Panel (Composite/S-Video Support) T o u c h P a n e l s L a s t R e v i s e d : 1 2 / 1 9 / 2 0 1 2...
Page 2 AMX is not responsible for products returned without a valid RMA number. AMX is not liable for any damages caused by its products or for the failure of its products to perform. This includes any lost profits, lost savings, incidental damages, or consequential damages.
Page 3 LICENSE GRANT. AMX grants to Licensee the non-exclusive right to use the AMX Software in the manner described in this License. The AMX Software is licensed, not sold. This license does not grant Licensee the right to create derivative works of the AMX Software.
Page 4 FCC Information This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received; including interference that may cause undesired operation. Federal Communications Commission (FCC) Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of...
Page 5: Table Of Contents
Table of Contents Table of Contents Introduction ......................1 Modero Video Touch Panels (1200V-Series)............. 1 Product Specifications (NXD-1200V and NXT-1200V) ..........2 1200V-Series Modero Connectors................4 Cleaning the Touch Overlay .................... 4 Connecting and Using Input Devices................ 4 Touch Panel Accessories ..................5 Overview ........................
Page 6 Step 2: Confirming the Installation of the USB Driver on the PC ........47 Step 3: Confirm and View the current AMX USB device connections ......49 Step 4: Using a USB to Configure a Virtual Master (using NetLinx Studio) ....50 Step 5: Confirm and View the current AMX USB device connections ......
Page 7 Table of Contents Wireless Settings Page - Wireless Access Overview ..........52 IP Routing........................52 Hot Swapping ....................... 52 Configuring a Wireless Connection ................ 53 Step 1: Configuring the Panel’s Wireless IP Settings ............ 53 Wireless communication using a DHCP Address ............... 53 Wireless communication using a Static IP Address..............
Page 8 Table of Contents Setup Page ......................82 Project Information Page....................83 Panel Information Page ....................84 Time & Date Setup Page ....................85 Volume Page ......................... 86 Supported sampling rates for WAV................87 Protected Setup Page ....................87 Video Adjustment Slide-Out Option Bar ............... 87 Video Adjustment - Video Adjustment Page ..............
Page 9 Table of Contents PPOG............................ 110 PPON............................ 110 Font Styles and ID Numbers..................112 Border styles ....................... 112 "^" Button Commands ..................114 ^ANI............................. 114 ^APF ............................ 114 ^BAT ............................ 115 ^BAU............................ 115 ^BCB ............................ 115 ^BCF ............................ 116 ^BCT ............................ 116 ^BDO ...........................
Page 10 Table of Contents ^MBT ........................... 130 ^MDC........................... 130 ^SHO ........................... 130 ^SKT ............................ 131 ^TEC ............................ 131 ^TEF............................. 131 ^TOP ............................ 131 ^TXT ............................ 132 ^UNI............................. 132 Text Effect Names ....................133 Button Query Commands ..................133 ?BCB ............................ 134 ?BCF.............................
Page 11 Table of Contents ^CAL ............................ 146 ^KPS............................. 146 ^SLT ............................. 146 Embedded Codes....................147 ^VKS ............................ 147 Panel Setup Commands..................148 ^MUT ........................... 148 @PWD ..........................148 ^PWD ........................... 148 ^VOL ............................ 148 Dynamic Image Commands .................. 149 ^BBR ............................ 149 ^RAF ............................
Page 12 Table of Contents Troubleshooting .....................159 Overview ......................159 viii NXD/T-1200V Wall/Flush Mount Touch Panel 12" Modero® Video...
Page 13: Introduction
Introduction Introduction AMX has taken a great leap forward with the release of their new 1200V-Series of Modero touch panels. These panels offer the ability to display Composite video, 802.11g communication, and USB support for extended input devices, and panel programming via a mini-USB port. The new G4 graphics and Video technology is supported by the release of the latest TPDesign4 Touch Panel Design Program.
Page 14: Product Specifications (Nxd-1200V And Nxt-1200V)
Memory: 256 MB on-board memory Compactflash: 2GB or greater (upgradeable to 4GB - see Other AMX Equipment). Note: AMX may increase Compactflash size at any time in response to market availability. Weight: 10.80 lbs (4.90 kg) LCD Parameters: • Aspect Ratio: 4:3 •...
Page 15 - Two CAT5 Suppression Ferrites (04-0014) • Modero Table Top Cable (CA2250-50) - provided with all NXT Table Top panels. • NXA-AVB/ETHERNET Breakout Box (FG2254-10) Other AMX • CB-TP12 Conduit/Wallbox (FG031-10) Equipment: • CC-USB (Type A) to Mini-B 5-Wire programming cable (FG10-5965) •...
Page 16: 1200V-Series Modero Connectors
NXA-AVB/ETHERNET. This connector routes Composite video, Stereo (left/right) audio, and microphone audio. NXT-1200V - connectors located NXD-1200V - connectors located on rear panel of the base on left side panel 12VDC...
Page 17: Touch Panel Accessories
Touch Panel Accessories Touch Panel Accessories Overview The following section outlines and describes both the included accessories and other AMX equipment available for these touch panels. NXA-AVB/ETHERNET Breakout Box (FG2254-10) The NXA-AVB/ETHERNET Breakout Box (FIG. 3) is included as part of the 1200V Kit configuration (panel and box) but can be purchased as a separate accessory.
Page 18: Installing The Nxa-Avb/Ethernet
• Two 2-pin Phoenix connectors (41-5025) • 4-pin Phoenix connector (41-5047) • 6-pin Phoenix connector (41-5063) • Rack Mount Kit (KA2250-40) with mounting bracket (62-2254-02) Other AMX Equipment: • AC-RK Accessory RackMount Kit (FG515) • Modero Table Top Cable (CA2250-50) Installing the NXA-AVB/ETHERNET A 12 VDC-compliant power supply can indirectly provide power to a Modero panel by routing power through the NXA- AVB/ETHERNET Breakout Box.
Page 19: Wiring The Nxa-Avb/Ethernet Connectors And Cables
Mic Out port. This signal can be fed as a Line Level In to either an amplifier or an AMX VOL card. Either a balanced (+, -, and GND) or unbalanced (+ and GND) audio signal can be connected to this output.
Page 20: Wiring The Nxa-Avb/Ethernet For Balanced Audio
Touch Panel Accessories Unbalanced IN Left Channel (Jumper IN- to GND) Unbalanced IN Right Channel (Jumper IN- to GND) AUDIO IN MIC OUT Unbalanced OUT Microphone OUT- OUT+ FIG. 7 Wiring the rear AUDIO IN and MIC OUT for use with Unbalanced Audio When using unbalanced audio for the AUDIO IN connector (FIG.
Page 21: Modero Table Top Cable (Ca2250-50)
- 2-pin mini-Phoenix connector (41-5025) - Three Phillips-head screws (#4-20 x 0.250 Black) (80-0114-08) - Two CAT5 Suppression Ferrites (04-0014) Other AMX Equipment (Cont.): • Installation Kit for 15" and 17" NXT panels (KA2251-04): - 2-pin mini-Phoenix connector (41-5025) - Three Phillips-head screws (#4-20 x 0.250 Black) (80-0114-08) - One CAT5 Suppression Ferrite (04-0014) •...
Page 22: Wiring Information For The Modero Table Top Cable
If your installation requires custom cable configurations, you can purchase bulk (non-terminated) cable from Liberty Wire and Cable under the nomenclature "AMX Table Top Cable - Modero" (phone#: (800) 530 8998 or +1-719-388- 7518). When building a custom Table Top cable, please refer to the table below to calculate the maximum length of the cable for your particular installation/setup.
Page 23 Touch Panel Accessories Element #1 Connector #1 & 2 Binder Element #2 Connector #3 Jacket FIG. 11 Table Top Cable - cross-section view DESCRIPTION: 9/PAIRS COMPOSITE CABLE CONSISTING OF: ELEMENT #1: TWO 4/PAIR 24 AWG STRANDED TINNED COPPER, POLYETHYLENE INSULATION, ELEMENT #2: 1/PAIR 18 AWG STRANDED TNNED COPPER, PVC INSULATION AND FOIL SHIELDED OVERALL PAPER BINDER AND FLEX-PVC JACKET.
Page 24: Installing Cat5 Suppression Ferrites
Touch Panel Accessories Installing CAT5 Suppression Ferrites Before connecting the RJ-45 cables to the panel, install the necessary number of CAT5 Suppression Ferrites (FIG. 13) to their appropriate locations. These ferrites come as part of the Installation Kits mentioned in the Specification table. No tools are required for this installation.
Page 25: Nxa-Cftp Compact Flash (Fg2116-2X)
These panels are shipped with a 256 memory module which is not upgradeable. The default 128 MB Compact Flash card is factory programmed with specific panel firmware and is the only upgradeable memory component. This component can be ordered from AMX in several different upgrade sizes (as listed in the following table):...
Page 26: Product Specifications
• Operates from 2.300-2.500 GHz • Operate at ISM frequency bands (2.4GHz) with 54Mbps data rate • Pre-configured to communicate with current AMX Wireless Access Points • Support for IEEE 802.11b and 802.11g • Wired Equivalent Privacy (WEP) 64-bit and 128-bit data encryption Antenna Type: •...
Page 27: Installation And Upgrade Of The Internal Nxt Components
Availability: • All 1200V-Series and VG-Series NXT Table Top panels can be field upgraded for wireless communication using the optional NXA-PCI80211G mini-PCI card. • Optional to the following NXD panels: - NXD-1200V - NXD-1200VG - NXD-1500VG - NXD-1700VG Installation and Upgrade of the Internal NXT Components...
Page 28: Step 2: Install The 802.11G Mini-Pci Wireless Card
Touch Panel Accessories Base plate Unscrew these Outer housing eight Housing Screws to remove the circuit board 45° Hinge Brackets (2) housing DO NOT REMOVE these screws They secure the speakers to the main board FIG. 17 Location of the attachment screws underneath an NXT panel base Rotate the panel back over (while gripping the entire unit with outer housing) and rest the base on a flat surface.
Page 29: Step 3: Install The Compact Flash Memory Card Upgrade
Touch Panel Accessories FIG. 19 Location of the mini-PCI card connector on main board Carefully remove the gold-tipped terminal ends of the antenna from their factory default connectors on the main board. The antenna is secured at this location to restrict its movement prior to connection to a wireless card. Firmly grasp the NXA-PCI80211G mini-PCI card (from the edges) and insert the pins (at a 25°...
Page 30 Touch Panel Accessories Outer Housing NXA-PCI80211G wireless card I/O connector plate Eight Housing Screws Compact Flash card FIG. 21 Location of the Compact Flash card and I/O plate on NXT Insert the tip of a grounded flat-head screwdriver into one of the card removal grooves (located on either side of the existing card), and gently pry the card out of the slot (FIG.
Page 31: Step 4: Close And Resecure The Nxt Panel Enclosure
Touch Panel Accessories Step 4: Close and Resecure the NXT Panel Enclosure Obtain the I/O connector plate and slide it back into position (FIG. 21). Resecure the Stereo Output nut back onto the new Stereo Output jack onto the I/O plate. With the components securely installed, tilt the LCD back to a 45°...
Page 32: Step 2: Install The New 802.11G Mini-Pci Wireless Card (Nxd)
Touch Panel Accessories DO NOT REMOVE DO NOT REMOVE these these panel panel securing screws securing screws Unscrew these four Housing Screws to remove the back box. These make direct contact with the black outer housing. FIG. 23 Location of the securing screws on an NXD panel DO NOT REMOVE THE PANEL SECURING SCREWS.
Page 33: Step 4: Close And Resecure The Nxd Panel Enclosure
Touch Panel Accessories Step 4: Close and Resecure the NXD Panel Enclosure With the components securely installed, gently place the outer housing back onto the metallic panel casing (with the connector opening on the right-side of the panel) and align the four pan-head Housing Screw holes along the edges of the outer housing.
Page 34: Nxa-Base/B Battery Base Kit (Fg2255K)
• Operating Humidity: 20% - 85% RH • Storage Temperature: -20° C (-4° F) to 60° C (140° F) • Storage Humidity: 5% - 85% RH Other AMX Equipment: • NXT-CHG Kit (FG2250-50K): Charger (FG2250-50) and 2 NXT-BP batteries (FG2255-10) •...
Page 35: Checking The Nxt-Bp Battery Charge
Touch Panel Accessories Checking the NXT-BP battery charge Press the Battery Life Indicator button (FIG. 27) once to illuminate the Battery Life LEDs and display the percent charge remaining on the battery (this indication lasts a few seconds). Battery Life (Charge) Display Battery Life Indicator button FIG.
Page 36: Installing An Nxt-Bp Into The Nxa-Base/B
Touch Panel Accessories Bottom view Top view Interface connector (male) Panel Interface Alignment connector pegs (female) Captive fasteners FIG. 29 NXA-BASE/B shown aligning with NXT panel Firmly grip both the panel (from the side) and battery base (from below) together. Gently place the touch panel LCD facedown onto a soft cloth (this prevents scratching of the LCD while the battery base is being secured).
Page 37: Charging The Nxt-Bp Batteries With The Nxa-Base/B
Apply a small amount of pressure to close the battery compartment until the compartment latches.  After a few seconds, the panel will turn On and the AMX logo will appear (indicating the panel is receiving power. Charging the NXT-BP batteries with the NXA-BASE/B Follow the procedures from the previous sub-section to attach the NXT touch panel to the NXA-BASE/B.
Page 38: Nxt-Chg Battery Charger Kit (Fg2255-50K)
• Recalibration pushbutton (located between the bays): Initiates recalibration sequence in the left bay only. • Recalibration Time: less than 9 hours Other AMX Equipment: • NXT-CHG Kit (FG2250-50K): - 1 charger and 2 NXT-BP batteries • NXT-BP battery pack (FG2255-10) (additional) The batteries are charged in the order they are inserted into the NXT-CHG.
Page 39: Reading Nxt-Chg Led Indicator
Touch Panel Accessories Reading NXT-CHG LED Indicator FIG. 32 shows the components on the NXT-CHG Smart Battery Charger. Slot 1 (recalibration) Slot 2 Slot 1 Slot 2 Recalibrate Pushbutton FIG. 32 Component locations on the NXT-CHG There is one LED indicator on the front of each battery slot that indicates the status of that slot. The blink patterns for these LEDs are described in the following table: •...
Page 40 Touch Panel Accessories NXD/T-1200V Wall/Flush Mount Touch Panel...
Page 41: Installation Procedures: Nxd-1200V Panels
Inspect and confirm the contents of the shipment box to verify that you have all specified parts. Refer to the Specifications table (page 2) for more information about included accessories and other AMX equipment. Carefully remove the panel from the shipping box.
Page 42: Installing The Mp-Tp12 Back Box
Installation Procedures: NXD-1200V Panels Remove the four pan-head Housing Screws from the rear of the NXD unit (FIG. 33). These screws secure the back box to the internal panel casing. DO NOT REMOVE DO NOT REMOVE these these panel panel...
Page 43: Cable Installation For The Mp-Tp12 Back Box
Installation Procedures: NXD-1200V Panels DO NOT REMOVE Twelve #6-32 securing screws MB-TP12 back box Connector Opening Strain relief grommet (Clip facing up) Rim of the strain relief grommet should lie flush against enclosure Securing hole locations (3 on each side)
Page 44 Insert the four provided #8-32 screws through the VESA mount’s four holes and then into the pre-drilled holes on the rear plastic cover. When installing a VESA mount to the rear plastic cover, use only the AMX provided #8-32 screws.
Page 45: Pre-Wall Installation Of The Conduit Box
Rim of the strain relief grommet should lie flush against enclosure CLIP FACING UP VESA mount connection location (USE ONLY AMX PROVIDED #8-32 screws) FIG. 36 Installation of grommet into the rear plastic enclosure Pre-wall Installation of the Conduit Box Wall Mount panels (NXDs) are contained within a metallic outer housing (back box).
Page 46: Installation Of The Nxd Touch Panel
Installation Procedures: NXD-1200V Panels Remove any necessary wiring knockouts from the (optional) conduit box (C in FIG. 37) where the necessary cables are threaded through for connection to the touch panel. Thread the incoming RJ-45, Ethernet, and any other audio/video wiring through the knockouts. Refer to the Wiring Guidelines for the 1200V Panels section on page 41 for pinout descriptions.
Page 47: Installing The Nxd Into Drywall Using Expansion Clips
Installation Procedures: NXD-1200V Panels  The USB connectors can be from either a USB extension cable, or a wireless USB RF transmitter. Test the incoming wiring by connecting the panel connections to their terminal locations and applying power. Verify the panel is receiving power and functioning properly to prevent repetition of the installation.
Page 48 FRONT BEZEL FIG. 39 NXD-1200V 12-inch Wall Mount panel dimensions using expansion clips Remove the magnetic faceplate/bezel (A in FIG. 40) from the main NXD unit (B in FIG. 40) by gripping the faceplate and pulling with gentle outward force.
Page 49 Tighten the drywall clip sets (screws and clips) until the Mounting Tabs are securely fastened and flush against the wall. The drywall clip set must be re-ordered from AMX if the drywall clip is bent accidentally during an installation or removed during a re-installation.
Page 50: Installing The Nxd Into A Flat Surface Using #4 Screws
FRONT BEZEL FIG. 41 NXD-1200V Wall Mount panel dimensions using #4 mounting screws Remove the magnetic faceplate/bezel (A in FIG. 42) from the main NXD unit (B in FIG. 42) by gripping the faceplate and pulling with gentle outward force.
Page 51 Installation Procedures: NXD-1200V Panels Attachment is done Flat surface along the edges of (can include a the cutout wall, podium, or Install the four (#4) other flat surface) mounting screws into the holes (screws not included) B - Main NXD unit consists of...
Page 52: Installing An Nxd Into An (Optional) Rack Mount Kit (Nxa-Rk12)
(NXA-RK12) FIG. 43 NXD-1200V 12 inch Wall Mount panel installed into an NXA-RK12 Rack Mount Kit Secure the panel to the NXA-RK frame by first inserting and then tightening the four #4-40 screws (provided). Line up the four mounting holes and use a grounded Phillips-head screwdriver to tighten the screws in a clockwise direction.
Page 53: Wiring Guidelines For The 1200V Panels
Installation Procedures: NXD-1200V Panels Wiring Guidelines for the 1200V Panels These panels require the use of a 12 VDC-compliant power supply to provide power to the panel via the 2-pin 3.5 mm mini-Phoenix PWR connector. Use the previously referenced power requirements information to determine the power draw.
Page 54: Audio/Video Port: Connections And Wiring
Installation Procedures: NXD-1200V Panels Audio/Video Port: Connections and Wiring The following table shows the signal and pinout/pairing information used on the RJ-45 Audio and Video connections. Audio/Video RJ-45 Pinout Information Wire Color Function Polarity Orange/White Right Audio In + Orange...
Page 55: Panel Calibration
Modero panels are factory setup with specific demo touch panel pages. The first splash screen that appears indicates the panel is receiving power, beginning to load firmware, and preparing to display the default touch panel pages. When the panel is ready, the AMX Splash Screen is replaced by the Initial Panel Page (FIG. 46). AMX Splash Screen...
Page 56: Testing Your Calibration
Panel Calibration The request to touch the crosshairs is the first on-screen message Calibration successful is the second on-screen message that appears after the calibration process is completed On-screen crosshairs used for calibration of the touch device FIG. 48 Touch Panel Calibration Screens After the "Calibration Successful.."...
Page 57: Configuring Communication
G4 panel is powered-up. The panel will not detect a USB connection of this type until after the unit cycles power. Before commencing, verify you are using the latest NetLinx Master and Modero panel firmware. Verify you are using the latest versions of AMX’s NetLinx Studio and TPDesign4 programs. Modero Setup and System Connection Press the grey Front Setup Access button for 3 seconds to open the Setup page (FIG.
Page 58 Configuring Communication FIG. 51 Protected Setup page Press the on-screen Reboot button to restart the panel and incorporate any changes. Before continuing, open NetLinx Studio 2.x. This program assists in developing a System Number, Master IP/URL, and Master Port number. Refer to your NetLinx Master’s instruction manuals for more information.
Page 59: Configuring And Using Usb With A Virtual Master
Step 2: Confirming the Installation of the USB Driver on the PC The first time each AMX touch panel is connected to the PC it is detected as a new hardware device and the USBLAN driver becomes associated with it (panel specific). Each time thereafter the panel is "recognized" as a unique USBLAN device and the association to the driver is done in the background.
Page 60 Configuring Communication After the panel powers-up, press and hold the grey Front Setup Access button (for 3 seconds) to continue with the setup process and proceed to the Setup page. Select Protected Setup > System Settings (located on the lower-left) to open the System Settings page (FIG. 53). No connection is established until the Virtual Master becomes active within Studio...
Page 61: Step 3: Confirm And View The Current Amx Usb Device Connections
 The previous version of the AMX USBLAN driver showed a USB connection icon in the system tray when a panel was connected. The new version of the driver does not show an icon in the System Tray. A Virtual NetLinx Master (VNM) is used when the target panel is not connected to a physical NetLinx Master.
Page 62: Step 4: Using A Usb To Configure A Virtual Master (Using Netlinx Studio)
Verify the panel has been configured to communicate via USB within the System Settings page and that the USB driver has been properly configured. Refer to the previous section for more information. Launch NetLinx Studio 2.x (default location is Start > Programs > AMX Control Disc > NetLinx Studio 2 > NetLinx Studio 2).
Page 63: Step 5: Confirm And View The Current Amx Usb Device Connections
(turning the System Connection icon green). Step 5: Confirm and View the current AMX USB device connections Use the CC-USB Type-A to Mini-B 5-wire programming cable (FG10-5965) to provide communication between the mini-USB Program port on the touch panel and the PC.
Page 64: Wireless Settings Page - Wireless Access Overview
Ethernet Communication from the panel can be direct (using an Ethernet cable) or indirect (through the NXA- PCI80211G AMX Wireless Card (FG2255-04) communicating to a Wireless Access Point (WAP) such as the NXA- WAP200G). In determining the Ethernet method of communication, the panel will always default first to the direct Ethernet communication.
Page 65: Configuring A Wireless Connection
Configuring Communication Configuring a Wireless Connection When working with a wireless card, the first step is to configure wireless communication parameters within the Wireless Settings page. This page only configures the card to communicate to a target WAP (such as the NXA-WAP200G), it is still necessary to tell the panel which Master it should be communicating with.
Page 66: Step 2: Configuring The Card's Wireless Security Settings
The card should be given the SSID used by the target WAP. If this field is left blank, the unit will attempt to connect to the first available WAP. By default, all WAP200Gs use AMX as their assigned SSID value.
Page 67: Configuring The Modero's Wireless Card For Secured Access To A Wap200G
Configuring Communication Mini-PCI settings FIG. 59 Wireless Settings page (showing default values) Toggle the Encryption field until it reads Clear Text (default). The remaining Wireless Settings fields are then greyed-out and become read-only. All NXA-WAP200Gs are factory-shipped as an unsecured WAP with no WEP encryption.
Page 68 You must maintain the same case when entering the SSID information. ABC is not the same as Abc.  The alpha-numeric string is by default AMX but can later be changed to any 32-character entry. This string must be duplicated within the Network Name (SSID) field on the WAP. ...
Page 69 Configuring Communication The code key generator on Modero panels use the same key generation formula. Therefore, this same Passphrase generates identical keys when done on any Modero because they all use the same Modero-specific generator. The Passphrase generator is case sensitive. Within this on-screen WEP Passphrase keyboard (FIG.
Page 70: Configuring Multiple Wireless Moderos To Communicate To A Target Wap200G
Configuring Communication Press the Back button to navigate to the Protected Setup page and press the on-screen Reboot button to both save any changes and restart the panel. Remember that you will need to navigate to the System Settings page and configure the connection to a target Master.
Page 71: Ip Settings Section - Configuring A Static Ip Address Over Ethernet
Configuring Communication DHCP will register the unique MAC Address (factory assigned) on the panel and once the communication setup process is complete, reserve an IP Address, Subnet Mask, and Gateway values from the DHCP Server. Press the optional Host Name field to open a Keyboard and enter the Host Name information. Press Done after you are finished assigning the alpha-numeric string of the host name.
Page 72: Step 3: Configuring The Ethernet Connection Type
Configuring Communication • AUTO is used to instruct the Modero to search for a Master that uses the same System Number (assigned within the Master Connection section) and resides on the same Subnet as itself. In this case, the Master has its UDP feature enabled.
Page 73: Master Connection - Virtual Master Communication Over Ethernet
Verify the panel has been configured to communicate either through an Ethernet cable (connected from either the panel to a valid Ethernet Hub) or wireless to the Wireless Access Point. Launch NetLinx Studio 2.x (default location is Start > Programs > AMX Control Disc > NetLinx Studio 2 > NetLinx Studio 2).
Page 74: Master Connection Section - Netlinx Master Ethernet Ip Address - Url Mode
Master (virtual or not). A Virtual Master system value can be set within the active AMX software applications such as: NetLinx Studio, TPD4, or IREdit. Press the Master IP/URL field to open a Keyboard and enter the IP Address of the PC used as the Virtual Master.
Page 75: Master Connection Section - Netlinx Master Ethernet Ip Address - Listen Mode
Configuring Communication Press the Back button to open the Protected Setup page. Press the on-screen Reboot button to both save any changes and restart the panel. Master Connection section - NetLinx Master Ethernet IP Address - Listen Mode In this mode, you must add the Modero panel IP Address into the URL List of the Master (using NetLinx Studio). This mode sets the Modero panel to "listen"...
Page 76: Using G4 Web Control To Interact With A G4 Panel
Refer to the G4 Web Control Page section on page 94 for more detailed field information. Verify your NetLinx Master (ME260/64 or NI-Series) has been installed with the latest firmware KIT file from www.amx.com. Refer to your NetLinx Master Instruction Manual for more detailed information on the use of the new web-based NetLinx Security.
Page 77 Configuring Communication  Wired is used when a direct Ethernet connection is being used for communication to the web. This is the default setting if either no wireless interface card is detected or if both an Ethernet and wireless card connection is detected by the panel.
Page 78: Using Your Netlinx Master To Control The G4 Panel
Both HTTP and HTTPS Ports are enabled by default (via the Manage System > Server page).  If the Master has been previously configured for secured communication, click OK to accept the AMX SSL certificate (if SSL is enabled) and then enter a valid username and password into the fields within the Login dialog.
Page 79 Configuring Communication FIG. 70 Web Control VNC installation and Password entry screens Click Yes from the Security Alert popup window to agree to the installation of the G4 WebControl application on your computer. This application contains the necessary Active X and VNC client applications necessary to properly view and control the panel pages from your computer.
Page 80 Configuring Communication NXD/T-1200V Wall/Flush Mount Touch Panel...
Page 81: Upgrading Modero Firmware
Upgrading Modero Firmware Upgrading Modero Firmware Before beginning the Upgrade process:  Setup and configure your NetLinx Master. Refer to your particular NetLinx Master instruction manual for detailed setup procedures.  Calibrate and prepare the communication pages on the Modero panel for use. Refer to the Panel Calibration section on page 43.
Page 82: Step 2: Prepare Netlinx Studio For Communication Via The Usb Port
Navigate back to the System Settings page. Step 2: Prepare NetLinx Studio for communication via the USB port Launch NetLinx Studio 2.x (default location is Start > Programs > AMX Control Disc > NetLinx Studio 2 > NetLinx Studio 2).
Page 83: Step 3: Confirm And Upgrade The Firmware Via The Usb Port
If the panel firmware being used is not current, download the latest Kit file by first logging in to www.amx.com and then navigate to Tech Center > Firmware Files and from within the Modero section of the web page locate your Modero panel.
Page 84: Upgrading The Modero Firmware Via An Ip Address
 Note the IP Address and Gateway information. Launch NetLinx Studio 2.x (default location is Start > Programs > AMX Control Disc > NetLinx Studio 2 > NetLinx Studio 2). Select Settings > Master Communication Settings from the Main menu to open the Master Communication Settings dialog (FIG.
Page 85 Upgrading Modero Firmware FIG. 75 Assigning Communication Settings and TCP/IP Settings Click the Communications Settings button to open the Communications Settings dialog. Click on the NetLinx Master radio button (from the Platform Selection section) to indicate you are working with a NetLinx Master (such as the NXC-ME260/64 or NI-Series of Integrated Controllers).
Page 86: Step 2: Prepare The Panel For Communication Via An Ip
Master (virtual or not). A Virtual Master system value can be set within the active AMX software applications such as: NetLinx Studio, TPD4, or IREdit. Press the red Master IP/URL field to open a Keyboard and enter the NetLinx Master’s IP Address (obtained from the Diagnostics - Networking Address dialog of the NetLinx Studio application).
Page 87: Upgrading Accessory Devices Via The Usb
Upgrading Modero Firmware If the panel firmware being used is not current, download the latest Kit file by first logging in to www.amx.com and then navigate to Tech Center > Firmware Files and from within the Modero section of the web page locate your Modero panel.
Page 88: Step 2: Upgrade The Nxa-Base/B Firmware Via Usb
Battery Base page The battery base firmware is shown on the right of the Battery Base page. Verify you have downloaded the latest firmware file from www.amx.com and then save the Kit file to your computer. Step 2: Upgrade the NXA-BASE/B firmware via USB Complete the procedures outlined in the Step 1: Configure the panel for a USB Connection Type section on page 69.
Page 89: Upgrading Accessory Devices Via An Ip Address
The default Modero panel value is 10001. Locate the latest Kit file by first logging in to www.amx.com and then navigate to Tech Center > Firmware Files and from within the Modero section of the web page locate the Battery Base.
Page 90: Step 2: Upgrade The Nxa-Base/B Firmware Via An Ip
10001. The NXA-BASE/B will not appear on the system listing. Locate the latest Kit file by first logging in to www.amx.com and then navigate to Tech Center > Firmware Files and from within the Modero section of the web page locate the Modero Battery Base section of the website.
Page 91 Upgrading Modero Firmware Selected Battery Base Firmware file Description field for selected Kit file Firmware download status Device value and System number must match the values listed in the Workspace window FIG. 81 Send to NetLinx Device dialog (showing NXA-BASE/B firmware update via IP) Select the battery base’s Kit file (ending in VXX.kit) from the Files section (FIG.
Page 92 Upgrading Modero Firmware NXD/T-1200V Wall/Flush Mount Touch Panel...
Page 93: Firmware Pages And Descriptions
Firmware Pages and Descriptions Firmware Pages and Descriptions Overview This section describes each firmware page and their specific functional elements. Setup Navigation Buttons These Setup Navigation Buttons (FIG. 82) appear on the left of the panel screen when the Setup page is currently active. Modero Setup Navigation Buttons FIG.
Page 94: Setup Page
Firmware Pages and Descriptions Setup Navigation Button Elements (Cont.) Battery Base: Press the Battery Base button to access the Battery Base page where you can modify and monitor NXT-BP Modero Power Pack parameters. • This button only appears when a Modero Table Top panel (NXT) is connected to an NXA- BASE/B battery base.
Page 95: Project Information Page
Firmware Pages and Descriptions Setup Page Elements (Cont.) Display/Panel Timeout: Sets the length of time the panel can remain idle before activating the sleep mode. When the device goes into sleep mode, the LCD is powered-down. • Press the UP/DN buttons to increase/decrease the time until the panel times out.
Page 96: Panel Information Page
Displays the model of the Modero panel being used. Firmware Version: Displays the G4 firmware version being used by the panel. • Verify you have the latest version from www.amx.com. Setup Port: Displays the setup port information/value being used by the panel.
Page 97: Time & Date Setup Page
Firmware Pages and Descriptions Panel Information Page Elements (Cont.) Screen Height: Displays the pixel height being used to display the incoming video signal on the Modero panel. • Maximum available screen height on 12" panels is 600 pixels. Screen Refresh Rate: Displays the video refresh rate applied to the incoming video signal from the panel.
Page 98: Volume Page
Firmware Pages and Descriptions Time & Date Setup Page Elements (Cont.) Set Date/Time: This section provides a user with both UP/DN arrow buttons to alter the Master’s calendar date and time. The blue circle indicates which field is currently selected. •...
Page 99: Supported Sampling Rates For Wav
Firmware Pages and Descriptions Volume Page Elements (Cont.) Internal Sound Level: This section allows you to adjust the current sound level on the internal panel speaker: • Use the UP/DN buttons to adjust the volume output on the internal speakers (range = 0 - 100).
Page 100: Video Adjustment - Video Adjustment Page
Firmware Pages and Descriptions Video Adjustment - Video Adjustment Page The Video Adjustment page (FIG. 89) (accessed by pressing the Video Adjustment button on the Setup page and then selecting the appropriate button from the option bar) sets the Video properties of the incoming video signal from an NXA-AVB/RGB Breakout Box.
Page 101: Battery Base Page
Firmware Pages and Descriptions Battery Base Page This page (FIG. 90) allows you to alter/set the power warning preferences, monitor battery status information, and alter the display times for the battery warnings. The fields on this page are populated with information after the panel is connected to an optional NXA-BASE/B Battery Base containing up to two NXT-BP batteries.
Page 102 Firmware Pages and Descriptions Battery Base Page Elements (Cont.) Battery Status fields: This section provides the ability to monitor the current battery charge levels and charge qualities: • The Combined Charge Status bargraph indicates the combined power charge available from both internal battery connection slots (bargraph range = 0 - 100). •...
Page 103: Protected Setup Navigation Buttons
Firmware Pages and Descriptions Protected Setup Navigation Buttons The Protected Setup Navigation Buttons (FIG. 91) appear on the left of the panel screen when the Protected Setup page is currently active. Modero Protected Setup Navigation Buttons FIG. 91 Protected Setup Navigation Buttons These Navigation Buttons are specific to these Modero panels and include the panel specific elements described in the following table: Protected Setup Navigation Button Elements...
Page 104: Protected Setup Page
Firmware Pages and Descriptions Protected Setup Page The Protected Setup page (FIG. 92) centers around the properties used by the panel to properly communicate with the NetLinx Master. Enter the factory default password (1988) into the password keypad to access this page. Provides access to the panel firmware pages by enabling the grey front setup access button:...
Page 105 • The Remove User Pages button allows you remove all current TPD4 touch panel pages currently on the panel (including the pre-installed AMX Demo pages). - Pressing this button launches a Confirmation dialog (FIG. 93) which asks you to confirm your selection.
Page 106: G4 Web Control Page
Firmware Pages and Descriptions Channel Code Channel Port Channel Code Number Channel Port Number 7,10 3,132 Address Slider Address Port Button Level Port Port Level Port 3,50 Channel Code Channel Code Address Code Address Code Number Number Number Number FIG. 94 Button/slider Function Show example G4 Web Control Page The G4 Web Control page (FIG.
Page 107: Sensor Setup Page
Firmware Pages and Descriptions G4 Web Control Page Elements (Cont.) Web Control Name Allows you to enter a unique alpha-numeric string that is used as the display name of the panel within the Manage WebControl Connections window of the new NetLinx Security browser window.
Page 108 Firmware Pages and Descriptions A light level value between the Minimum and Maximum DIM Mode values delivers an average light level. The DIM mode Min Level can never exceed the DIM Mode Max Level. The elements of the Sensor Setup page are described in the table below: Sensor Setup Page Elements Back: Saves the changes and returns you to the previously active touch panel page.
Page 109: Using The Automated Brightness Control Feature (Dim Mode)
Firmware Pages and Descriptions Sensor Setup Page Elements (Cont.) Dim Mode Minimum Allows you to alter the sensitivity of the Modero panel light sensor: Brightness: • Toggle the Enable/Enabled button to either active/inactive the DIM Mode feature: - Enable - activates this feature. Once active (by receiving a value below the Dim Mode Min Level value), the current light level ramps to the DIM Mode value within a few seconds.
Page 110: Password Setup Page
Firmware Pages and Descriptions The minimum (lower level) of the dimmer should be at least 10% lower than the minimum detected level (ex: lower dimmer level at 30% if the detected lighting of the room is at 40%). Password Setup Page The Password Setup page (FIG.
Page 111: Wireless Settings Page
Firmware Pages and Descriptions If the calibration was improperly set and you cannot return to the Calibration page (through the panel’s firmware); you can access this firmware page via G4 WebControl where you can navigate to the Protected Setup page and press the Calibrate button through your VNC window.
Page 112 Firmware Pages and Descriptions Wireless Settings Page Elements (Cont.) IP Settings (Cont.): Gateway Sets a gateway value to the panel. • Gateway is a computer that either performs protocol conversion between different types of networks/applications or acts as a go-between for two or more networks that use the same protocols.
Page 113 3rd-party Wireless Access Point, it comes back with 1a:2b:3c:4d:etc. Entering the same apple in the Passphrase generator of any Modero panel generates a different key: a1:b2:c3:d4:etc. Only AMX Modero panels generate the same Current Key by using a unique Passphrase key generation technology. A Current Key string, when generated anywhere else, will not match those created on the Modero panels.
Page 114: System Settings Page
Firmware Pages and Descriptions Wireless Settings Page Elements (Cont.) Wireless Settings (Cont.): Link Quality Displays the current quality of the link (as descriptive colored text) from the wireless NIC to the Wireless Access Point in real time. • The bargraph has been replaced with a descriptions: None, Poor, Fair, Good, Very Good, and Excellent.
Page 115 • Choices are: Auto, 10 Half Duplex, 10 Full Duplex, 100 Half Duplex, or 100 Full Duplex. MAC Address Displays a read-only field that is factory set by AMX for the built-in Ethernet interface. Master Connection: Sets the NetLinx Master communication values: Type Sets the NetLinx Master to communicate with the panel via either USB or Ethernet.
Page 116 Firmware Pages and Descriptions System Settings Page Elements (Cont.) Mode Cycles between the different connection modes (URL, Listen, and Auto) (ETHERNET Only - disabled when USB is selected) • URL - In this mode, enter the IP/URL, Master Port Number, and username/password (if used) on the Master.
Page 117: Programming
Programming Programming Overview You can program the touch panel, using the commands in this section, to perform a wide variety of operations using Send_Commands and variable text commands. A device must first be defined in the NetLinx programming language with values for the Device: Port: System (in all programming examples - Panel is used in place of these values and represents all Modero panels).
Page 118: Dpg
Programming Page Commands (Cont.) @DPG Delete a specific popup page from specified popup group if it exists. Syntax: "'@DPG-<popup page name>;<popup group name>'" Variable: popup page name = 1 - 50 ASCII characters. Name of the popup page. popup group name = 1 - 50 ASCII characters. Name of the popup group. Example: SEND_COMMAND Panel,"'@DPG-Popup1;Group1'"...
Page 119: Ppa
Programming Page Commands (Cont.) @PPA Close all popups on a specified page. If the page name is empty, the current page is used. Same as the ’Clear Page’ command in TPDesign4. Syntax: "'@PPA-<page name>'" Variable: page name = 1 - 50 ASCII characters. Name of the page the popup is displayed On. Example: SEND_COMMAND Panel,"'@PPA-Page1'"...
Page 120: Ppm
Programming Page Commands (Cont.) @PPM Set the modality of a specific popup page to Modal or NonModal. A Modal popup page, when active, only allows you to use the buttons and features on that popup page. All other buttons on the panel page are inactivated.
Page 121: Pse
Programming @PSE Set the show effect for the specified popup page to the named show effect. Syntax: "'@PSE-<popup page name>;<show effect name>'" Variable: popup page name = 1 - 50 ASCII characters. Name of the page the popup is displayed On. show effect name = Refers to the popup effect name being used.
Page 122: Programming Numbers
Programming Page Commands (Cont.) PPOG Toggle a specific popup page on either a specified page or the current page. If the page name is empty, the current page is used (see example 2). Toggling refers to the activating/deactivating (On/ Off) of a popup page. This command works in the same way as the ’Toggle Popup’ command in TPDesign4.
Page 123 Programming RGB Values for all 88 Basic Colors (Cont.) Index No. Name Green Blue Medium Yellow Dark Yellow Very Dark Yellow Very Light Lime Light Lime Lime Medium Lime Dark Lime Very Dark Lime Very Light Green Light Green Green Medium Green Dark Green Very Dark Green...
Page 124: Font Styles And Id Numbers
The TPDesign4 Touch Panel Design program has pre-set border styles that are user selectable. TPD4 border styles can ONLY be changed by using the name. TPD4 Border Styles by Name Border styles Border styles None Diamond 55 AMX Elite -L Diamond 65 AMX Elite -M Diamond 75 AMX Elite -S Double Bevel -L Bevel -L...
Page 125 Programming TPD4 Border Styles by Name (Cont.) Border styles Border styles Circle 35 Help Down Circle 45 Help Down Reversed Circle 55 Menu Bottom Rounded 15 Circle 65 Menu Bottom Rounded 25 Circle 75 Menu Bottom Rounded 35 Circle 85 Menu Bottom Rounded 45 Circle 95 Menu Bottom Rounded 55...
Page 126: Button Commands
Programming TPD4 Border Styles by Name (Cont.) Border styles Border styles Menu Right Rounded 175 Picture Frame Menu Right Rounded 185 Quad Line Menu Right Rounded 195 Single Line Menu Rounded Spacer - Vertical Windows Style Popup Menu Rounded Spacer - Horizontal Window Style Popup (Status Bar) Menu Top Rounded 55 "^"...
Page 127: Bat
Programming "^" Button Commands (Cont.) ^BAT Append non-unicode text. Syntax: "'^BAT-<vt addr range>,<button states range>,<new text>'" Variable: variable text address range = 1 - 4000. button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).
Page 128: Bcf
Programming "^" Button Commands (Cont.) ^BCF Set the fill color to the specified color. Only if the specified fill color is not the same as the current color. Note: Color can be assigned by color name (without spaces), number or R,G,B value (RRGGBB or RRGGBBAA).
Page 129: Bfb
Programming "^" Button Commands (Cont.) ^BFB Set the feedback type of the button. ONLY works on General-type buttons. Syntax: "'^BFB-<vt addr range>,<feedback type>'" Variable: variable text address range = 1 - 4000. feedback type = (None, Channel, Invert, On (Always on), Momentary, and Blink). Example: SEND_COMMAND Panel,"'^BFB-500,Momentary'"...
Page 130: Bmc
Programming "^" Button Commands (Cont.) ^BMC Button copy command. Copy attributes of the source button to all the destination buttons. Note that the source is a single button state. Each state must be copied as a separate command. The <codes> section represents what attributes will be copied.
Page 131: Bmf
Programming "^" Button Commands (Cont.) ^BMF Set any/all button parameters by sending embedded codes and data. Syntax: "'^BMF-<vt addr range>,<button states range>,<data>'" Variables: variable text address char array = 1 - 4000. button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).
Page 132 Programming "^" Button Commands (Cont.) ^BMF ’%GI<bargraph invert>’ = Set the bargraph invert/noninvert or joystick coordinate (0,1,2,3). ^GIV section (Cont.) on page 127 more information. ’%GU<bargraph ramp up>’ = Set the bargraph ramp up time in intervals of 1/10 second. ’%GD<bargraph ramp down>’...
Page 133: Bmi
Programming "^" Button Commands (Cont.) ^BMI Set the button mask image. Mask image is used to crop a borderless button to a non-square shape. This is typically used with a bitmap. Syntax: "'^BMI-<vt addr range>,<button states range>,<mask image>'" Variable: variable text address range = 1 - 4000. button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).
Page 134: Bnc
Programming "^" Button Commands (Cont.) ^BNC Clear current TakeNote annotations. Syntax: "'^BNC-<vt addr range>,<command value>'" Variable: variable text address range = 1 - 4000. command value = (0= clear, 1= clear all). Example: SEND_COMMAND Panel,"'^BNC-973,0'" Clears the annotation of the TakeNote button with variable text 973. ^BNN Set the TakeNote network name for the specified Addresses.
Page 135: Bor
& 510-515. SEND_COMMAND Panel,"'^BOR-500.504&510,AMX Elite -M'" Sets the border by name (AMX Elite) to those buttons with the variable text range of 500-504 & 510-515. The border style is available through the TPDesign4 border-style drop-down list. Refer to theTPD4 Border Styles by Name table on page 112 for more information.
Page 136: Brd
Programming "^" Button Commands (Cont.) ^BRD Set the border of a button state/states. Only if the specified border is not the same as the current border. The border names are available through the TPDesign4 border-name drop-down list. Syntax: "'^BRD-<vt addr range>,<button states range>,<border name>'" Variable: variable text address range = 1 - 4000.
Page 137: Bvl
Programming "^" Button Commands (Cont.) ^BVL Log-On/Log-Off the computer control connection. Syntax: "'^BVL-<vt addr range>,<connection>'" Variable: variable text address range = 1 - 4000. connection = 0 (Log-Off connection) and 1 (Log-On connection). Example: SEND_COMMAND Panel,"'^BVL-500,0'" Logs-off the computer control connection of the button. ^BVN Set the computer control remote host for the specified address.
Page 138: Cpf
Programming "^" Button Commands (Cont.) ^CPF Clear all page flips from a button. Syntax: "'^CPF-<vt addr range>'" Variable: variable text address range = 1 - 4000. Example: SEND_COMMAND Panel,"'^CPF-500'" Clears all page flips from the button. ^DPF Delete page flips from button if it already exists. Syntax: "'^DFP-<vt addr range>,<actions>,<page name>'"...
Page 139: Gdi
Programming "^" Button Commands (Cont.) ^GDI Change the bargraph drag increment. Syntax: "'^GDI-<vt addr range>,<bargraph drag increment>'" Variable: variable text address range = 1 - 4000. bargraph drag increment = The default drag increment is 256. Example: SEND_COMMAND Panel,"'^GDI-7,128'" Sets the bargraph with variable text 7 to a drag increment of 128. ^GIV Invert the joystick axis to move the origin to another corner.
Page 140: Gru
Programming "^" Button Commands (Cont.) ^GRU Change the bargraph ramp-up time in 1/10th of a second. Syntax: "'^GRU-<vt addr range>,<bargraph ramp up time>'" Variable: variable text address range = 1 - 4000. bargraph ramp up time = In 1/10th of a second intervals. Example: SEND_COMMAND Panel,"'^GRU-500,100'"...
Page 141: Ico
Programming "^" Button Commands (Cont.) ^ICO Set the icon to a button. Syntax: "'^ICO-<vt addr range>,<button states range>,<icon index>'" Variable: variable text address range = 1 - 4000. button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).
Page 142: Jst
Programming "^" Button Commands (Cont.) ^JST Set text alignment using a numeric keypad layout for those buttons with a defined address range. The alignment of 0 is followed by ',<left>,<top>'. The left and top coordinates are relative to the upper left corner of the button.
Page 143: Skt
Programming "^" Button Commands (Cont.) ^SKT Receive touch information on specified socket. Syntax: '^SKT-<0=disable socket, greater than 1023=enable socket on specified port> Only socket values equal to or greater than 1024 are valid. The panel will open up a TCP listening socket on the port specified.
Page 144: Txt
Programming "^" Button Commands (Cont.) ^TXT Assign a text string to those buttons with a defined address range. Sets Non-Unicode text. Syntax: "'^TXT-<vt addr range>,<button states range>,<new text>'" Variable: variable text address range = 1 - 4000. button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).
Page 145: Text Effect Names
Programming Text Effect Names The following is a listing of text effects names. This list is associated with the ^TEF command on page 131. Text Effects • Glow -S • Hard Drop Shadow 6 • Glow -M • Hard Drop Shadow 7 •...
Page 146: Bcb
Programming Send_String 0,"'VALUE2 =',ITOA(CUSTOM.VALUE2)" Send_String 0,"'VALUE3 =',ITOA(CUSTOM.VALUE3)" Send_String 0,"'TEXT =',CUSTOM.TEXT" Send_String 0,"'TEXT LENGTH =',ITOA(LENGTH_STRING(CUSTOM.TEXT))" All custom events have the following 6 fields: Custom Event Fields Field Description Uint Flag 0 means text is a standard string, 1 means Unicode encoded string slong value1 button state number slong value2...
Page 147: Bcf
Programming Button Query Commands (Cont.) ?BCF Get the current fill color. Syntax: "'?BCF-<vt addr range>,<button states range>'" Variable: variable text address range = 1 - 4000. button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).
Page 148: Bmp
Programming Button Query Commands (Cont.) ?BMP Get the current bitmap name. Syntax: "'?BMP-<vt addr range>,<button states range>'" Variable: variable text address range = 1 - 4000. button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).
Page 149: Brd
Programming Button Query Commands (Cont.) ?BRD Get the current border name. Syntax: "'?BRD-<vt addr range>,<button states range>'" Variable: variable text address range = 1 - 4000. button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).
Page 150: Fon
Programming Button Query Commands (Cont.) ?FON Get the current font index. Syntax: "'?FON-<vt addr range>,<button states range>'" Variable: variable text address range = 1 - 4000. button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).
Page 151: Jsb
Programming Button Query Commands (Cont.) ?JSB Get the current bitmap justification. Syntax: "'?JSB-<vt addr range>,<button states range>'" Variable: variable text address range = 1 - 4000. button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).
Page 152: Jst
Programming Button Query Commands (Cont.) ?JST Get the current text justification. Syntax: "'?JST-<vt addr range>,<button states range>'" Variable: variable text address range = 1 - 4000. button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).
Page 153: Tef
Programming Button Query Commands (Cont.) ?TEF Get the current text effect name. Syntax: "'?TEF-<vt addr range>,<button states range>'" Variable: variable text address range = 1 - 4000. button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).
Page 154: Panel Runtime Operations
Programming Panel Runtime Operations Serial Commands are used in the AxcessX Terminal Emulator mode. These commands are case insensitive. Panel Runtime Operation Commands ABEEP Output a single beep even if beep is Off. Syntax: "'ABEEP'" Example: SEND COMMAND Panel,"'ABEEP'" Outputs a beep of duration 1 beep even if beep is Off. ADBEEP Output a double beep even if beep is Off.
Page 155: Akp
Programming Panel Runtime Operation Commands (Cont.) @AKP Pop up the keypad icon and initialize the text string to that specified. Keypad string is set to null on power up and is stored until power is lost. The Prompt Text is optional. Syntax: "'@AKP-<initial text>;<prompt text>'"...
Page 156: Ekp
Programming Panel Runtime Operation Commands (Cont.) @EKP Extend the Keypad. Pops up the keypad icon and initializes the text string to that specified. The Prompt Text is optional. Syntax: "'@EKP-<initial text>;<prompt text>'" Variables: initial text = 1 - 50 ASCII characters. prompt text = 1 - 50 ASCII characters.
Page 157: Sou
Programming Panel Runtime Operation Commands (Cont.) @SOU Play a sound file. Syntax: "'@SOU-<sound name>'" Variables: sound name = Name of the sound file. Supported sound file formats are: WAV & MP3. Example: SEND COMMAND Panel,"'@SOU-Music.wav'" Plays the 'Music.wav' file. @TKP Present a telephone keypad.
Page 158: Input Commands
Programming Input Commands These Send Commands are case insensitive. Input Commands ^CAL Put panel in calibration mode. Syntax: "'^CAL'" Example: SEND COMMAND Panel,"'^CAL'" Puts the panel in calibration mode. ^KPS Set the keyboard passthru. Syntax: "'^KPS-<pass data>'" Variables: pass data: <blank/empty>...
Page 159: Embedded Codes
Programming Input Commands (Cont.) ^VKS Send one or more virtual keystrokes to the G4 application. Key presses and key releases are not distinguished except in the case of CTRL, ALT, and SHIFT. Refer to the Embedded Codes table on page 147 that define special characters which can be included with the string but may not be represented by the ASCII character set.
Page 160: Panel Setup Commands
Programming Panel Setup Commands These commands are case insensitive. Panel Setup Commands ^MUT Set the panel mute state. Syntax: "'^MUT-<mute state>'" Variable: mute state= 0 = Mute Off and 1 = Mute On. Example: SEND_COMMAND Panel,"'^MUT-1''" Sets the panel’s master volume to mute. @PWD Set the page flip password.
Page 161: Dynamic Image Commands
Adds a new resource. • The resource name is ’New Image’ • %P (protocol) is an HTTP • %H (host name) is AMX.COM • %A (file path) is Lab/Test_file • %F (file name) is test.jpg. Note that the %%5F in the file path is actually encoded as %5F.
Page 162: Raf, ^Rmf - Embedded Codes
Programming Dynamic Image Commands (Cont.) ^RMF Modify an existing resource. Modifies any and all resource parameters by sending embedded codes and data. Since the embedded codes are preceded by a '%' character, any '%' character contained in the URL must be escaped with a second '%' character (see example).
Page 163: Escape Sequences
Y resolution of current panel mode/file Current state Address code Address port Channel code Channel port Level code Level port X Resolution of Current button Y Resolution of Current button Name of Button For instance, http://www.amx.com/img.asp?device=$DV would become http://www.amx.com/img.asp?device=10001. NXD/T-1200V Wall/Flush Mount Touch Panel...
Page 164 Programming NXD/T-1200V Wall/Flush Mount Touch Panel...
Page 165: Appendix
Appendix Appendix Text Formatting Codes for Bargraphs/Joysticks Text formatting codes for bargraphs provide a mechanism to allow a portion of a bargraphs text to be dynamically provided information about the current status of the level (multistate and traditional). These codes would be entered into the text field along with any other text.
Page 166: Text Area Input Masking
Appendix Text Area Input Masking Text Area Input Masking can be used to limit the allowed/correct characters that are entered into a text area. For example, in working with a zip code, a user could limit the entry to a max length of only 5 characters but, with input masking, you could limit them to 5 mandatory numerical digits and 4 optional numerical digits.
Page 167: Input Mask Ranges
Appendix Input Mask Ranges These ranges allow a user to specify the minimum and maximum numeric value for a field. Only one range is allowed per field. Using a range implies a numeric entry ONLY. Input Mask Ranges Character Meaning Start range End range Range Separator...
Page 168: Input Mask Output Examples
(HyperText Transport Protocol) and that the information resides on a host machine named www.amx.com. The image on that host machine is given an assignment (by the program) name of company-info-home.asp (Active Server Page).
Page 169: Special Escape Sequences
However; the system will parse the URL looking for special escape codes. When it finds an escape code it replaces that code with a particular piece of panel, button, or state information. For example, "http://www.amx.com/img.asp?device=$DV" would become "http://www.amx.com/ img.asp?device=10001".
Page 170 Appendix NXD/T-1200V Wall/Flush Mount Touch Panel...
Page 171: Troubleshooting
Troubleshooting Troubleshooting Overview This section describes the solutions to possible hardware/firmware issues that could arise during the common operation of a Modero touch panel. Troubleshooting Information Symptom Solution Manifest.xma can not be found. • Manifest.xma is the file that contains the listing for all the files. If you see this An error occurs when sending a error again, before attempting to send the file, uncheck the Smart Transfer file to a G4 panel.
Page 172 • This is due to the graphics controller settings in the firmware. • Update firmware to the latest v2.XX. firmware. • Visit the www.amx.com > Tech Center > Downloadable Files > Firmware Files > Modero panels. Then Download the KIT file to your computer.
Page 173 • The NXA-BASE/B Battery base should be updated with the latest firmware supply. (part of the Modero firmware KIT file) from www.amx.com. • The base can only charge batteries while the NXT panel is in Sleep Mode. If the panel parameters are set to their highest values, the priority for the power draw becomes the active panel functions and no power is routed to the base for charging.
Page 174 "graphics hierarchy" errors, etc.… indicating problems with the Compact Flash. • Panel will not boot, or gets stuck on "AMX" splash screen. • Other problems also started after downloading to a new panel or a panel with a TPD4 file that takes up a considerable amount of the available Compact Flash.
Page 175 Troubleshooting NXD/T-1200V Wall/Flush Mount Touch Panel...
