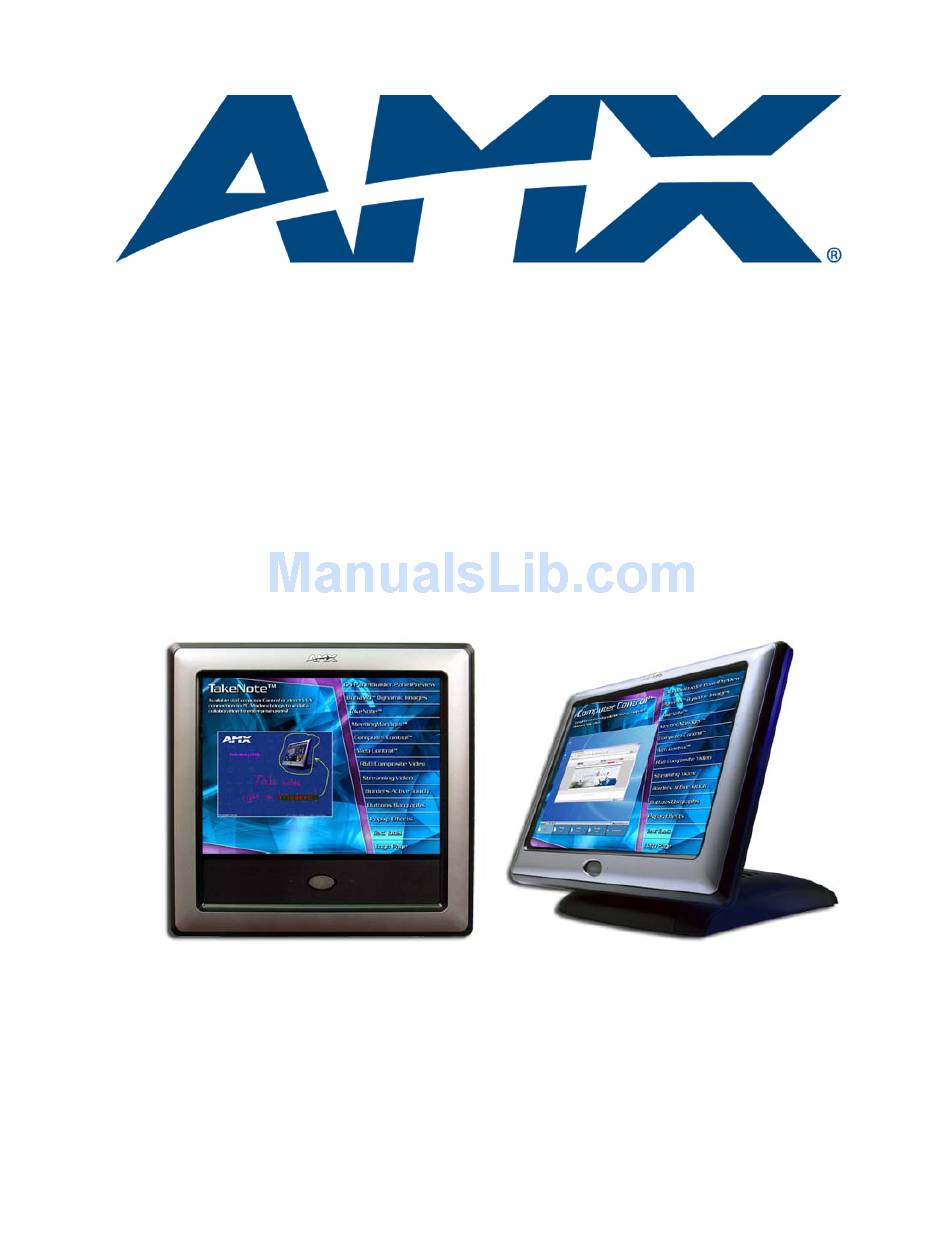

Operation/Reference Guide
Modero
1200V
®
G4 Touch Panels
NXD-1200V and NXT-1200V
12" Modero Video Touch Panels
To u ch P a n e l s
L as t R e vi s ed: 1 0 /1 /20 0 8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Modero NXD-1200V and is the answer not in the manual?

Questions and answers

Related Manuals for AMX Modero NXD-1200V

Summary of Contents for AMX Modero NXD-1200V

  • Page 1 Operation/Reference Guide Modero 1200V ® G4 Touch Panels NXD-1200V and NXT-1200V 12” Modero Video Touch Panels To u ch P a n e l s L as t R e vi s ed: 1 0 /1 /20 0 8...
  • Page 2 RMA number. AMX is not liable for any damages caused by its products or for the failure of its products to perform. This includes any lost profits, lost savings, incidental damages, or consequential damages. AMX is not liable for any claim made by a third party or by an AMX Dealer for a third party.

  • Page 3: Fcc Information

    FCC Information This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received; including interference that may cause undesired operation. Federal Communications Commission (FCC) Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of...

  • Page 5: Table Of Contents

    Table of Contents Introduction ...1 Modero Video Touch Panels (1200V-Series) ... 1 Product Specifications (NXD-1200V and NXT-1200V) ... 2 1200V-Series Modero Connectors ... 5 Cleaning the Touch Overlay ... 5 Connecting and Using Input Devices ... 6 Touch Panel Accessories ...7 NXA-AVB/ETHERNET Breakout Box (FG2254-10) ...
  • Page 6 Step 2: Confirming the Installation of the USB Driver on the PC ... 54 Step 3: Confirm and View the current AMX USB device connections ... 56 Step 4: Using a USB to Configure a Virtual Master (using NetLinx Studio) ... 56 Step 5: Confirm and View the current AMX USB device connections ...
  • Page 7 Hot Swapping ... 59 Configuring a Wireless Connection... 60 Step 1: Configuring the Panel’s Wireless IP Settings ... 60 Wireless communication using a DHCP Address ... 60 Wireless communication using a Static IP Address... 61 Step 2: Configuring the Card’s Wireless Security Settings ... 62 Configuring the Modero’s wireless card for unsecured access to a WAP200G ...
  • Page 8 Table of Contents Project Information Page... 96 Panel Information Page ... 97 Time & Date Setup Page ... 98 Volume Page ... 99 Supported sampling rates for WAV... 100 Protected Setup Page ... 100 Video Adjustment Slide-Out Option Bar ... 101 Video Adjustment - Video Adjustment Page ...
  • Page 9 Table of Contents Input mask next field characters ... 179 Input mask operations... 179 Input mask literals ... 179 Input mask output examples ... 180 URL Resources ... 181 Special escape sequences ... 181 1200V Modero Video Touch Panels...
  • Page 10 Table of Contents 1200V Modero Video Touch Panels...

  • Page 11: Introduction

    Introduction AMX has taken a great leap forward with the release of their new 1200V-Series of Modero touch panels. These panels offer the ability to display Composite video, 802.11g communication, and USB support for extended input devices, and panel programming via a mini-USB port. The new G4 graphics and Video technology is supported by the release of the latest TPDesign4 Touch Panel Design Program.

  • Page 12: Product Specifications (Nxd-1200V And Nxt-1200V)

    Features: Supported Audio Sample Rates: • 48000Hz, 44100Hz, 32000Hz, 24000Hz, 22050Hz, 16000Hz, 12000Hz, Certifications: • NXD-1200V (with faceplate): 12.38" x 12.59" x 3.25" (31.43 cm x 31.97 cm x 8.25 cm) • NXT-1200V (Fully raised): 10.91" x 12.34" x 12.50"...
  • Page 13 1200V Panel Specifications (Cont.) Button Assignments: Front Panel Components: Light sensor: Motion sensor (PIR): Front setup access button: Microphone: Speakers: Rear Panel Components: Audio/Video connector: Ethernet 10/100 port: Ethernet 10/100 LEDs: PWR connector: 1200V Modero Video Touch Panels Button assignments can only be adjusted in TPD4 and not on the panels. •...
  • Page 14 On before attempting to connect the USB cable from the PC to the mini-USB port on the panel. Refer to Step 5: Confirm and View the current AMX USB device connections section on page 58 for more information.

  • Page 15: 1200V-Series Modero Connectors

    NXA-CFTPV256M - 256 MB V/VG compact flash card (FG2116-43) NXA-CFTPV512M - 512 MB V/VG compact flash card (FG2116-44) NXA-CFTPV1G - 1 GB V/VG compact flash card (FG2116-45) NXT-1200V - connectors located NXD-1200V - connectors located on rear panel of the base 12VDC ETHERNET...

  • Page 16: Connecting And Using Input Devices

    Introduction Connecting and Using Input Devices The 1200V panel can have up to two USB-capable input devices connected for use on its different firmware and TPD4 panel pages. These input devices can consist of a keyboard or mouse. USB-connected input devices are not detected and recognized by the panel until power is cycled to the unit.

  • Page 17: Touch Panel Accessories

    Touch Panel Accessories The following section outlines and describes both the included accessories and other AMX equipment available for these touch panels. NXA-AVB/ETHERNET Breakout Box (FG2254-10) The NXA-AVB/ETHERNET Breakout Box (FIG. 3) is included as part of the 1200V Kit configuration (panel and box) but can be purchased as a separate accessory.

  • Page 18: Installing The Nxa-Avb/Ethernet

    NXA-AVB/ETHERNET Specifications (Cont.) Rear Components: Included Accessories: Other AMX Equipment: Installing the NXA-AVB/ETHERNET A 12 VDC-compliant power supply can indirectly provide power to a Modero panel by routing power through the NXA-AVB/ETHERNET Breakout Box. FIG. 4 shows a sample wiring configuration using both an indirect or direct power connection for a video-capable Modero panel.

  • Page 19: Wiring The Nxa-Avb/Ethernet Connectors And Cables

    Mic Out port. This signal can be fed as a Line Level In to either an amplifier or an AMX VOL card. Either a balanced (+, -, and GND) or unbalanced (+ and GND) audio signal can be connected to this output.

  • Page 20: Wiring The Nxa-Avb/Ethernet For Unbalanced Audio

    Touch Panel Accessories • PWR: Wiring the NXA-AVB/ETHERNET for Unbalanced Audio Most domestic audio equipment has unbalanced audio inputs and outputs. This means that the audio output (left, right, or mono) appears on a single wire, and is referenced to "0 V" or "Ground". Typical connectors used are RCA "phono"...

  • Page 21: Modero Table Top Cable (Ca2250-50)

    The 3 wires used in a typical XLR lead are often referred to as Ground, Live (Hot) and Return (Cold). "Live" and "Return" carry the "in-phase" and "out-of-phase" versions of the audio respectively. The pins of the XLR plug/socket are as follows: •...

  • Page 22: Wiring Information For The Modero Table Top Cable

    If your installation requires custom cable configurations, you can purchase bulk (non-terminated) cable from Liberty Wire and Cable under the nomenclature "AMX Table Top Cable - Modero" (phone#: (800) 530 8998 or +1-719-388-7518). When building a custom Table Top cable, please refer to the table below to calculate the maximum length of the cable for your particular installation/setup.
  • Page 23 FIG. 10 shows the top and cross-section views of the Table Top cable. 6 inches To Touch Panel Connector 1 - used for Audio/Video (Black) Connector 2 - used for Ethernet (White) FIG. 10 Modero Table Top cable (top and cross-section views) The following table provides the wiring information (color coding) for each of the three available cable connectors on each side of the Modero Table Top Cable.

  • Page 24: Installing Cat5 Suppression Ferrites

    Touch Panel Accessories DESCRIPTION: 9/PAIRS COMPOSITE CABLE CONSISTING OF: ELEMENT #1: TWO 4/PAIR 24 AWG STRANDED TINNED COPPER, POLYETHYLENE INSULATION, ELEMENT #2: 1/PAIR 18 AWG STRANDED TNNED COPPER, PVC INSULATION AND FOIL SHIELDED OVERALL PAPER BINDER AND FLEX-PVC JACKET. ELEMENT #1: 2 X 4/PAIRS: CONDUCTOR: 24 AWG 7/32 TINNED COPPER;...

  • Page 25: Nxa-Cftp Compact Flash (Fg2116-2X)

    The default 128 MB Compact Flash card is factory programmed with specific panel firmware and is the only upgradeable memory component. This component can be ordered from AMX in several different upgrade sizes (as listed in the following table):...

  • Page 26: Nxa-Pci80211G Wireless Card (Fg2255-04)

    • Operates from 2.300-2.500 GHz • Operate at ISM frequency bands (2.4GHz) with 54Mbps data rate • Pre-configured to communicate with current AMX Wireless Access Points • Support for IEEE 802.11b and 802.11g • Wired Equivalent Privacy (WEP) 64-bit and 128-bit data encryption...
  • Page 27 • All 1200V-Series and VG-Series NXT Table Top panels come factory configured for wireless communication. These NXT panels are all factory installed with both the NXA-80211G wireless mini-PCI and 2 antennas. • Optional to the following NXD panels: - NXD-1200V - NXD-1200VG - NXD-1500VG - NXD-1700VG •...

  • Page 28: Installation And Upgrade Of The Internal Nxt Components

    • All 1200V-Series and VG-Series NXT Table Top panels can be field upgraded for wireless communication using the optional NXA-PCI80211G mini-PCI card. • Optional to the following NXD panels: - NXD-1200V - NXD-1200VG - NXD-1500VG - NXD-1700VG 1200V Modero Video Touch Panels...

  • Page 29: Step 2: Install The 802.11G Mini-Pci Wireless Card

    Unscrew these eight Housing Screws to remove the circuit board housing DO NOT REMOVE these screws They secure the speakers to the main board FIG. 16 Location of the attachment screws underneath an NXT panel base 4. Rotate the panel back over (while gripping the entire unit with outer housing) and rest the base on a flat surface.
  • Page 30 Touch Panel Accessories FIG. 18 Location of the mini-PCI card connector on main board 3. Carefully remove the gold-tipped terminal ends of the antenna from their factory default connectors on the main board. The antenna is secured at this location to restrict its movement prior to connection to a wireless card.

  • Page 31: Step 3: Install The Compact Flash Memory Card Upgrade

    Step 3: Install the Compact Flash Memory Card upgrade 1. Discharge any static electricity from your body by touching a grounded metal object and then locate the existing Compact Flash card (factory-shipped with 128 MB) on the main board (FIG. 20 for Table Top panels and FIG.

  • Page 32: Step 4: Close And Resecure The Nxt Panel Enclosure

    Touch Panel Accessories 5. Grip the sides of the new CF memory card and firmly insert it into the slot opening (with the arrow facing towards the pins) until the contact pins are completely inside the flash card and it is then securely attached to the pin sockets.

  • Page 33: Step 2: Install The New 802.11G Mini-Pci Wireless Card (Nxd)

    4. Remove the I/O connector plate by using a grounded Phillips-head screwdriver to remove the two screws and slide the I/O connector plate away from the back box housing. DO NOT REMOVE these panel securing screws FIG. 22 Location of the securing screws on an NXD panel DO NOT REMOVE THE PANEL SECURING SCREWS.

  • Page 34: Step 4: Close And Resecure The Nxd Panel Enclosure

    Touch Panel Accessories Four Pan-head Housing Screws NXA-PCI80211G wireless card location FIG. 23 Location of the Compact Flash card and I/O plate on NXD Step 4: Close and Resecure the NXD Panel Enclosure 1. With the components securely installed, gently place the outer housing back onto the metallic panel casing (with the connector opening on the right-side of the panel) and align the four pan-head Housing Screw holes along the edges of the outer housing.

  • Page 35: Nxt-Bp Power Pack (Fg2255-10)

    NXT-BP Power Pack (FG2255-10) The NXT-BP Power Pack (FIG. 24) is a rechargeable Lithium-Ion "smart" battery used to provide power to the NXT Modero panel through the NXA-BASE/B Battery Base. This battery incorporates an on-board battery life indicator. The NXT-BP battery can be charged through either the base (when connected to the Modero panel) or through an optional NXT-CHG Modero Power Station.

  • Page 36: Product Specifications

    Features: Operating / Storage Environment: Other AMX Equipment: It is recommended to fully charge the batteries before their initial use. Checking the NXT-BP battery charge 1. Press the Battery Life Indicator button (FIG. 26) once to illuminate the Battery Life LEDs and display the percent charge remaining on the battery (this indication lasts a few seconds).

  • Page 37: Installing The Nxa-Base/B To An Nxt Modero Panel

    Installing the NXA-BASE/B to an NXT Modero Panel The battery base must be installed onto the NXT panel without any NXT-BP batteries. 1. Power Off the panel before attempting to use the NXA-BASE/B. 2. Place the empty battery base onto a flat/level surface. 3.

  • Page 38: Installing An Nxt-Bp Into The Nxa-Base/B

    Touch Panel Accessories Alignment pegs FIG. 28 NXA-BASE/B shown aligning with NXT panel Installing an NXT-BP into the NXA-BASE/B The battery base does not directly connect to a power supply, but rather receives its power directly from the Modero panel, through the Panel Interface connector. Remove any connectors from the rear of the Modero NXT panel before continuing with the installation of the batteries.

  • Page 39: Charging The Nxt-Bp Batteries With The Nxa-Base/B

    5. Repeat steps 2 through 4 for the other battery. 6. Apply a small amount of pressure to close the battery compartment until the compartment latches. After a few seconds, the panel will turn On and the AMX logo will appear (indicating the panel is receiving power.

  • Page 40: Product Specifications

    Power Requirements: Weight: Features: Other AMX Equipment: The batteries are charged in the order they are inserted into the NXT-CHG. SLOT 1 of the NXT-CHG has the ability to completely discharge and recharge (recalibrate) a battery. Recalibration improves the reporting accuracy of the battery charge back to the Modero panel.

  • Page 41: Charging The Nxt-Bp Batteries Using The Nxt-Chg

    There is one LED indicator on the front of each battery slot that indicates the status of that slot. The blink patterns for these LEDs are described in the following table: • Off: • Green Flashing: • Green Solid: • Yellow Flashing: •...
  • Page 42 Touch Panel Accessories 1200V Modero Video Touch Panels...

  • Page 43: Installation Procedures: Nxd-1200V Panels

    Installation Procedures: NXD-1200V Panels NXT panels are mounted onto flat (horizontal) surfaces in either a stand-alone or combo (NXT atop an NXA-BASE/B battery base) configuration. NXD panels are installed into either a pre-wall surface (using a CB-TP12 conduit/wallbox) or a solid surface (using either solid surface or drywall screws).

  • Page 44: Removing The Original Modero Back Box

    Installation Procedures: NXD-1200V Panels Removing the Original Modero Back Box 1. Detach all connectors from the side of the touch panel. 2. Remove the magnetic faceplate from the NXD unit by gripping the faceplate and pulling outwards while applying a small amount of pressure to remove it from the main unit.

  • Page 45: Cable Installation For The Mp-Tp12 Back Box

    VERIFY THE LENGTH AND LOCATION OF THE INSERTED CABLES. ONCE THE STRAIN RELIEF GROMMET IS CLOSED, IT IS DIFFICULT TO RE-OPEN. 4. Carefully apply pressure to close the strain relief grommet over the desired cable location. 1200V Modero Video Touch Panels Installation Procedures: NXD-1200V Panels MB-TP12 back box Connector Opening...
  • Page 46 10. Insert the four provided #8-32 screws through the VESA mount’s four holes and then into the pre-drilled holes on the rear plastic cover. When installing a VESA mount to the rear plastic cover, use only the AMX provided #8-32 screws.

  • Page 47: Pre-Wall Installation Of The Conduit Box

    1200V Modero Video Touch Panels Installation Procedures: NXD-1200V Panels Rear plastic cover (rear view) Rim of the strain relief grommet should lie flush against enclosure CLIP FACING UP VESA mount connection location (USE ONLY AMX PROVIDED #8-32 screws) This gap allows the installation of...

  • Page 48: Installation Of The Nxd Touch Panel

    Installation Procedures: NXD-1200V Panels Drywall/ sheetrock Mounting tabs for NXD panel should be flush with the outside of the sheetrock FIG. 36 Screw locations for conduit box attachment in a pre-wall installation Installation of the NXD Touch Panel The NXD panel can be installed either directly into the (optional) CB-TP12 or other solid surface environment using the two different mounting options: drywall clips or solid surface screws.
  • Page 49 (outside the conduit box) on either the NXA-AVB/ETHERNET Breakout Box, Ethernet port, or NetLinx Master. 10. Reconnect the terminal power connector on the 12 VDC-compliant power supply and apply power. 1200V Modero Video Touch Panels Installation Procedures: NXD-1200V Panels Stud Cable knockouts...

  • Page 50: Installing The Nxd Into Drywall Using Expansion Clips

    (provided). FIG. 38 NXD-1200V 12-inch Wall Mount panel dimensions using expansion clips 3. Remove the magnetic faceplate/bezel (A in FIG. 39) from the main NXD unit (B in FIG. 39) by gripping the faceplate and pulling with gentle outward force.
  • Page 51 10. Tighten the drywall clip sets (screws and clips) until the Mounting Tabs are securely fastened and flush against the wall. 1200V Modero Video Touch Panels Installation Procedures: NXD-1200V Panels 4 notches are required if the unit is installed in...

  • Page 52: Installing The Nxd Into A Flat Surface Using #4 Screws

    Installation Procedures: NXD-1200V Panels The drywall clip set must be re-ordered from AMX if the drywall clip is bent accidentally during an installation or removed during a re-installation. 11. Place the magnetic faceplate (A in FIG. 39) back onto the main NXD unit (B in FIG. 39).
  • Page 53 1200V Modero Video Touch Panels Attachment is done along the edges of the cutout B - Main NXD unit consists of the touch panel and housing Installation Procedures: NXD-1200V Panels Flat surface (can include a wall, podium, or other flat surface)

  • Page 54: Installing An Nxd Into An (Optional) Rack Mount Kit (Nxa-Rk12)

    6. Insert the main 12-inch Modero unit into an NXA-RK12 (FIG. 42). Rack mount frame (NXA-RK12) FIG. 42 NXD-1200V 12 inch Wall Mount panel installed into an NXA-RK12 Rack Mount Kit Faceplate 1200V Modero Video Touch Panels...

  • Page 55: Wiring Guidelines For The 1200V Panels

    3. Tighten the screws to secure the wire in the connector. Do not tighten the screws excessively; doing so may strip the threads and damage the connector. 1200V Modero Video Touch Panels Installation Procedures: NXD-1200V Panels...

  • Page 56: Wiring A Power Connection

    Installation Procedures: NXD-1200V Panels Wiring a power connection To use the 2-pin 3.5 mm mini-Phoenix connector with a 12 VDC-compliant power supply, the incoming PWR and GND wires from the external source must be connected to their corresponding locations on the connector (FIG.

  • Page 57: Ethernet/Rj-45 Port: Connections And Wiring

    8 --------- 8 FIG. 45 diagrams the RJ-45 pinouts and signals for the Ethernet RJ-45 connector and cable. FIG. 45 RJ-45 wiring diagram 1200V Modero Video Touch Panels Installation Procedures: NXD-1200V Panels ETHERNET 10/100 Connections Pairing Color 1 --------- 1...
  • Page 58 Installation Procedures: NXD-1200V Panels 1200V Modero Video Touch Panels...

  • Page 59: Panel Calibration

    Modero panels are factory setup with specific demo touch panel pages. The first splash screen that appears indicates the panel is receiving power, beginning to load firmware, and preparing to display the default touch panel pages. When the panel is ready, the AMX Splash Screen is replaced by the Initial Panel Page (FIG. 46).

  • Page 60: Testing Your Calibration

    Panel Calibration 2. Press the crosshairs (on the Calibration page) to set the calibration points on the LCD (FIG. 48). FIG. 48 Touch Panel Calibration Screens 3. After the "Calibration Successful.." message appears, press anywhere on the screen to continue and return to the Setup page.

  • Page 61: Configuring Communication

    G4 panel is powered-up. The panel will not detect a USB connection of this type until after the unit cycles power. Before commencing, verify you are using the latest NetLinx Master and Modero panel firmware. Verify you are using the latest versions of AMX’s NetLinx Studio and TPDesign4 programs. Modero Setup and System Connection 1.
  • Page 62 Configuring Communication FIG. 51 Protected Setup page 7. Press the on-screen Reboot button to restart the panel and incorporate any changes. Before continuing, open NetLinx Studio 2.x. This program assists in developing a System Number, Master IP/URL, and Master Port number. Refer to your NetLinx Master’s instruction manuals for more information.

  • Page 63: Configuring And Using Usb With A Virtual Master

    Step 1: Setting up the Panel and PC for USB Communication 1. If you do not currently have the latest version of TPDesign4, navigate to www.amx.com > Tech Center > Downloadable Files > Application Files > NetLinx Design Tools section of the website and locate the AMX USB Driver executable (AMX USBLAN Setup exe).

  • Page 64: Step 2: Confirming The Installation Of The Usb Driver On The Pc

    Step 2: Confirming the Installation of the USB Driver on the PC The first time each AMX touch panel is connected to the PC it is detected as a new hardware device and the USBLAN driver becomes associated with it (panel specific). Each time thereafter the panel is "recognized"...
  • Page 65 Each time a different touch panel is connected to the computer, the previous procedures will need to be repeated. The previous version of the AMX USBLAN driver showed a USB connection icon in the system tray when a panel was connected. The new version of the driver does not show an icon in the System Tray.

  • Page 66: Step 3: Confirm And View The Current Amx Usb Device Connections

    Within the Device Manager dialog, the AMX USBLAN device appears under Network Adapters (FIG. 55) and has a unique name such as AMX USB LAN LINK #2. The number changes depending on which recognized panel is currently connected. FIG. 55...
  • Page 67 FIG. 56 Assigning Communication Settings for a Virtual Master 5. Click on the NetLinx Master radio button (from the Platform Selection section) to indicate that you are working as a NetLinx Master. 6. Click on the Virtual Master radio box (from the Transport Connection Option section) to indicate you are wanting to configure the PC to communicate directly with a panel.

  • Page 68: Step 5: Confirm And View The Current Amx Usb Device Connections

    Configuring Communication Step 5: Confirm and View the current AMX USB device connections Use the CC-USB Type-A to Mini-B 5-wire programming cable (FG10-5965) to provide communication between the mini-USB Program port on the touch panel and the PC. This method of communication is used to transfer firmware KIT files and TPD4 touch panel files.

  • Page 69: Wireless Settings Page - Wireless Access Overview

    Ethernet Communication from the panel can be direct (using an Ethernet cable) or indirect (through the NXA-PCI80211G AMX Wireless Card (FG2255-04) communicating to a Wireless Access Point (WAP) such as the NXA-WAP200G). In determining the Ethernet method of communication, the panel will always default first to the direct Ethernet communication.

  • Page 70: Configuring A Wireless Connection

    Configuring Communication Although the calculations required to encrypt data with WEP can impact the performance of your wireless network, it's generally seen only when running benchmarks, and not large enough to be noticeable in the course of normal network usage. Configuring a Wireless Connection When working with a wireless card, the first step is to configure wireless communication parameters within the Wireless Settings page.

  • Page 71: Wireless Communication Using A Static Ip Address

    This information can be found in either the Workspace - System name > Define Device section of your code (that defines the properties for your panel), or in the Device Addressing/Network Addresses section of the Tools > NetLinx Diagnostics dialog. 8.

  • Page 72: Step 2: Configuring The Card's Wireless Security Settings

    The card should be given the SSID used by the target WAP. If this field is left blank, the unit will attempt to connect to the first available WAP. By default, all WAP200Gs use AMX as their assigned SSID value.

  • Page 73: Configuring The Modero's Wireless Card For Secured Access To A Wap200G

    The remaining Wireless Settings fields are then greyed-out and become read-only. All NXA-WAP200Gs are factory-shipped as an unsecured WAP with no WEP encryption. The WAP200G initial Status page will display the status of both the WEP and WPA (both disabled). 10.
  • Page 74 The card should be given the SSID used by the target WAP. If this field is left blank, the unit will attempt to connect to the first available WAP. By default, all WAP200Gs use AMX as their assigned SSID value.
  • Page 75 10. Toggle the Default Key field until the you’ve chosen a WEP Key value (from 1- 4) that matches what you’ll be using on your target WAP200G. These WEP Key identifier values must match for both devices. 11. With the proper WEP Key value displayed, press the Generate button to launch the WEP Passphrase keyboard.

  • Page 76: Configuring Multiple Wireless Moderos To Communicate To A Target Wap200G

    Configuring Communication 13. Write down this Current Key string value for later entry into your WAP’s WEP Key field (typically entered without colons) and into the communicating panel’s Current Key field (FIG. 60). 14. If you are entering a Current Key generated either by your target WAP or another Modero panel, within the WEP Keys section, touch the Key # button to launch the WEP Key # keyboard (FIG.

  • Page 77: Configuring A Wired Ethernet Connection

    Configuring a Wired Ethernet Connection It is necessary to tell the panel which Master it should be communicating with. This "pointing to a Master" is done via the System Settings page where you configure the IP Address, System Number and Username/Password information assigned to the target Master.

  • Page 78: Ip Settings Section - Configuring A Static Ip Address Over Ethernet

    Configuring Communication IP Settings section - Configuring a Static IP Address over Ethernet 1. Select Protected Setup > System Settings (located on the lower-left) to open the System Settings page. 2. Locate the IP Settings section of this page. Check with your System Administrator for a pre-reserved Static IP Address assigned to the panel.

  • Page 79: Step 3: Configuring The Ethernet Connection Type

    Step 3: Configuring the Ethernet Connection Type When using Ethernet as your communication method, the NetLinx Master must first be setup with either a Static IP or DHCP Address obtained from either NetLinx Studio or your System Administrator. Before beginning: 1.

  • Page 80: Master Connection - Virtual Master Communication Over Ethernet

    1. Verify the panel has been configured to communicate either through an Ethernet cable (connected from either the panel to a valid Ethernet Hub) or wireless to the Wireless Access Point. 2. Launch NetLinx Studio 2.x (default location is Start > Programs > AMX Control Disc > NetLinx Studio 2 > NetLinx Studio 2).
  • Page 81 By selecting URL, the System Number field becomes read-only (grey) because the panel pulls this value directly from the communicating target Master (virtual or not). A Virtual Master system value can be set within the active AMX software applications such as: NetLinx Studio, TPD4, or IREdit.

  • Page 82: Master Connection Section - Netlinx Master Ethernet Ip Address - Url Mode

    By selecting URL, the System Number field becomes read-only (grey) because the panel pulls this value directly from the communicating target Master (virtual or not). A Virtual Master system value can be set within the active AMX software applications such as: NetLinx Studio, TPD4, or IREdit.

  • Page 83: Master Connection Section - Netlinx Master Ethernet Ip Address - Auto Mode

    6. Select Diagnostics > URL Listing from the Main menu (FIG. 66). System Address reflects the value set in the Device Addressing tab Used to obtain an existing URL List from Master Used to set the URL List on Master FIG.

  • Page 84: Using G4 Web Control To Interact With A G4 Panel

    Refer to the G4 Web Control Page section on page 108 for more detailed field information. Verify your NetLinx Master (ME260/64 or NI-Series) has been installed with the latest firmware KIT file from www.amx.com. Refer to your NetLinx Master Instruction Manual for more detailed information on the use of the new web-based NetLinx Security.
  • Page 85 9. From the Web Name keyboard, enter a unique alpha-numeric string to identify this panel. This information is used by the NetLinx Security Web Server to display on-screen links to the panel. The on-screen links use the IP Address of the panel and not the name for communication (FIG. 68). FIG.

  • Page 86: Using Your Netlinx Master To Control The G4 Panel

    If the Master has been previously configured for secured communication, click OK to accept the AMX SSL certificate (if SSL is enabled) and then enter a valid username and password into the fields within the Login dialog. 4. Click OK to enter the information and proceed to the Master’s Manage WebControls window.
  • Page 87 FIG. 70 Web Control VNC installation and Password entry screens 7. Click Yes from the Security Alert popup window to agree to the installation of the G4 WebControl application on your computer. This application contains the necessary Active X and VNC client applications necessary to properly view and control the panel pages from your computer.
  • Page 88 Configuring Communication 11. Click OK to send the password to the panel and begin the session. A confirmation message appears stating "Please wait, Initial screen loading.". The secondary window then becomes populated with the same G4 page being displayed on the target G4 panel.

  • Page 89: Upgrading Modero Firmware

    Upgrading Modero Firmware Before beginning the Upgrade process: Setup and configure your NetLinx Master. Refer to your particular NetLinx Master instruction manual for detailed setup procedures. Calibrate and prepare the communication pages on the Modero panel for use. Refer to the Panel Calibration section on page 49.

  • Page 90: Step 2: Prepare Netlinx Studio For Communication Via The Usb Port

    8. Navigate back to the System Settings page. Step 2: Prepare NetLinx Studio for communication via the USB port 1. Launch NetLinx Studio 2.x (default location is Start > Programs > AMX Control Disc > NetLinx Studio 2 > NetLinx Studio 2).

  • Page 91: Step 3: Confirm And Upgrade The Firmware Via The Usb Port

    NetLinx Workspace window (showing panel connection via a Virtual NetLinx Master) The panel firmware is shown on the right of the listed panel. Download the latest firmware file from www.amx.com and then save the Kit file to your computer. 1200V Modero Video Touch Panels...
  • Page 92 5. If the panel firmware being used is not current, download the latest Kit file by first logging in to www.amx.com and then navigate to Tech Center > Firmware Files and from within the Modero section of the web page locate your Modero panel.

  • Page 93: Upgrading The Modero Firmware Via An Ip Address

    NetLinx Master instruction manual to use an address. Note the IP Address and Gateway information. 2. Launch NetLinx Studio 2.x (default location is Start > Programs > AMX Control Disc > NetLinx Studio 2 > NetLinx Studio 2).

  • Page 94: Step 2: Prepare The Panel For Communication Via An Ip

    By selecting URL, the System Number field becomes read-only (grey) because the panel pulls this value directly from the communicating target Master (virtual or not). A Virtual Master system value can be set within the active AMX software applications such as: NetLinx Studio, TPD4, or IREdit.

  • Page 95: Step 3: Verify And Upgrade The Panel Firmware Via An Ip

    4. If the panel firmware being used is not current, download the latest Kit file by first logging in to www.amx.com and then navigate to Tech Center > Firmware Files and from within the Modero section of the web page locate your Modero panel.

  • Page 96: Upgrading Accessory Devices Via The Usb

    Upgrading Modero Firmware FIG. 77 Send to NetLinx Device dialog (showing Modero firmware update via IP) 11. Click Close (after the panel reboots) to return to the main program. 12. Right-click the associated System number and select Refresh System. This causes a refresh of all project systems, establishes a new connection to the Master, and populates the System list with devices on your particular system.

  • Page 97: Step 1: Prepare The Nxa-Base/B For Firmware Transfer Via Usb

    Battery Base page The battery base firmware is shown on the right of the Battery Base page. Verify you have downloaded the latest firmware file from www.amx.com and then save the Kit file to your computer. 1200V Modero Video Touch Panels...

  • Page 98: Step 2: Upgrade The Nxa-Base/B Firmware Via Usb

    The default Modero panel value is 10001. 5. Locate the latest Kit file by first logging in to www.amx.com and then navigate to Tech Center > Firmware Files and from within the Modero section of the web page locate the Battery Base.

  • Page 99: Upgrading Accessory Devices Via An Ip Address

    Upgrading Accessory Devices via an IP Address The following accessory devices are firmware upgradeable: NXA-BASE/B Battery Base (FG2255-10) This device is not given a unique device number which would ordinarily appear within the Online Tree tab of NetLinx Studio. It appears below the target panel which it is a part of as seen in FIG. 78 on page 86.

  • Page 100: Step 2: Upgrade The Nxa-Base/B Firmware Via An Ip

    The default Modero panel value is 10001. The NXA-BASE/B will not appear on the system listing. 4. Locate the latest Kit file by first logging in to www.amx.com and then navigate to Tech Center > Firmware Files and from within the Modero section of the web page locate the Modero Battery Base section of the website.
  • Page 101 8. Enter the Device value associated with the panel and the System number associated with the Master (listed in the OnLine Tree tab of the Workspace window). The Port field is greyed-out. The firmware for the battery base can not be downloaded directly. Download of the Kit file to the BASE/B is done through the panel.
  • Page 102 Upgrading Modero Firmware 1200V Modero Video Touch Panels...

  • Page 103: Firmware Pages And Descriptions

    Firmware Pages and Descriptions This section describes each firmware page and their specific functional elements. Setup Navigation Buttons These Setup Navigation Buttons (FIG. 82) appear on the left of the panel screen when the Setup page is currently active. Modero Setup Navigation Buttons FIG.

  • Page 104: Setup Page

    Firmware Pages and Descriptions Setup Navigation Button Elements (Cont.) Video Adjustment: Battery Base: Setup Page This page (FIG. 83) centers around basic Modero panel properties such as: Connection Status of the panel, Display Timeout, Inactivity Page Flip Time, Inactivity page file, and the Panel Brightness. FIG.
  • Page 105 Setup Page Elements (Cont.) Connection Status: Display/Panel Timeout: Inactivity Page Flip Timeout: Panel Brightness: 1200V Modero Video Touch Panels Displays whether the panel is communicating externally, the encryption status of the communicating Master, what connection type is being used (Ethernet or USB), and what System the panel is a part of.

  • Page 106: Project Information Page

    Firmware Pages and Descriptions Project Information Page The Project Information page displays the TPDesign4 (TPD4) project file properties currently loaded on the selected Modero panel (FIG. 84). Refer to the TPDesign4 Touch Panel Program instruction manual for more specific information on uploading TPDesign4 files to a panel. FIG.

  • Page 107: Panel Information Page

    Displays the model of the Modero panel being used. Displays the G4 firmware version being used by the panel. • Verify you have the latest version from www.amx.com. Displays the setup port information/value being used by the panel. Displays the high port (port count) value for the panel.

  • Page 108: Time & Date Setup Page

    Firmware Pages and Descriptions Panel Information Page Elements (Cont.) Power Up Pages: Start Up String: Wake Up String: Sleep String: File System: RAM: Time & Date Setup Page The Time & Date Setup page (FIG. 86) allows you to alter/set the time and date information on the NetLinx Master.

  • Page 109: Volume Page

    Time & Date Setup Page Elements (Cont.) Time Display fields: Date Display fields: Set Date/Time: Modero touch panels do not have an on-board clock. This page both receives and sets the time/date of the NetLinx Master. Volume Page The Volume page (FIG. 87) (accessed by pressing the Audio Adjustments button on the Setup page) allows you to adjust the master volume parameters and default panel sounds on the panel.

  • Page 110: Supported Sampling Rates For Wav

    Firmware Pages and Descriptions Volume Page Elements (Cont.) Master Volume: Default Panel Sounds: Internal Sound Level: Line In Level: Mic Out Level: Supported sampling rates for WAV The following is a listing of supported sampling rates associated for WAV files played on these panels. Some WAV files currently played on Modero's may not work on these panels.

  • Page 111: Video Adjustment Slide-Out Option Bar

    Video Adjustment Slide-Out Option Bar Pressing the on-screen Video Adjustment button causes an option bar to slide outwards from the Navigation buttons (FIG. 88). This option bar within a 1200V panel provides you with one choice: Video Adjustment. The other two options (RGB Adjustment and Streaming Adjustment) are only available on a VG-Series panel and are greyed-out (inaccessible).

  • Page 112: Battery Base Page

    Firmware Pages and Descriptions Video Adjustment Page Elements (Cont.) Settings: Video Settings: Status: Format: Brightness: Contrast: Saturation: Hue: Battery Base Page This page (FIG. 90) allows you to alter/set the power warning preferences, monitor battery status information, and alter the display times for the battery warnings. The fields on this page are populated with information after the panel is connected to an optional NXA-BASE/B Battery Base containing up to two NXT-BP batteries.
  • Page 113 This page is ONLY available on Modero Table Top panels (NXT) using an NXA-BASE/B. The elements of the Battery Base page are described in the table below: Battery Base Page Elements Back: Connection Status icon: Charge Status: Panel Shutdown: Low Battery Warning: Very Low Battery Warning: The Very Low Battery Warning UP/DN buttons alter the time value Battery Status fields: 1200V Modero Video Touch Panels...

  • Page 114: Protected Setup Navigation Buttons

    Firmware Pages and Descriptions Battery Base Page Elements (Cont.) Battery Power Brightness Limit: The term "quality" (in the context of a battery), refers to the current capacity relative to the batteries’ rated capacity. For example, after constant use, a battery may be operating at 75% of its rated capacity even though it might be fully charged.

  • Page 115: Protected Setup Page

    These Navigation Buttons are specific to these Modero panels and include the panel specific elements described in the following table: Protected Setup Navigation Button Elements G4 Web Control: Sensors: Passwords: Calibrate: Wireless Settings: System Settings: Protected Setup Page The Protected Setup page (FIG. 92) centers around the properties used by the panel to properly communicate with the NetLinx Master.
  • Page 116 • The Remove User Pages button allows you remove all current TPD4 touch panel pages currently on the panel (including the pre-installed AMX Demo pages). - Pressing this button launches a Confirmation dialog (FIG. 93) which asks you to confirm your selection.
  • Page 117 Protected Setup Page Elements (Cont.) Keyboard Layout: (build 2.60 or higher) FIG. 93 Protected Setup page-System Recovery confirmation dialog Channel Port 3,132 Level Port Channel Code Number FIG. 94 Button/slider Function Show example 1200V Modero Video Touch Panels Displays the listing of supported international keyboard settings. The following list allows the end-user to specify which international keyboard is being connected to the Modero touch panel and then which characters should be reflected within the G4 Computer Control and TakeNote applications:...

  • Page 118: G4 Web Control Page

    Firmware Pages and Descriptions G4 Web Control Page The G4 Web Control page (FIG. 95) centers around enabling and disabling both the display and control of your panel (via the web). An external PC running a VNC client (installed during the initial communication to the G4 panel) makes this possible.
  • Page 119 G4 Web Control Page Elements (Cont.) G4 Web Control Settings: Enable/Enabled Network Interface Select Web Control Name Web Control Password Web Control Port Maximum Number of Connections Current Connection Count G4 Web Control Timeout: FIG. 96 Sample relationship between G4 Web Control and Mange WebControl Connections window Refer to the Using G4 Web Control to Interact with a G4 Panel section on page 74 for more detailed instructions on how to use the G4 Web Control page with the new web-based NetLinx Security application.

  • Page 120: Sensor Setup Page

    Firmware Pages and Descriptions Sensor Setup Page The Sensor Setup page (FIG. 97) allows you to adjust the Light and Motion Sensor parameters on a Modero touch panel. FIG. 97 Sensor Setup page A light level value between the Minimum and Maximum DIM Mode values delivers an average light level.

  • Page 121: Using The Automated Brightness Control Feature (Dim Mode)

    Sensor Setup Page Elements (Cont.) Motion Sensor: Wake Panel On Motion Sense: Dim Mode Minimum Brightness: There is a relationship between the motion sensor and the panel sleep feature. If a panel is set to Sleep Mode, there is a time delay before the motion sensor is activated to detect motion.

  • Page 122: Password Setup Page

    Firmware Pages and Descriptions 3. Open the Sensors Setup page (FIG. 97 on page 110) from the Protected Setup menu section. 4. Move around the panel and block the direct or indirect light from the room fixtures with your body. Take note of the drop in the lighting level being detected by the panel in response to your movements.

  • Page 123: Calibration Page

    The elements of the Password Setup page are described in the table below: Password Setup Page Elements Back: Connection Status icon: In Panel Password Change: Calibration Page This page (FIG. 99) allows you to calibrate the input touch device (touch panel) using the pre-selected touch driver.

  • Page 124: Wireless Settings Page

    Firmware Pages and Descriptions Wireless Settings Page The Wireless Settings page (FIG. 100) sets the communication information for the installed wireless interface card. This information includes its corresponding IP communication parameters, wireless communication settings, and read the device number assigned to the Modero panel. These panels can use the NXA-PCI80211G wireless card for wireless communication.
  • Page 125 Wireless Settings Page Elements (Cont.) IP Settings (Cont.): Gateway Host Name Primary DNS Secondary DNS Domain MAC Address Access Point MAC Address: Wireless Settings: Network Name (SSID) Authentication 1200V Modero Video Touch Panels Sets a gateway value to the panel. •...
  • Page 126 3rd-party Wireless Access Point, it comes back with 1a:2b:3c:4d:etc. Entering the same apple in the Passphrase generator of any Modero panel generates a different key: a1:b2:c3:d4:etc. Only AMX Modero panels generate the same Current Key by using a unique Passphrase key generation technology.
  • Page 127 Wireless Settings Page Elements (Cont.) Wireless Settings (Cont.): WEP Keys Current Key Channel Link Quality Signal Strength 1200V Modero Video Touch Panels This feature provides you with another level of security by selecting a Key value. • A single button is available for each WEP key up to a maximum of four keys. •...

  • Page 128: System Settings Page

    Firmware Pages and Descriptions Wireless Settings Page Elements (Cont.) Wireless Settings (Cont.): Data Rate System Settings Page The System Settings page (FIG. 101) sets the Secondary DNS Address information with its corresponding IP communication parameters, NetLinx Master communication settings, and reads the device number assigned to the Modero panel.
  • Page 129 Sets the speed of the Ethernet connection to the panel. • Choices are: Auto, 10 Half Duplex, 10 Full Duplex, 100 Half Duplex, or 100 Full Duplex. Displays a read-only field that is factory set by AMX for the built-in Ethernet interface. Sets the NetLinx Master communication values: Sets the NetLinx Master to communicate with the panel via either USB or Ethernet.
  • Page 130 Firmware Pages and Descriptions Refer to the Step 2: Choosing a Master Connection Mode Setting section on page 68 for more detailed information on using the System Settings page. 1200V Modero Video Touch Panels...

  • Page 131: Programming

    Programming You can program the touch panel, using the commands in this section, to perform a wide variety of operations using Send_Commands and variable text commands. A device must first be defined in the NetLinx programming language with values for the Device: Port: System (in all programming examples - Panel is used in place of these values and represents all Modero panels).
  • Page 132 Programming Page Commands (Cont.) Syntax: @DPG Delete a specific popup page from Variable: specified popup group if it exists. Example: Deletes the popup page ’Popup1’ from the popup group ’Group1’. @PDR If the flag is set, the popup will return to its default location on show instead of its last drag location.
  • Page 133 Page Commands (Cont.) If the page name is empty, the current page is used. Same as the ’Clear Page’ command @PPA in TPDesign4. Close all popups on a specified Syntax: page. "'@PPA-<page name>'" Variable: page name = 1 - 50 ASCII characters. Name of the page the popup is displayed On. Example: SEND_COMMAND Panel,"'@PPA-Page1'"...
  • Page 134 Programming Page Commands (Cont.) A Modal popup page, when active, only allows you to use the buttons and features on that @PPM popup page. All other buttons on the panel page are inactivated. Set the modality of a specific Syntax: popup page to Modal or Variable:...
  • Page 135 Page Commands (Cont.) Syntax: @PSE Set the show "'@PSE-<popup page name>;<show effect name>'" effect for the Variable: specified popup popup page name = 1 - 50 ASCII characters. Name of the page the popup is displayed page to the named show show effect name = Refers to the popup effect name being used.
  • Page 136 Programming Page Commands (Cont.) If the page name is empty, the current page is used (see example 2). If the popup page is PPOF part of a group, the whole group is deactivated. This command works in the same way as Deactivate a the ’Hide Popup’...

  • Page 137: Programming Numbers

    Programming Numbers The following information provides the programming numbers for colors, fonts, and borders. Colors can be used to set the colors on buttons, sliders, and pages. The lowest color number represents the lightest color-specific display; the highest number represents the darkest display. For example, 0 represents light red, and 5 is dark red.
  • Page 138 Programming RGB Values for all 88 Basic Colors (Cont.) Index No. Name Very Light Cyan Light Cyan Cyan Medium Cyan Dark Cyan Very Dark Cyan Very Light Aqua Light Aqua Aqua Medium Aqua Dark Aqua Very Dark Aqua Very Light Blue Light Blue Blue Medium Blue...

  • Page 139: Font Styles And Id Numbers

    Courier New Courier New Courier New Courier New Courier New AMX Bold AMX Bold AMX Bold You must import fonts into a TPDesign4 project file. The font ID numbers are assigned by TPDesign4. These values are also listed in the Generate Programmer’s Report.

  • Page 140: Border Styles

    The TPDesign4 Touch Panel Design program has pre-set border styles that are user selectable. TPD4 border styles can ONLY be changed by using the name. TPD4 Border Styles by Name Border styles None AMX Elite -L AMX Elite -M AMX Elite -S Bevel -L Bevel -M...
  • Page 141 TPD4 Border Styles by Name (Cont.) Border styles Menu Left Rounded 105 Menu Left Rounded 115 Menu Left Rounded 125 Menu Left Rounded 135 Menu Left Rounded 145 Menu Left Rounded 155 Menu Left Rounded 165 Menu Left Rounded 175 Menu Left Rounded 185 Menu Left Rounded 195 Menu Right Rounded 15...

  • Page 142: Button Commands

    Programming "^" Button Commands These Button Commands are used in NetLinx Studio and are case insensitive. All commands that begin with "^" have the capability of assigning a variable text address range and button state range. A device must first be defined in the NetLinx programming language with values for the Device: Port : System (in all programming examples - Panel is used in place of these values).
  • Page 143 "^" Button Commands (Cont.) Syntax: ^BAT Append "'^BAT-<vt addr range>,<button states range>,<new text>'" non-unicode text. Variable: variable text address range = 1 - 4000. button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).
  • Page 144 Programming "^" Button Commands (Cont.) Only if the specified border color is not the same as the current color. ^BCB Set the border Note: Color can be assigned by color name (without spaces), number or R,G,B value color to the (RRGGBB or RRGGBBAA).
  • Page 145 "^" Button Commands (Cont.) Only if the specified text color is not the same as the current color. ^BCT Set the text color Note: Color can be assigned by color name (without spaces), number or R,G,B value to the specified (RRGGBB or RRGGBBAA).
  • Page 146 Programming "^" Button Commands (Cont.) Syntax: ^BIM Set the input mask for the Variable: specified address. Example: Sets the input mask to ten ’A’ characters, that are required, to either a letter or digit (entry is required). ^BLN The maximum number of lines to remove is 240. A value of 0 will display the incoming video signal unaffected.
  • Page 147 "^" Button Commands (Cont.) Note that the source is a single button state. Each state must be copied as a separate ^BMC command. The <codes> section represents what attributes will be copied. All codes are Button copy 2 char pairs that can be separated by comma, space, percent or just ran together. command.
  • Page 148 Programming "^" Button Commands (Cont.) Syntax: ^BMF Set any/all button parameters by Variables: sending embedded codes and data. "'^BMF-<vt addr range>,<button states range>,<data>'" variable text address char array = 1 - 4000. button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).
  • Page 149 "^" Button Commands (Cont.) For some of these commands and values, refer to theRGB Values for all 88 Basic ^BMF (Cont.) Colors table on page 127. ’%CF<on fill color>’ = Set Fill Color. ’%CB<on border color>’ = Set Border Color. ’%CT<on text color>’...
  • Page 150 Programming "^" Button Commands (Cont.) Mask image is used to crop a borderless button to a non-square shape. This is typically ^BMI used with a bitmap. Set the button mask image. Syntax: Variable: Example: Sets the button with variable text 530 ON/OFF state mask image to 'newmac.png'. ^BML If this value is set to zero (0) there is no max length.
  • Page 151 "^" Button Commands (Cont.) Syntax: ^BNN Set the TakeNote "'^BNN-<vt addr range>,<network name>'" network name for Variable: the specified variable text address range = 1 - 4000. Addresses. network name = Use a valid IP Address. Example: SEND_COMMAND Panel,"'^BNN-973,192.168.169.99'" Sets the TakeNote button network name to 192.168.169.99. ^BNT Syntax: Set the TakeNote...
  • Page 152 Sets the border by number (#10) to those buttons with the variable text range of 500-504 & 510-515. Sets the border by name (AMX Elite) to those buttons with the variable text range of 500-504 & 510-515. The border style is available through the TPDesign4 border-style drop-down list. Refer to theTPD4 Border Styles by Name table on page 130 for more information.
  • Page 153 "^" Button Commands (Cont.) Only if the specified border is not the same as the current border. The border names are ^BRD available through the TPDesign4 border-name drop-down list. Set the border of a button state/ Syntax: states. "'^BRD-<vt addr range>,<button states range>,<border name>'" Variable: variable text address range = 1 - 4000.
  • Page 154 Programming "^" Button Commands (Cont.) Syntax: ^BVL Log-On/Log-Off the computer Variable: control connection. Example: Logs-off the computer control connection of the button. ^BVN Syntax: Set the computer control remote Variables: host for the specified address. Example: Sets the remote host to '191.191.191.191' for the specific computer control button. ^BVP Syntax: Set the network...
  • Page 155 "^" Button Commands (Cont.) Syntax: ^CPF Clear all page flips "'^CPF-<vt addr range>'" from a button. Variable: variable text address range = 1 - 4000. Example: SEND_COMMAND Panel,"'^CPF-500'" Clears all page flips from the button. ^DPF Syntax: Delete page flips "'^DFP-<vt addr range>,<actions>,<page name>'"...
  • Page 156 Programming "^" Button Commands (Cont.) Syntax: ^GDI Change the bargraph drag Variable: increment. Example: Sets the bargraph with variable text 7 to a drag increment of 128. ^GIV Parameters 1,2, and 3 will cause a bargraph or slider to be inverted regardless of orientation.
  • Page 157 "^" Button Commands (Cont.) Syntax: ^GRD Change the "'^GRD-<vt addr range>,<bargraph ramp down time>'" bargraph Variable: ramp-down time variable text address range = 1 - 4000. in 1/10th of a bargraph ramp down time = In 1/10th of a second intervals. second.
  • Page 158 Programming "^" Button Commands (Cont.) Syntax: ^ICO Set the icon to a button. Variable: Example: Sets the icon for On and Off states for buttons with variable text ranges of 500-504 & 510-515. ^JSB The alignment of 0 is followed by ',<left>,<top>'. The left and top coordinates are relative to the upper left corner of the button.
  • Page 159 "^" Button Commands (Cont.) The alignment of 0 is followed by ',<left>,<top>'. The left and top coordinates are relative ^JST to the upper left corner of the button. Set text alignment using a Syntax: numeric keypad "'^JST-<vt addr range>,<button states range>,<new text layout for those alignment>'"...
  • Page 160 Programming "^" Button Commands (Cont.) The Text Effect is specified by name and can be found in TPD4. You can also assign the ^TEC color by name or RGB value (RRGGBB or RRGGBBAA). Set the text effect color for the Syntax: specified addresses/states...
  • Page 161 "^" Button Commands (Cont.) For the ^UNI command (%UN and ^BMF command), the Unicode text is sent as ^UNI ASCII-HEX nibbles. Set Unicode text. Syntax: "'^UNI-<vt addr range>,<button states range>,<unicode text>'" Variable: variable text address range = 1 - 4000. button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).

  • Page 162: Text Effect Names

    Programming Text Effect Names The following is a listing of text effects names. This list is associated with the ^TEF command on page 150. Text Effects • Glow -S • Glow -M • Glow -L • Glow -X • Outline -S •...

  • Page 163: Button Query Commands

    Button Query Commands Button Query commands reply back with a custom event. There will be one custom event for each button/state combination. Each query is assigned a unique custom event type. The following example is for debug purposes only: NetLinx Example: CUSTOM_EVENT[device, Address, Custom event type] DEFINE_EVENT CUSTOM_EVENT[TP,529,1001] CUSTOM_EVENT[TP,529,1002]...
  • Page 164 Programming All custom events have the following 6 fields: Custom Event Fields Field Uint Flag slong value1 slong value2 slong value3 string text text length (string encode) These fields are populated differently for each query command. The text length (String Encode) field is not used in any command.
  • Page 165 Button Query Commands (Cont.) Syntax: ?BCF Get the current fill "'?BCF-<vt addr range>,<button states range>'" color. Variable: variable text address range = 1 - 4000. button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).
  • Page 166 Programming Button Query Commands (Cont.) Syntax: ?BMP Get the current bitmap name. Variable: Example: Gets the button 'OFF state' bitmap information. The result sent to the Master would be: ?BOP Syntax: Get the overall button opacity. Variable: Example: Gets the button 'OFF state' opacity information. The result sent to the Master would be: "'?BMP-<vt addr range>,<button states range>'"...
  • Page 167 Button Query Commands (Cont.) Syntax: ?BRD Get the current "'?BRD-<vt addr range>,<button states range>'" border name. Variable: variable text address range = 1 - 4000. button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).
  • Page 168 Programming Button Query Commands (Cont.) Syntax: ?FON Get the current font index. Variable: Example: Gets the button 'OFF state' font type index information. The result sent to the Master would be: ?ICO Syntax: Get the current icon index. Variable: Example: Gets the button 'OFF state' icon index information.
  • Page 169 Button Query Commands (Cont.) Syntax: ?JSB Get the current "'?JSB-<vt addr range>,<button states range>'" bitmap Variable: justification. variable text address range = 1 - 4000. button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).
  • Page 170 Programming Button Query Commands (Cont.) Syntax: ?JST Get the current text Variable: justification. Example: Gets the button 'OFF state' text justification information. The result sent to the Master would be: ?TEC Syntax: Get the current text effect color. Variable: Example: Gets the button 'OFF state' text effect color information.
  • Page 171 Button Query Commands (Cont.) Syntax: ?TEF Get the current "'?TEF-<vt addr range>,<button states range>'" text effect name. Variable: variable text address range = 1 - 4000. button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).

  • Page 172: Panel Runtime Operations

    Programming Panel Runtime Operations Serial Commands are used in the AxcessX Terminal Emulator mode. These commands are case insensitive. Panel Runtime Operation Commands ABEEP Syntax: Output a single beep even if beep Example: is Off. Outputs a beep of duration 1 beep even if beep is Off. ADBEEP Syntax: Output a double...
  • Page 173 Panel Runtime Operation Commands (Cont.) Keypad string is set to null on power up and is stored until power is lost. The Prompt Text @AKP is optional. Pop up the keypad icon and Syntax: initialize the text "'@AKP-<initial text>;<prompt text>'" string to that Variables: specified.
  • Page 174 Programming Panel Runtime Operation Commands (Cont.) Pops up the keypad icon and initializes the text string to that specified. The Prompt Text is @EKP optional. Extend the Keypad. Syntax: Variables: Example: Pops up the Keypad and initializes the text string '33333333' with prompt text 'Enter Password'.
  • Page 175 Panel Runtime Operation Commands (Cont.) Syntax: @SOU Play a sound file. "'@SOU-<sound name>'" Variables: sound name = Name of the sound file. Supported sound file formats are: WAV & MP3. Example: SEND COMMAND Panel,"'@SOU-Music.wav'" Plays the 'Music.wav' file. @TKP Pops up the keypad icon and initializes the text string to that specified. The Prompt Text is optional.

  • Page 176: Input Commands

    Programming Input Commands These Send Commands are case insensitive. Input Commands ^CAL Syntax: Put panel in calibration mode. Example: Puts the panel in calibration mode. Syntax: ^KPS Set the keyboard Variables: passthru. Example: Sets the keyboard passthru to the Master. Option 5 sends keystrokes directly to the Master via the Send Output String mechanism.
  • Page 177 Input Commands (Cont.) These commands are directed at the video card subsystems. Slot commands contain a ^SLT series of name/value pairs separated by commas. These commands are case insensitive. Send a Syntax: command to a given slot. "’^SLT-<slot number>,<slot command>’" Variables: slot number = 1 - 3 (each of these options corresponds to an on-board slot slot command = see list below:...

  • Page 178: Embedded Codes

    Programming Embedded Codes The following is a list of G4 compatible embedded codes: Embedded Codes Decimal numbers Hexidecimal values Virtual keystroke ($08) Backspace ($0D) Enter ($1B) ($80) CTRL key down ($81) ALT key down ($82) Shift key down ($83) ($84) ($85) ($86) ($87)

  • Page 179: Panel Setup Commands

    Panel Setup Commands These commands are case insensitive. Panel Setup Commands ^MUT Syntax: Set the panel "'^MUT-<mute state>'" mute state. Variable: mute state= 0 = Mute Off and 1 = Mute On. Example: SEND_COMMAND Panel,"'^MUT-1''" Sets the panel’s master volume to mute. @PWD sets the level 1 password only.

  • Page 180: Dynamic Image Commands

    Programming Dynamic Image Commands The following is a listing and descriptions of Dynamic Image Commands. Dynamic Image Commands ^BBR Syntax: Set the bitmap of a button to use a Variable: particular resource. Example: Sets the resource name of the button to ’Sports_Image’. ^RAF See page 171.
  • Page 181 Test_file%Ftest.jpg'" Adds a new resource. The resource name is ’New Image’, %P (protocol) is an HTTP, %H (host name) is AMX.COM, %A (file path) is Lab/Test file, and %F (file name) is test.jpg. 1200V Modero Video Touch Panels Embedded Codes:...
  • Page 182 Programming 1200V Modero Video Touch Panels...

  • Page 183: Troubleshooting

    Troubleshooting This section describes the solutions to possible hardware/firmware issues that could arise during the common operation of a Modero touch panel. Troubleshooting Information Symptom Manifest.xma can not be found. An error occurs when sending a file to a G4 panel. When using G4 WebControl to communicate with a target panel, a VNC Server dialog appears on my...
  • Page 184 • This is due to the graphics controller settings in the firmware. • Update firmware to the latest v2.XX. firmware. • Visit the www.amx.com > Tech Center > Downloadable Files > Firmware Files > Modero panels. Then Download the KIT file to your computer.
  • Page 185 • The NXA-BASE/B Battery base should be updated with the latest firmware (part of the Modero firmware KIT file) from www.amx.com. • The base can only charge batteries while the NXT panel is in Sleep Mode. If the panel parameters are set to their highest values, the priority for the power draw becomes the active panel functions and no power is routed to the base for charging.
  • Page 186 "graphics hierarchy" errors, etc.… indicating problems with the Compact Flash. • Panel will not boot, or gets stuck on "AMX" splash screen. • Other problems also started after downloading to a new panel or a panel with a TPD4 file that takes up a considerable amount of the available Compact Flash.

  • Page 187: Appendix A

    Appendix A Text Formatting Codes for Bargraphs/Joysticks Text formatting codes for bargraphs provide a mechanism to allow a portion of a bargraphs text to be dynamically provided information about the current status of the level (multistate and traditional). These codes would be entered into the text field along with any other text. The following is a code list used for bargraphs: Bargraph Text Code Inputs Code...

  • Page 188: Text Area Input Masking

    Appendix A Text Area Input Masking Text Area Input Masking can be used to limit the allowed/correct characters that are entered into a text area. For example, in working with a zip code, a user could limit the entry to a max length of only 5 characters but, with input masking, you could limit them to 5 mandatory numerical digits and 4 optional numerical digits.

  • Page 189: Input Mask Ranges

    Refer to the following Send Commands for more detailed information: • ^BIM page 136). • ^BMF ^BMF section on page 138). Input mask ranges These ranges allow a user to specify the minimum and maximum numeric value for a field. Only one range is allowed per field.

  • Page 190: Input Mask Output Examples

    Appendix A A keyboard entry using normal text entry is straightforward. However, once an input mask is applied, the behavior of the keyboard needs to change to accommodate the input mask's requirement. When working with masks, any literal characters in the mask will be "skipped" by any cursor movement including cursor keys, backspace, and delete.

  • Page 191: Url Resources

    This URL indicates that the protocol in use is http (HyperText Transport Protocol) and that the information resides on a host machine named www.amx.com. The image on that host machine is given an assignment (by the program) name of company-info-home.asp (Active Server Page).
  • Page 192 Appendix A 1200V Modero Video Touch Panels...
  • Page 193 Appendix A 1200V Modero Video Touch Panels...
  • Page 194 Appendix A 1200V Modero Video Touch Panels...
  • Page 195 Appendix 7" Modero Widescreen Touch Panels...
  • Page 196 It’s Your World - Take Control™ 3000 RESEARCH DRIVE, RICHARDSON, TX 75082 USA • 800.222.0193 • 469.624.8000 • 469-624-7153 fax • 800.932.6993 technical support • www.amx.com...
