AMX Modero Video Touch Panel (G4) NXT/NXD-1200V Quick Start Manual

For more detailed installation, configuration, programming, file transfer, and
operating instructions, refer to the 1200V-Series Modero Touch Panels
Instruction Manual available on-line at www.amx.com.

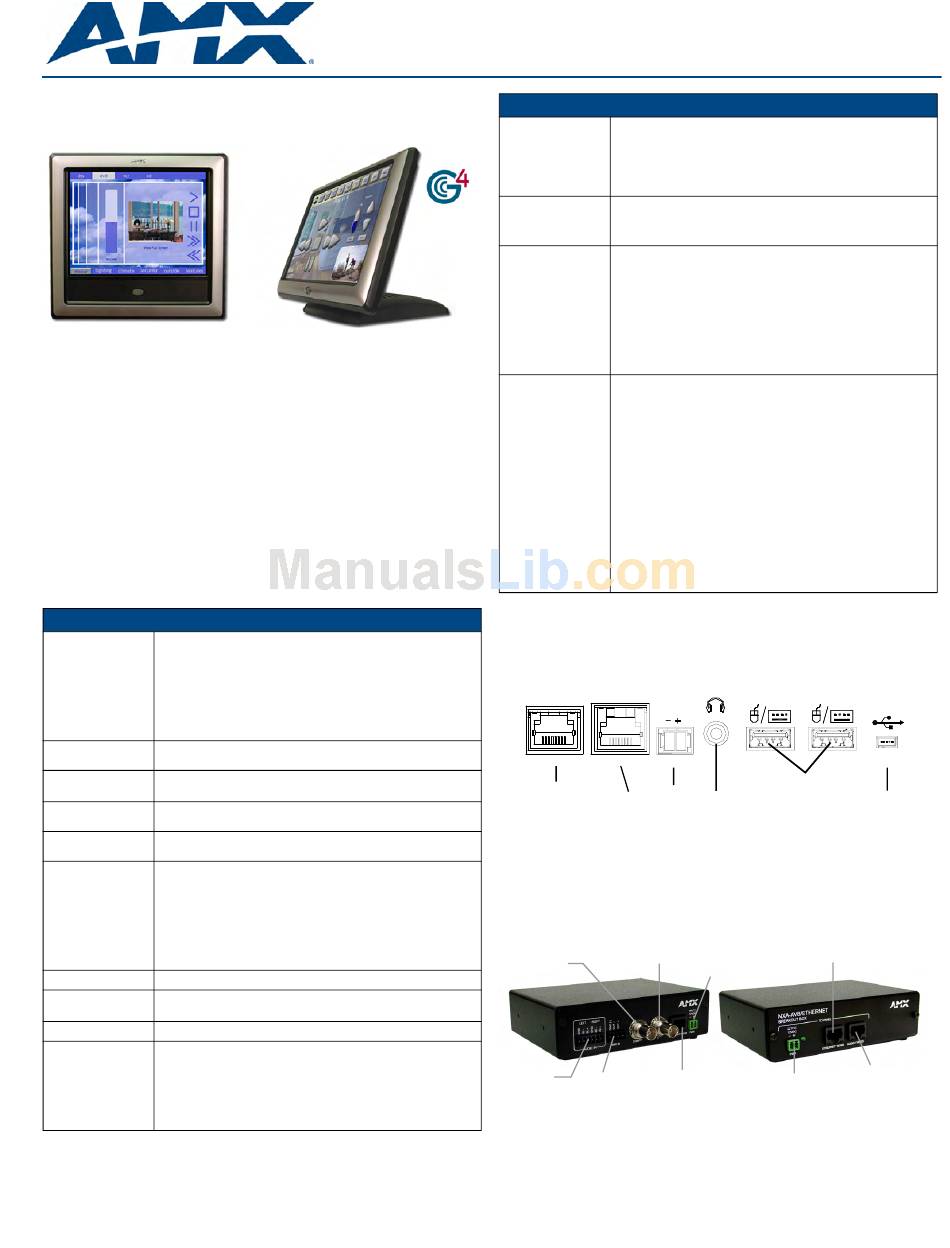

FIG. 1
Sample Wall Mount and Table Top 1200V Touch Panels
ATTENTION!
Verify you are using the latest NetLinx Master and Modero touch panel firmware
(available from www.amx.com). Verify the TPDesign4 program being used is
Version 2.6 or higher.
Overview
The new 12" Modero Touch Panels (NXT/NXD-1200V) feature dual USB
connectivity for mouse and keyboard, as well as Composite/S-Video support.
The following is a listing of the currently available 1200V panels:
• NXD-1200V (FG2251-60K) - 12" Modero Video WallMount touch
panel Kit
• NXT-1200V (FG2250-60K) - 12" Modero Video Table Top touch
panel Kit

Specifications

1200V Specifications
Dimensions (HWD): • NXD-1200V (with faceplate): 12.38" x 12.59" x 3.25"
(31.43 cm x 31.97 cm x 8.25 cm)
• NXT-1200V (Fully raised): 10.91" x 12.34" x 12.50"
(27.70 cm x 31.33 cm x 31.75 cm)
• NXT-1200V (Fully lowered): 6.77" x 12.34" x 12.50"
(17.20 cm x 31.33 cm x 31.75 cm)
• CB-TP12 (conduit/wallbox): 11.52" x 11.60" x 3.50"
(29.27 cm x 29.47 cm x 8.89 cm)
• MB-TP12 (VESA mounting box): 12.37" x 12.58" x 3.52"
(31.42 cm x 31.95 cm x 8.94 cm)
Power: • Constant current draw: 2.1 A @ 12 VDC (stand-alone)
• Startup current draw: 3.2 A @ 12 VDC (stand-alone)
Minimum power • PSN4.4 Power Supply (FG423-45)
- using accessories can increase the power draw requirements.
supply required:
Memory: • 256 MB on-board memory
• 128 MB Compact Flash (upgradeable to 1 GB factory programmed)
Weight: • NXD-1200V: 10.80 lbs (4.90 kg)
• NXT-1200V: 10.80 lbs (4.90 kg)
LCD Parameters: • Aspect Ratio: 4:3
• Brightness (luminance): 250 cd/m2
• Channel transparency: 8-bit Alpha channel transparency
• Contrast ratio: 300:1
• Display area (HW): 183.10 mm x 247.40 mm
• Display colors: 256K (18-bit color depth)
• Dot/Pixel pitch: 0.297 mm
• Screen resolution (HV): 800 x 600 pixels
• Video formats: NTSC, PAL, and SECAM
(shown within variable-size video windows)
Viewing Angles: • Vertical: + 80° (up from center) and - 80° (down from center)
Supported Audio
• 48000Hz, 44100Hz, 32000Hz, 24000Hz, 22050Hz, 16000Hz,
12000Hz, 11025Hz, and 8000Hz.
Sample Rates:
Certifications: • FCC Part 15 Class B, CE, and EN 60950
Front Panel • Light Sensor: Photosensitive light detector for automatic adjustment of
the panel brightness
Components:
• Motion Sensor (PIR): Proximity Infrared Detector to wake the panel
when panel is approached
• Front Setup Access Button: Pushbutton (grey) used to either put the
panel into a "sleep" or "wake" state
• Microphone: Used for intercom applications
• Speakers: Stereo output with a frequency response of 450 Hz - 7 KHz
NXD & NXT-1200V
NXD-1200V
(Wall Mount)
NXT-1200V
(Table Top)
Modero Video Touch Panel (G4)
1200V Specifications (Cont.)
Rear Panel • Audio/Video Connector: RJ-45 connector for communication of
differential audio/video signals
Components:
• Ethernet 10/100 Port: RJ-45 port for 10/100 Mbps communication
• PWR Connector: 2-pin 3.5 mm mini-Phoenix connector
• Stereo Output Connector: Stereo output through a 3.5mm mini-jack
• USB Connector: Two Type A USB ports
• Mini-USB Connector: 5-pin Mini-USB connector
Operating /Storage • Operating Temperature: 10° C (50° F) to 40° C (104° F)
• Operating Humidity: 20% to 85% RH
Environments:
• Storage Temperature: -20° C (-4° F) to 60° C (140° F)
• Storage Humidity: 5% to 85% RH
Included • Installation Kit for 12" and 17" NXD panels (KA2251-01):
- 2-pin mini-Phoenix connector (41-5025)
Accessories:
- Three Phillips-head screws (#4-20 x 0.250 Black) (80-0114-08)
- One CAT5 Suppression Ferrites (04-0014)
- Four Drywall clips (62-5924-05) and #6 -metal strips (80-0192)
• Installation Kit for 12" NXT panels (KA2251-03):
- 2-pin mini-Phoenix connector (41-5025)
- Three Phillips-head screws (#4-20 x 0.250 Black) (80-0114-08)
- Two CAT5 Suppression Ferrites (04-0014)
• Modero Table Top Cable (CA2250-50)
- provided with all NXT Table Top panels.
• NXA-AVB/ETHERNET Breakout Box (FG2254-10)
Other AMX • CB-TP12 Conduit/Wallbox (FG031-10)
• CC-USB (Type A) to Mini-B 5-Wire programming cable (FG10-5965)
Equipment:
• Kensington Lock Bracket (FG2259-10) (optional only with NXTs)
• MB-TP12 Universal VESA Mounting Box for NXD panels (FG031-50):
- Black metallic VESA back box (62-0031-50)
- Black plastic cover (with grommet opening) (60-0031-50)
- Strain relief grommet (45-0004-03)
- Four Phillips pan-head screws (#8-32 x 0.50 Black) (80-0146-02)
- Twelve Under-cut Phillips-head screws (#6-32 x 0.500 Black)
(80-0139)
• NXA-BASE/B (FG2255)
• NXA-PCI80211G Wireless Card (FG2255-04)
• NXA-RK12 Rackmount kit for 12" Wall Mount panels (FG2904-50)
• NXT-BP (FG2250-10)
• NXT-CHG (FG2250-50)
• PSN4.4 Power Supply (12 VDC) (FG423-45)
• PSN6.5 Power Supply (12 VDC) (FG423-41)
• Upgrade Compact Flash (factory programmed with firmware):
NXA-CFTPV256M - 256 MB V/VG compact flash card (FG2116-43)
NXA-CFTPV512M - 512 MB V/VG compact flash card (FG2116-44)
NXA-CFTPV1G - 1 GB V/VG compact flash card (FG2116-45)
Panel Connectors
FIG. 2 shows the connectors located on the 1200V Modero Video panels. The
Audio/Video RJ-45 connector provides differential audio/video signals between
the touch panel and the NXA-AVB/ETHERNET. This connector routes
Composite video, Stereo (left/right) audio, and microphone audio.
A L
12VDC
AUDIO/VIDEO ETHERNET
PWR
Audio-Video from
Power
Ethernet
NXA-AVB/ETHERNET
(CAT5)
(CAT5)
FIG. 2
Connector layout on the 1200V Touch Panels
NXA-AVB/ETHERNET Breakout Box
FIG. 3 shows the front and rear connectors on the NXA-AVB/ETHERNET
breakout box. This breakout box can be mounted on either a horizontal flat
surface or in an equipment rack (by removing the front faceplate and securing it
to an (optional) AC-RK Rack Kit).
Composite/
S-Video Chroma
S-Video
Luma
(rear)
Audio
Ethernet In
Mic Out
In
FIG. 3
Connector layouts on the NXA-AVB/ETHERNET Breakout Box
Quick Start Guide
PROGRAM
Keyboard/Mouse
USB connectors (2)
Stereo Mini-USB
Output
(Program Port)
Ethernet (to panel)
Power In
Audio/Video
Power (to panel)
(to panel)
(front)
