4.2
For the bus line, use a twisted cable with harness shield (no foil shield).
Attention! The control and communication lines are to be laid physically separate
4.3

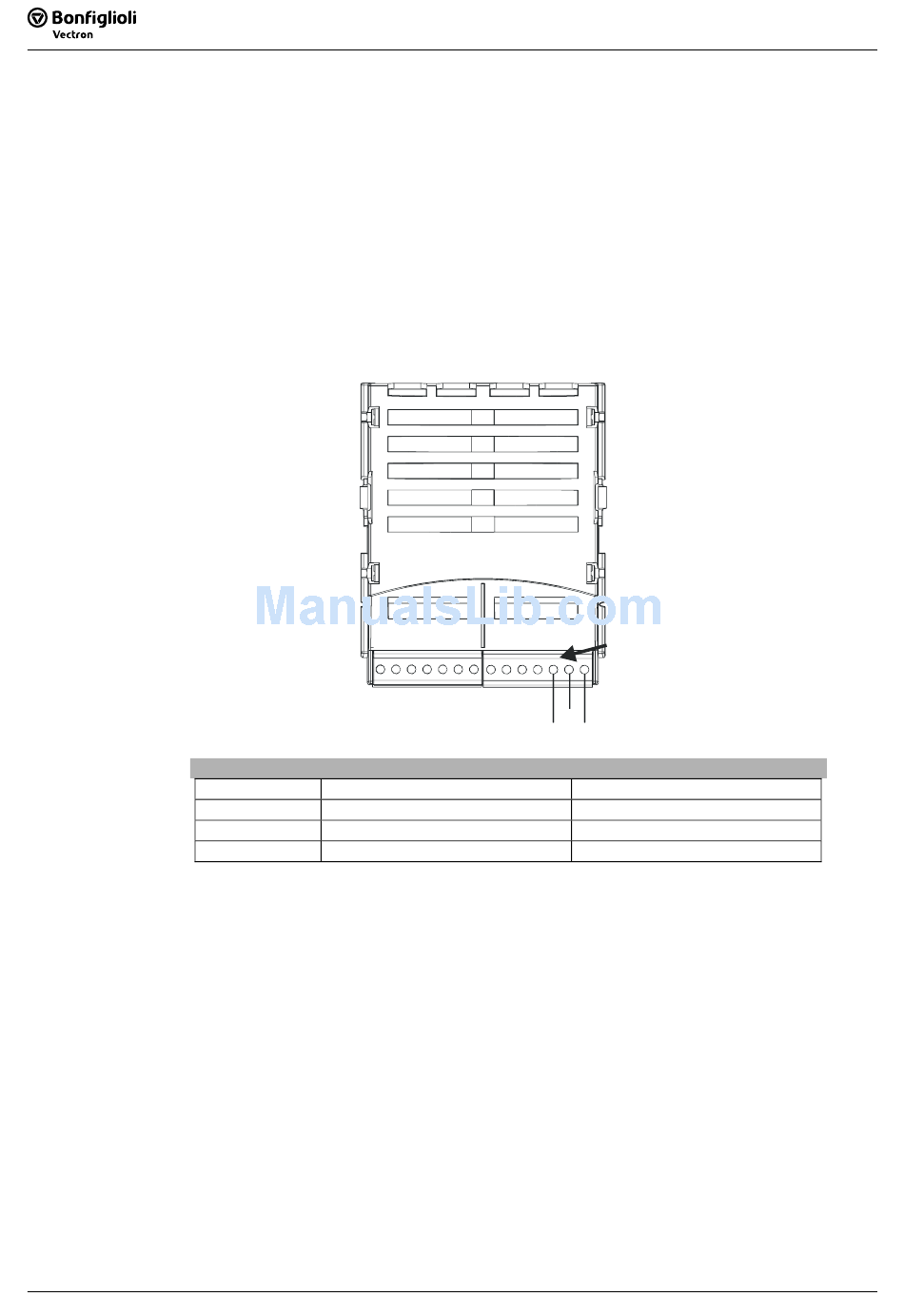

The system bus is connected via the terminals 5, 6 and 7 of the socket X410B on the
EM-ENC-03 expansion module.
(5): X410B.5
(6): X410B.6
(7): X410B.7
12
12

Cables

from the power lines. The harness screen of the data lines is to be con-
nected to ground (PE) on both sides on a large area and with good con-
ductivity.

Socket X410B

Terminal Input/Output
X410A X410B
6 6
5 5
Socket X410B
CAN-Low
CAN-High
GND
X410B
7 7
Description
CAN-Low (System bus)
CAN-High (System bus)
CAN-GND (System bus)
