3.3.2
The control and software functionality can be freely configured for economical opera-
tion with a safe function.
Caution!
Ter.
Ter.
10
10

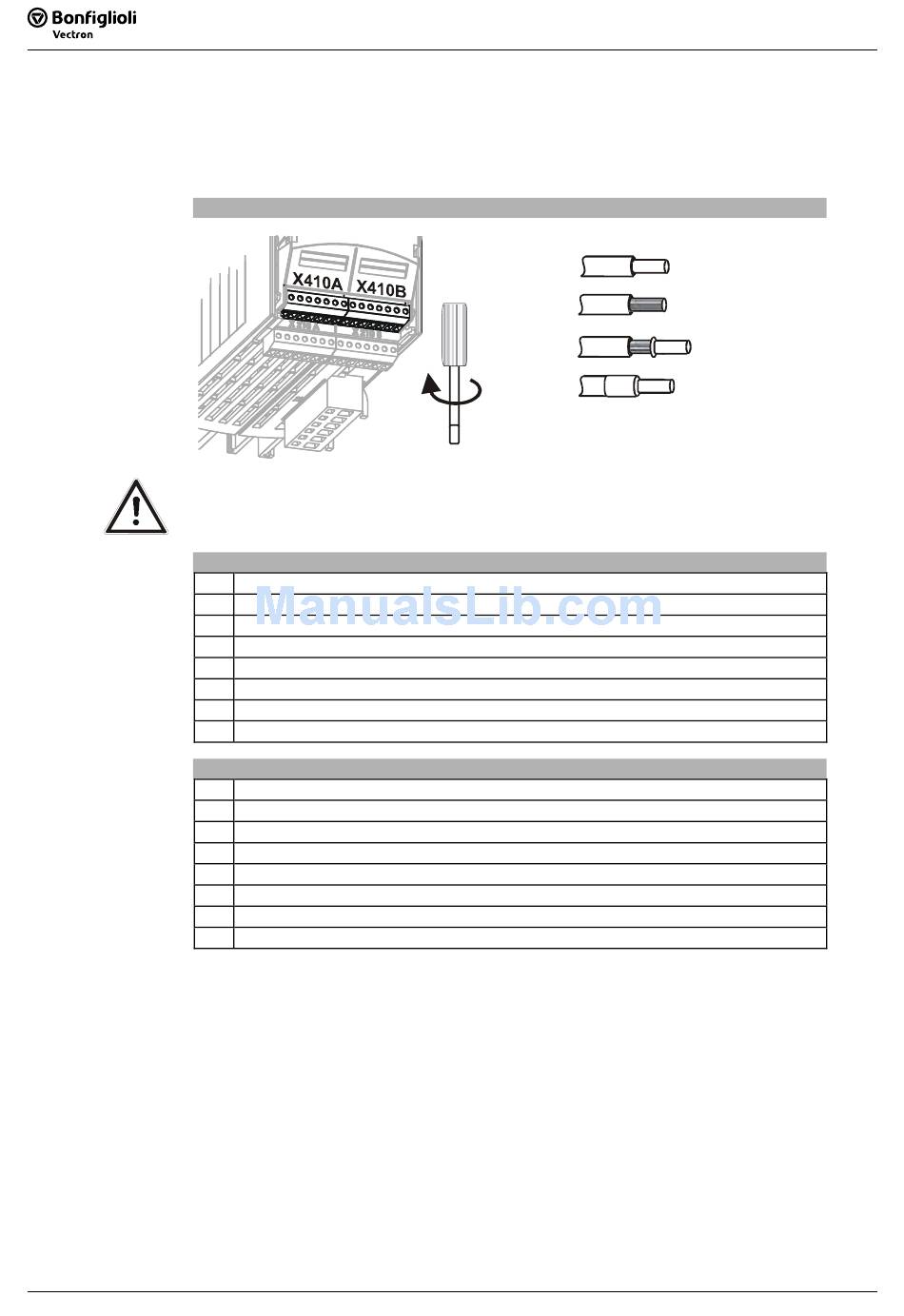

Sockets

The control inputs and outputs must be connected and separated free of
power. Otherwise, components may be damaged.
1 Speed sensor input EM-ENC A+
2 Speed sensor input EM-ENC A-
3 Speed sensor input EM-ENC B+
4 Speed sensor input EM-ENC B-
5 no function
6 Earth / GND
7 no function
1 no function
2 no function
3 no function
4 no function
5 System bus, CAN low
6 System bus, CAN high
7 Earth / GND
Expansion module EM-ENC-03
0.2 ... 0.3 Nm
1.8 ... 2.7 lb-in
Socket X410A
Description
Socket X410B
Description
Wieland DST85 / RM3,5
0.14 ... 1.5 mm
AWG 30 ... 16
0.14 ... 1.5 mm
AWG 30 ... 16
0.25 ... 1.0 mm
AWG 22 ... 18
0.25 ... 0.75 mm
AWG 22 ... 20
2
2
2
2
