Communication Relationships Of The Process Data Channel - BONFIGLIOLI actice Instruction Manual

4.11.4
Regardless of the process data to be transmitted, the communication relationships of
the process data channels must be defined. The connection of PDO channels is done via
the assignment of the identifiers. The identifiers of Rx-/Tx-PDO must match in each
case.
There are two principal possibilities:
This process is documented in a tabular form via a communication relationship list.
Example:
Attention! All the TxPDO's used must have different identifiers !
Frequency inverter 1
PDO1
Rx Tx
06/05
06/05

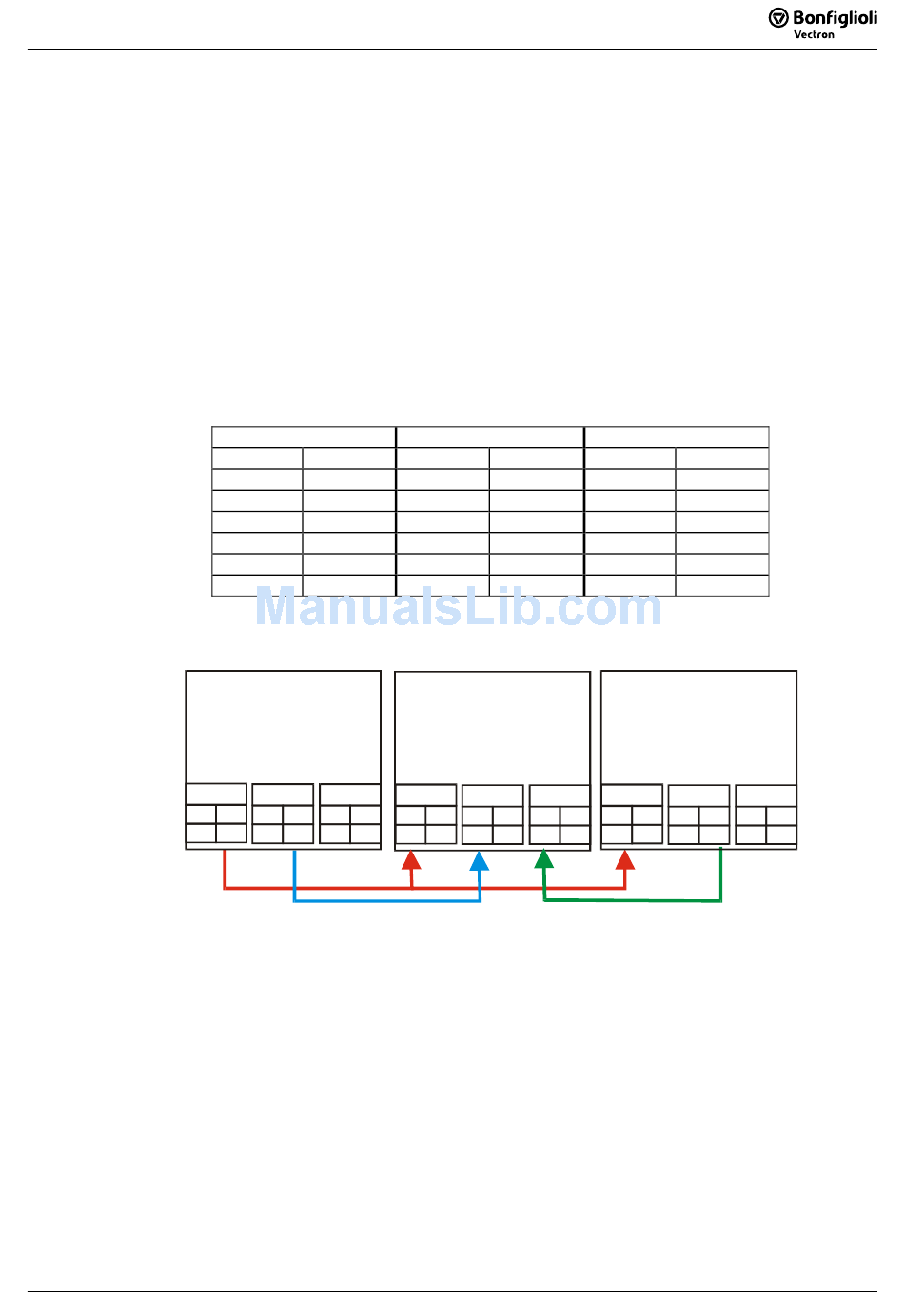

Communication relationships of the process data
channel
one Rx-PDO to one Tx-PDO (one to one)
-
connect several Rx-PDO's to one TxPDO (one to many)
-
Frequency inverter 1 Frequency inverter 2 Frequency inverter 3
PDO Identifier
TxPDO1 385
RxPDO1
TxPDO2 641
RxPDO2
TxPDO3
RxPDO3
The Identifier must be unique in the system bus network.
PDO2 PDO3
Rx Tx Rx Tx
385 641
PDO Identifier
TxPDO1
RxPDO1 385
TxPDO2
RxPDO2 641
TxPDO3
RxPDO3 642
Frequency inverter 2
PDO1
PDO2 PDO3
Rx Tx
Rx Tx Rx Tx
385 641 642
PDO Identifier
TxPDO1
RxPDO1 385
TxPDO2 642
RxPDO2
TxPDO3
RxPDO3
Frequency inverter 3
PDO1
PDO2 PDO3
Rx Tx
Rx Tx Rx Tx
385 642
