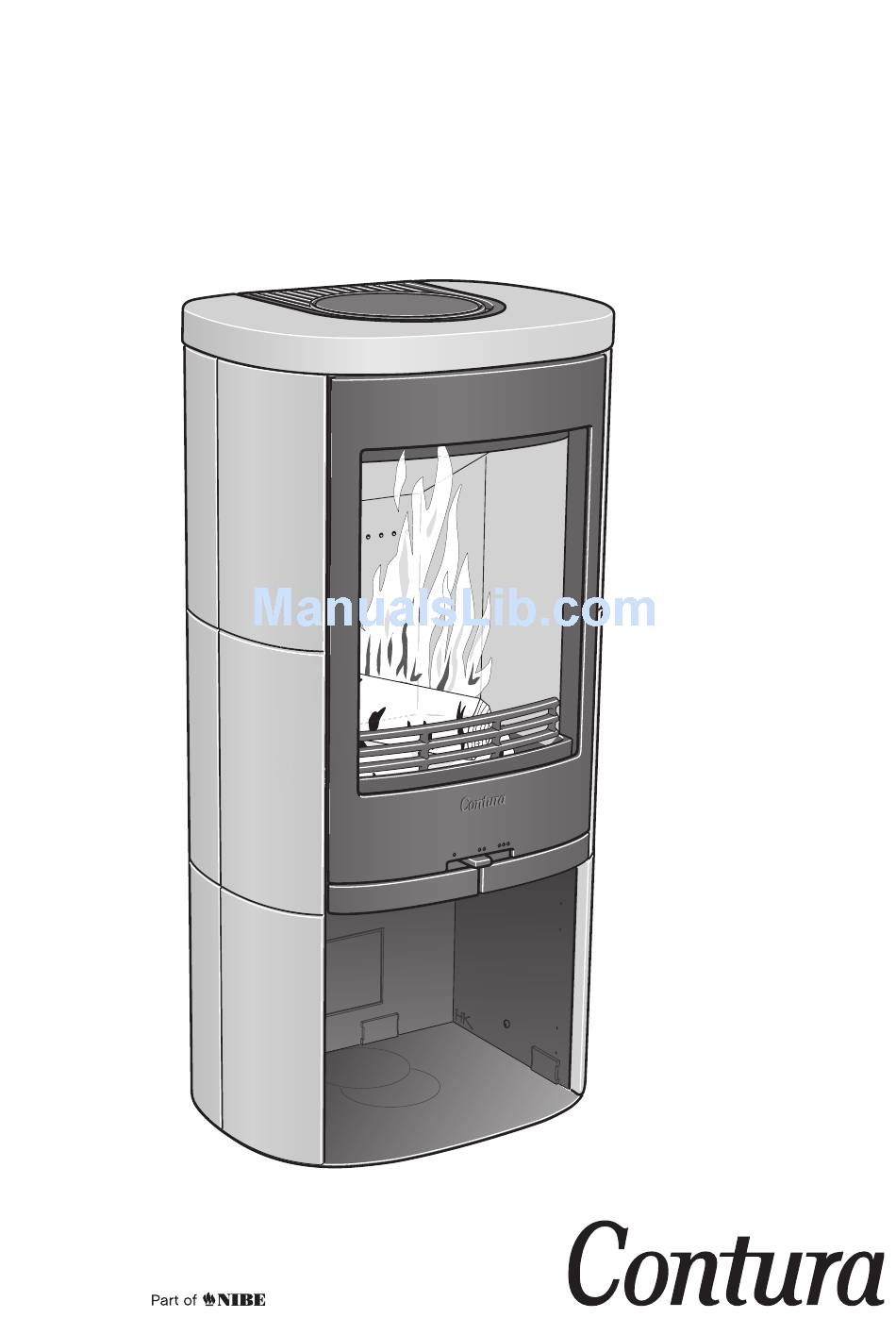

- Page 1 Installation Instructions C 820T www.contura.eu...
- Page 2 Contura 820T is a Swan marked wood burning stove. NIBE was the first stove manufacturer in Sweden to commit to Swan marking stoves. The Swan mark is one aspect of our vision to be a company of the future, setting high quality standards regarding the environment.
-
Page 3: Table Of Contents
A warm welcome to the Contura family. We hope you will get a great deal of pleasure from your new stove. As a new owner of a Contura stove you have secured a product with timeless design and long service life. Contura also has combustion that is both environmentally friendly and efficient for the best heat production. -
Page 4: Technical Details
FACTS Technical details Important to remember! Contura 820T Installation by authorised Structural support technician Check that the wood joists are strong enough to bear the weight of the stove and This manual contains instructions about chimney. The stove and chimney can usually... -
Page 5: Connection To Chimney
CHIMNEY Connection to chimney • The stove meets the requirements for connecting to chimneys • A flue with sharp bends and horizontal routing reduces the dimensioned for 350°C flue gas temperature. draught in the chimney. Maximum horizontal flue is 1 m, on the condition that the vertical flue length is at least 5 m. -
Page 6: Supply Of Combustion Air
SUPPLY AIR/ACCESSORY Supply of combustion air When a stove is installed in a room, the demand for air supply to the room increases. Air can be provided indirectly via a vent in the outer wall or via a duct from the outside that is connected to the connector on the underneath of the stove. -
Page 7: Installation Distances
INSTALLATION DISTANCES Installation distances C820T The minimum distance in front of WHEN INSTALLING TURNTABLE (OPTION) the the stove opening to combustible following installation distances do not apply. Combustible roof parts of the building or interior See the separate turntable installation instruc- decoration must be at least 1 m. -
Page 8: Assembly
ASSEMBLY Installing C820T Final inspection of the installation It is extremely important that the installation is inspected by an authorised chimney sweep before the stove is used. Also read the ”Lighting instructions”, before lighting for the first time. - Page 9 ASSEMBLY...
- Page 10 ASSEMBLY...
- Page 11 REMOVAL Removal How to remove the fire bricks Handle the vermiculite with care. Lift the smoke baffle with one hand whilst removing the sides. The side posts need not be removed when sweeping. Reinstall in reverse order...
- Page 12 NIBE AB · Box 134 · SE-285 23 Markaryd · Sweden www.contura.se Contura reserves the right to change colours, materials, dimensions and models at any time without special notice. 811120 IAV SE-EX C820T-3 Your dealer can give you the most up to date information.
