Contura Surround C 11 Installation Instruction

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Installation
instruction
Surround C 11
Surround C 21
www.contura.eu

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Surround C 11 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Contura Surround C 11

Summary of Contents for Contura Surround C 11

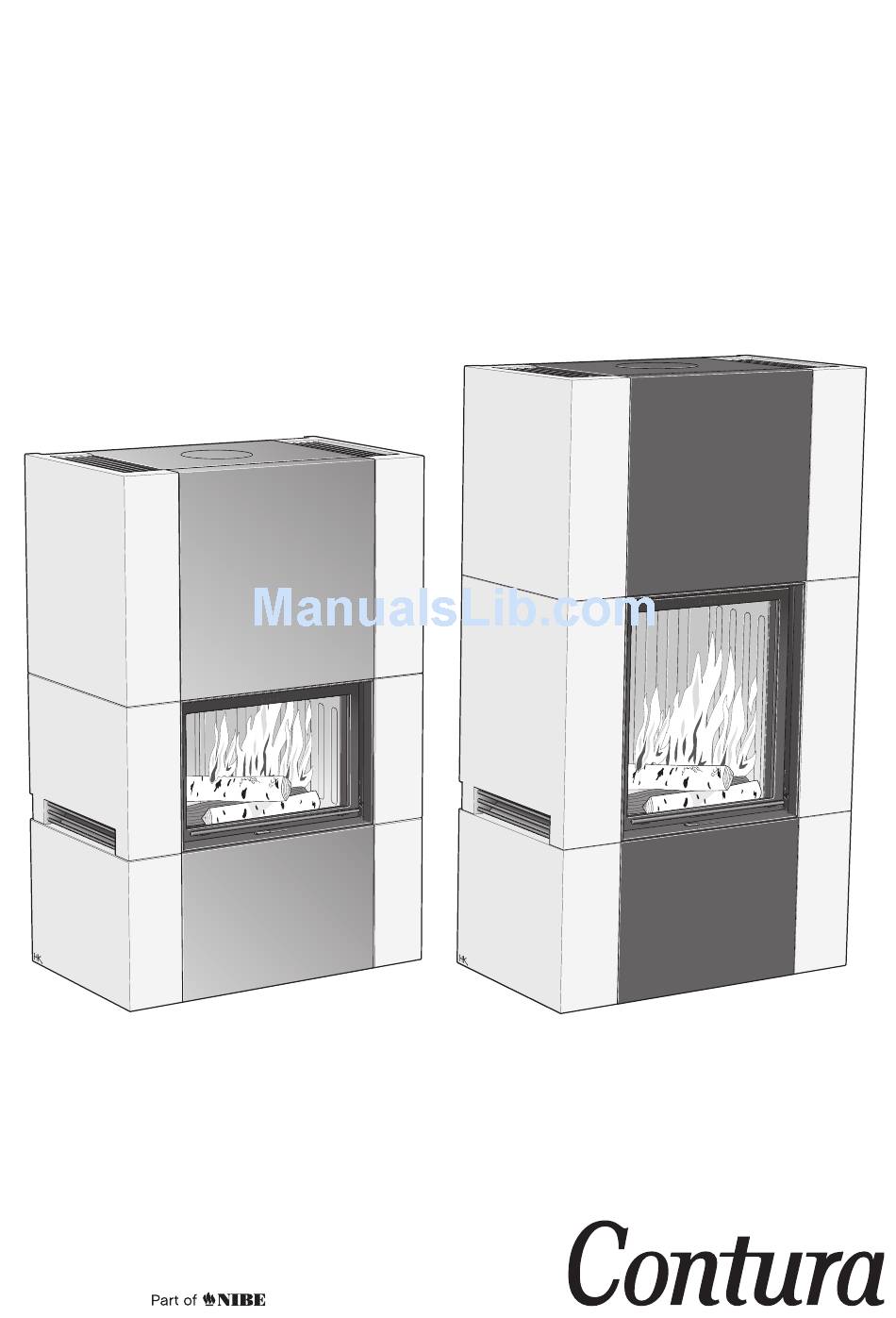

  • Page 1 Installation instruction Surround C 11 Surround C 21 www.contura.eu...
  • Page 2 See rating plate on the stove Intended area of use Heating of rooms in residential buildings Fuel Wood MANUFACTURER Name NIBE AB / Contura Address Box 134, Skulptörvägen 10 SE-285 23 Markaryd, Sweden CHECKS According to AVCP System 3 European standard...
  • Page 3 See rating plate on the stove Intended area of use Heating of rooms in residential buildings Fuel Wood MANUFACTURER Name NIBE AB / Contura Address Box 134, Skulptörvägen 10 SE-285 23 Markaryd, Sweden CHECKS According to AVCP System 3 European standard...

  • Page 4: Table Of Contents

    CONTENTS A warm welcome to Contura A warm welcome to the Contura family. We hope you will get a great deal of pleasure from your new stove. As a new owner of a Contura stove you have secured a product with timeless design and long service life.

  • Page 5: Technical Details

    C21: RRF 40 09 2081 Wall behind If your Contura 11 / 21 is to be installed against a flammable wall the General wall must be protected by a firewall or by the integrated protective screen that is sold an as accessory for these models. A firewall This manual contains instructions about how the Contura 11 and 21 must be at least the same width and height as the surround.

  • Page 6: Supply Of Combustion Air

    SUPPLY AIR/ACCESSORY Supply of combustion air Combustion air can be provided directly via a duct from outside, or indirectly via a vent in the outer wall of the room where the stove is to be placed. The amount of combustion air used for combustion is approximately 30 m³/h (applies with closed hatch), Some installation alternatives are shown to the right.

  • Page 7: Installation Distance To Walls And Ceiling

    INSTALLATION DISTANCES Installation distance to walls and ceiling Important! The dimension diagrams only show the minimum uninsulated flue and a combustible part of the building permitted installation distances for the insert. When should be at least 300 mm. The minimum distance to connecting to a steel flue, also note the safety distance combustible parts of the building or interior decoration in requirements of the flue.
  • Page 8 INSTALLATION DISTANCES Installation distance to walls and ceiling Important! The dimension diagrams only show the minimum uninsulated flue and a combustible part of the building permitted installation distances for the insert. When should be at least 300 mm. The minimum distance to connecting to a steel flue, also note the safety distance combustible parts of the building or interior decoration in requirements of the flue.

  • Page 9: Installation Alternatives

    CHIMNEY Installation alternatives Selection of chimney connection and material in the wall behind mean that different requirements are made of installation. Note that a non-flammable wall or firewall must meet the requirements stated on page 41. In other cases the accompanying protective screen must be used.
  • Page 10 CHIMNEY Raised surround Non-flammable wall / Firewall When the height extension section is installed in the integrated protective screen, the air outlet at the top of the surround nearest to the wall must be sealed and the whole top surface insulated. It is also possible to connect the chimney with a backward angle through the height extension section that requires a seal above the angle.
  • Page 11 ASSEMBLY Installation instructions surround C11, C21 Installation of the surround is the same for Contura 11 respectively 21. Contura 11 is illustrated. Position the base plate against the wall. Ensure that it is level, add steel shims to the thickest sections of the base plate if possible. If the accompanying protective screen is to be installed, install it now.
  • Page 12 ASSEMBLY If the insert is to be rear connected, connect it now. Lift the insert on to the base plate and adjust the feet so that the distance from the floor to the underside of the shelf is 469 mm. Check that it is straight and stable.
  • Page 13 ASSEMBLY Loosen the screws holding the side panels and remove them. Use the same screws and screw holes to instead screw the hatch frame into place. Check that the bottom corners line up with the shelf.
  • Page 14 ASSEMBLY Install the heat deflectors on the sides of the insert. Use the six installation screws supplied in the screw bag, and the screws that are already in the upper corner of the insert. Apply a bead of silicone on the base plate and then lift in the lower section sides.
  • Page 15 ASSEMBLY When both the sides are in position the safety rail is hung from the side washers to prevent them falling out to the sides. Check measure that the distance between the sides is the same at the front edge as at the rear edge and check that the sides are straight.
  • Page 16 ASSEMBLY In the event of removal and height adjustment, use the following hook and pull out the lower door. The panel variants’ front are adjusted for height using two adjustment screws...
  • Page 17 ASSEMBLY Continue with the second section’s sides and bond them with silicone. Check that the second section is straight and that there is an even gap of approximately 3 mm between the frame and the concrete. If necessary, remove the lower front and adjust the insert.
  • Page 18 ASSEMBLY Apply a bead of silicone on the upper edge of the second section and then lift in the third section sides. Support the first side using a piece of tape so that it does not fall while the other side is installed. Hang the safety rail between the third section sides and ensure that they are straight.
  • Page 19 ASSEMBLY Apply silicone beads along the front edge of the sides and bond the upper front. Bond the lower front with silicone. Use the supplied installation angle to keep the front panel in position while the silicone cures. When top connecting through the top sheet of concrete the knock out in the top disc must be knocked out with a hammer.

  • Page 20: Installing The Height Extension

    ASSEMBLY On aluminium and steel fronts there are adjustment screws that can be used to adjust the front panel by height. When the front panel is set the outer Torx screws are screwed until they support against the concrete. The top rests on the turned down angles at the rear edge, these can be adjusted to get the top to the level of the concrete.

  • Page 21: Installing The Height Extension

    ASSEMBLY Even off the edges between the concrete blocks by applying a The gap between the concrete and the wall behind can be grouted if so desired. It is important that the air inlet, little grout in the joints and then using the corner of a filling knife to scrape out the excess and retain the marked edges.

  • Page 22: Flammable Wall And Accompanying Protective Screen

    ASSEMBLY Installation height extension sections C11, C21 In combination with flammable wall and accompanying protective screen Note the different installation methods of the height extension section. When using a protective screen the airflow must not be restricted at any point. Install the protective screen according to the separate instruction and the surround at ordinary height according to page 47-56.
  • Page 23 ASSEMBLY Install the right half of the heat deflector by inserting sideways and hooking the tabs around the concrete. Note that the heat deflector at the bottom edge must be positioned in front of the protective screen’s heat deflector. Install the left half of the heat deflector in the same way, and screw the two halves together.
  • Page 24 TOP CONNECTION For top connection Check that the measurement between the top and the chimney mantle is 25-30 mm. Then position the small insulation plate over the chimney hole in the top and connect the chimney. The chimney must press the insulation together approx 5 mm so that it is tight, but the weight must be on the insert and not the top panel.
  • Page 25 ASSEMBLY To avoid gaps in the panel lines of the front area, the height extension panel must be hung first without silicone. Adjust the components so that the joints between them look good, use shims where necessary. Apply silicone along the front edge of the sides and bond the front in position.

  • Page 26: Non-Flammable Wall And Chimney Connection Straight Back

    ASSEMBLY Installation height extension sections C11, C21 In combination with non-flammable wall and chimney connection straight back or straight up Note the different installation methods of the height extension section. When the protective screen provided is not used the air outlet at the rear edge of the top panel must be plugged.
  • Page 27 TOP CONNECTION For top connection Check that the measurement between the top and the chimney mantle is 25-30 mm. Then position the small insulation plate over the chimney hole in the top and connect the chimney. The chimney must press the insulation together approx 5 mm so that it is tight, but the weight must be on the insert and not the top panel.
  • Page 28 ASSEMBLY To avoid gaps in the panel lines of the front area, the height extension panel must be hung first without silicone. Adjust the components so that the joints between them look good, use shims where necessary. Apply silicone along the front edge of the sides and bond the front in position.
  • Page 29 ASSEMBLY Installation height extension sections C11, C21 In combination with non-flammable wall and chimney connection angled back through the height extension section. Note the different installation methods of the height extension section. When the protective firewall provided is not used the air outlet at the rear edge of the top panel must be plugged.
  • Page 30 Place the left sealing plate so that it rests on the washer at the rear edge, and the lock rail at the front. Lift in the right sealing plates and screw them into place in each other. Which holes are used depends on whether it is a Contura 11 or 21.
  • Page 31 Place the top plate in position between the concrete sides. For the top panel to fit the Contura 21 the breakouts in the side must be removed. To avoid gaps in the panel lines of the front area, the height extension panel must be hung first without silicone.
  • Page 32 ASSEMBLY Steel variant Apply silicone beads along the front edge of the sides and bond the inner front panel. Hang the soot hatch in place. The normal front panel then hangs loosely over the inner front panel and can be removed when sweeping.

  • Page 33: Installing The Woodbox

    ASSEMBLY Installing the woodbox The woodbox consists of four pieces that are bonded to each other and the surround using silicone. First bond the base plate and then the back, sides and upper section. The woodbox can be turned both ways for positioning on either the left or right side.
  • Page 36 NIBE AB · Box 134 · 285 23 Markaryd · Sweden www.contura.eu Contura reserves the right to change dimensions and procedures described in these instructions at any 811041 IAV SE-EX C11/C21- 8 time without special notice. The current edition can 2014-11-04 be downloaded from www.contura.eu...

This manual is also suitable for:

Surround c 21
