52 FACTS

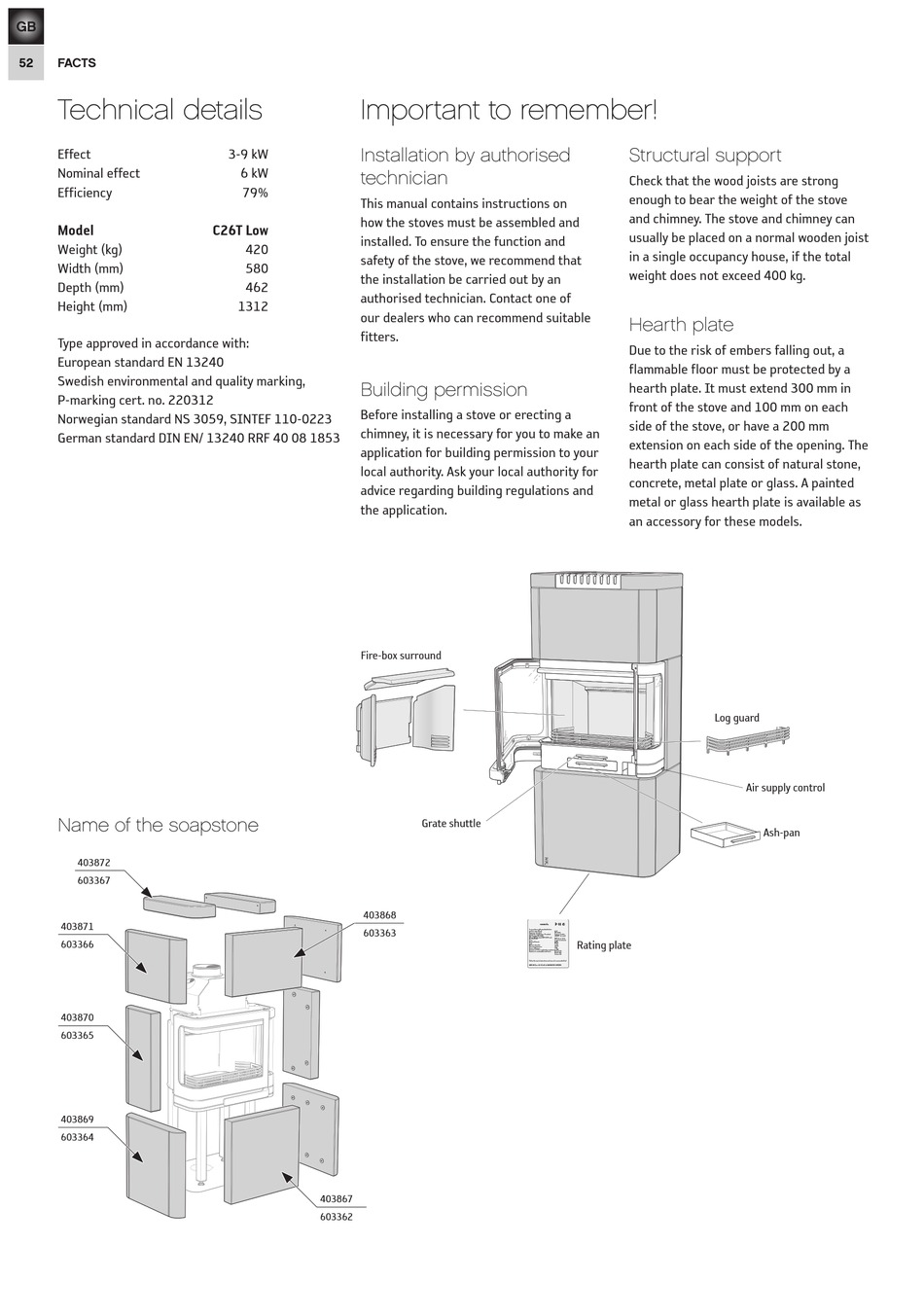

Technical details

Effect
Nominal effect
Efficiency
Model
Weight (kg)
Width (mm)
Depth (mm)
Height (mm)
Type approved in accordance with:
European standard EN 13240
Swedish environmental and quality marking,
P-marking cert. no. 220312
Norwegian standard NS 3059, SINTEF 110-0223
German standard DIN EN/ 13240 RRF 40 08 1853
Name of the soapstone
403872
603367
403871
603366
403870
603365
403869
603364
Important to remember!
Installation by authorised
3-9 kW
6 kW
technician
79%
This manual contains instructions on
how the stoves must be assembled and
C26T Low
installed. To ensure the function and
420
safety of the stove, we recommend that
580
the installation be carried out by an
462
authorised technician. Contact one of
1312
our dealers who can recommend suitable
fitters.
Building permission
Before installing a stove or erecting a
chimney, it is necessary for you to make an
application for building permission to your
local authority. Ask your local authority for
advice regarding building regulations and
the application.
Eldstadsbeklädnad
Fire-box surround
403868
603363
403867
603362
Grate shuttle
Rosterreglage
HANDÖL
In accordance with standards below
marking was affixed: 2007
European Standard: EN 13240
SE Quality Certification, P-marked: Cert no 0112/07
NO Standard NS 3059: SINTEF 110-0275
DE and AT Standard DIN 18.891 and
Art 15a B-VG: RRF-40 07 13 90 Rating plate
Type: Handöl 31/31A/32/32A
5 kW
Nominal Output:
Fuel: Wood
Minimun draught: 12 Pa
280°C
Flue gas temerature:
Energy efficiency: 78%
Emission of CO in cumbustion products: 0,14%
Distance to cumbustible wall (mm): Behind 150
Beside 450
Corner 150
Follow the user's instructions and use only recomended fuel
NIBE AB Box 134 SE-285 23 MARKARYD SWEDEN
HANDÖL
Type: 50-series
Production no. 7090300236
NIBE AB SE-85 21 Markaryd Sweden
Structural support
Check that the wood joists are strong
enough to bear the weight of the stove
and chimney. The stove and chimney can
usually be placed on a normal wooden joist
in a single occupancy house, if the total
weight does not exceed 400 kg.
Hearth plate
Due to the risk of embers falling out, a
flammable floor must be protected by a
hearth plate. It must extend 300 mm in
front of the stove and 100 mm on each
side of the stove, or have a 200 mm
extension on each side of the opening. The
hearth plate can consist of natural stone,
concrete, metal plate or glass. A painted
metal or glass hearth plate is available as
an accessory for these models.
Brasbegränsare
Log guard
Air supply control
Förbränningsluftsreglage
Asklåda
Ash-pan
