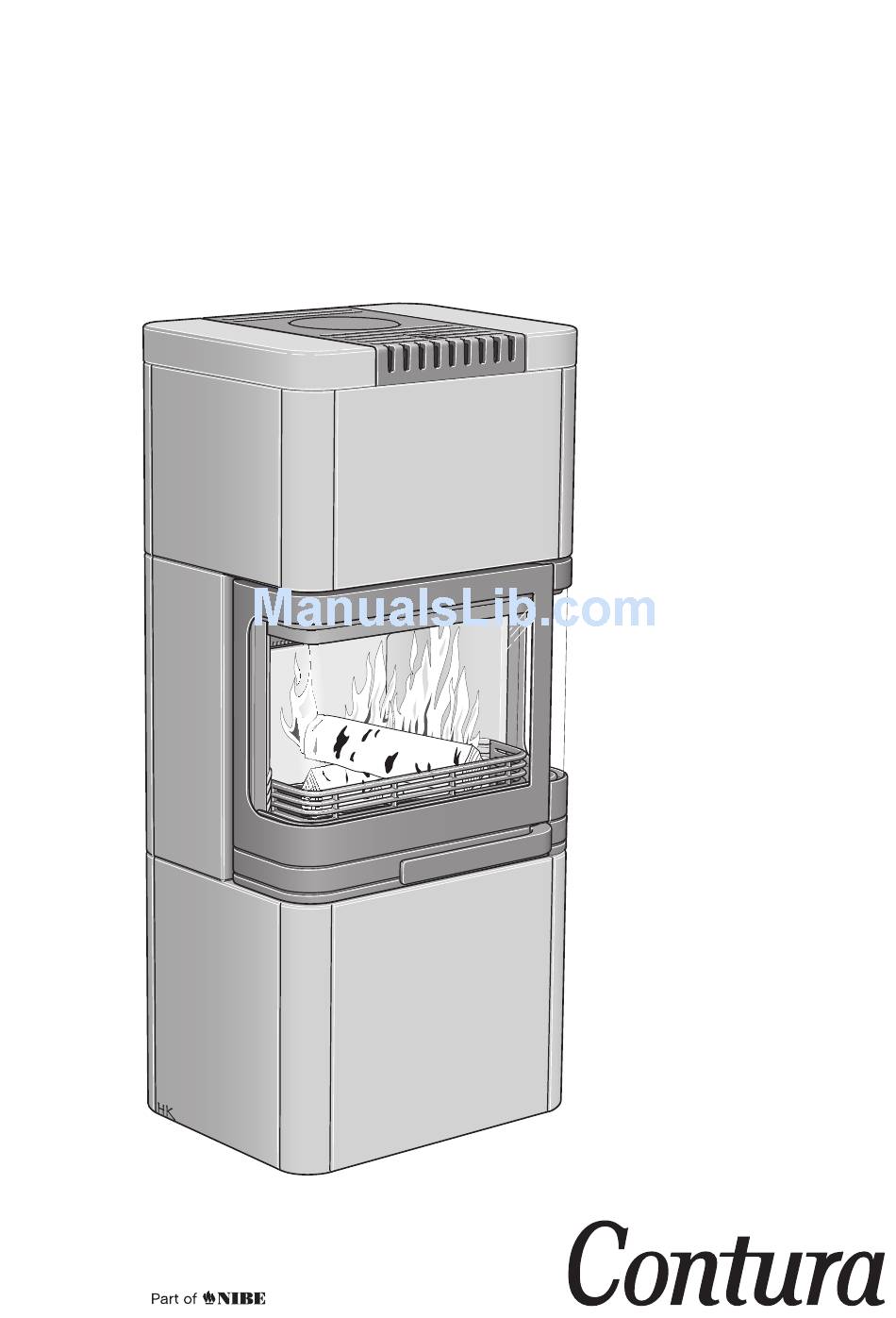

- Page 1 Installation instructions C 26T Low www.contura.eu...
- Page 2 See rating plate on the stove Intended area of use Heating of rooms in residential buildings Fuel Wood MANUFACTURER Name NIBE AB / Contura Address Box 134, Skulptörvägen 10 SE-285 23 Markaryd, Sweden CHECKS According to AVCP System 3 European standard...
-
Page 3: Table Of Contents
A warm welcome to the Contura family. We hope you will get a great deal of pleasure from your new stove. As a new owner of a Contura stove, you have secured a product with timeless design and long service life. -
Page 4: Technical Details
FACTS Technical details Important to remember! Installation by authorised Structural support Effect 3-9 kW Nominal effect 6 kW technician Check that the wood joists are strong Efficiency enough to bear the weight of the stove This manual contains instructions on and chimney. -
Page 5: Supply Of Combustion Air
SUPPLY AIR/ACCESSORY Supply of combustion air When a stove is installed in a room, the air supply demand to the room increases. Air can be provided indirectly via a vent in the outer wall or via a duct from the outside that is connected to the connector on the underneath of the stove. -
Page 6: Connection To Chimney
If further sealing material is required, heat- resistant sealant may be used. Sweeping When sweeping, the smoke baffle must be removed; on the Contura 20 series this is easily done by lifting and then pushing the baffle to the side. -
Page 7: Installation Distances
INSTALLATION DISTANCES Installation distances C26T Low A = height from floor to chimney connection upwards Combustible roof B = height from floor to c/c chimney connection rear C = distance from back to c/c chimney connection upwards Place the stove on the D = distance from back to chimney connection rear hearth plate and check E = distance from back to hole in guide plate... -
Page 8: Installation Of C26T High
INSTALLATION Installation of C26 T Low The stove needs to be placed on a level and horizontal surface, so the courses do not end up uneven and crooked. Otherwise, this can result in abnormally large gaps and uneven lines. During assembly, check that all the stones stand horizontally and that all parts in a course are of a uniform height. - Page 9 INSTALLATION Place the profile edge to edge with the stone's side. Wait to tighten this screw until the next stone is in place.
- Page 10 INSTALLATION Press the profiles up as far as they go, while tightening the screws. Final inspection of the installation It is extremely important that the installation is inspected by an authorised chimney sweep before the stove is used. Also read the ”Lighting instructions”, before lighting for the first time.
- Page 11 INSTALLATION Adjustment screws for placement in the guide plate to support the top stones. Adjust them, so they are at the same height as the top of the side stones. Check that the damper can be opened and closed without problem.
- Page 12 NIBE AB · Box 134 · SE-285 23 Markaryd · Sweden www.contura.eu Contura reserves the right to change dimensions and procedures described in these instructions at any 811091 IAV SE-EX C26T Low -4 time without special notice. The current edition can be 2013-11-13 downloaded from www.contura.eu...
