Technical Details - Contura C 520T Installation Instruction

GB
68 FACTS

Technical details

Effect
Nominal effect
Efficiency
Model
Height (mm)
Width (mm)
Depth (mm)
Weight (kg)
Type approved in accordance with:
European standard EN-13240 class 1
Swedish environmental and quality marking,
P-marking cert. no. 220309
Norwegian standard NS 3059, SINTEF 043-140
German standard DIN, 18.891, RO-91 03 529
Danish standard DS/EN 13240 Plus,
id no. 598
Removing the loose
parts
If the insert needs to be put down
to be moved, loose components
should be removed. When the stove is
installed reinstall the components in
reverse order.

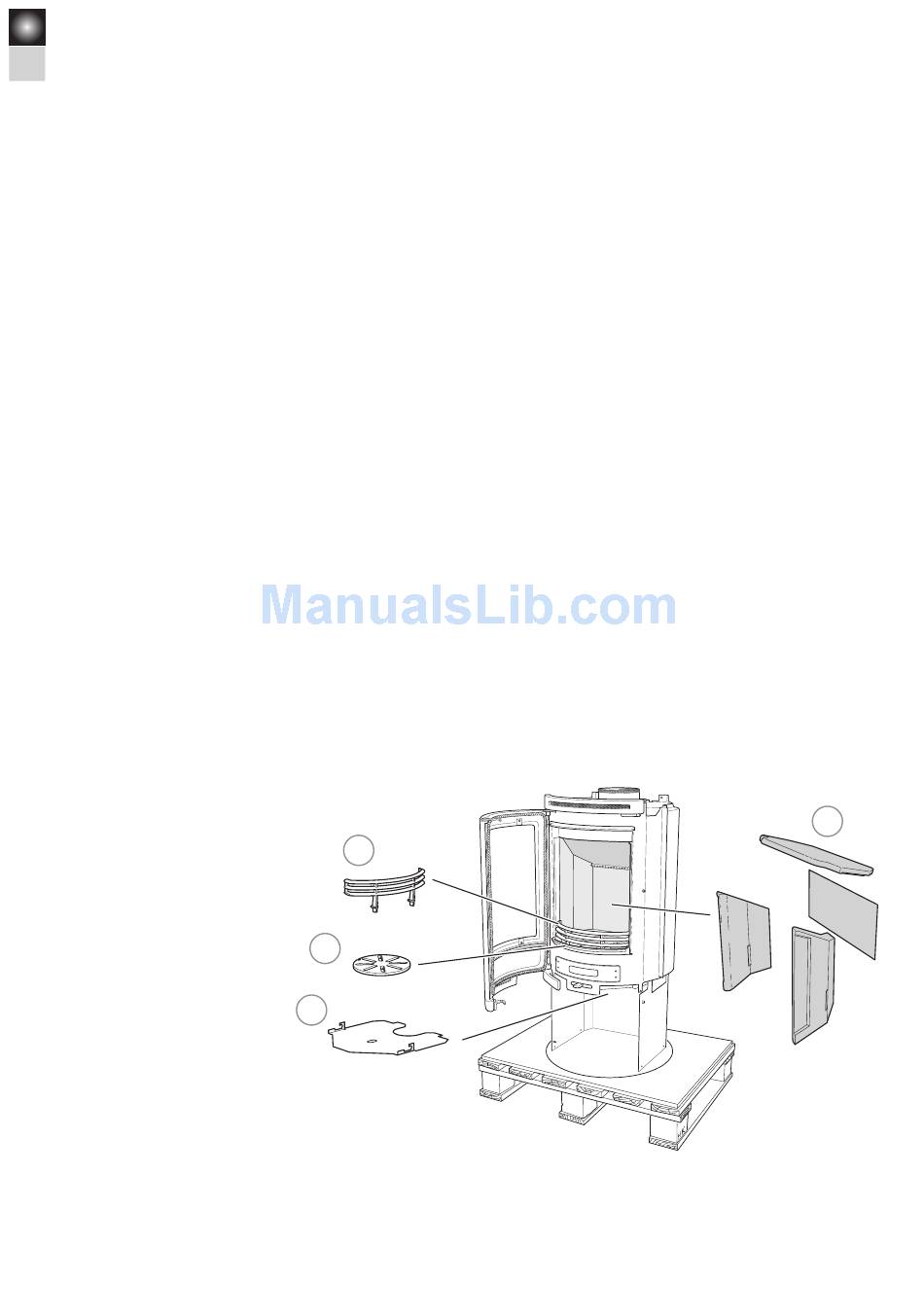

1 Fire bars
2 Grate disc
3 Heat deflector
4 Hearth cladding (Vermiculite).
Important to remember!
Installation by authorised
3-7kW
5 kW
technician
up to 79%
This manual contains instructions about
how the stoves must be assembled and
520T
installed. To ensure the function and safety
1032
of the stove, we recommend that the
564
installation is carried out by an authorised
470
technician. Contact one of our dealers who
210
can recommend suitable fitters.
Building permission
These main insructions may give guidance
which would contravene national building
regulations. Please refer to supplementary
instructions or ask your local authority for
advice regarding building regulations.
Before installing a stove or erecting a
chimney it is necessary for you to make
a building application permission to your
local authority.
1
2
3
Structural support
Check that the wood joists are strong
enough to bear the weight of the stove and
chimney. The stove and chimney can usually
be placed on a normal wooden joist in a
single occupancy house, if the total weight
does not exceed 400 kg.
Floor plate
Due to the risk of falling embers, a
combustible floor must be protected by a
hearth plate which covers at least 300 mm
to the front and 100 mm along each side.
The hearth plate can consist of natural
stone, concrete, metal or glass. A painted
metal or glass hearth plate is available as
an accessory for these models.
4
