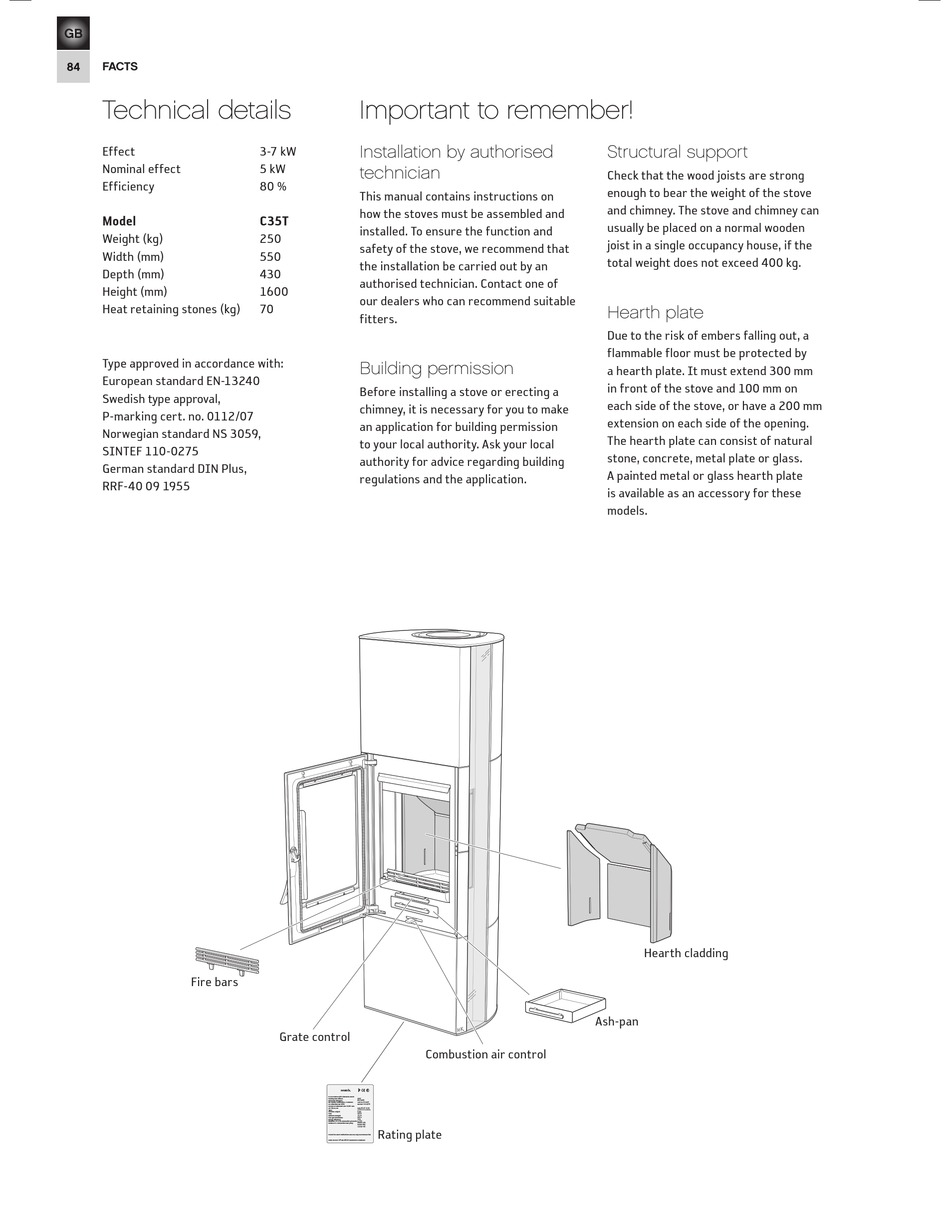

Technical Details - Contura C 35T Installation Instruction

GB
84 FACTS

Technical details

Effect
Nominal effect
Efficiency
Model
Weight (kg)
Width (mm)
Depth (mm)
Height (mm)
Heat retaining stones (kg)
Type approved in accordance with:
European standard EN-13240
Swedish type approval,
P-marking cert. no. 0112/07
Norwegian standard NS 3059,
SINTEF 110-0275
German standard DIN Plus,
RRF-40 09 1955
Brasbegränsare Fire bars
Important to remember!
Installation by authorised
3-7 kW
5 kW
technician
80 %
This manual contains instructions on
how the stoves must be assembled and
C35T
installed. To ensure the function and
250
safety of the stove, we recommend that
550
the installation be carried out by an
430
authorised technician. Contact one of
1600
our dealers who can recommend suitable
70
fitters.
Building permission
Before installing a stove or erecting a
chimney, it is necessary for you to make
an application for building permission
to your local authority. Ask your local
authority for advice regarding building
regulations and the application.
Rosterreglage
Grate control
HANDÖL
In accordance with standards below
marking was affixed: 2007
European Standard: EN 13240
Cert no 0112/07
SE Quality Certification, P-marked:
NO Standard NS 3059: SINTEF 110-0275
DE and AT Standard DIN 18.891 and
Art 15a B-VG: RRF-40 07 13 90
Type: Handöl 31/31A/32/32A
Nominal Output: 5 kW
Fuel: Wood
Minimun draught: 12 Pa
Flue gas temerature: 280°C
78%
Energy efficiency:
0,14%
Emission of CO in cumbustion products:
Behind 150
Distance to cumbustible wall (mm):
Beside 450
Corner 150
Rating plate
Follow the user's instructions and use only recomended fuel
NIBE AB Box 134 SE-285 23 MARKARYD SWEDEN
HANDÖL
Type: 50-series
Production no. 7090300236
NIBE AB SE-85 21 Markaryd Sweden
Combustion air control
Förbränningsluftsreglage
Structural support
Check that the wood joists are strong
enough to bear the weight of the stove
and chimney. The stove and chimney can
usually be placed on a normal wooden
joist in a single occupancy house, if the
total weight does not exceed 400 kg.
Hearth plate
Due to the risk of embers falling out, a
flammable floor must be protected by
a hearth plate. It must extend 300 mm
in front of the stove and 100 mm on
each side of the stove, or have a 200 mm
extension on each side of the opening.
The hearth plate can consist of natural
stone, concrete, metal plate or glass.
A painted metal or glass hearth plate
is available as an accessory for these
models.
Eldstadsbeklädnad
Hearth cladding
Ash-pan Asklåda
