Positioning the insert

!
If the protective screen is selected – read
these instructions before installing the
insert or chimney.

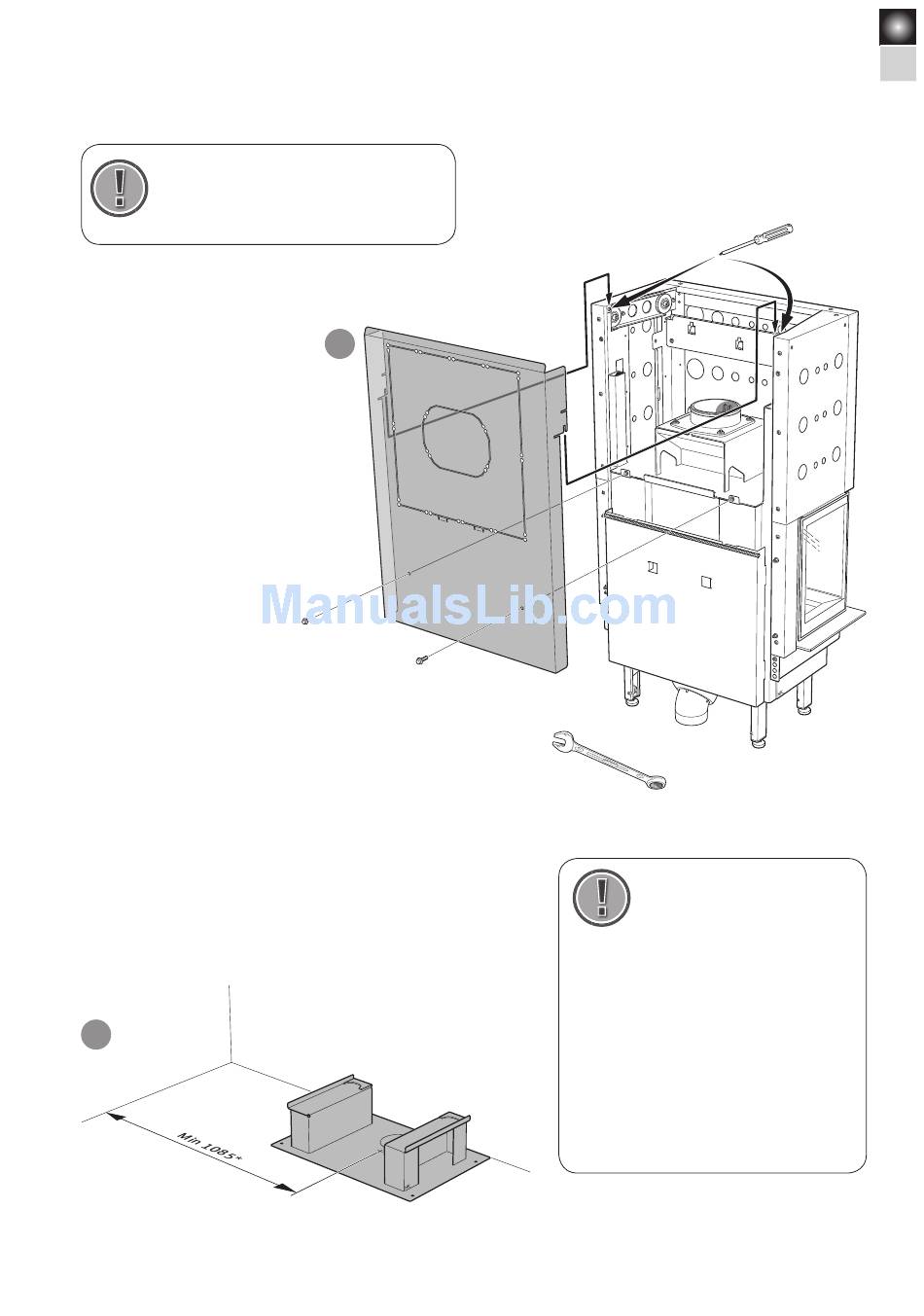

Position the floor section and check that the minimum permitted distance
to combustible material is kept. Measure to the centre of the floor section.
The rear edge of the floor section will align with the complete rear edge of
the surround.
2
1
The cross in the floor panel indicates
the location of the flue gas output.
10 mm
!
The stove can be positioned tight to the wall
behind.
When installing against non-vertical walls and
to facilitate installation it is recommended
that a small gap is left between the wall and
stove. Lay the floor section a slight distance
from the wall behind, and align the position of
the holes in the ceiling for the chimney lead-in
with the same dimensions.
