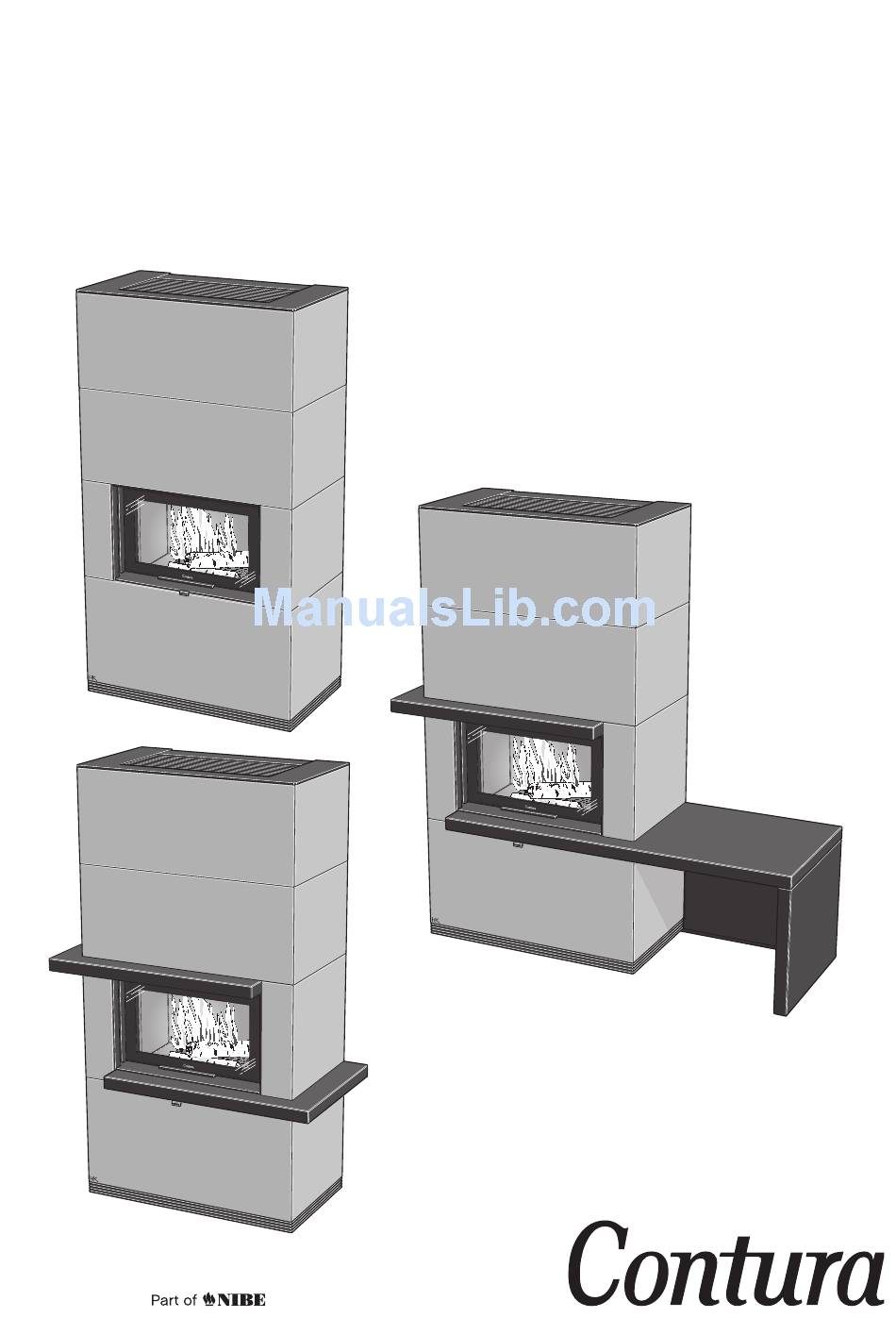

  • Page 1 Installation instruction C i31 www.contura.eu...
  • Page 2 See rating plate on the insert Intended area of use Heating of rooms in residential buildings Fuel Wood MANUFACTURER Name NIBE AB / Contura Address Box 134, Skulptörvägen 10 SE-285 23 Markaryd, Sweden CHECKS According to AVCP System 3 European standard...

  • Page 3: Table Of Contents

    A warm welcome to the Contura family. We hope you will get a great deal of pleasure from your new stove. As a new owner of a Contura stove, you have secured a product with timeless design and long service life.

  • Page 4: Technical Specifications

    Wall behind This manual contains instructions about If the fireplace is to be positioned on If your Contura i31 is to be installed how Contura i31 must be assembled a wooden joist, a structural engineer against a combustible wall, the wall must and installed.

  • Page 5: Surround

    SURROUND Surround Only handle the stone with clean hands or gloves. Handle the stone that all the stone sections are straight and that all stones are of a carefully so as not to damage fragile corners and edges. uniform height. Use shims if necessary. The stone is a natural material, which means that there may be certain irregularities and variations in its appearance.

  • Page 6: Chimney

    CHIMNEY Chimney The stove is type approved in accordance with EN 13240 and Carefully check that the chimney is sealed and that there is no must be connected to a chimney dimensioned for at least 350°C leakage around soot hatches and flue connections. the external connection diameter is Ø150 mm.

  • Page 7: Supply Of Combustion Air

    SUPPLY Supply of combustion air Supply of combustion must be provided. Combustion air can be provided directly via a duct from outside, or indirectly via a vent in the outer wall of the room where the stove is placed. The amount of combustion air that is used for combustion is approx.

  • Page 8: Installation Distances

    INSTALLATION DISTANCES Installation distances C i31 Without shelves/ Bench Important! The dimension diagrams only show the minimum permitted the flue. The minimum distance to combustible parts of the installation distances for the stove. When connecting to a building or interior decoration in front of the stove must steel flue, also note the safety distance requirements of be at least 1.5 m.
  • Page 9 INSTALLATION DISTANCES Installation distances C i31 Combustible roof With shelves/ Bench Brännbart tak Ext. Ø 150 Utv. Ø 150 1110 Combustible roof Brännbart tak Ext. Ø 150 Utv. Ø 150 1660...

  • Page 10: Positioning The Insert

    INSERT PLACEMENT Positioning the insert If the protective screen is selected – read these The stove can be positioned tight to the instructions before installing the insert or chimney. wall behind. When installing against non-vertical Position the floor section and check that the minimum permitted walls and to facilitate installation it is distance to combustible material is kept.
  • Page 11 INSERT PLACEMENT Place a spirit level on the moulding below the door, and adjust the front feet to the specified measurement from the floor to the moulding's lower edge and until the spirit level is straight. 13 mm Position the spirit level as illustrated and adjust the rear feet until the stove is level.

  • Page 12: Assembling The Stand

    STAND ASSEMBLY Assembling the stand Note the difference between the right and left stand frame. The lower brace must protrude on the outside and forwards, and provide support surfaces for the stones. ~ 4 8 M5 x 40 M6 x 20 Allen screw 4 (Tightened from inside)
  • Page 13 STAND ASSEMBLY 13 mm This brace must be twisted with the cut-out upwards to create clearance for the damper wires. Also check that the four magnetic mountings are screwed in at the bottom.
  • Page 14 STAND ASSEMBLY x 20 M5 x 9 3 0 m M i n Ensure that the disc base can be pushed around the stand. Adjust the base height with the rubber feet. On heavily sloping floors the insert and stand may need to be raised further.

  • Page 15: Assembling The Surround Without Shelves/Bench

    ASSEMBLING THE SURROUND WITHOUT SHELVES/BENCH Assembling the surround – without shelves/bench Place a foam sheet on the floor to Place a foam sheet on the floor to prevent the stone corners from becoming prevent the stone corners from becoming damaged when handling. damaged when handling.
  • Page 16 ASSEMBLING THE SURROUND WITHOUT SHELVES/BENCH The stone must lie flush against the stand. M6 x 20 Allen screw 4 This panel can be removed for servicing. Lock it in place by inserting two screws through the moving catch (A) in the front panel.
  • Page 17 ASSEMBLING THE SURROUND WITHOUT SHELVES/BENCH 2 mm Ensure that there is a 4 mm gap between the stone and insert so that the damper can move freely. Check that the top of the stones are level using a spirit level. Use supplied shims if necessary.
  • Page 18 ASSEMBLING THE SURROUND WITHOUT SHELVES/BENCH M6 x 10 Allen screw 4 The front panels must rest on the stand's metal tab, not on the lower front In the event of having to insert shims, do this on the metal tab. Shims...
  • Page 19 ASSEMBLING THE SURROUND WITHOUT SHELVES/BENCH...
  • Page 20 ASSEMBLING THE SURROUND WITHOUT SHELVES/BENCH Final installation: See page 214 Shims...

  • Page 21: Assembling The Surround With Shelves

    ASSEMBLING THE SURROUND WITH SHELVES Assembling the surround – with shelves Place a foam sheet on the floor to prevent the stone corners from becoming damaged when handling.
  • Page 22 ASSEMBLING THE SURROUND WITH SHELVES The stone must lie flush against the stand. M6 x 20 Allen screw 4 This panel can be removed for servicing. Lock it in place by inserting two screws through the moving catch (A) in the front panel.
  • Page 23 ASSEMBLING THE SURROUND WITH SHELVES 2 mm Check that the top of the stones are level using a spirit level. Use supplied shims if necessary. Carry out on the remaining stone sections. 90° Shims...
  • Page 24 ASSEMBLING THE SURROUND WITH SHELVES M10 x 20 Allen 16 mm Do not tighten the screws completely in order to allow some lateral adjustment of the shelf after installation. M6 x 16 Allen 10 mm Ensure that there is a gap of about 2 mm between the shelf and insert and that the damper can move freely.
  • Page 25 ASSEMBLING THE SURROUND WITH SHELVES M6 x 10 Allen screw 4 The front panel must rest on the stand's metal tab, not on the lower front In the event of having to insert shims, do this on the metal tab. Shims...
  • Page 26 ASSEMBLING THE SURROUND WITH SHELVES Check that the frame moulding does not bend downwards. M10 x 20 Allen 16 mm Do not tighten the screws completely in order to allow some lateral adjustment of the shelf after installation. M6 x 16 Allen 10 mm Ensure that the shelf is aligned with the upper edge...
  • Page 27 ASSEMBLING THE SURROUND WITH SHELVES Final installation: See page 214 Shims...

  • Page 28: Assembling The Surround With Bench

    ASSEMBLING THE SURROUND WITH BENCH Assembling the surround – with bench Place a foam sheet on the floor to prevent the stone corners from becoming damaged when handling.
  • Page 29 ASSEMBLING THE SURROUND WITH BENCH The stone must lie flush against the stand. M6 x 20 Allen screw 4 This panel can be removed for servicing. Lock it in place by inserting two screws through the moving catch (A) in the front panel.
  • Page 30 ASSEMBLING THE SURROUND WITH BENCH 2 mm Check that the top of the stones are level using a spirit level. Use supplied shims if necessary. Carry out on the remaining stone sections. 90° Shims...
  • Page 31 ASSEMBLING THE SURROUND WITH BENCH M6 x 16 Allen 10 M6 x 16 Allen screw 4...
  • Page 32 ASSEMBLING THE SURROUND WITH BENCH M6 x 12 Allen screw 4...
  • Page 33 ASSEMBLING THE SURROUND WITH BENCH Adjust the feet on the leg so that the bench top has a flat mating surface. Position the bench top and check that it is stable and does not rock. Ensure that there is a gap of about 2 mm between the shelf and insert and that the damper can move freely.
  • Page 34 ASSEMBLING THE SURROUND WITH BENCH Left-hand bench version Right-hand bench version M6 x 10 M6 x 10 Allen screw 4 Allen screw 4 The front panel must rest on the stand's metal tab, not on the lower front In the event of having to insert shims, do this on the metal tab.
  • Page 35 ASSEMBLING THE SURROUND WITH BENCH Shims Check that the frame moulding does not bend downwards.
  • Page 36 ASSEMBLING THE SURROUND WITH BENCH M10 x 20 Allen 16 mm M6 x 16 Allen 10 mm Ensure that the shelf is aligned with the upper edge of section 2.
  • Page 37 ASSEMBLING THE SURROUND WITH BENCH Shims Final installation: See page 214...

  • Page 38: Assembling Grate And Top

    INSTALLING GRATE AND TOP Assembling grate and top For rear connection M6 x 10 Allen screw 4...
  • Page 39 INSTALLING GRATE AND TOP...
  • Page 40 INSTALLING GRATE AND TOP For top connection M6 x 10 Allen screw 4...
  • Page 41 INSTALLING GRATE AND TOP...
  • Page 42 INSTALLING GRATE AND TOP Disc base...
  • Page 43 INSTALLING GRATE AND TOP Adjust the rubber feet on the disc base so that the gap up to the stone is 5 mm. Final inspection of the installation It is extremely important that the installation is inspected by an authorised inspection body before the stove is used.
  • Page 44 NIBE AB · Box 134 · SE-285 23 · Markaryd · Sweden www.contura.eu Contura reserves the right to change dimensions and procedures described in these instructions at any 811205 IAV SE-EX Ci31-9 time without special notice. The current edition can be 2014-08-19 downloaded from www.contura.eu...
