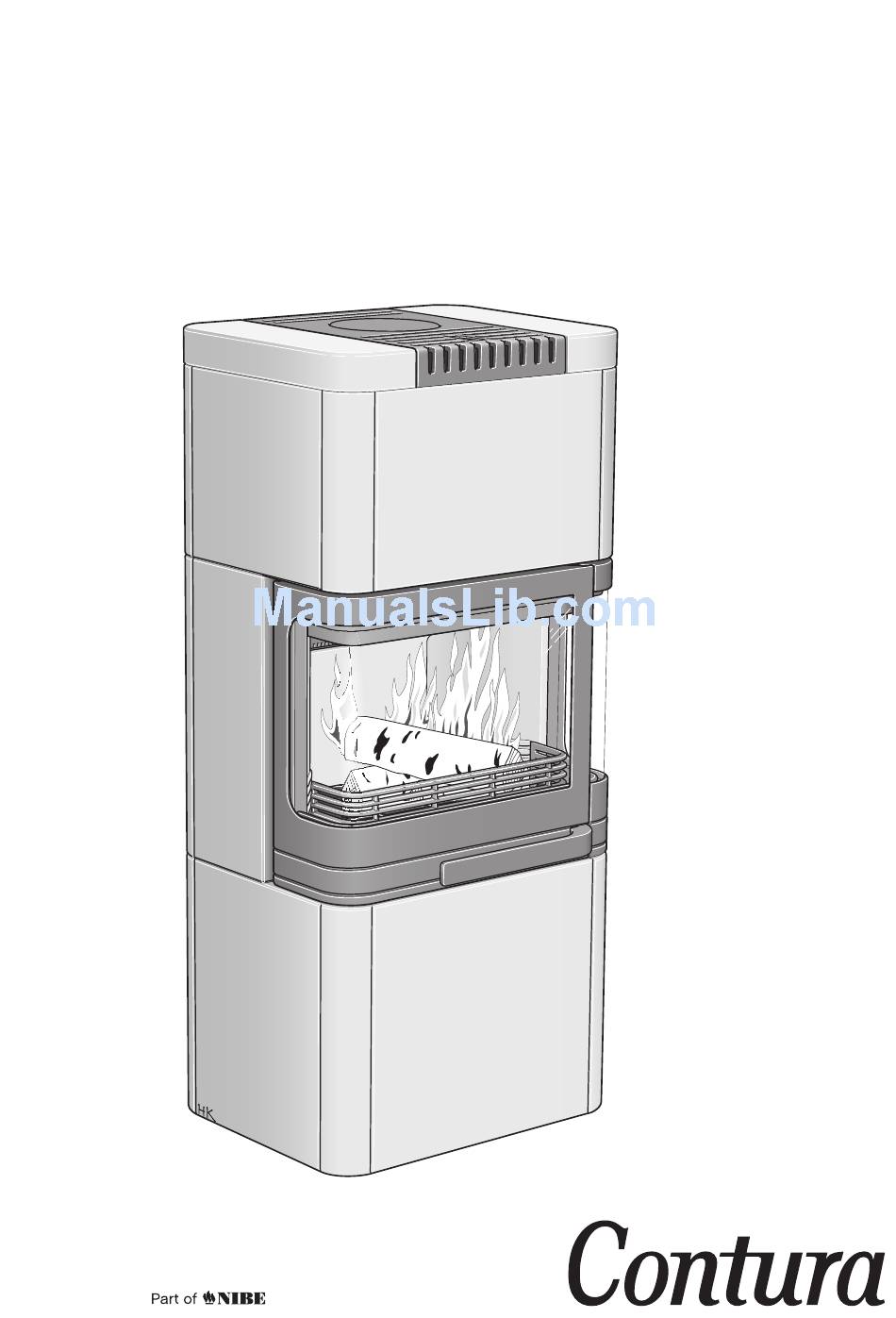

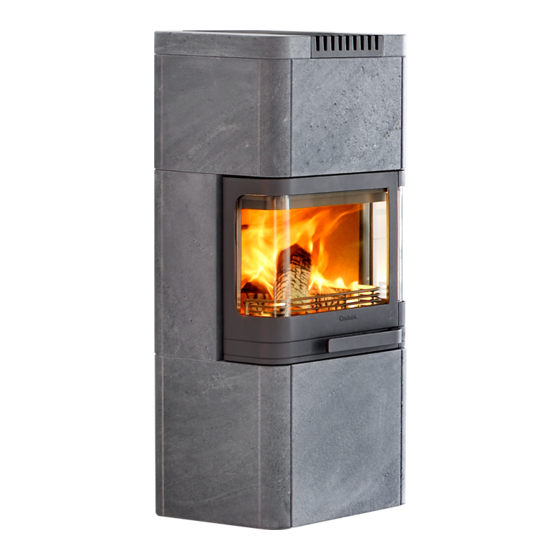

- Page 1 Installation instructions C 26K Low www.contura.eu...
- Page 2 See rating plate on the stove Intended area of use Heating of rooms in residential buildings Fuel Wood MANUFACTURER Name NIBE AB / Contura Address Box 134, Skulptörvägen 10 SE-285 23 Markaryd, Sweden CHECKS According to AVCP System 3 European standard...
-
Page 3: Table Of Contents
A warm welcome to the Contura family. We hope you will get a great deal of pleasure from your new stove. As a new owner of a Contura stove, you have secured a product with timeless design and long service life. -
Page 4: Technical Details
FACTS Technical details Important to remember! Installation by authorised Structural support Effect 3-9 kW Nominal effect 6 kW technician Check that the wood joists are strong Efficiency enough to bear the weight of the stove This manual contains instructions on and chimney. -
Page 5: Supply Of Combustion Air
SUPPLY AIR/ACCESSORY Supply of combustion air When a stove is installed in a room, the air supply demand to the room increases. Air can be provided indirectly via a vent in the outer wall or via a duct from the outside that is connected to the connector on the underneath of the stove. -
Page 6: Connection To Chimney
If further sealing material is required, heat- resistant sealant may be used. Sweeping When sweeping, the smoke baffle must be removed; on the Contura 20 series this is easily done by lifting and then pushing the baffle to the side. -
Page 7: Installation Distances
INSTALLATION DISTANCES Installation distances C26K Low A = height from floor to chimney connection upwards Combustible roof B = height from floor to c/c chimney connection rear C = distance from back to c/c chimney connection upwards Place the stove on the D = distance from back to chimney connection rear hearth plate and check E = distance from back to hole in guide plate... - Page 8 ASSEMBLY Assembling C 26K Low The stove needs to be placed on a level and horizontal surface, so the courses do not end up uneven and crooked. Otherwise, this can result in abnormally large gaps and uneven lines. During assembly, check that all tiles stand horizontally and that all parts in a course are of a uniform height.
- Page 9 ASSEMBLY Place the profile edge to edge with the tile's side.
- Page 10 ASSEMBLY Wait to tighten this screw until the next tile is in place. When installing the upper course: Wait to tighten the screws in the tile until all parts are in place and all adjustments have been made.
- Page 11 ASSEMBLY Prevent the side panels from dipping forward by hooking the hooks in the rear profile and tightening the screws until they engage...
- Page 12 ASSEMBLY The front plates are moved up slightly by hooking the hooks in the rear profile and tightening the screws. Tighten the screws until the upper plates align with the upper edge. Tighten all screws in the tiling.
- Page 13 ASSEMBLY...
-
Page 14: Final Installation And Joining
ASSEMBLY Final installation and joining Adjustment screws for placement in the guide plate to support the top plates. Adjust them, so they are at the same height as the top of the side plates. Open and fold out any deformed edges in the pipe opening to facilitate installation. - Page 15 ASSEMBLY Ensure that joints are clean and dry before applying the sealant. Check that the damper can be opened and closed without problem. Work the sealant in with a lightly dampened sponge in diagonal movements. After the sealant has dried the tiles can be wiped clean.
- Page 16 NIBE AB · Box 134 · SE-285 23 Markaryd · Sweden www.contura.se Contura reserves the right to change dimensions and procedures described in these instructions at any 811093 IAV SE-EX C26K Low -5 time without special notice. The current edition can be 2013-11-12 downloaded from www.contura.eu...
